Kednos PL/I for UNIX

Reference Manual

April 1996

This manual defines Kednos PL/I for UNIX. It includes the keywords
and the semantic and syntax rules of PL/I programming language
statements, attributes, built-in functions, and other language elements.







Operating System and Version: Digital UNIX Version 3.2 or
higher

Software Version: Kednos PL/I for UNIX
Version 1.3





Kednos Corporation
Pebble Beach, California
Second Printing (Update), April 1996

Kednos Systems, Inc., makes no representations that the use of its products in the manner described in this publication will not infringe on existing or future patent rights, nor do the descriptions contained in this publication imply the granting of licenses to make, use, or sell equipment or software in accordance with the description.

Possession, use, or copying of the software described in this publication is authorized only pursuant to a valid written license from Kednos or an authorized sublicensor.

No responsibility is assumed for the use or reliability of software on equipment that is not listed as supported in the Product Description.

Restricted Rights: Use, duplication or disclosure by the U.S. Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

© Kednos Corporation, 1995, 1996, All Rights Reserved.

Kednos, Kednos PL/I, and Kednos VPO are trademarks of Kednos Corporation.

Alpha AXP, CDD, DEC,DEC 4000, DECwindows, Digital, OpenVMS AXP, ULTRIX, VAX, OpenVMS, VT102, VT220, VT240, VT320, VT330, VT340, and the DIGITAL logo are trademarks of Digital Equipment Corporation.

SAA and IBM are trademarks of International Business Machine Inc.

Stratus is a trademark of Stratus Computer Inc.

Kednos PL/I for UNIX includes the GNU readline and assembler software. See the Kednos PL/I for UNIX User's Manual for the entire text of the Free Software Foundation's GNU Copyleft.

Portions Copyright 1984-1990 FairCom Corporation. All Rights Reserved.

Kednos requests your critical evaluation to assist in preparing future documentation. Please send any comments to comments@Kednos.com or by physical mail to:

Kednos Corporation
1051 Rodeo Road
Pebble Beach, CA  93953

Preface xxiii

Intended Audience xxiii

Associated Documents xxiii

Conventions xxiv

Technical Assumptions xxv

Terminological Conventions xxv

Chapter 1 --

Program Structure and Content 1-1

Lexical Elements 1-1

Keywords 1-2

Punctuation 1-2

Identifiers 1-5

Comments 1-5

Statements 1-6

Statement Formats 1-7

Condition Prefixes (IBM Dialect Only) 1-7

Statement Labels 1-8

Simple Statements 1-8

Compound Statements 1-9

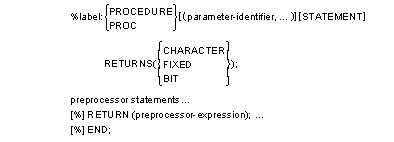

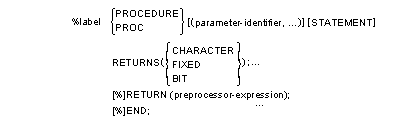

Preprocessor Statements 1-9

Summary of Statements by Function 1-9

Program Format 1-12

Blocks 1-13

Begin Blocks 1-15

Procedure Blocks 1-16

Containment 1-16

Block Activation 1-17

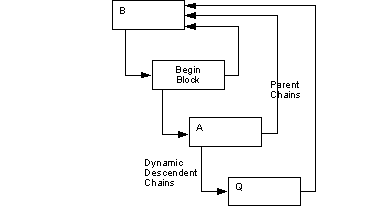

Relationship of Block Activations 1-17

Block Termination 1-20

Data and Variables 1-20

Preprocessor 1-21

Chapter 2 --

Declarations 2-1

DECLARE Statement 2-2

Simple Declarations 2-2

Declarations Outside Procedures 2-3

Multiple Simple Declarations 2-4

Factored Simple Declarations 2-4

Array Declarations 2-5

Structure Declarations 2-6

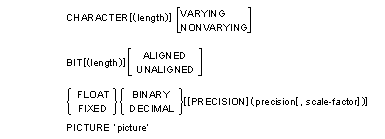

Attributes 2-7

ALIGNED Attribute 2-15

ANY Attribute 2-15

AREA Attribute 2-16

AUTOMATIC Attribute 2-17

BASED Attribute 2-17

BINARY Attribute 2-18

BIT Attribute 2-19

BUFFERED and UNBUFFERED Attributes (IBM Dialect Only) 2-20

BUILTIN Attribute 2-21

CHARACTER Attribute 2-22

CONDITION Attribute 2-23

CONTROLLED Attribute 2-23

DECIMAL Attribute 2-24

DEFINED Attribute 2-25

DIMENSION Attribute 2-26

DIRECT Attribute 2-27

ENTRY Attribute 2-28

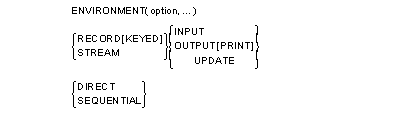

ENVIRONMENT Attribute 2-30

EXTERNAL Attribute 2-33

FILE Attribute 2-34

FIXED Attribute 2-34

FLOAT Attribute 2-36

GLOBALDEF Attribute 2-36

GLOBALREF Attribute 2-37

INITIAL Attribute 2-37

INPUT Attribute 2-41

INTERNAL Attribute 2-42

KEYED Attribute 2-42

LABEL Attribute 2-43

LIKE Attribute 2-43

MEMBER Attribute 2-44

NONVARYING Attribute 2-44

OFFSET Attribute 2-44

OPTIONAL Attribute (Dec and Ansi Dialects Only) 2-45

OUTPUT Attribute 2-45

PARAMETER Attribute 2-46

PICTURE Attribute 2-46

POINTER Attribute 2-47

POSITION Attribute 2-47

PRECISION Attribute 2-48

PRINT Attribute 2-49

READONLY Attribute 2-49

RECORD Attribute 2-50

REFER Attribute 2-50

REFERENCE Attribute 2-50

RETURNS Attribute 2-51

SEQUENTIAL Attribute 2-52

STATIC Attribute 2-53

STREAM Attribute 2-53

STRUCTURE Attribute 2-54

TYPE Attribute 2-54

TRUNCATE Attribute 2-56

UNALIGNED Attribute 2-57

UNBUFFERED Attribute (IBM Dialect Only) 2-57

UNION Attribute 2-57

UPDATE Attribute 2-58

VALUE Attribute 2-59

VARIABLE Attribute 2-60

VARYING Attribute 2-60

Chapter 3 --

Data Types 3-1

Summary of Data Types 3-1

Declarations 3-2

Default Attributes 3-3

Attributes of Constants 3-4

Arithmetic Operands 3-5

Compatible Data Types 3-6

Arithmetic Data 3-8

Precision and Scale of Arithmetic Data Types 3-8

Fixed-Point Binary Data 3-9

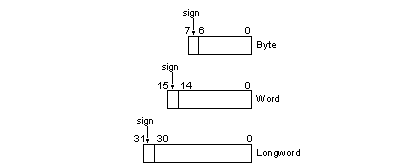

Internal Representation of Fixed-Point Binary Data 3-10

Fixed-Point Decimal Data 3-11

Fixed-Point Decimal Constants 3-11

Fixed-Point Decimal Variables 3-12

Use in Expressions 3-12

Internal Representation of Fixed-Point Decimal Data 3-13

Floating-Point Data 3-13

Floating-Point Constants 3-14

Floating-Point Variables 3-14

Using Floating-Point Data in Expressions 3-15

Floating-Point Data Formats 3-15

IEEE S_floating Format 3-16

IEEE T_floating Format 3-17

Character Pictured Data 3-17

Character Picture Characters 3-18

Examples of Character Picture Variable Definitions 3-18

Numeric Pictured Data 3-19

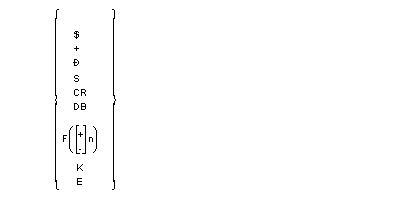

Picture Characters 3-20

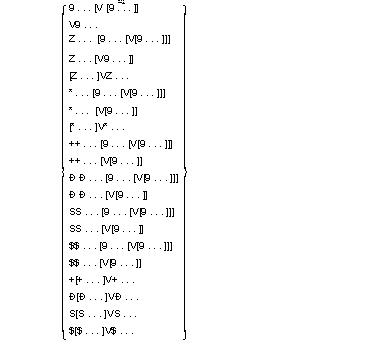

Picture Syntax 3-28

Examples 3-31

Assigning Values to Pictured Variables 3-32

Extracting Values from Pictured Data 3-33

Editing by Picture 3-34

The Internal Representation of Pictured Variables 3-34

Character String Data 3-36

Character String Constants 3-36

Replication of String Constants 3-37

Character-String Variables 3-37

Fixed-Length Character String Variables 3-38

Internal Representation of Fixed-Length Character Data 3-39

Varying-Length Character String Variables 3-39

Internal Representation of Varying Character Data 3-40

Alignment of Character Strings 3-40

Bit-String Data 3-40

Bit-String Constants 3-41

Replication Factor for Bit-String Constants 3-42

Bit-String Variables 3-43

Alignment of Bit-String Data 3-44

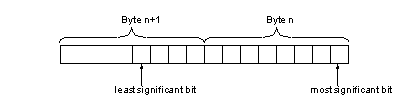

Internal Representation of Bit Data 3-45

Bit Strings and Integers 3-48

Pointer Data 3-49

Pointer Variables in Expressions 3-50

Internal Representation of Pointer Data 3-50

Offset Data 3-50

Label Data 3-51

Label Array Constants 3-52

Label Values 3-54

Label Variables 3-55

Internal Representation of Label Variables 3-56

Entry Data 3-57

Entry Constants 3-57

Entry Values 3-58

Entry Variables 3-58

Internal Representation of Entry Variables 3-59

File Data 3-60

File Constants 3-60

File Values 3-61

File Variables 3-61

Area Data 3-62

Area Variables in Expressions 3-63

Reading and Writing Areas 3-63

Internal Representation of Area Data 3-63

Condition Data 3-64

Chapter 4 --

Aggregates 4-1

Arrays 4-1

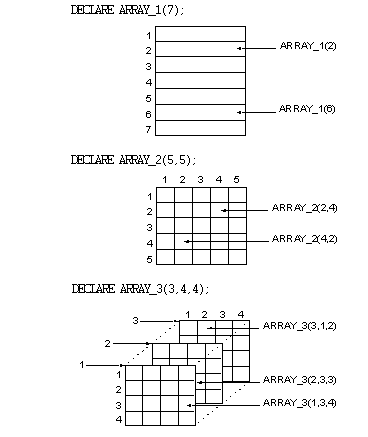

Array Declarations 4-1

References to Individual Elements 4-5

Initializing Arrays 4-6

Assigning Values to Array Variables 4-10

Order of Assignment and Output for Multidimensional Arrays 4-11

Using GET and PUT Statements with Array Variables 4-12

Passing Arrays as Arguments 4-12

Built-In Functions Providing Array Dimension Information 4-13

Structures 4-14

Structure Declarations and Attributes 4-14

Using The UNION Attribute On Structure Declarations 4-16

Initializing Structures 4-17

Using Structure Variables in Expressions 4-17

Passing Structure Variables as Arguments 4-18

Member Attributes 4-18

Using the TYPE Attribute 4-18

Using the LIKE Attribute 4-21

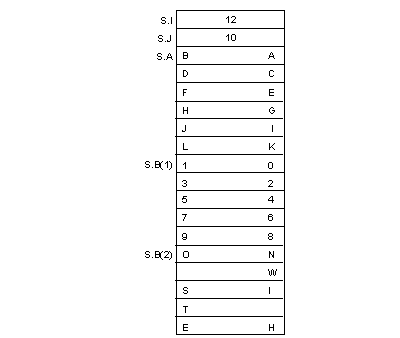

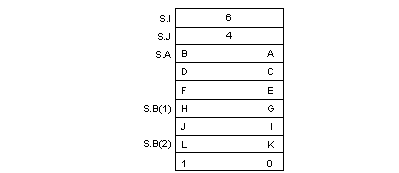

Using the REFER Option 4-23

Structure-Qualified References 4-27

Arrays of Structures 4-28

Arrays of Structures that Contain Arrays 4-29

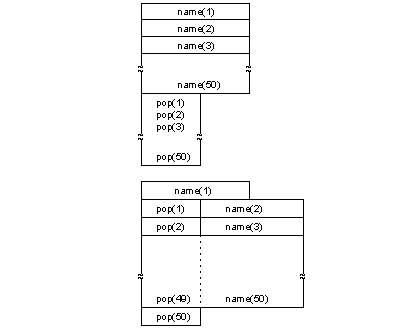

Connected and Unconnected Arrays 4-30

Internal Representation of Aggregate Data 4-32

Chapter 5 --

Storage Classes 5-1

Automatic Variables 5-2

Static Variables 5-2

Internal Variables 5-3

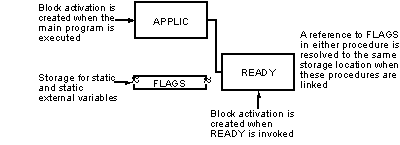

External Variables 5-3

Based Variables 5-5

Data Types Used with Based Variables 5-6

Allocation in Areas 5-6

Referring to Based Variables 5-8

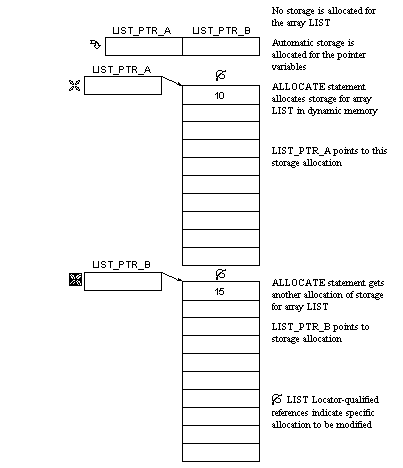

Based Variables and Dynamic Storage Allocation 5-10

Using the ADDR Built-in Function 5-13

Data-Type Matching for Based Variables 5-14

Matching by Overlay Defining 5-14

Matching by Left-to-Right Equivalence 5-15

Nonmatching Based Variable References 5-16

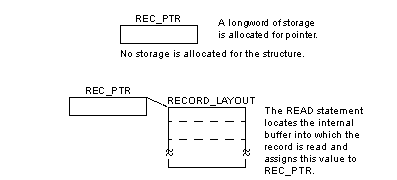

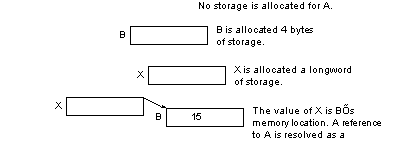

Examples of Based Variables 5-16

Controlled Variables 5-19

Using the ALLOCATION Built-In Function 5-20

Using the ADDR Built-In Function 5-21

Dynamically Allocated Variables 5-22

ALLOCATE Statement 5-22

FREE Statement 5-23

Other Mechanisms for Dynamic Storage Allocation 5-25

Defined Variables 5-25

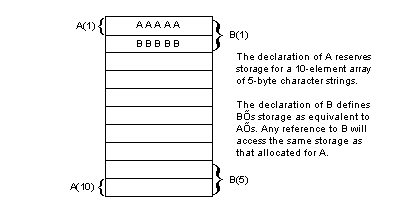

String Overlay Defining 5-26

Rules for Overlay Defining 5-28

Storage Sharing 5-28

Chapter 6 --

Expressions and Data Type Conversions 6-1

Assignment Statement 6-1

Operators and Operands 6-4

Arithmetic Operators 6-5

Logical Operators 6-6

NOT 6-8

AND 6-8

OR 6-9

EXCLUSIVE OR 6-10

AND THEN 6-10

OR ELSE 6-11

Relational Operators 6-12

Arithmetic Comparisons 6-12

Bit-String Comparisons 6-13

Character-String Comparisons 6-13

Comparing Noncomputational Data 6-13

Concatenation Operator 6-14

Precedence of Operators and Expression Evaluation 6-15

Data Type Conversion of Operands and Expressions 6-17

Contexts in which PL/I Converts Data 6-18

Derived Data Types for Arithmetic Operations 6-21

Conversion of Operands in Nonarithmetic Operations 6-22

Built-In Conversion Functions 6-23

Implicit Conversion During Assignment 6-24

Assignment to Arithmetic Variables 6-25

Arithmetic to Arithmetic Conversions 6-25

Pictured to Arithmetic Conversions 6-27

Bit-String to Arithmetic Conversions 6-27

Character-String to Arithmetic Conversions 6-29

Assignments to Bit-String Variables 6-30

Arithmetic to Bit-String Assignments 6-30

Pictured to Bit-String Conversions 6-32

Character-String to Bit-String Conversions 6-33

Assignments to Character-String Variables 6-33

Arithmetic to Character-String Conversions 6-34

Pictured to Character-String Conversion 6-37

Bit-String to Character-String Conversion 6-37

Assignments to Pictured Variables 6-37

Conversions Between Offsets and Pointers 6-38

Chapter 7 --

Procedures 7-1

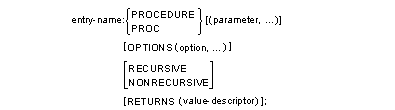

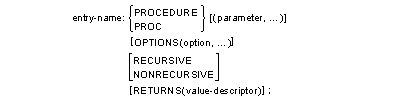

PROCEDURE Statement 7-2

Functions and Function References 7-4

ENTRY Statement 7-5

Specifying Entry Points 7-7

Multiple Entry Points 7-8

CALL Statement 7-9

Parameters and Arguments 7-10

Rules for Specifying Parameters 7-13

Argument Passing 7-15

Calling External and Internal Procedures 7-18

Terminating Procedures 7-20

Passing Arguments to Non-PL/I Procedures 7-22

Passing Arguments by Immediate Value 7-22

Passing Arguments by Reference 7-23

Chapter 8 --

Program Control 8-1

DO Groups and Statements 8-1

Simple DO 8-2

DO WHILE 8-3

DO UNTIL 8-4

DO REPEAT 8-6

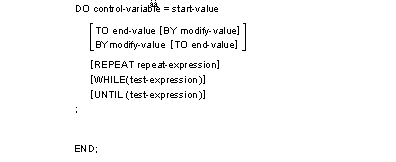

Controlled DO 8-9

BEGIN Statement 8-13

END Statement 8-15

IF Statement 8-16

Nested IF Statements 8-17

SELECT Statement 8-18

The Two Forms of the SELECT Statement 8-19

OTHERWISE Clause 8-21

Nested SELECT Statements 8-21

GOTO Statement 8-22

LEAVE Statement 8-26

STOP Statement 8-28

Null Statement 8-29

Condition Handling 8-30

ON Statement 8-30

SIGNAL Statement 8-31

REVERT Statement 8-32

Summary of ON Conditions 8-34

ANYCONDITION Condition 8-37

AREA Condition 8-37

ATTENTION Condition (IBM Dialect Only) 8-37

CHECK Condition (IBM Dialect Only) 8-38

CONDITION Condition 8-39

CONVERSION Condition 8-39

ENDFILE Condition 8-42

ENDPAGE Condition 8-43

ERROR Condition 8-45

FINISH Condition 8-45

FIXEDOVERFLOW Condition 8-46

KEY Condition 8-47

NAME Condition (IBM Dialect Only) 8-49

OVERFLOW Condition 8-50

RECORD Condition (IBM Dialect Only) 8-50

SIZE Condition (IBM Dialect Only) 8-51

STRINGRANGE Condition 8-53

STRINGSIZE Condition (IBM Dialect Only) 8-55

SUBSCRIPTRANGE Condition 8-55

STORAGE Condition 8-56

TRANSMIT Condition (IBM Dialect Only) 8-56

UNDEFINEDFILE Condition 8-57

UNDERFLOW Condition 8-59

VAXCONDITION Condition 8-60

ZERODIVIDE Condition 8-60

Default PL/I ON-Unit 8-60

Using Condition Prefixes (IBM Dialect Only) 8-61

Scope of Condition Prefixes 8-61

Default Status of Conditions 8-62

Establishing ON-Units 8-63

Contents of an ON-Unit 8-64

Search Path for ON-Units 8-65

Completion of ON-Units 8-65

Chapter 9 --

Input and Output 9-1

Opening and Closing Files 9-1

File Declarations 9-2

File Variables 9-2

Opening a File 9-3

OPEN Statement Options 9-5

Effects of Opening a File 9-6

Establishing the File's Attributes 9-7

Determining the File Specification 9-8

Accessing an Existing File 9-9

Creating a File 9-9

File Positioning 9-10

File Description Attributes and Options 9-10

Closing a File 9-11

Stream I/O 9-12

Processing and Positioning of Stream Files 9-14

Input by the GET Statement 9-16

Syntax Summary of the GET Statement 9-16

GET EDIT 9-19

GET LIST 9-20

GET SKIP 9-23

Execution of the GET Statement 9-23

Output by the PUT Statement 9-26

Syntax Summary of the PUT Statement 9-26

PUT EDIT 9-29

PUT LINE 9-30

PUT LIST 9-31

PUT PAGE 9-32

PUT SKIP 9-32

Execution of the PUT Statement 9-33

Format Items 9-34

A Format Item 9-35

B Format Items 9-37

COLUMN Format item 9-41

E Format Item 9-42

F Format Item 9-46

LINE Format Item 9-49

P Format Item 9-50

PAGE Format Item 9-52

R Format Item 9-52

SKIP Format Item 9-55

TAB Format Item 9-55

X Format Item 9-57

Format Specifications 9-59

Processing and Positioning of Character Strings 9-67

Terminal I/O 9-68

Simple Input from a Terminal 9-68

Simple Output to a Terminal 9-69

Print File 9-70

Record I/O 9-73

READ Statement 9-75

File Positioning Following a READ Statement 9-77

WRITE Statement 9-79

File Positioning Following a WRITE Statement 9-80

DELETE Statement 9-83

File Positioning Following a DELETE Statement 9-84

REWRITE Statement 9-84

File Positioning Following a REWRITE Statement 9-85

LOCATE Statement (IBM Dialect Only) 9-87

File Positioning Following a LOCATE Statement 9-89

Position Information for a Record File 9-89

Chapter 10 --

Preprocessor 10-1

Preprocessor Compilation Control 10-2

Preprocessor Statements 10-3

%Assignment Statement 10-5

% (Null) 10-6

%ACTIVATE 10-6

%DEACTIVATE 10-8

%DECLARE 10-9

%DO 10-10

%END 10-11

%ERROR 10-11

%FATAL 10-12

%GOTO 10-12

%IF 10-14

%INCLUDE 10-14

%INFORM 10-17

%PROCEDURE 10-17

%REPLACE Statement 10-25

%RETURN Statement 10-26

%WARN 10-26

User-Generated Diagnostic Messages 10-27

Preprocessor Built-In Functions 10-29

Chapter 11 --

Built-In Functions, Subroutines, and Pseudovariables 11-1

Built-In Function Arguments 11-1

Conditions Signaled 11-2

Summary of Built-In Functions 11-2

Descriptions of Built-In Functions 11-9

ABS 11-9

ACOS 11-10

ADD 11-10

ADDR 11-11

ALL 11-11

ALLOCATION 11-12

ANY 11-13

ASIN 11-13

ATAN 11-13

ATAND 11-14

ATANH 11-14

BINARY 11-15

BIT 11-16

BOOL 11-16

BYTE 11-18

BYTESIZE 11-18

CEIL 11-18

CHARACTER 11-19

COLLATE 11-20

COPY 11-20

COS 11-21

COSD 11-21

COSH 11-21

CURRENTSTORAGE 11-21

DATE 11-22

DATETIME 11-23

DECIMAL 11-23

DECODE 11-24

DIMENSION 11-25

DIVIDE 11-26

EMPTY 11-26

ENCODE 11-27

ERF 11-27

ERFC 11-28

ERROR 11-28

EVERY 11-28

EXP 11-29

FIXED 11-29

FLOAT 11-30

FLOOR 11-30

HBOUND 11-31

HIGH 11-31

INDEX 11-32

INFORM 11-33

INT 11-33

LBOUND 11-35

LENGTH 11-36

LINE 11-36

LINENO 11-36

LOG 11-36

LOG10 11-37

LOG2 11-37

LOW 11-37

MAX 11-38

MAXLENGTH 11-38

MIN 11-39

MOD 11-40

MULTIPLY 11-42

NULL 11-43

OFFSET 11-44

ONCHAR 11-44

ONCODE 11-45

ONFILE 11-45

ONKEY 11-46

ONLOC 11-46

ONSOURCE 11-47

PLIRETV 11-47

POINTER 11-47

POSINT 11-48

PRECISION 11-50

PROD 11-50

RANK 11-51

REPEAT 11-51

REVERSE 11-52

ROUND 11-53

SEARCH 11-55

SIGN 11-56

SIN 11-57

SIND 11-57

SINH 11-57

SIZE 11-57

SOME 11-61

SQRT 11-61

STORAGE 11-61

STRING 11-62

SUBSTR 11-63

SUBTRACT 11-64

SUM 11-65

TAN 11-66

TAND 11-66

TANH 11-66

TIME 11-66

TRANSLATE 11-67

TRIM 11-69

TRUNC 11-71

UNSPEC 11-71

VARIANT 11-72

VERIFY 11-73

WARN 11-74

Built-In Subroutines 11-75

Pseudovariables 11-76

INT Pseudovariable 11-77

ONCHAR Pseudovariable 11-79

ONSOURCE Pseudovariable 11-80

PAGENO Pseudovariable 11-80

POSINT Pseudovariable 11-80

STRING Pseudovariable 11-82

SUBSTR Pseudovariable 11-83

UNSPEC Pseudovariable 11-84

Appendix A --

Alphabetic Summary of Keywords A-1

Appendix B --

Dialect Differences B-1

Data Declarations B-1

Data Types B-1

Condition Handling B-1

Condition Prefixes B-2

ON Conditions B-2

Return Values for Condition Signals B-2

Sort Support B-2

Record and Stream I/O B-2

Built-in Functions B-3

Built-in Subroutines B-3

Appendix C --

Compatibility with PL/I Standards B-1

Relation to the 1981 PL/I General-Purpose Subset B-1

Program Structure B-2

Program Control B-2

Storage Control B-2

Input/Output B-2

Attributes and Pictures B-3

Built-In Functions and Pseudovariables B-3

Expressions B-3

198x PL/I General-Purpose Subset Features Supported B-4

Lexical Constructs B-4

Program Control B-4

Storage Control B-4

Input/Output B-5

Attributes and Pictures B-5

Built-In Functions and Pseudovariables B-5

Expressions B-6

Full PL/I Features Supported B-6

Program Structure B-6

Program Control B-6

Storage Control B-6

Attributes and Pictures B-6

Built-In Functions and Pseudovariables B-7

Expressions B-7

Nonstandard Features from Other Implementations B-7

Preprocessor B-7

Program Control B-8

IBM Dialect I/O Features and Other IBM Dialect Features B-8

Built-In Functions B-8

LIKE Extension B-8

Declarations B-8

PL/I-Specific Extensions for the Digital Unix Platform B-8

Procedure-Calling and Condition-Handling Extensions B-8

Miscellaneous Extensions B-9

Implementation-Defined Values and Features B-10

Appendix D --

Migration Notes C-1

Keywords Not Supported C-1

Differences Between Kednos PL/I for UNIX Digital's PL/I and Other Digital-Compatible Versions of PL/I C-7

Statements C-7

Data Type Attributes C-7

Default Values for Data Type Attributes C-7

Floating Point Data Types C-8

Scale Factors C-8

Procedures and Entries Specified with the Returns Option C-8

Passing Arguments to Non-PL/I Procedures C-8

GOTO Statement C-9

Condition Handling C-9

File Handling C-9

Preprocessor C-9

Built-in Functions and Subroutines C-10

Appendix E --

Language Summary D-1

Statements D-1

Attributes D-9

Statement Format D-11

Expressions and Data Conversions D-12

Pseudovariables D-15

Built-In Subroutines D-16

Figure 1-1. Relationship of Block Activations 1-18

Figure 3-1. Internal Representation of Fixed-Point Binary Data 3-11

Figure 3-2. Fixed-Point Decimal Data Representation 3-13

Figure 3-3. IEEE S_floating Data Representation 3-16

Figure 3-4. IEEE T_floating Data Representation 3-17

Figure 3-5. Internal Representation of a Pictured Variable 3-35

Figure 3-6. Internal Representation of a Pictured Variable 3-35

Figure 3-7. Unaligned Bit String Storage 3-46

Figure 3-8. Sample Unaligned Bit String Storage 3-46

Figure 3-9. Aligned Bit String Storage 3-47

Figure 3-10. Sample Aligned Bit String Storage 3-47

Figure 3-11. Variable Label Data Representation 3-56

Figure 3-12. Entry Variable Data Representation 3-59

Figure 4-1. Specifying Elements of an Array 4-8

Figure 4-2. Storage of Structure with REFER Option 4-25

Figure 4-3. Remapped Storage of Structure with REFER Option 4-26

Figure 4-4. Connected and Unconnected Arrays 4-31

Figure 5-1. External Variables 5-4

Figure 5-2. Using the ALLOCATE Statement 5-11

Figure 5-3. Using the READ Statement with a Based Variable 5-13

Figure 5-4. Using the ADDR Built-In Function 5-14

Figure 5-5. An Overlay Defined Variable 5-27

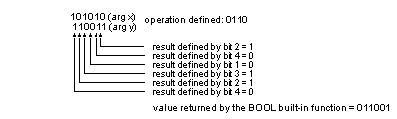

Figure 11-1. Example of the BOOL Built-In Function 11-17

Table Pref-1. Documentation Conventions Table xxiv

Table 1-1. Punctuation Marks Recognized by PL/I 1-3

Table 1-2. Summary of PL/I Statements 1-10

Table 2-1. Alphabetic Summary of PL/I Attributes   2-10

Table 2-2. Default Values for BINARY Attribute 2-19

Table 2-3. Default Values for the DECIMAL Attribute. 2-25

Table 2-4. Default Values for Unspecified FIXED Attributes 2-35

Table 2-5. Default Values for Unspecified FLOAT Attributes 2-36

Table 3-1. Implied Attributes for Computational Data 3-3

Table 3-2. Default Values for Precision 3-9

Table 3-3. Ranges of Floating-Point Formats 3-15

Table 3-4. Ranges of Precision for Floating-Point Types 3-16

Table 3-5. Floating-Point Types Used by PL/I 3-16

Table 3-6. Picture Characters 3-20

Table 3-7. ASCII Representation of Encoded-Sign Characters 3-24

Table 4-1. Specifying Array Dimensions 4-3

Table 4-2. Natural Alignment for Structure Members 4-33

Table 6-1. Data Types for Assignment Statement 6-2

Table 6-2. Infix Arithmetic Operators 6-5

Table 6-3. Logical Operators 6-6

Table 6-4. Precedence of Operators 6-15

Table 6-5. Contexts in Which PL/I Converts Data 6-20

Table 6-6. Derived Data Types 6-21

Table 6-7. Converted Precision as a Function of Target and Source Attributes 6-22

Table 6-8. Built-In Functions for Conversions Between Arithmetic and Nonarithmetic Types 6-23

Table 6-9. Conversion from Fixed Binary 6-26

Table 8-1. Summary of ON Conditions 8-36

Table 8-2. Values of ONCODE Raised by RECORD 8-51

Table 8-3. Values of ONCODE Raised by SIZE 8-52

Table 8-4. Values of ONCODE Raised by STRINGRANGE 8-53

Table 8-5. Values of ONCODE Raised by STRINGSIZE 8-55

Table 8-6. Values of ONCODE Raised by TRANSMIT 8-57

Table 8-7. Conditions Enabled by Default 8-62

Table 8-8. Conditions Disabled by Default 8-62

Table 8-9. Conditions That Cannot be Disabled 8-62

Table 9-1. File Description Attributes Implied when a File is Opened 9-7

Table 9-2. Summary of File Description Attributes 9-10

Table 9-3. Attributes and Access Modes for Stream Files 9-12

Table 9-4. Input String Formatting 9-36

Table 9-5. Output String Formatting 9-37

Table 9-6. Input with the B Format Item 9-40

Table 9-7. Output with the B Format Item 9-40

Table 9-8. Representation of Floating-Point Values 9-43

Table 9-9. Input with the E Format Item 9-45

Table 9-10. Output with the E Format Item 9-45

Table 9-11. Input with the F Format Item 9-48

Table 9-12. Output with the F Format Item 9-48

Table 9-13. Input with the P Format Item 9-51

Table 9-14. Output with the P Format Item 9-52

Table 9-15. Attributes and Access Modes for Record Files 9-73

Table 9-16. Position Information for a Record File 9-89

Table 10-1. Summary of PL/I Preprocessor Statements 10-4

Table 10-2. Implied Attributes for Variables 10-9

Table 10-3. Summary of PL/I Preprocessor Built-In Functions 10-29

Table 11-1. Summary of PL/I Built-In Functions 11-3

Table 11-2. Summary of PL/I Built-In Subroutines 11-75

Table 11-3. Pseudovariables by Dialect 11-77

Table A-1. PL/I Keywords A-1

Table D-1. PL/I Keywords Not Supported C-1

Table D-2. Summary of Unsupported IBM I/O Features C-5

Table D-3. Digital Default Values for Data Type Attribute C-7

Table E-1. Operators D-12

Table E-2. Precedence of Operators D-13

Table E-3. Contexts in Which PL/I Converts Data D-14

Table 11-4. Summary of PL/I Built-In Subroutines D-16

Preface

Kednos PL/I for UNIX is a strict superset of the ANSI X3.74-1981 PL/I General Purpose Subset and provides most of the features of the new ANSI X3.74-1987 PL/I General Purpose Subset and many of the features of the ANSI X3.53-1976 (full) PL/I language standard.

Intended Audience

This manual is intended for programmers using PL/I to design or implement applications on UNIX systems. A prerequisite for attaining optimal benefit from the manual is that its users understand the concepts of programming in PL/I and are familiar with the keywords and topics that will be searched for information.

This manual is not suitable for use as a tutorial document.

Associated Documents

The Kednos PL/I for UNIX User's Manual provides information on program development with the system-specific command language, the extensive I/O capabilities provided in PL/I, and programming techniques available to PL/I programs executing under the exclusive control of the operating system.

For information on installing PL/I, see the Kednos PL/I for UNIX Installation Guide.

Conventions

. Documentation Conventions Table

Conventions

Meaning



This symbol represents a single stroke of the RETURN key on the keyboard.



This symbol represents a control key combination. The letter X can be any keyboard character. To generate a control key combination, hold down the CTRL key while pressing the specified letter.

command

System text and code in examples and in text appears in the Courier typeface. Since the UNIX operating system differentiates between lowercase and uppercase characters, literal strings in examples and text must be entered exactly as shown.

bold

User input in interactive examples appears in the bold Courier typeface.

bold

Bold words in text indicate the first use of a new term.

italic

File and variable names appear in italics.



Vertical ellipses indicate that irrelevant parts of the program text or program output have been omitted.

quotation mark
apostrophe

The term quotation mark is used only to refer to the double quotation mark character ("). The term apostrophe is used to refer to the single quotation mark character (').

#

A # symbol is used in some contexts to indicate a single ASCII space character.)

pl1(1)

Specifies a manual page. For more information, type:
man section page



This margin icon indicates that the paragraph contains important information to which you should pay close attention.

SYNTAX

Syntax (format) diagrams appear in the Helvetica typeface.

. . .

Horizontal ellipses indicate that additional parameters, options, or values can optionally be entered. When a comma precedes an ellipsis, it indicates that successive items must be separated by commas. Used in syntax diagrams.

[ ]

Square brackets indicate that a syntactic element is optional and you need not specify it. Used in syntax diagrams



Brackets surrounding two or more stacked items indicate conflicting options, one of which can optionally be chosen. Used in syntax diagrams



Braces surrounding two or more stacked items indicate conflicting options, one of which must be chosen. Used in syntax diagrams

FILE (file-reference)

An uppercase word or phrase indicates a keyword that must be entered as shown; a lowercase word or phrase indicates an item for which a variable value must be supplied. This convention applies to syntax diagrams, not to code examples.

Technical Assumptions

All descriptions of the effects of executing statements and evaluating expressions assume that the initial procedure activation of the program is through an entry point with OPTIONS(MAIN).

It is further assumed that any non-PL/I procedures called by the program follow all PL/I calling conventions and all conventions of the PL/I run-time environment. Except as explicitly noted, descriptions of I/O statements do not cover the effects of system-specific options.

For details on mixed-language programming and system-specific options, see the Kednos PL/I for UNIX User's Manual.

Terminological Conventions

Information in this manual applies to the use of Kednos PL/I for UNIX on the Digital UNIX Operating System unless otherwise indicated.

The term PL/I refers to Kednos PL/I for UNIX.

The terms "full PL/I" and "standard PL/I" refer to the ANSI standard PL/I, X3.53--1976.



Program Structure and Content

This chapter introduces the following elements of a PL/I program:

Future chapters discuss these topics in more detail.

Lexical Elements

This section describes the following topics:

Keywords

A keyword is a name that has a special meaning to PL/I when used in a specific context. In context, keywords identify statements, attributes, options, and other program elements. PL/I keywords are not reserved words, so it is possible to use them in a program in other than their keyword context.

PL/I has numerous keywords. See , See Alphabetic Summary of Keywords describes the PL/I keywords, including brief identifications of their uses and valid abbreviations for the keywords that can be abbreviated.

Punctuation

PL/I recognizes punctuation marks in statements. The punctuation marks serve the following two functions:

  • They specify arithmetic or other operations to be performed on expressions.
  • They delimit and separate identifiers, keywords, constants, and statements.

For example:

A = B + C;



In this statement, the equal sign (=), the addition operator (+), and the semicolon (;) delimit the identifiers A, B, and C, as well as define the operation to be performed. ( See , See Expressions and Data Type Conversions describes the effect of the various operators in expressions.)

Whenever you use a punctuation mark in a PL/I statement, you can precede or follow the character with any number of spaces (except in the case of an operator consisting of two characters, like >= or **, which you must enter without a space between the two characters). For example, the following two statements are equivalent:

DECLARE ( A, B ) FIXED DECIMAL ( 7, 0 ) ;

DECLARE(A,B)FIXED DECIMAL(7,0);



In the second statement, all nonessential spaces are omitted; the parentheses and commas are sufficient to distinguish elements in the statement. The only space required in this statement is the space that separates the two keywords FIXED and DECIMAL.

See . Punctuation Marks Recognized by PL/I lists all the punctuation marks recognized by PL/I.



. Punctuation Marks Recognized by PL/I

Category

Symbol

Meaning

Arithmetic operators

+

Addition or unary plus

-

Subtraction or unary minus

/

Division

*

Multiplication

**

Exponentiation

Relational (or comparison) operators

>

Greater than

<

Less than

=

Equal to

^>

Not greater than

^<

Not less than

^=

Not equal to

>=

Greater than or equal to

<=

Less than or equal to

Logical operators

^

Logical NOT (unary) and

EXCLUSIVE OR (binary)

&

Logical AND

&:

Logical AND THEN

| or !

Logical OR

|: or !:

Logical OR ELSE

Concatenation operator

|| or !!

String concatenation

Separators

,

Delimits elements in a list

;

Terminates a PL/I statement

.

Separates identifiers in a structure name; specifies a decimal point

:

Terminates a procedure name or a statement label

()

Encloses lists and extents; defines the order of evaluation of expressions; separates statement and option names from specific keywords; specifies a parameter list

'

Delimits character strings and bit strings

Locator qualifier

->

Pointer resolution

The tilde (~) is equivalent to the circumflex (^), and the exclamation point (!) is equivalent to the vertical bar (|).

Spaces, Tabs, and Line-End Characters

In addition to punctuation marks, PL/I accepts spaces, tabs, and line-end characters between identifiers, constants, and keywords.

The rules for entering spaces are:

  • Between any identifiers, keywords, or constants
  • Preceding or following punctuation marks that normally serve as delimiters, for example, tabs or commas

The line-end character is a valid punctuation mark between items in a PL/I statement except when it is embedded in a string constant. In a string constant, the line-end character is ignored. For example:

A = 'THIS IS A VERY LONG STRING THAT MUST BE CONTI

NUED ON MORE THAN ONE LINE IN THE SOURCE FILE';



This assignment statement gives the variable A the value of the specified character-string constant. (The line-end character in the constant is ignored.) Note that any tabs or spaces preceding NUED in the previous example will be included in the string.

Identifiers

An identifier is a user-supplied name for a procedure, a statement label, or a variable that represents a data item. The rules for forming identifiers are:

  • An identifier can have from 1 to 31 characters.
  • An identifier can consist of any of the following characters:
  • The alphabetic letters A through Z and a through z. PL/I converts all lowercase letters to uppercase when it compiles a source program. The identifiers abc, ABC, Abc, and so on, all refer to the same object.
  • The numeric digits 0 through 9.
  • The underscore character (_).
  • The dollar sign character ($).
  • The pound sign character (#).
  • The at sign character (@).
  • An identifier cannot contain any blanks, spaces, or hyphens.
  • An identifier must begin with an alphabetic letter, a dollar sign ($), or an underscore (_). It cannot begin with a numeral.

Examples of valid identifiers are:

STATE

total

FICA_PAID_YEAR_TO_DATE

ROUND1

PAYMENTS_IN_$S



Comments

A comment is an informational tool for documenting a PL/I program. To insert a comment in a program, enclose it within the character pairs /* and */. For example:

/* This is a comment ... */



Wherever the starting characters (/*) appear in a program, the compiler ignores all text until it encounters the ending characters (*/). A comment can span several lines.

The rules for entering comments are:

  • A comment can appear anywhere that a space can appear.
  • A comment can contain any character except the pair */; comments cannot be nested.

The following are examples of comments:

A = B + C ; /* Add B and C */



/* ********* START OF SECOND PHASE ********* */



DECLARE/*COUNTER*/A FIXED BINARY (7);



/* This module performs the following steps:

1. Initializes all arrays and data structures.

2. Establishes default condition handlers.

*/



Although complete comments cannot be nested, you can comment out a statement such as the following:

DECLARE EOF BIT(1); /* end-of-file */



To do this, precede the DECLARE statement with another /* pair, as follows:

/* DECLARE EOF BIT(1); /* end-of-file */



The compiler will then ignore all text, including the DECLARE statement and the second /*, until it reaches the */.

Statements

A statement is the basic element of a PL/I procedure. Statements are used to do the following:

See . Summary of PL/I Statements and See . Summary of PL/I Preprocessor Statements provide summaries of PL/I statements. Detailed descriptions of these statements appear throughout this manual.

Statement Formats

The general format of a PL/I statement consists of an optional condition prefix, an optional statement label, the body of the statement, and the required semicolon terminator. The format of a statement is:

[ ( condition-prefix [ ,condition-prefix ] ... ) : ] [ label: ] statement-body;



The body of the statement consists of user-specified identifiers, literal constants, or PL/I keywords. Each element must be properly separated, either by special characters that punctuate the statement or by spaces or comments.

Condition Prefixes (IBM Dialect Only)

The optional condition prefix specifies a PL/I condition to enable or disable for the statement. If you disable a condition, no program interrupt results if the condition occurs during execution of the statement.

The condition prefix precedes the statement label, if you specify a label, and the statement body. It consists of any valid condition or list of conditions, or the negated version of the condition or conditions, enclosed in parentheses, terminated by a colon. For example:

(ERROR,NOENDFILE): NEWREC: READ FILE (INFILE) INTO (INREC);



Any statement except precompiler statements (statements beginning with the % character), and the DECLARE, DEFAULT, or ENTRY statements can have condition prefixes.

If you use a condition prefix on a FORMAT statement, it must be the same prefix used on the referring GET or PUT statement.

Statement Labels

The optional statement label identifies a statement so that it can be referred to elsewhere in the program, for example, as the target of a GOTO statement. A label precedes a statement; it consists of any valid identifier terminated by a colon. For example:

TARGET: A = A + B;

READ_LOOP: READ FILE (TEXT) INTO (TEMP);

A statement cannot have more than one label. See See Identifiers for more information on identifier format.

Simple Statements

A simple statement contains only one action to be performed. There are three types of simple statements:

  • Keyword statements
  • Assignment statements
  • Null statements
Keyword Statements

Keyword statements are identified by the PL/I keyword that requests a specific action. Examples of keyword statements are:

READ FILE (A) INTO (B);

GOTO LOOP;

DECLARE COUNTER FIXED BINARY (7);



In these examples, READ, GOTO, and DECLARE are keywords that identify these statements to PL/I.

Assignment Statements

PL/I identifies an assignment statement by syntax: an assignment statement consists of an identifier followed by an equal sign (=) , followed by an identifier or expression. For example:

A = B;

TOTAL = TOTAL + PRICE;

COUNTER = 0;



Null Statements

A null statement consists of only a semicolon (;). It indicates that PL/I is to perform no operation. For example:

IF A < B THEN GOTO COMPUTE;

ELSE;



This IF statement shows a common use of the null statement: as the target of an ELSE clause.

Compound Statements

A compound statement contains more than one PL/I statement within the statement body. It is terminated by the semicolon that terminates the final statement. The IF and ON statements are examples of compound statements.

Preprocessor Statements

Preprocessor statements start with a percent sign (%). They can be simple or compound, as described in the preceding sections. For a full description of preprocessor statements, see See , See Preprocessor .

Summary of Statements by Function

You can group PL/I statements by function into the following categories.

Data Definition and Assignment Statements

The DECLARE statement defines variable names:

DECLARE identifier [attribute ...];



The assignment statement gives a value to a variable:

reference = expression;


Input/Output Statements

These statements identify files and data formats and perform input and output operations:

CLOSE

GET

READ

DELETE

OPEN

REWRITE

FORMAT

PUT

WRITE

Program Structure Statements

These statements define the organization of the program into procedures, blocks, and groups:

BEGIN

END

PROCEDURE

DO

ENTRY

null

Flow Control Statements

These statements change or interrupt the normal sequential flow of execution in a PL/I program:

CALL

ON

SIGNAL

GOTO

RETURN

STOP

IF

REVERT



LEAVE

SELECT



Storage Allocation Statements

These statements acquire and control the use of storage in a PL/I program:

ALLOCATE

FREE



See . Summary of PL/I Statements gives a summary of the PL/I statements and their uses.

. Summary of PL/I Statements

Statement

Use

Assignment

Evaluates an expression and gives its value to an identifier

Null

Specifies no operation

ALLOCATE

Allocates storage for a based or controlled variable

BEGIN

Denotes the beginning of a block of statements to be executed as a unit

CALL

Transfers control to a subroutine or external procedure

CLOSE

Terminates association of a file control block with an input or output file

DECLARE

Defines the variable names and identifiers to be used in a PL/I program and specifies the data attributes associated with them

DELETE

Removes an existing record from a file

DO

Denotes the beginning of a group of statements to be executed as a unit

END

Denotes the end of a block or group of statements begun with a BEGIN, DO, or PROCEDURE statement

ENTRY

Specifies an alternative point at which a procedure can be invoked

FORMAT

Specifies the format of data that is being read or written with GET EDIT and PUT EDIT statements and defines the conversion, if any, to be performed

FREE

Releases storage of a based or controlled variable

GET

Obtains data from an external stream file or from a character-string expression

GOTO

Transfers control to a labeled statement

IF

Tests an expression and establishes actions to be performed based on the result of the test

LEAVE

Transfers control out of a DO group

LOCATE

Allocates storage in an output buffer. Used with the BUFFERED environment option. (ibm dialect only)

ON

Establishes the action to be performed when a specified condition is signaled

OPEN

Establishes the association between a file control block and an external file

PROCEDURE

Specifies the point of invocation for a program, subroutine, or user-defined function

PUT

Transfers data to an external stream file or to a character-string variable

READ

Obtains a record from a file

RETURN

Gives back control to the procedure from which the current procedure was invoked

REVERT

Cancels the effect of the most recently established ON unit

REWRITE

Replaces a record in an existing file

SELECT

Tests a series of expressions and establishes the action to be performed based on the result of the test

SIGNAL

Causes a specific condition to be signaled

STOP

Halts the execution of the current program

WRITE

Copies data from the program to an external record file

Program Format

A PL/I program consists of a series of statements, which perform the following tasks:

A statement comprises user-specified identifiers, constants, and PL/I keywords, separated by blanks, comments, and punctuation marks. You can organize statements into structural sequences of groups or blocks. See . Structure of a PL/I Program shows the structure of a PL/I program.

. Structure of a PL/I Program

SAMPLE: PROCEDURE OPTIONS (MAIN);



DECLARE (X,Y,Z) FIXED, À

MESSAGE CHARACTER(80) INITIAL ('HELLO'),

CALC ENTRY (FLOAT) RETURNS (FLOAT),

TOTAL FLOAT;



X = 0; Ã

PUT SKIP LIST(MESSAGE);



FINISH: PROCEDURE; Õ

DECLARE TEXT (5) CHARACTER (20);

END FINISH;



END SAMPLE;



Key to See . Structure of a PL/I Program :

A PROCEDURE is the basic executable program unit.

À The declarations of variables in a procedure are usually, but not necessarily, placed at the beginning of the procedure.

à Executable statements are placed following variable declarations.

Õ Internal procedures may be placed anywhere.

All procedures must terminate with END statements.

The source text of a PL/I program is freeform. As long as you terminate every statement with a semicolon (;), individual statements can begin in any column, be on additional lines, or be written with more than one statement to a line.

Individual keywords or identifiers of a statement, however, must be confined to one line. Only a character-string constant (which must be enclosed in apostrophes) can be on more than one line.

PL/I programs are easier to read and comprehend if you follow a standard pattern in formatting. For example:

  • Write source statements with no more than one statement per line.
  • Use indention to show the nesting level of blocks and DO-groups.

Blocks

PL/I is a block-structured language with each block composed of a sequence of PL/I statements. There are two types of blocks:

Scope of Names

The scope of a declaration of a name is that region of the program in which the name has meaning. A name has meaning in the following locations:

  • The block in which it is declared
  • Any blocks contained within the declaring block, as long as the name is not redeclared in the contained block
  • Any procedure contained in the program, if the name is declared outside a procedure

Two or more declarations of the same name are not allowed in a single block unless one or more of the declarations are of structure members.

Two declarations of the same name in different blocks denote distinct objects unless both specify the EXTERNAL attribute. All EXTERNAL declarations of a particular name denote the same variable or constant, and all must agree as to the properties of the variable or constant, otherwise unpredictable results will occur. Note that EXTERNAL is the default for declarations of ENTRY and FILE constants. It must be specified explicitly for variables.

The following example shows the scope of internal names:



NAME

SCOPE

DECLARE Q STATIC FIXED;

Q

MAINP, ALPHA, BETA, and CALC

MAINP: PROCEDURE OPTIONS (MAIN);

MAINP

MAINP, ALPHA, BETA, and CALC

DECLARE (X, Y, Z) FIXED;

X, Y

MAINP, ALPHA, BETA, and CALC



Z in MAINP

MAINP, ALPHA, and CALC







ALPHA: PROCEDURE;

ALPHA

MAINP, ALPHA, BETA, and CALC

BETA: BEGIN;

BETA

ALPHA, BETA

DECLARE Z FLOAT;

Z in BETA

BETA

GOTO ERROR;





END BETA;





ERROR:

ERROR

ALPHA, BETA

END ALPHA;











CALC: PROCEDURE;

CALC

MAINP, ALPHA, and CALC

DECLARE (SUM, TOTAL) FLOAT;

SUM, TOTAL

CALC

END CALC;





END MAINP;





Declarations can appear outside procedures and, if contained within the same block, have meaning throughout all procedures contained in the block. However, if there are multiple blocks, declarations outside procedures must have the EXTERNAL attribute if they are to be recognized by all blocks and procedures in the program. For example:

File A.PLI

DECLARE X FIXED EXTERNAL STATIC;

A: PROCEDURE OPTIONS(MAIN);

DECLARE B ENTRY;

END A;



File B.PLI

B: PROCEDURE;

END B;



In this example, the variable X has meaning in both procedures, which are part of the same program. Because the two procedures are in two different files, X must be declared with the EXTERNAL attribute. If X is declared with the INTERNAL attribute, X is recognized only in the first procedure.

Begin Blocks

A begin block is a sequence of statements headed by a BEGIN statement (see See BEGIN Statement ) and terminated by an END statement (see See END Statement ). In general, you can use a begin block wherever a single PL/I statement would be valid. In some contexts, such as an ON-unit, a begin block is the only way to perform several statements instead of one. A primary use of begin blocks is to localize variables. Because execution of a begin block causes a block activation, automatic variables declared within the begin block are local to it, and their storage disappears when the block completes execution.

Another way to allow your program to perform several statements in place of one is to use a DO group (see See DO Groups and Statements ). You should choose it when possible because it does not incur the overhead associated with block activation. Use a begin block when there are declarations present or when you require multiple statements in an ON unit.

Procedure Blocks

A procedure is a sequence of statements (possibly including begin blocks and other procedures) headed by a PROCEDURE statement and terminated by an END statement. Unlike a begin block, which executes when control reaches it, a procedure executes only when it is specifically invoked. Invocation occurs in the following ways:

  • Enter the name of the program to invoke the main procedure of a PL/I program. This is the procedure that has OPTIONS(MAIN) on its PROCEDURE statement.
  • Statements within a procedure can invoke other procedures. The CALL statement invokes a procedure as a subroutine. A function reference invokes a function, which is a procedure that returns a value for use in the evaluation of an expression.

A PL/I program must have at least one procedure, the main procedure. Any procedure, including the main procedure, can contain others; these are called internal procedures. A procedure that is not contained within any other is called an external procedure. The main procedure is always an external procedure.

Except for the main procedure, no procedure executes unless it is invoked by a CALL statement or a function reference. See , See Procedures discusses procedures in more detail.

Containment

As an example, block B is said to be contained in another block A if all of B's source text, from label (if any) to END statement inclusive, is between A's BEGIN or PROCEDURE statement and A's END statement. If block B is not contained in any other block within block A, then B is said to be immediately contained in A. For example:

A: PROCEDURE OPTIONS(MAIN);

B: PROCEDURE;

END B;

BEGIN;

CALL B;

END; /* of begin block */

END A;



The procedures B and the begin block all are immediately contained in A.

If block B is contained in block A, then B is said to be nested in A. The maximum nesting level is 64.

Block Activation

A block is activated when program execution flows into it. The following events happen when a block is activated:

  • All automatic variables declared in the block become active
  • All parameters passed to the block become active

When control leaves the block, the automatic variables become undefined and inaccessible.

You can only enter a procedure block with a CALL statement (see See CALL Statement ) or a function reference. If an internal procedure is declared within a source program, control flows around the internal procedure during the normal sequence of execution.

A begin block is entered when it is encountered during the normal flow of execution or when a GOTO statement transfers control to a labelled BEGIN statement.

Relationship of Block Activations

During the execution of a program, many blocks can be simultaneously active. Two different relationships can be defined among block activations; they are the immediate dynamic descendance and the immediate parent activation.

For example:

B: PROCEDURE OPTIONS(MAIN);

A: PROCEDURE;

CALL Q;

END A;

Q: PROCEDURE;

END Q;

BEGIN;

CALL A;

END; /* of begin block */

END B;



See . Relationship of Block Activations shows these relationships.



. Relationship of Block Activations

In the immediate dynamic descendance relationship, a block activation is the immediate dynamic descendant of the block that invoked it. At a given time, the chain of immediate dynamic descendants includes all existing block activations, starting with the activation of the main procedure and terminating in the current block activation. For example, in See . Relationship of Block Activations , the begin block is the immediate dynamic descendant of procedure B; the complete chain is B, begin block, A, Q. This chain is used for finding the applicable ON-unit when a condition is signaled.

The other relationship shown in See . Relationship of Block Activations applies to activations of nested blocks. An activation of a block X that is a begin block or internal procedure has an immediate parent activation, which is an activation of the block that immediately contains X. The chain of immediate parent activations extends back to an activation of the external procedure containing X. In See . Relationship of Block Activations , the parent chain for the begin block, procedure A, and procedure Q leads directly back to the activation of B, because each of these blocks is immediately contained in B. This chain is used in interpreting references.

When a block is activated, its immediate parent activation is determined as follows:

  • If the block is an external procedure, it has no parent activation.
  • If the block is a begin block, its immediate parent activation is the activation that invoked it. Therefore, the begin block is the immediate dynamic descendant of its immediate parent.
  • If the block is an internal procedure invoked in block activation B by a reference to an entry constant (such as A in See . Relationship of Block Activations ) declared in block B, then the immediate parent of the new block activation of A is the activation of A in the parent chain starting at B.
  • If the block is an internal procedure invoked by an entry variable, the parent activation is taken from the entry value. It was originally set when the complete entry value was generated by the assignment of an entry constant to an entry variable ( See Entry Data discusses entry data).

Block Termination

When a block terminates normally, that is, when an END statement or a RETURN statement is executed, the following events occur:

  • the current block is released and control goes to the preceding block activation.
  • If a nonlocal GOTO statement is executed that transfers control out of the current block, the current block and any blocks between it and the block containing the label that is the target of the GOTO statement are released.
  • The on-unit environment is reset to its former state.
  • Storage allocated for automatic variables local to the block is released.
  • Any tasks attached to the block terminate.

Data and Variables

The statements in a PL/I program process data, generally in the form of variables that take on different values as the result of program execution. In PL/I, you must declare variables in a DECLARE statement in the scope where you reference them. The compiler assigns the default attributes to any undeclared variables (see See Default Attributes for more information).

Declaring a variable, or using an undeclared variable, associates an identifier with a set of attributes and with a region of storage. Thus, when you declare a variable you must usually specify one or more data type attributes to be associated with it. (The concept of an attribute is more basic to PL/I than the concept of a data type.) Furthermore, you can specify how the variable is to be allocated by supplying a storage-class attribute in the declaration.

A few examples of PL/I attributes are BIT, CHARACTER, BINARY, DECIMAL, FILE, FLOAT, PRINT, UPDATE, and VALUE. For a complete alphabetic list of the PL/I attributes with their uses, see See Attributes .

An identifier can refer to a single variable (called a scalar variable) or to a collection of related variables. Such a collection is called an aggregate. There are two kinds of aggregates:

The following chapters provide information on these topics:

Preprocessor

PL/I supports an embedded lexical preprocessor, which recognizes a specific set of statements that are executed at compile time. These statements cause the PL/I compiler to include additional text in the source program or to change the values of constant identifiers at compile time.

Preprocessor statements are identified by a leading unquoted percent sign (%) and are terminated by an unquoted semicolon (;), except for %THEN and %IF statements. You can freely intermix preprocessor statements with the rest of the source program statements.

For additional information on the PL/I preprocessor and preprocessor statements, see See , See Preprocessor .



Declarations

The declaration of a name in a PL/I program consists of a user-specified identifier and the attributes of the name. The attributes describe the following:

A name is declared either explicitly in a DECLARE statement or implicitly by its appearance in a particular context. For example:

CALC: PROCEDURE;



This statement is an implicit declaration of the name CALC as an entry constant.

This chapter describes the DECLARE statement and data attributes.

DECLARE Statement

The DECLARE statement specifies the attributes associated with names. The format of the DECLARE statement is:

level

Levels are integral values that specify the relationship of members of structures. Specify the level first, before the rest of the declaration.

declaration

Declarations consist of identifiers and attributes. A declaration has the following format:

The format of the DECLARE statement varies according to the number and nature of the items being declared. You can declare a single identifier, optionally specifying a level, bound-pair list, and other attributes for that identifier. Or you can include, in parentheses, a list of declarations to which the level and all subsequent attributes apply. In this case you can specify simple identifiers or you can include attributes for individual identifiers.

Use bound pairs to specify the dimensions of arrays. Bound pairs must be in parentheses and must immediately follow the identifier or the list of declarations.

The following sections describe various formats of the DECLARE statement.

Simple Declarations

A simple declaration defines a single name and describes its attributes. The format of a simple declaration is:

DECLARE identifier [attribute ...] ;


identifier

A 1- to 31-character user-supplied name. The name must be unique within the current block.

An identifier can consist of any of the alphanumeric characters A through Z, a through z, 0 through 9, dollar signs ($), underscores (_), pound sign (#) and at sign (@), but must begin with an alphabetic letter, dollar sign, underscore, pound sign or at sign.

attribute

One or more attributes of the name. Attribute keywords must be separated by spaces. They can appear in any order.

See Attributes for a list of the valid attribute keywords and their meanings.

The following are examples of simple declarations:

DECLARE COUNTER FIXED BINARY (7);

DECLARE TEXT_STRING CHARACTER (80) VARYING;

DECLARE INFILE FILE;



If you do not give a name specific attributes in a DECLARE statement or you reference an undeclared name, the name has the default attributes FIXED BINARY (31) AUTOMATIC. Note that the compiler issues a warning message whenever it gives default attributes to a name.

Declarations Outside Procedures

You can declare a variable outside any procedure. Any variable so declared is visible to all procedures contained by the module. The format for declarations outside procedures is the same as for other declarations, however the storage-class attribute cannot be AUTOMATIC. If you do not specify a storage-class or you specify it as AUTOMATIC, the compiler issues a warning and supplies the STATIC attribute. The following example shows the use of this type of declaration:

DECLARE A STATIC FIXED BINARY(31);

FIRST: PROCEDURE;

DECLARE B FIXED BINARY(31);

END FIRST;



SECOND: PROCEDURE;

DECLARE C FIXED BINARY(31);

END SECOND;



In this example, variable A is visible in both the FIRST and SECOND procedures, but variables B and C are visible only in their containing procedures.

Multiple Simple Declarations

Multiple simple declarations define two or more names and their individual attributes. This format of the DECLARE statement is:

DECLARE identifier [attribute ... ] [,identifier [attribute ... ]] ...;



When you specify more than one set of names and their attributes, separate each name and attribute set from the preceding set with a comma. A semicolon must follow the last name.

The following example shows multiple declarations:

DECLARE COUNTER FIXED BINARY (7),

TEXT_STRING CHARACTER (80) VARYING,

Y FILE;



This DECLARE statement defines the variables COUNTER, TEXT_STRING, and Y. The attributes for each variable follow the name of the variable.

Factored Simple Declarations

When two or more names have common attributes, you can combine the declarations into a single, factored declaration. This format of the DECLARE statement is:

DECLARE (identifier[,identifier ...]) [attribute ...];



When you use this format, place names that share common attributes in parentheses and separate them with commas. The attributes that follow the parenthetical list of names are applied to all the named identifiers.

The following examples show factored declarations:

DECLARE (COUNTER, RATE, INDEX) FIXED BINARY (7) INITIAL (0);

DECLARE (INPUT_MESSAGE, OUTPUT_MESSAGE, PROMPT)

CHARACTER (80) VARYING;



In these declarations, the variables COUNTER, RATE, and INDEX share the attributes FIXED BINARY (7) and are given the initial value of zero. The variables INPUT_MESSAGE, OUTPUT_MESSAGE, and PROMPT share the attributes CHARACTER (80) VARYING.

You can also specify attributes, within the parentheses, attributes that are unique to specific variable names within the parenthetical list. Use the following format:

DECLARE (declaration-item, declaration-item [,declaration-item]) attribute ...



For example:

DECLARE (INFILE INPUT RECORD,

OUTFILE OUTPUT STREAM) FILE;



The DECLARE statement declares INFILE as a RECORD INPUT file and OUTFILE as a STREAM OUTPUT file.

You can nest parentheses, as shown in the following example:

DECLARE ( (INFILE INPUT, OUTFILE OUTPUT) RECORD,

SYSFILE STREAM ) FILE;



The DECLARE statement declares INFILE as a RECORD INPUT file, OUTFILE as a RECORD OUTPUT file, and SYSFILE as a STREAM file.

Array Declarations

The declaration of an array specifies the dimensions of the array and the bounds of each dimension. This format of a DECLARE statement is:

DECLARE declaration (bound-pair, ...) [attribute ...];



where each bound pair has the following format:

Specify one bound pair for each dimension of the array. The number of elements per dimension is defined by the bound pair. The extent of an array is the product of the numbers of elements in its dimensions. If you omit the lower bound, the lower bound for that dimension is 1 by default.

For example:

DECLARE SALARIES(100) FIXED DECIMAL(7,2);



This statement declares a 100-element array with the identifier SALARIES. Each element is a fixed-point decimal number with a total of seven digits, two of which are fractional. The identifier in the statement can be replaced with a list of declarations, to declare several objects with the same attributes. For instance:

DECLARE (SALARIES,PAYMENTS) (100) FIXED DECIMAL(7,2);



This declares SALARIES and another array, PAYMENTS, with the same dimensions and other attributes.

You can use an asterisk (*) as the bound pair when you declare arrays as parameters of a procedure. The asterisk indicates that the parameter can accept array arguments with any number of elements. If you specify one array dimension with an asterisk, you must specify all dimensions of that array with asterisks. See See Rules for Specifying Parameters for more information and examples.

For further details on how to specify the bounds of an array, and for examples of array declarations, see See Array Declarations .

Structure Declarations

The declaration of a structure defines the organization of the structure and the names of members at each level in the structure. This format of a DECLARE statement is:

Each declaration specifies a member of the structure and must be preceded by a level number. As shown in the following example, a single variable can be declared at a particular level; or the level can contain one or more complete declarations, including declarations of arrays or other structures. The major structure name is declared as structure level 1; minor members must be declared with level numbers greater than 1.

DECLARE 1 PAYROLL,

2 NAME,

3 LAST CHARACTER(80) VARYING,

3 FIRST CHARACTER(80) VARYING,

2 SALARY FIXED DECIMAL(7,2);



This statement declares a structure named PAYROLL.

Alternatively, because the last and first names have the same attributes, the same structure can be declared as follows:

DECLARE 1 PAYROLL,

2 NAME,

3 (LAST,FIRST) CHARACTER(80) VARYING,

2 SALARY FIXED DECIMAL(7,2);



For details and examples of structure declarations, see See Structure Declarations and Attributes .

Attributes

Attributes define and describe the characteristics of names used in a PL/I program. Each name in a PL/I program has a set of attributes associated with it. You can specify attributes in any of the following contexts:

DECLARE SIGNAL CHARACTER (20);



In this declaration, the keyword attribute CHARACTER is associated with the identifier SIGNAL. The syntax length attribute of the variable is specified in parentheses following the CHARACTER keyword. In this manual, keyword attributes are shown in format lines in uppercase letters. Attributes given by syntax are shown in lowercase letters.

Attributes can also be implied by the presence of other attributes. For example, if the RETURNS attribute is specified for an identifier, the compiler supplies the ENTRY attribute by default.

The entry for each attribute in this chapter gives its syntax and abbreviation (if any) and describes related and conflicting attributes. See See . Alphabetic Summary of PL/I Attributes for a concise alphabetic summary of PL/I attributes.

Computational Data Type Attributes

The attributes that define arithmetic and string data are:

You can specify these attributes for all elements of an array and for individual members of a structure.

Noncomputational Data Type Attributes

The following attributes apply to program data that is not used for computation:

AREA

CONDITION

ENTRY [VARIABLE]

FILE [VARIABLE]

LABEL

OFFSET

POINTER



Storage-Class and Scope Attributes

The following attributes control the allocation and use of storage for a computational variable and define the scope of the variable:

AUTOMATIC [INITIAL(initial-element,...)]

BASED [(pointer-reference)] [INITIAL(initial-element,...)]

CONTROLLED [INITIAL(initial-element,...)]

DEFINED(variable-reference) [POSITION(expression)]

STATIC [READONLY] [INITIAL(initial-element,...)]

PARAMETER

INTERNAL

Member Attributes

You can apply the following attributes to the major or minor members of a structure:

LIKE

MEMBER

REFER

STRUCTURE

TYPE

UNION


File Description Attributes

You can apply the following attributes to file constants and used in OPEN statements:

Entry Name Attributes

You can apply the following attributes to identifiers of entry points:

Nondata Type Attributes

You can apply the following attributes to data declarations:

ALIGNED

DIMENSION

UNALIGNED



See . Alphabetic Summary of PL/I Attributes lists the PL/I attributes. The sections following this table describe each attribute in detail.

. Alphabetic Summary of PL/I Attributes

Attribute

Use

ALIGNED

Requests alignment of bit-string variables in storage

ANY

Indicates that a parameter (of an external procedure not written in PL/I) can have any data type

AREA [(extent)]

Defines an area of storage for the allocation of based variables



Requests dynamic allocation of storage for a variable

BASED [(pointer-reference)]

Indicates that a variable's storage is located by a pointer



Defines a binary base for arithmetic data

BIT [(length)]

Defines bit-string data



Specifies whether records of a record file should or should not pass through intermediate storage buffers. (ibm dialect only)

BUILTIN

Defines a built-in function name



Defines character-string data



Defines an identifier as a condition name



Defines a variable whose storage is allocated and freed in successive and fixed-sequence generations



Defines a decimal base for arithmetic data



Indicates that a variable will share the storage allocated for another variable



Indicates that a variable is an array, and defines the number and extent of its dimensions

DIRECT

Specifies that a file will be only accessed randomly

ENTRY (descriptor, ...)

Describes an external procedure and its parameters



Specifies system-dependent information about a file



Identifies the name of a variable whose storage is referenced or defined in other procedures

FILE

Identifies a PL/I file constant or file variable

FIXED [(precision[,scale-factor])]

Defines a fixed-point arithmetic variable

FLOAT [(precision)]

Defines a floating-point arithmetic variable

GLOBALDEF [(psect-name)]

Defines an external variable and optionally specifies the program section in which the variable will reside

GLOBALREF

Declares an external variable which is defined in an external procedure



Provides initial values for variables

INPUT

Specifies that a file will be used for input



Limits the scope of a variable to the block in which it is defined

KEYED

Specifies that a file can be accessed randomly by key

LABEL

Defines a label variable

LIKE structure-reference

Copies the declaration of a structure to another structure variable

MEMBER

Specifies that an item is a member of a structure



Specifies that the length of a string is nonvarying

OFFSET [(area-reference)]

Defines an offset variable

OPTIONAL

Indicates that a parameter need not be specified in a call.

OUTPUT

Specifies that a file will be used for output



Indicates that a variable will be assigned a value when it is used as an argument to a procedure



Specifies the format of numeric data stored in character form



Defines a pointer variable



Specifies the position within a variable at which a defined variable begins



Specifies the number of digits in an arithmetic variable and, with fixed-point data, the number of fractional digits

PRINT

Specifies that a file is to be formatted for printing

READONLY

Specifies that a static variable's value does not change during program execution

RECORD

Specifies that a file will be accessed by record I/O statements

REFER

Defines dynamically self-defining structures

RETURNS (returns-descriptor)

Specifies that an external entry is a function and describes the value returned by it



Specifies that a file can be accessed sequentially

STATIC

Requests static allocation of storage

STREAM

Specifies that a file will be accessed by stream I/O statements

STRUCTURE

Specifies that a variable is a structure variable

TRUNCATE

Specifies, in a declaration of a formal parameter, that the actual parameter list can be truncated at the point where this argument should occur

TYPE

Copies declarations of structures, scalars, and arrays to another variable



Specifies nonalignment for bit-string variables in storage

UNION

Indicates that a variable will share the storage allocated for another variable

UPDATE

Specifies that records in a file can be rewritten or deleted



Requests either that a global symbol be accessed by value rather than by reference, or that an argument be passed to a procedure by immediate value

VARIABLE

Defines variable entry and file data



Defines a varying-length character or bit string

ALIGNED Attribute

The ALIGNED attribute controls the storage boundary of bit-string data in storage. The format of the ALIGNED attribute is:

ALIGNED



You can specify the ALIGNED attribute in conjunction with the BIT attribute in a DECLARE statement to request alignment of a bit-string variable on a byte boundary. If you specify ALIGNED for an array of bit-string variables, each element of the array is aligned.

You can specify ALIGNED in the declaration of a nonvarying character-string variable. Specifying ALIGNED is not recommended with character strings, as all character strings are byte-aligned.

Restriction

The ALIGNED attribute conflicts with the VARYING attribute and is invalid with all data-type attributes other than BIT and CHARACTER. You must specify either BIT or CHARACTER with the ALIGNED attribute.

ANY Attribute

The ANY attribute specifies that an entry's corresponding argument can be of any data type. This attribute is applicable only to the declaration of entry names denoting non-PL/I procedures. The format of the ANY attribute is:

Restrictions

If you specify ANY for a parameter, you cannot specify any data-type attributes for that parameter except CHARACTER(*). If ANY is used by itself, the parameter is passed by reference. If ANY is used with VALUE, the parameter is passed by immediate value. If ANY is used with CHARACTER(*), the parameter is passed by character descriptor.

Example

DECLARE EXT_ROUTINE ENTRY (ANY VALUE);



This statement identifies the procedure EXT_ROUTINE and indicates that the procedure accepts a single argument, of any data type, passed by value.

AREA Attribute

The AREA attribute defines an area variable. The format of the AREA attribute is:

AREA [(extent)]


extent

The size of the area in bytes. The extent must be a nonnegative integer. The maximum size is 500 million bytes.

The rules for specifying the extent are:

  • If AREA is specified for a static variable declaration, extent must be a restricted integer expression. A restricted integer expression is one that yields only integral results and has only integral operands. Such an expression can use only the addition (+), subtraction (-), and multiplication (*) operators.
  • If AREA is specified in the declaration of a parameter or in a parameter descriptor, you can specify extent as an integer constant or as an asterisk (*).
  • If AREA is specified for an automatic or based variable, you can specify extent as an integer constant or as an expression. For automatic variables, the extent expression must not contain any variables or functions declared in the same block, except for parameters.
  • If no extent is specified for the area, a default of 1024 bytes is provided. Kednos recommends explicitly specifying a size, because the default varies considerably between PL/I implementations.
Restrictions

The AREA attribute is not allowed in a returns descriptor. The AREA attribute conflicts with all other data-type attributes.

AUTOMATIC Attribute

The AUTOMATIC attribute specifies, for one or more variables, that PL/I is to allocate storage only for the duration of a block. An automatic variable is not allocated storage until the block that declares it is activated. The storage is released when the block is deactivated. The format of the AUTOMATIC attribute is:

AUTOMATIC explicitly defines the storage-class of a variable, array, or major structure in a DECLARE statement. Because AUTOMATIC is the default for internal variables, you need not specify it.

Restriction

The AUTOMATIC attribute conflicts with the following attributes (the specification of which implies that storage allocation is not to be automatic):

BASED

GLOBALREF

CONTROLLED

PARAMETER

DEFINED

READONLY

EXTERNAL

STATIC

GLOBALDEF



The AUTOMATIC attribute cannot be applied to minor structures, members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute.

For a discussion of PL/I storage allocation, see See , See Storage Classes .

BASED Attribute

The BASED attribute defines a based variable, that is, a variable whose actual storage will be denoted by a pointer or offset reference. The format of the BASED attribute is:

BASED [ (reference) ]


reference

A reference to a pointer or offset variable or pointer-valued function. If the reference is to an offset variable, that variable must be declared with a base area. Each time a reference is made to a based variable without an explicit pointer or offset qualifier, the reference is evaluated to obtain the pointer or offset value.

Restriction

The following attributes conflict with the BASED attribute:

AUTOMATIC

GLOBALDEF

READONLY

CONTROLLED

GLOBALDEF

STATIC

DEFINED

PARAMETER

VALUE

EXTERNAL





The BASED attribute cannot be applied to minor structures, members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute. See See Based Variables for more information.

BINARY Attribute

The BINARY attribute specifies that an arithmetic variable has a binary base. The format of the BINARY attribute is:

When you specify the BINARY attribute for an identifier, you can also specify one of the following attributes to define the scale and precision of the data:

FIXED [(precision)]

FLOAT [(precision)]



FIXED indicates a fixed-point binary value and FLOAT indicates a floating-point binary value.

For a fixed-point binary value, the precision specifies the number of bits representing an integer and must be in the range 1 through 31.

For a floating-point value, the precision specifies the number of bits representing the mantissa of a floating-point number and must be in the range 1 through 53

The maximum floating-point binary precision is always 53. The default values applied to the BINARY attribute are listed in See . Default Values for BINARY Attribute :

. Default Values for BINARY Attribute

Attributes Specified

dec Dialect

ibm Dialect

ansi Dialect

BINARY

FIXED (31)

FIXED (15)

FIXED (15)

BINARY FIXED

(31)

(15)

(15)

BINARY FLOAT

(24)

(21)

(24)

Restrictions

The BINARY attribute directly conflicts with any other data-type attribute.

BIT Attribute

The BIT attribute identifies a variable as a bit-string variable. The format of the BIT attribute is:

BIT[(length)]


length

The number of bits in the variable. If you do not specify a length, the default length is 1 bit. The length must be in the range 0 through 32,767.

The rules for specifying the length are:

  • If the attribute is specified for a static variable declaration or in a returns descriptor, length must be a restricted integer expression. A restricted integer expression is one that yields only integral results and has only integral operands. Such an expression can use only the addition (+), subtraction (-), and multiplication (*) operators.
  • If the attribute is specified in the declaration of a parameter or in a parameter descriptor, you can specify length as a restricted integer expression or as an asterisk (*).
  • If the attribute is specified for an automatic, based, controlled, or defined variable, you can specify length as an expression. In the case of automatic or defined variables, the expression must not contain any variables or functions that are declared in the same block except for parameters.

If specified, the length in parentheses must follow the keyword BIT.

If you give a variable the BIT attribute, you can also specify the ALIGNED attribute to request alignment of the variable on a byte boundary in storage.

Restriction

The BIT attribute directly conflicts with any other data-type attribute.

BUFFERED and UNBUFFERED Attributes (IBM Dialect Only)

The BUFFERED and UNBUFFERED file description attributes specify whether or not each record of a RECORD file must pass through intermediate storage buffers during transmission to auxiliary storage. The format of the BUFFERED attribute is:

The format of the UNBUFFERED attribute is:

If you specify BUFFERED, data transmission is usually overlapped with processing. You must specify BUFFERED in a file description to use the LOCATE statement on that file.

If you specify UNBUFFERED, records in the file do not need to pass through a buffer. They may be transmitted directly to and from the main storage associated with the variable. However, buffers may still be used if the records in the file are variable-length. When you specify UNBUFFERED, data transmission is not overlapped with processing.

You can specify the BUFFERED or UNBUFFERED attribute in a DECLARE statement for a file constant.

Restriction

The BUFFERED attribute conflicts with the UNBUFFERED attribute. Buffering only applies to RECORD files.

BUILTIN Attribute

The BUILTIN attribute indicates that the name declared is the name of a PL/I built-in function. Within the block in which the name is declared, all references to the name will be interpreted as references to the built-in function or pseudovariable of that name. The format of the BUILTIN attribute is:

BUILTIN

Use the BUILTIN attribute when you want to refer to a built-in function within a scope where you used the function's name as a variable name.

You can also use the BUILTIN attribute to invoke a built-in function that takes no arguments (such as the DATE function) without including a null argument list.

Restriction

When you specify the BUILTIN attribute, you cannot specify any other attributes.

Examples

OUTER: PROCEDURE;

DECLARE MAX FIXED BINARY STATIC INITIAL (10);

INNER: PROCEDURE;

DECLARE MAX BUILTIN, /* supersedes the variable */

(A,B,TEST) FIXED BIN(15);

A = 10;

B = 20;

TEST = MAX(A,B);

END INNER;

END OUTER;



The keyword MAX is used here as a variable name. In the internal procedure INNER, the MAX built-in function is invoked. Because the scope of the name MAX includes the internal procedure, the function must be redeclared with BUILTIN.

You can also use the BUILTIN attribute to declare PL/I built-in functions that have no arguments, if you want to invoke them without the empty argument list. For example:

DECLARE DATE BUILTIN;

PUT LIST(DATE);



Without the declaration, the PUT LIST statement would have to include an empty argument list for DATE:

PUT LIST(DATE());



CHARACTER Attribute

The CHARACTER attribute identifies a variable as a character-string variable. The format of the CHARACTER attribute is:

length

The number of characters in a fixed-length string or the maximum length of a varying- length string. If not specified, a length of 1 is assumed. The length must be in the range 0 through 32,767 characters.

The rules for specifying the length are:

  • If the attribute is specified for a static variable declaration or in a returns descriptor, length must be a restricted integer expression.
  • If the attribute is specified in the declaration of a parameter or in a parameter descriptor, you can specify length as a restricted integer expression or as an asterisk (*).
  • If the attribute is specified for an automatic, based, or defined variable, you can specify length as an expression. In the case of automatic or defined variables, the expression must not contain any variables or functions that are declared in the same block except for parameters.

If specified, the length must immediately follow the keyword CHARACTER, and it must be enclosed in parentheses.

If you give a variable the CHARACTER attribute, you can also specify the attribute VARYING, NONVARYING, ALIGNED, or UNALIGNED.

Restriction

The CHARACTER attribute directly conflicts with any other data-type attribute.

CONDITION Attribute

You can optionally use the CONDITION attribute in a declaration to specify that the variable name is a condition name. You can specify INTERNAL or EXTERNAL scope attributes with the CONDITION attribute. The default scope is external. The format of the CONDITION attribute is:

condition-name

Name used for ON units to handle programmer-defined conditions.

CONTROLLED Attribute

The CONTROLLED attribute causes a variable's actual storage to be allocated and freed dynamically in generations, only the most recent of which is accessible to the program. The format of the CONTROLLED attribute is:

Restrictions

The following attributes conflict with the CONTROLLED attribute:

AUTOMATIC

BASED

DEFINED

GLOBALDEF

GLOBALREF

READONLY

STATIC

VALUE

PARAMETER



The CONTROLLED attribute cannot be applied to minor structures, members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute.

See See Controlled Variables for more information.

DECIMAL Attribute

The DECIMAL attribute specifies that an arithmetic variable has a decimal base. The format of the DECIMAL attribute is:

When you specify the DECIMAL attribute for a variable, you can also specify the following attributes to define the scale factor and precision of the data:

FIXED (precision[,scale-factor])

FLOAT (precision)



FIXED indicates a fixed-point value, and FLOAT indicates a floating-point decimal value.

(precision[,scale-factor])

The precision of a fixed-point decimal value is the total number of integral and fractional digits. The precision of a floating-point decimal value is the total number of digits in the mantissa.

The precision for a fixed-point decimal value must be in the range 1 through 31; the scale factor, if specified, must be greater than or equal to 0 and less than or equal to the specified precision.

The precision for a floating-point decimal value must be in the range 1 through 15.

The default values applied to the DECIMAL attribute are listed in See . Default Values for the DECIMAL Attribute. .

. Default Values for the DECIMAL Attribute.

Attributes Specified

dec Dialect

ibm Dialect

ansi Dialect

DECIMAL

FIXED (10,0)

FIXED (5,0)

FIXED (10,0)

DECIMAL FIXED

(10,0)

(5,0)

(10,0)

DECIMAL FIXED (n)

(n,0)

(n,0)

(n,0)

DECIMAL FLOAT

(7)

(6)

(7)

Restrictions

The DECIMAL attribute conflicts with any other data-type attribute.

DEFINED Attribute

The DEFINED attribute indicates that PL/I is not to allocate storage for the variable, but is to map the description of the variable onto the storage of another base variable. The DEFINED attribute provides a way to access the same data using different names. The format of the DEFINED attribute is:

variable-reference

A reference to a variable that has storage associated with it. The variable must not have the BASED, CONTROLLED, or DEFINED attribute. The variable and the declared variable must satisfy the rules given in See Defined Variables .

The DEFINED attribute can optionally specify a position within the referenced variable at which the definition begins. For example:

DECLARE ZIP CHARACTER(20),

ZONE CHARACTER(10)

DEFINED(ZIP) POSITION(4);



Restrictions

The following attributes conflict with the DEFINED attribute:

AUTOMATIC

BASED

CONTROLLED

EXTERNAL

GLOBALDEF

GLOBALREF

INITIAL

PARAMETER

READONLY

STATIC

UNION

VALUE

The DEFINED attribute cannot be applied to minor structures, members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute.

See See Defined Variables for more information.

DIMENSION Attribute

The DIMENSION attribute defines a variable as an array. It specifies the number of dimensions of the array and the bounds of each dimension. The format of the DIMENSION attribute is:

bound-pair

One or two expressions that indicate the number of elements in a single dimension of the array. You must specify the list of bound pairs immediately following the name of the identifier in the array declaration if the optional keyword DIMENSION or DIM is omitted; otherwise, you must specify the list of bound pairs immediately following the keyword DIMENSION or DIM. See the following examples.

The maximum number of dimensions allowed is eight.

A bound pair can be specified:

  • [lowerbound:]upperbound

This format of a bound pair specifies the minimum and maximum subscripts that can be used for the dimension. The number of elements is:

(upperbound- lowerbound) + 1

If the lower bound is omitted, it defaults to 1.

This format of a bound pair, when used to define a parameter for a procedure or function, indicates that the bounds are to be determined from the associated argument. If one bound pair is specified as an asterisk, all bound pairs must be specified as asterisks.

The following two declarations are exactly equivalent:

DECLARE A(10) FIXED BIN;

DECLARE A FIXED BIN DIMENSION(10);



The following two declarations are also equivalent:

DECLARE B(1:5,1:5) FLOAT DEC;

DECLARE B DIM(1:5,1:5) FLOAT DEC;



DIRECT Attribute

The DIRECT file description attribute indicates that a file will be accessed only in a nonsequential manner, that is, by key or by relative record number.

The format of the DIRECT attribute is:

DIRECT



The DIRECT attribute implies the RECORD and KEYED attributes.

Specify the DIRECT attribute on a DECLARE statement for a file constant or on an OPEN statement to access the file. A file declared with the DIRECT attribute must be one of the following:

  • A relative file
  • An indexed sequential file
  • A sequential disk file with fixed-length records
  • A sequential file opened with ENVIRONMENT(BLOCK_ID)

To to access a file both randomly and sequentially, use the SEQUENTIAL attribute instead of DIRECT.

Restriction

The DIRECT attribute conflicts with the SEQUENTIAL, STREAM, and PRINT attributes.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

ENTRY Attribute

The ENTRY attribute declares a constant or variable whose value is an entry point and describes the attributes of the parameters (if any) that are declared for the entry point. The format of the ENTRY attribute is:

parameter-descriptor

A set of attributes describing a parameter of the entry. Attributes describing a single parameter must be separated by spaces; sets of attributes (each set describing a different parameter) must be separated by commas. Parameter descriptors are not allowed if the ENTRY attribute is within a RETURNS descriptor.

The following rules apply to the specification of a parameter descriptor for an array or structure:

  • If the parameter is a structure, the level number must precede the attributes for each member.
  • You must specify extents for a parameter using only integer constants, restricted integer expressions, or asterisks (*).
  • You cannot specify storage-class attributes.
OPTIONS (VARIABLE) (dec and ansi dialects only)

Indicates that you can invoke the specified external procedure with a variable number of arguments. At least one parameter descriptor must be specified following the ENTRY keyword if OPTIONS(VARIABLE) is specified.

OPTIONS(VARIABLE) conflicts with OPTIONS(C).

This option is provided for use in calling non-PL/I procedures. For complete details on using OPTIONS (VARIABLE), see the Kednos PL/I for UNIX User's Manual.

OPTIONS (C)

Indicates that the called routine is written in C and should be called using the C language calling and return conventions. OPTIONS(C) conflicts with OPTIONS(VARIABLE).

RETURNS (returns-descriptor)

For an entry that is invoked as a function reference, an option giving the data type attributes of the function value returned. For entry points that are invoked by function references, the RETURNS attribute is required; for procedures that are invoked by CALL statements, the RETURNS attribute is invalid.

The ENTRY attribute without the VARIABLE attribute implies the EXTERNAL attribute (and implies that the declared item is a constant), unless the ENTRY attribute is used to declare a parameter.

You must declare all external entry constants with the ENTRY attribute.

Restrictions

You cannot declare internal entry constants with the ENTRY attribute in the procedure to which they are internal. Internal entry constants are declared implicitly by the labels on the PROCEDURE or ENTRY statements of an internal procedure.

The ENTRY attribute conflicts with all other data-type attributes.

Example

DECLARE COPYSTRING ENTRY (CHARACTER (40) VARYING,

FIXED BINARY(7))

RETURNS (CHARACTER(*));



This declaration describes the external entry COPYSTRING. This entry has two parameters: a varying-length character string with a maximum length of 40 and a fixed-point binary value. The RETURNS attribute indicates that COPYSTRING is invoked as a function and that it returns a character string of any length.

ENVIRONMENT Attribute

The ENVIRONMENT file description attribute is used in DECLARE, OPEN, and CLOSE statements to specify options that define file characteristics specific to the Digital UNIX file system and options that request special processing not available in the standard PL/I language. The format of the ENVIRONMENT attribute is:

option, ...

One or more keyword options separated by commas.

Summary of Options

The following items with asterisks (*) are options you can specify in a CLOSE statement.

APPEND

BACKUP_DATE(variable-reference)

BATCH*

BLOCK_BOUNDARY_FORMAT

BLOCK_IO

BLOCK_SIZE(expression)

BUCKET_SIZE(expression)

CARRIAGE_RETURN_FORMAT

CONTIGUOUS

CONTIGUOUS_BEST_TRY

CREATION_DATE(variable-reference)

CURRENT_POSITION

DEFAULT_FILE_NAME(character-expression)

DEFERRED_WRITE

DELETE*

EXPIRATION_DATE(variable-reference)

EXTENSION_SIZE(expression)

FILE_ID(variable-reference)

FILE_ID_TO(variable-reference)

FILE_SIZE(expression)

FIXED_CONTROL_SIZE(expression)

FIXED_CONTROL_SIZE_TO(variable-reference)

FIXED_LENGTH_RECORDS

F, FB, FS, or FBS (IBM Dialect Only)

GROUP_PROTECTION(character-expression)

IGNORE_LINE_MARKS

INDEX_NUMBER

INITIAL_FILL

MAXIMUM_RECORD_NUMBER(expression)

MAXIMUM_RECORD_SIZE(expression)

MULTIBLOCK_COUNT(expression)

MULTIBUFFER_COUNT(expression)

NO_SHARE

OWNER_GROUP(expression)

OWNER_ID(expression)

OWNER_MEMBER(expression)

OWNER_PROTECTION(character-expression)

PRINTER_FORMAT

READ_AHEAD

READ_CHECK

RECORD_ID_ACCESS

RETRIEVAL_POINTERS(expression)

REVISION_DATE(variable-reference)*

REWIND_ON_CLOSE*

REWIND_ON_OPEN

SCALARVARYING

SHARED_READ

SHARED_WRITE

SPOOL*

SUPERSEDE

SYSTEM_PROTECTION(character-expression)

TEMPORARY

TRUNCATE

USER_OPEN(entry-name)

V, VB, VS, or VBS (IBM Dialect Only)

WORLD_PROTECTION(character-expression)

WRITE_BEHIND

WRITE_CHECK

The previous list of options to the ENVIRONMENT attribute are described in detail in the Kednos PL/I for UNIX User's Manual.

You can specify all ENVIRONMENT options in OPEN statements. You can also specify all ENVIRONMENT options except those that require variable references in DECLARE statements. Certain disposition options (noted in the list) can be specified in CLOSE statements.

Note that IBM's implementation of PL/I lets you specify the ENVIRONMENT option only in a DECLARE statement. Keep this in mind when using ENVIRONMENT options if you require compatibility with IBM's implementation of PL/I.

Some ENVIRONMENT options require you to specify a value. In a DECLARE statement, you must use a literal constant to supply the value required. In OPEN and CLOSE statements, however, you can use expressions (including but not limited to literal constants) to supply the values.

Any option that does not require a value can optionally be specified with a Boolean expression that indicates whether the option is to be enabled (if true) or disabled (if false). For example:

DECLARE IFDELETE BIT(1);

OPEN FILE (XYZ) ENVIRONMENT(DELETE(IFDELETE));



This DELETE option specifies a Boolean variable whose value can be true or false at run time. Boolean values must be specified as constants in DECLARE statements. You can specify Boolean values as expressions (including constants) in OPEN statements and CLOSE statements.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

EXTERNAL Attribute

The EXTERNAL attribute declares an external name, that is, a name whose value is known to blocks outside the block where it is declared. The format of the EXTERNAL attribute is:

The EXTERNAL attribute is implied by the FILE, GLOBALDEF, and GLOBALREF attributes. EXTERNAL is also implied by declarations of entry constants (declarations that contain the ENTRY attribute but not the VARIABLE attribute). For variables, the EXTERNAL attribute implies the STATIC attribute.

(`name')

The exact, case-sensitive, name of the external variable.

Unless you specify -m upper or --case=upper as an option to the pl1 command, do not declare a procedure or any other external symbol that will map to " main" (in lowercase). This will conflict with the library function "main" supplied in the Kednos PL/I for UNIX run-time library.

Restrictions

The EXTERNAL attribute directly conflicts with the AUTOMATIC, BASED, and DEFINED attributes.

The EXTERNAL attribute cannot be applied to minor structures, members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute.

The EXTERNAL attribute is invalid for variables that are the parameters of a procedure.

If a variable is declared as EXTERNAL STATIC INITIAL, all blocks that declare the variable must initialize the variable with the same value.

FILE Attribute

The FILE attribute declares a file constant or file variable. The format of the FILE attribute is:

FILE



The FILE attribute is implied by any of the following file description attributes:

DIRECT

OUTPUT

SEQUENTIAL

ENVIRONMENT

PRINT

STREAM

INPUT

RECORD

UPDATE

KEYED





See See . Summary of File Description Attributes for definitions of these file description attributes.

If the VARIABLE attribute is not specified, the FILE attribute declares a file constant. If the INTERNAL attribute is not specified, the file has the EXTERNAL attribute by default. All external declarations of a file constant are associated with the same file.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

Restrictions

The FILE attribute conflicts with all other data-type attributes. If the FILE attribute is used to declare a variable or parameter, no file description attributes may be specified. If the VARIABLE attribute is not specified, no storage-class attributes are allowed.

FIXED Attribute

The FIXED attribute indicates that the variable so declared is arithmetic with a fixed number of fractional digits. Such variables are called fixed-point (as opposed to floating- point) variables because the decimal point and binary point are fixed relative to the representation of the value. The format of the FIXED attribute is:

FIXED [(precision[,scale-factor])]


precision

The precision is the number of decimal or binary digits used to represent values of the variable.

scale-factor

Scale factor indicates how much of the precision is to be used for fractional digits.

When you specify the FIXED attribute in a DECLARE statement, you can specify either the BINARY or the DECIMAL attribute to indicate a binary or decimal fixed-point variable. For example, the attributes FIXED BINARY(31) define a variable that takes fixed-point binary integer values of up to a maximum of 31 bits. The attributes FIXED DECIMAL(10,2) define a variable that takes fixed-point decimal values of up to 10 decimal digits, 2 of which are fractional. PL/I supplies default attributes for attributes that you do not specify (as shown in the following table).

You use fixed-point binary data to represent integers. The precision of a fixed-point binary variable must be in the range 1 through 31.

You can also use fixed-point decimal data, which can represent larger absolute values. You use fixed-point data whenever arithmetic values must be precise to a specified number of fractional digits. For a fixed-point decimal value, the precision must be in the range 1 through 31 (decimal digits). The scale factor, if specified, must be greater than or equal to zero and less than or equal to the specified precision. If the scale factor is omitted, zero is used (that is, an integer variable is declared).

The default values given for unspecified related attributes are listed in See . Default Values for Unspecified FIXED Attributes .

. Default Values for Unspecified FIXED Attributes

Attributes Specified

dec Dialect

ibm Dialect

ansi Dialect

FIXED

BINARY (31)

DECIMAL (5,0)

BINARY(15)

FIXED BINARY

(31)

(15)

(15)

FIXED DECIMAL

(10,0)

(5,0)

(10,0)

Restriction

The FIXED attribute directly conflicts with all data-type attributes except BINARY and DECIMAL.

FLOAT Attribute

The FLOAT attribute indicates that a variable is a floating-point arithmetic item. The format of the FLOAT attribute is:

FLOAT [(precision)]



precision

The range for a floating-point binary variable is 1 through 53. The range for a floating-point decimal variable is 1 through 15.

When you specify the FLOAT attribute in a DECLARE statement, you can specify either the BINARY or the DECIMAL attribute. The default values given for unspecified related attributes are listed in See . Default Values for Unspecified FLOAT Attributes .


. Default Values for Unspecified FLOAT Attributes

Attributes Specified

dec Dialect

ibm Dialect

ansi Dialect

FLOAT

BINARY (24)

DECIMAL(6)

BINARY(24)

FLOAT BINARY

(24)

(21)

(24)

FLOAT DECIMAL

(7)

(6)

(7)

Restriction

The FLOAT attribute directly conflicts with all data-type attributes except BINARY and DECIMAL.

GLOBALDEF Attribute

The GLOBALDEF attribute declares an external variable or an external file constant. It can optionally control the program section in which the data is allocated. The format of the GLOBALDEF attribute is:

GLOBALDEF [ (psect-name) ]


psect-name

The name of a program section. A program section name can have up to 31 characters, which can consist of the alphanumeric characters, dollar signs ($), pound signs (#), at signs (@), and underscores (_). The first character cannot be numeric (0 through 9).

If you do not specify a program section name, PL/I places the definition for the name in the default program section associated with the variable.

The GLOBALDEF attribute implies the EXTERNAL attribute. The GLOBALDEF attribute also implies STATIC except when used for file constants.

Restrictions

The GLOBALDEF attribute conflicts with the GLOBALREF and INTERNAL attributes. GLOBALDEF cannot be used with ENTRY constants.

Only one procedure in a program can declare a particular external variable with the GLOBALDEF attribute.

For complete details on using the GLOBALDEF attribute to declare global external symbols, see See External Variables .

GLOBALREF Attribute

The GLOBALREF attribute indicates that the declared name is a global symbol defined in an external procedure. The format of the GLOBALREF attribute is:

GLOBALREF



The GLOBALREF attribute implies the EXTERNAL attribute. The corresponding name must be declared in another procedure with the GLOBALDEF attribute or, if the external procedure is written in another programming language, with its equivalent in that language.

Restriction

The GLOBALREF attribute conflicts with the INITIAL, GLOBALDEF, and INTERNAL attributes. If GLOBALREF is specified with the FILE attribute, you cannot specify any other file description attributes.

See See External Variables for information about using this attribute.

INITIAL Attribute

The INITIAL attribute provides an initial value for a declared variable. The format of the INITIAL attribute is:

initial-element

A construct that supplies a value for the initialized variable. The value must be valid for assignment to the initialized variable. If the initialized variable is an array, a list of initial elements separated by commas is used to initialize individual elements. The number of initial elements must be 1 for a scalar variable and must not exceed the number of elements of an array variable. Each initial element must have one of the following forms:

  • string-constant
  • (replication-factor) string-constant
  • (iteration-factor) (string-constant)
  • (iteration-factor) (replication-factor) (string-constant)
  • [(iteration-factor)] arithmetic-constant
  • [(iteration-factor)] scalar-reference
  • [(iteration-factor)] (scalar-expression)
  • [(iteration-factor)] *

The iteration factors are nonnegative integer-valued expressions that specify the number of successive array elements to be initialized with the following value.

An asterisk (*) following the iteration factor specifies that the corresponding array elements are to be skipped during the initialization.

You can use a replication factor in combination with an iteration factor in initializing a string constant. For example, the following two statements are equivalent:

INITIAL ((10)('ABCABC'))

INITIAL ((10)((2)'ABC'))



The first statement uses an iteration factor exclusively; the second statement combines an iteration factor of 10 with a replication factor of 2.

A string constant must be parenthesized if it is used with an iteration factor, because this set of parentheses prevents the iteration factor from being interpreted as a string replication factor.

The following initial value is interpreted as a string replication factor, not an iteration factor, and cannot be used to initialize a whole array:

INITIAL ((10)'ABC')



(*) valid-expression

A construct that initializes all elements of an array to the same value by means of the asterisk iteration factor. The expression must evaluate to a value that is valid for assignment to the initialized array. If the expression is a string constant, it must be parenthesized so that the asterisk iteration factor is not interpreted as a string replication factor. The possible expressions are:

  • (string-constant)
  • ((replication-factor) string-constant)
  • arithmetic-constant
  • scalar-reference
  • (scalar-expression)
  • (aggregate-expression)
  • *

An asterisk following the asterisk iteration factor results in no initializations being performed.

Examples

The following are examples of declarations that include the INITIAL attribute:

DECLARE RATE FIXED DECIMAL (2,2) STATIC INITIAL (.04);



DECLARE SWITCH BINARY STATIC INITIAL ('1'B);



DECLARE BELL_CHAR BINARY STATIC INITIAL ('07'B4);



DECLARE OUTPUT_MESSAGE CHARACTER(20) STATIC

INITIAL ('GOOD MORNING');



DECLARE (A INITIAL ('A'), B INITIAL ('B'),

C INITIAL ('C')) STATIC CHARACTER;

DECLARE QUEUE_END POINTER STATIC INITIAL(NULL());



DECLARE X(10,5) FIXED BIN(31) INITIAL ((*) -2);

/* Initializes all 50 elements to -2 */



DECLARE 1 A(10),

2 B(10),

3 C(10) FIXED BIN(31) INITIAL ((*) 4);

/* Initializes all 1000 elements to 4 */



DECLARE A(10) FIXED INIT ((5) 1,(5) 2);

/* Initializes the first 5 elements to 1

and the second 5 elements to 2 */



The following declaration is not valid, because the asterisk iteration factor cannot be used to initialize part of an array; it can only be used to initialize all elements of the array to the same value:

DECLARE A(10) FIXED INIT ((5) 1,(*)2);

/* Invalid use of asterisk iteration

factor */



Restrictions

You can specify the INITIAL attribute for an automatic structure variable only if you initialize the structure through an aggregate valued function. For example:

DECLARE 1 TEST_STRUC,

2 FIRST_MEMBER CHARACTER (8),

2 SEC_MEMBER FIXED BINARY(15);



DECLARE INIT_FUNCTION ENTRY(FIXED,FIXED)

RETURNS(1 LIKE TEST_STRUC);



DECLARE INPUT_STRUC LIKE TEST_STRUC

INITIAL (INIT_FUNCTION(X,Y));



In this example, INIT_FUNCTION is an external function that returns a structure matching TEST_STRUC.

To initialize a structure without using an aggregate valued function, you must individually initialize the members of the structure.

You cannot specify the INITIAL attribute for a variable or member of a structure that has any of the following attributes:

DEFINED

ENTRY

FILE

LABEL

PARAMETER

UNION

If the initialized variable is STATIC, only constants, restricted expressions, and references to the NULL or EMPTY built-in functions are allowed. You can use these initial values with a constant iteration factor.

Variables and functions (except for parameters) occurring in an initial element (for automatic variables) must not be declared in the same block as the variable being initialized.

INPUT Attribute

The INPUT file description attribute indicates that the associated file is to be an input file. The format of the INPUT attribute is:

INPUT



Specify the INPUT attribute on a DECLARE statement for a file constant or on an OPEN statement to access the file for reading.

You can specify the INPUT attribute with either the STREAM or the RECORD attribute. For a stream file, INPUT indicates that the file will be accessed with GET statements. For a record file, INPUT indicates that the file will be accessed only with READ statements.

For example:

DECLARE INFILE RECORD INPUT;



OPEN FILE(INFILE);

READ FILE(INFILE) INTO(RECORD_BUFFER);



These statements declare, open, and access the first record in the input file INFILE.

For a description of the attributes that can be applied to files, see See . Summary of File Description Attributes .

The INPUT attribute can be supplied by default for a file, depending on the context of its opening. See See Establishing the File's Attributes for more information.

Restriction

The INPUT attribute conflicts with the OUTPUT, UPDATE, and PRINT attributes and with any data-type attribute other than FILE.

INTERNAL Attribute

The INTERNAL attribute limits the scope of an identifier to the block in which the identifier is declared and its dynamic descendents.

The format of the INTERNAL attribute is:

You only need to use the INTERNAL attribute to explicitly declare the scope of a file constant as internal. File constants, by default, have the EXTERNAL attribute.

Restriction

The INTERNAL attribute directly conflicts with the EXTERNAL, GLOBALDEF, and GLOBALREF attributes.

KEYED Attribute

The KEYED file description attribute indicates that you can randomly access records in the specified file. The KEYED attribute implies the RECORD attribute.

Specify KEYED in a DECLARE statement to identify a file or in an OPEN statement to open the file. For a description of the attributes that can be applied to files, see See . Summary of File Description Attributes .

Restriction

The KEYED attribute conflicts with the STREAM attribute and with any data-type attributes other than FILE.

LABEL Attribute

The LABEL attribute declares a label variable; it indicates that values given to the variable will be statement labels. The format of the LABEL attribute is:

LABEL


Restriction

You cannot specify the LABEL attribute with any other data-type attribute, the INITIAL attribute, or any file description attributes.

LIKE Attribute

The LIKE attribute copies the member declarations contained within a major or minor structure declaration into the structure variable to which it is applied. The format of the LIKE attribute is:

level-number identifier [attributes] LIKE reference


level-number

The level number to which the declarations in the reference are copied.

identifier

The variable to which the declarations in the reference are to be copied. The identifier must be preceded by a level number.

attributes

Storage class or dimensions appropriate for the level number. You can specify a storage class and dimensions with a major structure, or you can specify dimensions with a minor structure.

reference

The name of a major or minor structure that is known in the current block.

The LIKE attribute causes the structuring and member declarations of its reference to be copied, but not the name, storage class, or dimensioning (if any) of the reference. The exception to this rule is that the UNION attribute is propagated in a LIKE declaration. While logical structuring is copied, the level numbers themselves are not copied.

You can use the LIKE attribute on a structure already containing the LIKE attribute.

MEMBER Attribute

You can optionally specify the MEMBER attribute in the declaration of a structure member (minor structure). A structure member has the MEMBER attribute implicitly. The format of the MEMBER attribute is:

MEMBER


Restriction

The MEMBER attribute cannot be used with a major structure (that is, a structure variable with level 1).

NONVARYING Attribute

The NONVARYING attribute keyword explicitly states that a bit-string or character-string variable has a fixed length, not a varying length. Because NONVARYING is the default for bit and character strings, it need not be specified. The format of the NONVARYING attribute is:

OFFSET Attribute

The OFFSET attribute declares a variable that will be used to reference a based variable within an area. The format of the OFFSET attribute is:

OFFSET [(area-reference)]


area-reference

The name of a variable with the AREA attribute. The value of the offset variable will be interpreted as an offset within the specified area.

Examples

DECLARE MAP_SPACE AREA (40960),

MAP_START OFFSET (MAP_SPACE),

MAP_LIST(100) CHARACTER(80) BASED (MAP_START);



These declarations define an area named MAP_SPACE, an offset variable that will contain offset values within that area, and a based variable whose storage is located by the value of the offset variable MAP_START.

Restriction

The area reference must be omitted if the OFFSET attribute is specified within a returns descriptor, parameter declaration, or a parameter descriptor. The OFFSET attribute conflicts with all other data-type attributes.

OPTIONAL Attribute (Dec and Ansi Dialects Only)

The OPTIONAL attribute indicates that an actual parameter need not be specified in a call. If the actual parameter is not specified, you must specify a placeholder for it. PL/I passes a longword zero as the actual parameter in that position. The format of the OPTIONAL attribute is:

OPTIONAL


Example

DCL E ENTRY (FIXED,FIXED OPTIONAL);

CALL E(1,2);

CALL E(1,);



OUTPUT Attribute

The OUTPUT file description attribute indicates that data is to be written to, and not read from, the associated external device or file. The format of the OUTPUT attribute is:

OUTPUT



Specify the OUTPUT attribute on a DECLARE statement for a file constant or on an OPEN statement to access the file for writing. You can specify the OUTPUT attribute with either the STREAM or the RECORD attribute. For a stream file, OUTPUT indicates that the file will be accessed with PUT statements. For a record file, OUTPUT indicates that the file will be accessed with only WRITE statements.

Examples

DECLARE OUTFILE RECORD OUTPUT;



OPEN FILE(OUTFILE);

WRITE FILE(OUTFILE) FROM(RECORD_BUFFER);



These statements declare, open, and write a record to the output file OUTFILE.

For a description of the attributes that you can apply to files and the effects of combinations of these attributes, see See , See Input and Output .

Restriction

The OUTPUT attribute conflicts with the INPUT and UPDATE attributes and with any data-type attributes other than FILE. The OUTPUT attribute also conflicts with ENVIRONMENT(INDEXED).

PARAMETER Attribute

A variable occurring in the parameter list of a PROCEDURE or ENTRY statement has the PARAMETER attribute implicitly. You can optionally use the PARAMETER keyword in the declaration of a variable name to state explicitly that it is a parameter. The format of the PARAMETER attribute is:

Example

The following example uses the PARAMETER keyword:

TEST: PROC( A, B );

DCL A CHAR(*) PARAMETER;

DCL B FIXED BIN PARM;



Refer to See Parameters and Arguments for a more information.

PICTURE Attribute

The PICTURE attribute is used to declare a pictured variable. Pictured variables have fixed-point decimal attributes, but values of the variable are stored internally as character strings. The character string contains decimal digits representing the numeric value of the variable, plus special editing symbols described in the picture. The format of the PICTURE attribute is:


A string of picture characters that define the representation of the variable.

See See Picture Characters for detailed information about picture characters, syntax, and examples.

Restriction

The PICTURE attribute conflicts with all other data-type attributes.

POINTER Attribute

The POINTER attribute indicates that the associated variable will be used to identify locations of data. The format of the POINTER attribute is:

Restriction

The POINTER attribute conflicts with all other data-type attributes.

POSITION Attribute

The POSITION attribute specifies the character or bit position in a defined variable's base at which the defined variable begins. The format of the POSITION attribute is:

expression

An integer expression that specifies a position in the base. A value of 1 indicates the first character or bit.

Restriction

You can specify the POSITION attribute only in connection with DEFINED and only when the defined variable satisfies the rules for string overlay defining (see See Rules for Overlay Defining ).

PRECISION Attribute

The PRECISION attribute specifies the maximum number of decimal or binary digits in a number. You can specify the precision of an arithmetic variable in any of the following formats, depending on the numeric base of the data item. The formats of the PRECISION attribute are:

BINARY [ FIXED ] [ [PRECISION] (precision[,scale-factor]) ]

[BINARY] FLOAT [ [PRECISION] (precision) ]

DECIMAL [ FIXED ] [ [PRECISION] (precision[,scale-factor]) ]

DECIMAL FLOAT [ [PRECISION] (precision) ]


precision

You can abbreviate the keyword PRECISION to PREC, or you can omit it entirely. If you use the keyword, the precision (and scale factor, if used) must immediately follow the keyword, which can be placed before or after any other attributes in the declaration. If you omit the keyword, the precision (and scale factor, if used) must follow the other attributes.

For example, the following declarations are equivalent:

DCL A FIXED BIN(31); DCL A FIXED BIN PRECISION(31);



DCL B FLOAT BIN(53); DCL B PREC(53) FLOAT BIN;



DCL C FIXED DEC(5,2); DCL C FIXED DEC PREC(5,2);



The precision of a floating-point data item is the number of decimal or binary digits in the mantissa of the floating-point representation.

scale-factor

The scale factor is the number of digits to the right of the decimal or binary point in fixed-point decimal or binary data. If no scale factor is specified with fixed-point data, the default is zero.

The ranges of values you can specify for the precision of each arithmetic data-type, and the defaults applied if you do not specify a precision, are summarized See Precision and Scale of Arithmetic Data Types .

PRINT Attribute

The PRINT attribute is used to declare a print file. The file SYSPRINT, used as the default output by PUT statements, is a print file. The format of the PRINT attribute is:

PRINT



Print files are stream output files with special formatting characteristics. The PRINT attribute implies the OUTPUT and STREAM attributes.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

Restriction

The PRINT attribute conflicts with the INPUT, RECORD, UPDATE, KEYED, SEQUENTIAL, and DIRECT attributes.

READONLY Attribute

You can apply the READONLY attribute to any static computational variable whose value does not change during program execution. The format for the READONLY attribute is:

READONLY



When you specify READONLY in conjunction with the declaration of a static variable, the PL/I compiler allocates storage for the variable based on the fact that its value does not change. A static variable with the READONLY attribute is given an initial value with the INITIAL attribute.

Restrictions

You can apply the READONLY attribute only to static computational variables. You must declare the variables with the EXTERNAL, STATIC, GLOBALREF, or GLOBALDEF attribute.

The value of a variable with the READONLY attribute cannot be modified. An attempt to modify a variable declared with the READONLY attribute will result in a run-time error.

The READONLY attribute conflicts with the ENTRY, FILE, LABEL, POINTER, and VALUE attributes.

RECORD Attribute

The RECORD file description attribute indicates that data in an input or output file consists of separate records and that the file will be processed by record I/O statements. The format of the RECORD attribute is:

RECORD



The RECORD attribute is implied by the DIRECT, SEQUENTIAL, KEYED, and UPDATE attributes.

You can specify this attribute in a DECLARE statement for a file constant or in the OPEN statement that accesses the file.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

Restriction

The RECORD attribute conflicts with the STREAM and PRINT attributes.

REFER Attribute

The REFER attribute defines dynamically self-defining structures. The format of the REFER attribute is:

refer-element REFER (refer-object-reference)



See See Using the REFER Option for more information.

REFERENCE Attribute

The REFERENCE attribute is accepted by Kednos PL/I for UNIX, for compatibility with other implementations of PL/I, but is ignored. By default, asterisk (*) extent parameters are passed by descriptor, in compliance with the PL/I language standard, and cannot be passed by reference. All other parameters are passed by reference in Kednos PL/I for UNIX unless the VALUE attribute is specified. The format of the REFERENCE attribute is:

Restriction

Note that you can only use the REFERENCE attribute in parameter descriptors.

RETURNS Attribute

The RETURNS attribute must be specified on the PROCEDURE or ENTRY statement if the corresponding entry point is invoked as a function. The RETURNS attribute is specified with the ENTRY attribute to give the data-type of a value returned by an external function. The format of the RETURNS option and attribute is:

RETURNS (returns-descriptor ... )


returns-descriptor

One or more attributes that describe the value returned by the function to its point of invocation. The returned value becomes the value of the function reference in the invoking procedure. The attributes must be separated by spaces, except for attributes (the precision, for example) that are enclosed in parentheses.

Restrictions

The data types you can specify for a returns descriptor are restricted to scalar elements of either computational or noncomputational types. Areas are not allowed.

You can specify the extent of a character-string value as an asterisk (*) to indicate that the string can have any length. Otherwise, extents must be specified with restricted expressions.

You cannot use the RETURNS option or the RETURNS attribute for procedures that are invoked by the CALL statement.

The attributes specified in a returns descriptor in a RETURNS attribute must correspond to those specified in the RETURNS option of the PROCEDURE statement or ENTRY statements in the corresponding procedure. For example:

CALLER: PROCEDURE OPTIONS (MAIN);

DECLARE COMPUTER ENTRY (FIXED BINARY)

RETURNS (FIXED BINARY); /* RETURNS attribute */

DECLARE TOTAL FIXED BINARY;

TOTAL = COMPUTER (A+B);



The first DECLARE statement declares an entry constant named COMPUTER. COMPUTER will be used in a function reference to invoke an external procedure, and the function reference must supply a fixed-point binary argument. The invoked function returns a fixed-point binary value, which then becomes the value of the function reference.

The function COMPUTER contains the following:

COMPUTER: PROCEDURE (X) RETURNS (FIXED BINARY); /* RETURNS option */

DECLARE (X, VALUE) FIXED BINARY;

RETURN (VALUE); /* RETURN statement */



In the PROCEDURE statement, COMPUTER is declared as an external entry constant, and the RETURNS option specifies that the procedure return a fixed-point binary value to the point of invocation. The RETURN statement specifies that the value of the variable VALUE be returned by COMPUTER. If the data-type of the returned value does not match the data-type specified in the RETURNS option, PL/I converts the value to the correct data-type according to the rules given under See Data Type Conversion of Operands and Expressions .

SEQUENTIAL Attribute

The SEQUENTIAL file description attribute indicates that records in the file will be accessed in a sequential manner. The format of the SEQUENTIAL attribute is:

If you specify SEQUENTIAL, the RECORD attribute is implied.

Specify the SEQUENTIAL attribute in a DECLARE statement for a file constant or in the OPEN statement that accesses the file.

You can apply the SEQUENTIAL attribute to files with sequential, relative, or indexed sequential file organizations.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

Restriction

The SEQUENTIAL attribute conflicts with the DIRECT, STREAM, and PRINT attributes.

STATIC Attribute

The STATIC attribute specifies the way that PL/I is to allocate storage for a variable. The format of the STATIC attribute is:

STATIC



The STATIC attribute is implied by the EXTERNAL attribute. For more information on STATIC and on other storage-class attributes, see See , See Storage Classes .

Restriction

The STATIC attribute directly conflicts with the BASED, CONTROLLED, DEFINED, and parameter attributes. The STATIC attribute cannot be applied to members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute.

STREAM Attribute

The STREAM file description attribute indicates that the file consists of ASCII characters and that it will be processed using GET and PUT statements. The format of the STREAM attribute is:

STREAM



The STREAM attribute is implied by the PRINT attribute. It is also supplied by default for a file that is implicitly opened with a GET or PUT statement.

Specify the STREAM attribute in a DECLARE statement for a file identifier or in the OPEN statement that opens the file.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

Restriction

The STREAM attribute directly conflicts with the RECORD, KEYED, DIRECT, SEQUENTIAL, and UPDATE attributes.

STRUCTURE Attribute

You can optionally specify the STRUCTURE attribute in the declaration of a structure. The format of the STRUCTURE attribute is:

STRUCTURE



TYPE Attribute

The TYPE attribute copies the declarations contained within the type declaration to the variable to which it is applied. The format of the TYPE attribute is:

level-number identifier [attributes] TYPE reference

or

level-number identifier [attributes] TYPE (reference)




level-number

The level number to which the declarations in the reference are copied.

identifier

The variable to which the declarations in the reference are to be copied. The identifier must be preceded by a level number.

attributes

Storage class or dimensions appropriate for the level number. You can specify a storage class and dimensions with a major structure, or you can specify dimensions with a minor structure.

reference

The name of a type declaration that is known in the current block. You can optionally enclose this name in parentheses.

The TYPE attribute causes the declaration of its reference to be copied, but not the name, storage class, or dimensioning (if any) of the reference. The exception to this rule is that the UNION attribute is propagated in a TYPE declaration. While logical structuring is copied, the level numbers themselves are not copied.

You can use the TYPE attribute on a declaration already containing the TYPE attribute.

Restrictions

A TYPE definition cannot be:

  • A pointer-qualified variable
  • A subscripted variable
  • An entry variable
  • A variable declaration that leads to direct or indirect circular declarations

The following examples show circular declarations. Do not use these types of declarations.

DECLARE 1 S11,

2 F1 CHARACTER(10),

2 F2 TYPE(S11); /* Direct circular */



DECLARE V1 TYPE(V2); /* Indirect circular */

DECLARE V2 TYPE(V3);

DECLARE V3 TYPE(V1);



DECLARE A1(10) TYPE(A2); /* Indirect circular */

DECLARE A2(10) TYPE(A3);

DECLARE A3(10) TYPE(A1);



DECLARE 1 S31,

2 F1 CHARACTER(10),

2 F2 TYPE(S32); /* Indirect circular */

DECLARE 1 S32,

2 F1 CHARACTER(10),

2 F2 TYPE(S33);

DECLARE 1 S33,

2 F1 CHARACTER(10),

2 F2 TYPE(S31);



  • A structure variable with the BASED attribute and declarations with the REFER option if the TYPE variable does not have a BASED attribute.

For example:

DECLARE N FIXED BINARY;

DECLARE 1 VARIABLE_X BASED,

2 SIZE FIXED BINARY(15),

2 ITEMS (N REFER (VARIABLE_X.SIZE)) CHARACTER(80);



DECLARE VARIABLE_Y TYPE (VARIABLE_X); /* Error */

/* VARIABLE_Y not BASED */



TRUNCATE Attribute

The TRUNCATE attribute is used in the declaration of a formal parameter to indicate that the actual parameter list can be truncated at the point where this argument should occur. The format of the TRUNCATE attribute is:

TRUNCATE



When the actual call is made, the actual parameter list can stop at the parameter before the one declared with the TRUNCATE attribute. It is possible to pass an actual parameter in a position with the TRUNCATE attribute. Note that in this case, all remaining parameters must also be specified unless they have the TRUNCATE attribute.

Example

DCL E ENTRY (FIXED,FIXED TRUNCATE,FIXED);

CALL E(1);

CALL E(1,2,3);



The following call, however, will be invalid:

CALL E(1,2);



This call is invalid because the second parameter has the TRUNCATE attribute, so the third parameter must be specified.

UNALIGNED Attribute

The UNALIGNED attribute is used in conjunction with the BIT attribute to specify that a bit-string variable should not be aligned on a byte boundary. Because UNALIGNED is the default for bit strings, it need not be specified. The format of the UNALIGNED attribute is:

You can use the UNALIGNED attribute in the declaration of character strings. All character strings are aligned on byte boundaries; therefore, the UNALIGNED attribute has no effect on the actual storage of a character string.

Restriction

The UNALIGNED attribute conflicts with all data-type attributes other than BIT and CHARACTER.

UNBUFFERED Attribute (IBM Dialect Only)

See the description under the BUFFERED attribute.

UNION Attribute

The UNION attribute, which can be used only in conjunction with a level number in a structure declaration, signifies that all immediate members of the major or minor structure so designated occupy the same storage. Immediate members are those members having a level number 1 higher than the major or minor structure with the UNION attribute. For example, if the UNION attribute were associated with level n, then all members or minor structures at level n+1 up to the next member at level n would be immediate members and would occupy the same storage. The format for the UNION attribute is:

level-number

The level number of the variable with which the declarations in the reference share storage.

identifier

Names the variable with which the declarations in the reference share storage. A variable declared with the UNION attribute must be a major or minor structure.

*

You can specify an asterisk (*) in place of the identifier name.

storage-class

The storage class specified for the structure. You can specify the storage class only on level 1.

Example

The following example uses the UNION attribute to acquire a date from the DATE built-in function and display it as three separate variables containing the year, month, and day. The major structure uses an asterisk (*) in place of the identifier name.

MAIN PROCEDURE OPTIONS(MAIN);

DECLARE 1 * UNION STATIC,

2 MC_DATE CHARACTER(6),

2 S_PARTS,

3 YEAR CHARACTER(2),

3 MONTH CHARACTER(2),

3 DAY CHARACTER(2);



MC_DATE = DATE();

PUT SKIP LIST (YEAR, MONTH, DAY);

END MAIN;



UPDATE Attribute

The UPDATE attribute is a file description attribute indicating that the associated file is to be used for both input and output. You can apply the UPDATE attribute to relative files, indexed files, and sequential disk files with fixed-length records. The format of the UPDATE attribute is:

UPDATE



Specify the UPDATE attribute on a DECLARE statement for a file constant or on an OPEN statement to access the file for update. The UPDATE attribute implies the RECORD attribute.

For a description of the attributes that are applied to files, see See Establishing the File's Attributes .

Restriction

The UPDATE attribute directly conflicts with the INPUT, OUTPUT, STREAM, and PRINT attributes and with any data-type attribute other than FILE.

VALUE Attribute

The VALUE attribute is provided for passing parameters by value rather than by reference, or it can be used to specify a global constant value. The format of the VALUE attribute is:

The VALUE attribute serves two purposes:

In a parameter descriptor in an ENTRY declaration, it specifies that the corresponding argument is to be passed using the hardware-specific convention for passing arguments by value. For this usage, VALUE must be specified in conjunction with one of the following attributes:

ANY

FIXED BINARY(m) where m is less than or equal to 31

FLOAT BINARY(n) where n is less than or equal to 53

BIT(o) ALIGNED where o is less than or equal to 32

ENTRY

OFFSET

POINTER

  • In conjunction with the GLOBALREF or GLOBALDEF attributes, it specifies that a global external variable has a constant value for which no storage is allocated. The compiler can use this value as an immediate value in generating instructions. With the global external variables, the format is:

The VALUE attribute, when specified with the BIT attribute, implies the ALIGNED attribute.

VARIABLE Attribute

The VARIABLE attribute indicates that the associated identifier is a variable. VARIABLE is implied by all computational data-type attributes and by all noncomputational attributes except FILE and ENTRY. The format of the VARIABLE attribute is:

VARIABLE



If you specify the FILE or ENTRY attribute in a DECLARE statement without the VARIABLE attribute, the defined object is assumed to be a file or entry constant.

The VARIABLE attribute is implied by the LABEL attribute. You can declare label constants only by using the label identifier in the program; you cannot define a label constant in a DECLARE statement.

Restriction

The VARIABLE attribute is not valid in a returns descriptor or in a parameter descriptor.

VARYING Attribute

The VARYING attribute indicates that a bit-string, character-string, or graphic variable does not have a fixed length, but that its length changes according to its current value. The format of the VARYING attribute is:

You must specify a length attribute in conjunction with VARYING by giving the maximum length allowed for the variable. The current length is stored with the value and can be determined at any time with the LENGTH built-in function. If you need to determine the maximum declared length of a varying- length character string, use the MAXLENGTH built-in function.

The value of an uninitialized VARYING variable is undefined.

Special rules apply to reading and writing record files into and from variables that have the VARYING attribute. See the Kednos PL/I for UNIX User's Manual for more information.

Restriction

The VARYING attribute directly conflicts with any data-type attribute other than CHARACTER.

Examples

DECLARE STRING CHARACTER(80) VARYING;



A variable named STRING is declared as a varying-length character string with a maximum length of 80 characters.

S: PROCEDURE OPTIONS(MAIN);

DECLARE STRING CHARACTER(80) VARYING;

STRING = 'PIE';



PUT LIST (LENGTH(STRING));

PUT LIST (MAXLENGTH(STRING));

PUT LIST (SIZE(STRING));

END;



The value returned by the built-in function LENGTH is 3, the length of the current value of the string. The value returned by the built-in function MAXLENGTH is 80, the maximum declared length. The value returned by the built-in function SIZE is 82, the maximum declared length plus two (for the two bytes that hold the value of the current length).



Data Types

All programs process data items. Data items can be constants or variables. A constant data item has a value that does not change during program execution; a variable data item can represent different values.

A data item has an associated type that you can specify as an attribute or collection of attributes in a declaration. Unlike other languages that often have a distinction between data types and data attributes, a PL/I data type is entirely defined by the data attributes given to a data item identifier. The data type that you select determines the operations that you can perform on data items and how they are stored.

The rest of this chapter describes data types in more detail.

Summary of Data Types

PL/I supports the following computational data types:

Fixed point (binary integers and decimal integers and fractions)

Floating point (binary and decimal)

Pictured (fixed point data stored in character form)

PL/I also supports the following noncomputational data types and attributes:

You can place each of these data types in aggregate structures or arrays to form new data types. See See , See Aggregates for more information.

Declarations

To establish an identifier as a name in PL/I, you can declare it either implicitly or explicitly. Implicit declarations occur when you use an identifier as a name without explicitly declaring it. PL/I recognizes the identifier by context, giving it default attributes. Some common examples of implicit declaration are using an identifier as an entry-point name, statement label, or built-in function name, or using the default file constants SYSIN and SYSPRINT.

To explicitly declare an identifier, use a DECLARE statement. For example:

DECLARE AVERAGE FIXED DECIMAL;

DECLARE NAME CHARACTER (20);



The keywords DECIMAL, FIXED, and CHARACTER describe characteristics, or attributes, of the variables AVERAGE and NAME.

By explicitly declaring identifiers you can give them the specific attributes you require, instead of the default attributes, which may not be appropriate for your needs.

Default Attributes

It is not always necessary to define all the characteristics, or attributes, of a variable; the PL/I compiler makes assumptions about attributes that are not explicitly defined. For example:

DECLARE NUMBER FIXED;



If you are using the Digital variant of Kednos PL/I for UNIX, the default FIXED attribute implies the attributes BINARY(31). Thus, the variable NUMBER has the attributes FIXED BINARY(31). If you are using the IBM variant, the default FIXED attribute implies the attributes BINARY(15), and NUMBER has the attributes FIXED BINARY (15).

See . Implied Attributes for Computational Data shows the default attributes implied by each computational data attribute for the Digital variant (-D dec compiler option) and for the IBM variant (-D ibm compiler option).

. Implied Attributes for Computational Data

Specified

Digital Variant

IBM Variant

implicit declaration 1

FIXED BINARY(31)

If name begins with the letters I through N:

FIXED BINARY(15)



Otherwise::

FLOAT DECIMAL(6)

FIXED

BINARY(31)

BINARY(15)

BINARY

FIXED(31)

FIXED(15)

FIXED BINARY

(31)

(15)

FLOAT

BINARY(24)

BINARY(21)

FLOAT BINARY

(24)

(21)

DECIMAL

FIXED(10,0)

FIXED(5,0)

FIXED DECIMAL

(10,0)

(5,0)

FIXED DECIMAL(p)

(p,0)

(p,0)

FLOAT DECIMAL

(7)

(6)

BIT [ALIGNED]

(1)

(1)

CHARACTER [VARYING]

(1)

(1)

Attributes of Constants

Constants have attributes implied by the characters used to specify them. The following list describes the expression of constants and their attributes:

  • A series of characters enclosed in apostrophes is assumed to be a string constant:
  • If the letter B, which can be lowercase, is appended after the closing apostrophe, the constant is a bit-string constant, for example, '00010101'B. If the integer 2, 3, or 4 is appended to the letter B, the constant is a bit-string constant with the base 4, 8, or 16, respectively. Each digit occupies 2, 3, or 4 bits. For example, '17777'B3 is an octal constant that is represented internally as a string of 15 bits.
  • If the constant does not have the letter B appended, it is a character-string constant even when it contains only the characters 0 and 1. (However, a character string of 0s and 1s can be converted by a simple assignment to a bit string.)
  • If the constant is an integer, it has the attributes FIXED DECIMAL(n,0), where n is the number of digits in the integer. For example, the constant 1777 is a constant of type FIXED DECIMAL(4,0).
  • Constants with an appended or embedded decimal point, but with no following exponent, are of type FIXED DECIMAL(p,q), where p is the total number of digits and q is the number of digits to the right of the decimal point.
  • Consider this example where a fixed-point decimal constant has the following appended characters:

E digit ...



It is of type FLOAT DECIMAL(p), where p is the total number of digits in the fixed-point constant (that is, the total number to the left of the letter E).

Note that PL/I has no constants with the attributes FIXED BINARY, FLOAT BINARY. However, this presents no problems in programming because you can assign constants of any computational type to variables of any computational type and they are converted automatically to the target type.

You usually give values to binary variables by assigning decimal constants to them. For example:

I = 1;



This converts the decimal integer 1 and assigns the converted value to a fixed-point binary variable I. Consider the following example:

F = 1.333E-12;



This converts the floating-point decimal constant 1.333E-12 and assigns the converted value to a floating-point binary variable F.

Picture variables are usually given values by assigning fixed-point decimal constants. For example:

PAY_PIC = 123.44;



This assigns the fixed-point decimal value 123.44 to a picture variable PAY_PIC. The value of PAY_PIC is a pictured value, which is stored internally as a character string containing the characters 1, 2, 3, 4, and 4, along with any special formatting symbols defined for PAY_PIC.

Arithmetic Operands

The implied data types of constants are important primarily because of PL/I's rules for converting operands in an arithmetic operation. (Bit-string and character-string operations must have bit- and character-string operands, respectively.) All operations, including arithmetic operations, must be performed in a single data type, and automatic conversions are performed on arithmetic operands to make this possible. For example:

DECLARE X FLOAT DECIMAL (6);

X = X + 1.3;



In this example, the fixed-point decimal constant 1.3 is converted to floating-point decimal before the addition is performed. The rules for operand conversion are discussed in detail in See Derived Data Types for Arithmetic Operations .

For information about arithmetic operators, operands, and data conversions, see See , See Expressions and Data Type Conversions .

Compatible Data Types

In PL/I, the notion of compatible data types is used in the rules for passing arguments by reference and for based, controlled, defined, or external variables. For two nonstructure variables to have compatible data types, the following attributes must agree. That is, if one variable has the attribute, the other variable must also have it after the application of default rules:

ALIGNED

ENTRY


AREA

FILE


array bounds

FIXED

POINTER

BINARY

FLOAT

precision

BIT

LABEL

PRECISION

CHARACTER

length

VARYING

DECIMAL

OFFSET



DIMENSION





Two pictured variables must have identical pictures after the expansion of iteration factors.

In addition, the following values must be equal:

  • Precisions and scale factors for arithmetic data
  • String lengths and area sizes
  • Number of dimensions for arrays and bounds in each dimension

Two structure variables have compatible data types if they have the same number of immediate members, and if corresponding members have compatible data types.

In general, you can specify string lengths, area sizes, and array bounds with expressions or with asterisks. The values used to determine whether two variables have compatible data types are obtained as follows:

  • For static variables, the values must be constants.
  • For automatic and defined variables, the expressions are evaluated when the block containing such a variable's declaration is activated. The resulting values are used for all references to the variable within that block activation.
  • For parameters, the declaration specifies any extents either with constants or with asterisks. In the case of asterisks, the extent in a particular procedure invocation is determined by the extent of the argument passed to the parameter. The extent remains the same throughout the procedure invocation.
  • For based or controlled variables, extent expressions are evaluated each time the variable is referenced.

Consider the following example:

/* Example of extent determination */

DATAT: PROCEDURE (PTR1);



DECLARE N FIXED, S CHARACTER(N) BASED(PTR1);

DECLARE PTR1 POINTER;



N = 10;



CALL P(S);



P: PROCEDURE(A);



DECLARE A CHARACTER(*), B CHARACTER(N);

N = 20;

PUT LIST(LENGTH(A),LENGTH(B),LENGTH(S));

END P;



END DATAT;



The PUT statement writes out:

10 10 20



The assignment to N inside the procedure P affects the extent of S, but not the extents of A or B, which were frozen when P was invoked.

Arithmetic Data

Arithmetic data types are used for variables on which arithmetic calculations are to be performed. The arithmetic data types supported by PL/I are as follows:

When you declare an arithmetic variable, you do not always have to define all its characteristics, or attributes.

See . Implied Attributes for Computational Data shows the implied attributes for computational data.

Precision and Scale of Arithmetic Data Types

The PRECISION attribute applies to decimal and binary data as follows:

  • The precision of a fixed-point data item is the total number of decimal or binary digits used to represent a value.
  • The precision of a floating-point data item is the number of decimal or binary digits in the mantissa of the floating-point representation.

Scale factors are supported for fixed-point decimal data. The scale of fixed-point data is the number of digits to the right of the decimal point. Fixed-point binary and floating-point data do not have a scale factor.

In this manual, the letter p is used to indicate precision, and the letter q is used to indicate the scale factor.

You can specify both precision and scale in a declaration. For example:

DECLARE x FIXED DECIMAL(10,3) INITIAL(1.234);



This example indicates that the value of x has 10 decimal digits and that 3 of those are fractional. When a value is assigned to the variable, its internal representation does not include the decimal point; the previous value for x is stored as 1234, and the decimal point is inserted when the number is output. The scale factor has the effect of multiplying the internal representation of the decimal number by a factor of 10 -q (where q is the absolute value of the specified scale).

See . Default Values for Precision summarizes the ranges of values you can specify for precision for each arithmetic data type and the defaults applied if you do not specify a precision.

. Default Values for Precision

Data Type
Attributes

Precision

Scale
Factor

Default Precision

BINARY FIXED

1 <= p <= 31

-

31

BINARY FLOAT
(Digital Variant)

1 <= p <= 113

-

24

BINARY FLOAT
(IBM Variant)

1 <= p <= 109

-

21

DECIMAL FIXED
(Digital Variant)

1 <= p <= 31

p >= q >= 0

10

DECIMAL FIXED
(IBM Variant)

1 <= p <= 15

p >= q >= 0

5

DECIMAL FLOAT
(Digital Variant)

1 <= p <= 34

-

7

DECIMAL FLOAT
(IBM Variant)

1 <= p <= 33

-

6

If no scale factor is specified for fixed-point decimal data, the default is 0.

Fixed-Point Binary Data

You can use the attributes FIXED and BINARY to declare integer variables and fractional variables in which the number of fractional digits is fixed (that is, nonfloating-point numbers). The FIXED attribute implies BINARY.

For example, you can declare a fixed-point binary variable as:

DECLARE X FIXED BINARY(31);



The compiler gives variable X the attributes FIXED, BINARY, and (31) in this declaration. The precision is 31.

PL/I has no representation in PL/I for a fixed-point binary constant. Instead, integer constants are represented as fixed decimal. However, fixed decimal integer constants (and variables) are converted to fixed binary when combined with fixed binary variables in expressions. For example:

I = I+3;



In this example, if I is a fixed binary variable, the integer 3 is represented as fixed decimal; however, PL/I converts it to fixed binary when evaluating the expression.

Fixed binary variables have a maximum precision of 31, so fixed binary integers can have values only in the range -2,147,483,648 through 2,147,483,647. An attempt to calculate a binary integer outside this range, in a context that requires an integer value, signals the FIXEDOVERFLOW condition.

The attributes FIXED BINARY are used to declare binary data in PL/I. The BINARY attribute is implied by FIXED. The format of a declaration of a single, fixed-point, binary variable is:

DECLARE identifier FIXED [BINARY] [(precision)];



There is no form for a fixed-point binary constant, although constants of other computational types are convertible to fixed-point binary. A fixed-point binary variable usually receives given values by being assigned to an expression of another computational type or another fixed-point binary variable.

Internal Representation of Fixed-Point Binary Data

See . Internal Representation of Fixed-Point Binary Data shows the internal representation of fixed-point binary data. Storage for fixed-point binary variables is always allocated in a byte, word, or longword. For any fixed-point binary value:

  • If p is in the range 1 through 7, a byte is allocated.
  • If p is in the range 8 through 15, a word is allocated.
  • If p is in the range 16 through 31, a longword is allocated.

The binary digits of the stored value go from right to left in order of increasing significance; for example, bit 6 of a FIXED BINARY (7) value is the most significant bit, and bit 0 is the least significant.

In all cases, the high-order bit (7, 15, or 31) represents the sign.

. Internal Representation of Fixed-Point Binary Data

Fixed-Point Decimal Data

Fixed-point decimal data is used in calculations where exact decimal values must be maintained, for example, in financial applications. You can also use fixed-point decimal data with a scale factor of 0 whenever integer data is required.

The following sections describe fixed-point constants and variables and their use in expressions.

This discussion is divided into the following parts:

  • Constants
  • Variables
  • Use in expressions
  • Internal representation
Fixed-Point Decimal Constants

A fixed-point decimal constant can have between 1 and 31 of the decimal digits 0 through 9 with an optional decimal point or sign, or both. If there is no decimal point, PL/I assumes it to be immediately to the right of the rightmost digit.

Some examples of fixed-point decimal constants are:

12

4.56

12345.54

-2

01.



The precision of a fixed-point decimal value is the total number of digits in the value. The scale factor is the number of digits to the right of the decimal point, if any. The scale factor cannot be greater than the precision.

Fixed-Point Decimal Variables

The attributes FIXED and DECIMAL are used to declare fixed-point decimal variables. The FIXED attribute is implied by DECIMAL.

If you do not specify the precision and the scale factor, the default values are 10 and 0, respectively.

The format of a declaration of a single fixed-point decimal variable is:

DECLARE identifier [FIXED] DECIMAL [(p[,q])];



Some examples of fixed-point decimal declarations are:

DECLARE PERCENTAGE FIXED DECIMAL (5,2);

DECLARE TONNAGE FIXED DECIMAL (9);



Use in Expressions

You cannot use fixed-point decimal data with a nonzero scale factor in calculations with binary integer variables. If you must use the two types of data together, use the DECIMAL built-in function to convert the binary value to a scaled decimal value before attempting an arithmetic operation. For example:

DECLARE I FIXED BINARY,

SUM FIXED DECIMAL (10,2);

SUM = SUM + DECIMAL (I);



Internal Representation of Fixed-Point Decimal Data

Fixed-point decimal data is stored in packed decimal format. Each digit is stored in a half-byte, as shown in See . Fixed-Point Decimal Data Representation . Bits 0 through 3 of the last half-byte contain a value indicating the sign. Normally, the hexadecimal value C indicates a positive value and the hexadecimal value D indicates a negative value. (PL/I also supports using the hexadecimal values A, E, and F for positive values and the hexadecimal value B for negative values.)

. Fixed-Point Decimal Data Representation

Floating-Point Data

The floating-point data types provide a way to express very large and very small numbers such as in scientific calculations. All floating-point calculations are performed on values in one of the binary floating-point formats. In general, the precision of the result is determined by the maximum precision of any operands in the operation. The numerical result of an operation is rounded to the result precision.

The following sections describe floating-point constants and variables and their use in expressions.

This discussion of floating-point data is divided into the following parts:

  • Constants
  • Variables
  • Use in expressions
  • Floating-point data formats
  • Internal representation of floating-point data
Floating-Point Constants

A floating-point constant can have one or more of the decimal digits 0 through 9 (with an optional decimal point), followed by the letter E and from one to five decimal digits representing a power of 10. The floating-point value and the integer exponent can both be signed. The first portion of the value, to the left of the letter E, is called the mantissa. The value to the right of the letter E is called the exponent.

Some examples of floating-point constants are:

2E10

-3E8

32E-8

.45632E16



The decimal precision of each of these values is the number of digits in the mantissa.

If you write a constant without the E and the exponent, it is considered to be fixed-point decimal. However, you can use such constants anywhere in expressions involving floating- point data.

All floating-point constants are decimal.

Floating-Point Variables

The keyword FLOAT identifies a floating-point variable in a declaration.

A floating-point value can be either binary or decimal. Because the internal representation of floating-point variables is binary, it is recommended that you use FLOAT BINARY (which is the default) to declare variables, unless you need the properties of FLOAT DECIMAL. (The difference between FLOAT BINARY and FLOAT DECIMAL appears only when a conversion to another type, such as character, for doing I/O is necessary.) You should declare all floating-point variables using the same base.

To declare a single floating-point binary variable, specify a DECLARE statement as follows:

DECLARE identifier FLOAT [BINARY] [(p)];



You can optionally specify the precision for a floating-point variable in the declaration. For example:

DECLARE X FLOAT BINARY(53);



The keyword FLOAT identifies a floating-point variable.

To declare a decimal floating-point variable, use the following format:

DECLARE identifier FLOAT DECIMAL [(p)];



For example:

DECLARE X FLOAT DECIMAL (10);



Using Floating-Point Data in Expressions

You can use both integer and scaled decimal constants in floating-point expressions. An arithmetic constant is always converted to the appropriate internal representation for use in a floating-point operation. The target type for the conversion depends on the context. For example:

DECLARE X FLOAT BINARY (53);

X = X + 1.3;



Here, the constant 1.3 is converted to floating point when the expression is evaluated.

Such a conversion is normally done during compilation, but in some cases the constant is maintained in decimal until run time.

Floating-Point Data Formats

PL/I supports the IEEE standards of floating point formats -- the S (single precision) and T (double precision) types. See . Ranges of Floating-Point Formats summarizes the approximate ranges of the floating-point formats.

. Ranges of Floating-Point Formats

Format

Range

S

0.29 * 10 -38 to 1.7 * 10 38

T

0.56*10 -308 to 0.9 * 10 308

See . Ranges of Precision for Floating-Point Types summarizes the ranges of precision (sign bits, exponent bits, and fractional bits of accuracy) for each type. See IEEE S_floating Format and See IEEE T_floating Format describe the internal representation of floating-point data.

. Ranges of Precision for Floating-Point Types

Floating-Point Type

Sign Bits

Exponent Bits

Fractional Bits

S (single precision)

1

8

24

T (double precision)

1

11

53

The PL/I compiler selects the appropriate floating-point type based on the precision you specify. The types are selected as shown in See . Floating-Point Types Used by PL/I , where p indicates precision.

. Floating-Point Types Used by PL/I

Precision (DECIMAL)

Precision (BINARY)

Digital UNIX

1 <= p <= 7

1 <= p <= 24

S

8 <= p <= 15

25 <= p <= 53

T

IEEE S_floating Format

The following PL/I types are represented using S_floating data, which occupies four contiguous bytes:

  • FLOAT BINARY (P) where P 24
  • FLOAT DECIMAL (P) where P 7

Bits are labeled from the right, 0 through 31, as shown in See . IEEE S_floating Data Representation .

. IEEE S_floating Data Representation

The form of S_floating data is sign magnitude, with bit 31 the sign bit (0 for positive numbers, 1 for negative numbers), bits 30:23 an exponent, and bits 22:0 a normalized 24-bit fraction including the redundant most significant fraction bit not represented. The value of data is in the range 1.17549435E-38 (normalized) to 3.40282347E38. The precision is approximately one part in 2**23; that is, typically seven decimal digits.

When loaded into a 64-bit register, the S_floating value resides in bits 29-63.

IEEE T_floating Format

The following PL/I types are represented using T_floating data, which occupies eight contiguous bytes:

  • FLOAT BINARY (P) where 24 < P 53
  • FLOAT DECIMAL (P) where 7 < P 15

Bits are labeled from the right, 0 through 63, as shown in See . IEEE T_floating Data Representation

. IEEE T_floating Data Representation

The form of T_floating data is sign magnitude, with bit 63 the sign bit (0 for positive numbers, 1 for negative numbers), bits 62:52 an exponent, and bits 51:0 a normalized 53-bit fraction including the redundant most significant fraction bit not represented. The value of data is in the approximate range 2.225073859D-308 (normalized) to 1.797693135D308. The precision is approximately one part in 2**52; that is, typically fifteen decimal digits.

Character Pictured Data

Use character pictured data to define fixed-length character strings and also specify that certain positions in the character string must contain specific types of characters.

A character picture specification must contain one or more A or X picture specification characters, and can also contain one or more 9 picture specification characters. A character picture specification might look like this in a DECLARE statement:

DECLARE EMPLOYEE_NUMBER PICTURE 'AAA999999X';



This statement declares the variable EMPLOYEE_NUMBER as a character pictured variable. The characters within the apostrophes describe its format.

The formatting possible with character pictured data is useful in applications where you have a specific defined format for a character string, such as an employee id or part number, but do not use the numeric portion of the string for calculations.

Character Picture Characters

lists the PL/I character picture characters and describes their meaning in a character pictured data item:

X

Any character in the DEC Multinational Character set.

A

Any alphabetic character, blank, $, #, or @

9

Any numeric digit or blank. Note that blanks are allowed, although they are not allowed when you use a '9' in a numeric picture character specification.

Examples of Character Picture Variable Definitions

The following examples show valid and invalid pictures given the following declaration for EMPLOYEE_NUMBER:

DECLARE EMPLOYEE_NUMBER PICTURE 'AAA999999X';



Valid pictures

'MFG123456A'

'prs52      x' (prs52 followed by four blanks and an x)

'$ab123456+'



Invalid pictures

'MF9123456A' (9 is invalid given the A format item for that position)

'prsA#3456x' (A and # are invalid given the 9 format item for those positions)



Numeric Pictured Data

Use numeric pictured data when you want to manipulate a quantity arithmetically and accept or display its value using a special format.

A numeric picture specification (or picture) describes both the numeric attributes of a pictured variable and its input/output (I/O) format. A simple picture might look like this in a DECLARE statement:

DECLARE CREDIT PICTURE '$99999V.99DB';



This statement declares the variable CREDIT as a pictured variable. The characters within the apostrophes describe its format.

The formatting possible with pictured data is useful in many applications, but pictured data is much less efficient than fixed-point decimal data for strictly computational use.

This section discusses the following topics:

  • The picture characters that make up a specification in the PICTURE attribute and in the P format item. It also describes picture syntax.
  • The process by which a value is assigned to a pictured variable or written out with the P format item.
  • The process by which a pictured value is assigned to other variables or acquired with the P format item.
  • Editing by picture.
  • The internal representation of pictured variables.

The formatting possible with pictured data is useful in many applications, but pictured data is less efficient than fixed-point decimal data in computations. Therefore, do not use pictured data unless you need the formatting.

Picture Characters

See . Picture Characters summarizes the PL/I picture characters, their meaning, and whether they effect numeric interpretation and internal representation. The paragraphs following the table describe the picture characters and syntax. All picture characters are shown here in uppercase, but their lowercase equivalents can be used.

. Picture Characters

Character

Meaning

Numeric
Interpretation

Internal
Representation

V

Position of assumed decimal point

yes

no

9

Decimal digit, including leading zeros

yes

yes

Z

Decimal digit with leading-zero suppression

yes

yes

*

Decimal digit with asterisk for leading zero

yes

yes

Y

Decimal digit with space for any zero

yes

yes

(n)

Iteration factor for subsequent character

yes

yes

T

Position of digit and encoded plus sign or minus sign

yes

yes

I

Position of digit and encoded plus sign if number >= 0

yes

yes

R

Position of digit and encoded minus sign if number < 0

yes

yes

$

Position(s) of (drifting)
dollar sign

yes

yes

+

Position(s) of (drifting) plus sign if number >= 0

yes

yes

-

Position(s) of (drifting) minus sign if number < 0

yes

yes

S

Position(s) of (drifting) plus sign or minus sign

yes

yes

,

Position at which comma is inserted

no

yes

.

Position at which decimal point is inserted

no

yes

/

Position at which slash is inserted

no

yes

B

Position at which space is inserted

no

yes

CR

Positions at which 'CR' is inserted if number < 0

no

yes

DB

Positions at which 'DB' is inserted if number < 0

no

yes

F ( [] n )

Scaling factor for fixed decimal numbers

yes

yes

K

Positions the exponent field

yes

yes

E

Positions the letter E, indicating the start of the exponent field

yes

yes

Decimal Place Character (V)

The V character shows the position of the assumed decimal point, or the scale factor for the fixed-point decimal value. The V character has no effect on the internal representation of the pictured value and does not cause a decimal point to appear in the internal representation or in the output (use the period insertion character for this purpose). The following rules apply to the V character:

  • Only one V character can appear in a picture.
  • If a picture does not contain the V character, the V is assumed to be at the right end of the picture. That is, the pictured value has a scale factor of 0.
  • When a fixed-point value is assigned to a pictured variable, the integral portion of the assigned value is described by the picture characters to the left of the V; the fractional portion of the assigned value is described by the picture characters to the right of the V. Values with too many or too few digits are handled as follows:

If the assigned value has fewer integral digits than are indicated by the picture characters to the left, then the integral value of the pictured variable is extended on the left with zeros. If the assigned value has too many integral digits, the value of the pictured variable is undefined and the FIXEDOVERFLOW condition is signaled.

If the assigned value has fewer fractional digits than are indicated in the picture, then the fractional value of the pictured variable is extended on the right with zeros. If the assigned value has too many fractional digits, then the excess fractional digits are truncated on the right; no condition is signaled. Thus, if the V character is the last character in the picture or is omitted, assigned fixed-point values are truncated to integers.

The following example shows the effect of the V character:

DECLARE PRICE PICTURE '$$9V.99',

BAD_PRICE PICTURE '$$9.99';

PRICE = .98; /* Output as $0.98 */

BAD_PRICE = .98; /* Output as $0.00 */

PRICE = 98; /* Output as $98.00 */

BAD_PRICE = 98; /* Output as $0.98 */



In this example, note that the variable PRICE, which contains the V character, represents the value properly. The variable BAD_PRICE, which contains only the period insertion character, has an assumed V character at the end of the picture, which causes the variable to misrepresent the value.

Digit Characters (9, Z, *, Y)

The characters 9, Z, and Y, and the asterisk character (*) mark the positions occupied by decimal digits. The number of these characters present in a picture specifies the number of digits, or precision, of the fixed-point decimal value of the pictured variable. The following rules apply to these characters:

  • The position occupied by 9 always contains a decimal digit, whether or not the digit is significant in the numeric interpretation of the pictured value. Leading zeros at positions occupied by a 9 are output.
  • The position occupied by Z contains a decimal digit only if the digit is significant in the integral portion of the numeric interpretation; if the digit is a leading 0, it is replaced by a space. Several additional rules apply to the Z character:

The Z character must not appear in the same picture with the asterisk character (*). It must not appear to the right of the characters 9, T, I, or R nor to the right of a drifting string.

If the Z character appears to the right of the V character, then all digits to the right of the V must be indicated by Z characters. Fractional zeros are then suppressed only if all fractional digits are 0 and all of the integral digits are suppressed; in that case, the internal representation contains only spaces in the digit positions.

  • The position occupied by the asterisk character (*) functions identically with the Z character, except that leading zeros are replaced by asterisks instead of spaces.
  • The position occupied by the Y character contains a decimal digit only if the digit is not 0. All zeros in the indicated positions, whether significant or not, are replaced by spaces.
Iteration Factor (n)

You can precede any picture character that can appear more than once in a picture by an iteration factor, which must be a positive integer constant enclosed in parentheses. For example:

'(4)9'



This picture is the same as the following one:

'9999'



Encoded-Sign Characters (T, I, R)

You can use the characters T, I, and R, which are encoded-sign characters, wherever 9 is valid. Each represents a digit that has the sign of the pictured value encoded in the same position. You can use only one encoded-sign character in a picture.

An encoded-sign character cannot be used in a picture that contains one of the following characters: S, +,-, CR, or DB (described in the following text).

The meanings of the characters are:

  • The T character indicates that the position contains an encoded minus sign if the numeric value is less than 0 and an encoded plus sign if the numeric value is greater than or equal to 0.
  • The I character indicates an encoded plus sign if the numeric value is greater than or equal to 0. Otherwise, the position contains an ordinary digit.
  • The R character indicates an encoded minus sign if the numeric value is less than 0. Otherwise, the position contains an ordinary digit.

See . ASCII Representation of Encoded-Sign Characters lists the encoded-sign characters and their ASCII equivalents.

. ASCII Representation of Encoded-Sign Characters

Digit

ASCII Character

Digit

ASCII Character

+0

{

-0

}

+1

A

-1

J

+2

B

-2

K

+3

C

-3

L

+4

D

-4

M

+5

E

-5

N

+6

F

-6

O

+7

G

-7

P

+8

H

-8

Q

+9

I

-9

R

Drifting Characters ($, +, -, S)

The dollar sign ($), plus sign (+), minus sign (-), and S character are drifting characters. You can use the drifting characters to indicate digits or to indicate a symbol to be inserted when, for example, a pictured value is written out by PUT LIST. The meanings of the characters are:

  • The dollar sign ($) causes a dollar sign to be inserted.
  • The plus sign (+) causes a plus sign to be inserted if the numeric value is greater than or equal to 0.
  • The minus sign (-) causes a minus sign to be inserted if the numeric value is less than 0.
  • The S character causes a plus sign to be inserted if the numeric value is greater than or equal to 0, and a minus sign if the value is less than 0.

If one of these characters is used alone in the picture, it marks the position at which a special symbol or space is always inserted, and it has no effect on the value's numeric interpretation. In this case, the character must appear either before or after all characters that specify digit positions.

However, if a series of n of these characters appears, then the rightmost n-1 of the characters in the series also specify digit positions. If the digit is a leading 0, the leading 0 is suppressed, and the leftmost character drifts to the right; the character appears either in the position of the last drifting character in the series or immediately to the left of the first significant digit, whichever comes first.

Used this way, the n-1 drifting characters also define part of the numeric precision of the pictured variable, because they describe at least some of the positions occupied by decimal digits. For an example of this behavior by a drifting character (the dollar sign), refer to the V decimal place character description.

The following additional rules apply to drifting characters:

  • A drifting string is a series of more than one of the same type of drifting character. Only one drifting string can appear in the picture; any other drifting characters can be used only singly and therefore designate insertion characters, not digits.
  • The Z and asterisk (*) cannot appear to the right of a drifting string.
  • A digit position cannot be specified (for instance, with a 9) to the left of a drifting string.
  • A drifting string can contain the V character and one of the insertion characters, which are defined as follows:

If the drifting string contains an insertion character, it is inserted in the internal representation only if a significant digit appears to its left. In the position of the insertion character, a space appears if the leftmost significant digit is more than one position to the right; the drifting symbol appears if the next position to the right contains the leftmost significant digit.

If the drifting string contains a V character, all digit positions to the right of the V (the fractional digits) must also be part of the drifting string. In this case, insignificant fractional digits are suppressed only when all integral and fractional digits are zeros: they are replaced by spaces in the internal representation. If any digit is not 0, all fractional digits appear as actual digits.

Any insertion characters immediately to the right of a drifting string are considered part of it.

Insertion Characters (, . / B)

The insertion characters indicate that characters are inserted between digits in the pictured value. The insertion characters are the comma (,), period (.), slash (/), and the space(B). The B character indicates that a space is always inserted at the indicated position.

The drifting characters ($, +, -, S) also function as insertion characters when used singly (that is, not as part of a drifting string).

The period (.) does not imply a decimal place character V (see the example in the description of the V character, described earlier).

The following rules describe insertion by the comma, period, and slash insertion characters.

  • In general, the insertion character itself is inserted in the internal representation of the pictured value. In particular, this is true if the insertion character is the first character in the picture, or if all the picture characters to its left are characters that do not specify decimal digits.
  • If 0 suppression occurs, the insertion character is inserted only in these cases:

If a significant digit appears immediately to its left

If the V character appears immediately to its left, and the fractional part of the numeric value contains significant digits

  • If the position preceding the insertion character is occupied by an asterisk or drifting string and the preceding position is taken by a leading 0, then the preceding character also indicates the character to be inserted in the position of the insertion character. If, however, the preceding position is taken by a leading 0 and does not have an asterisk or drifting string, then the insertion character's position is a space in the internal representation of the pictured value.
  • To guarantee that the decimal point is in the same position in both the numeric and character interpretations, the V and period characters must be adjacent. However, if the period precedes the V, then it is suppressed if there are no significant integral digits, even though all the fractional digits are significant. This property can make fractions appear to be integers when the internal (character) value is displayed. Consequently, the period should immediately follow the V character; it will then be in the correct location and will appear whenever any fractional digit is significant. The following example shows the correct and incorrect placement of the period:

DECLARE NUM PICTURE 'ZZZV.ZZ',

BAD_NUM PICTURE 'ZZZ.VZZ';

NUM=0.02; /* Output as .02 */

BAD_NUM=0.02; /* Output as 02 */



  • You can use other insertion characters, such as the comma, to separate the integral and fractional portions of a number. Do not use the comma with GET LIST input, because in that context it separates different data items in the input stream.
Credit (CR) and Debit (DB) Characters

These picture characters are always specified as the character pairs CR and DB. If either pair is included, it appears if the numeric value is less than zero. In each case, the associated positions contain two spaces if the numeric value is greater than or equal to 0.

The characters are inserted with the same case as used in the picture. If the lowercase form cr is used in the picture, lowercase letters are inserted in the pictured value; if the combination Cr is used, then Cr is inserted.

The credit and debit characters cannot be combined in one picture, nor can they be used in the same picture as any other character that specifies the sign of the value (S, plus sign (+), and minus sign (-) characters). In addition, they must appear to the right of all picture characters specifying digits.

Scaling Factor Character (F([+ or -] n))

The F character specifies the scale factor for a fixed-point decimal value. You can specify it once, at the right end of the picture specification.

Format

F ( [] n )

F

Indicates that the following number is a scaling factor.

(+ or -)

Indicates whether the decimal point should be moved to the right (if positive) or left (if negative).

n

The number of places to move the decimal place. You must specify n such that the number of digits following the V picture character minus the number specified with the F picture character is between -128 and 127.

Exponent Characters (K and E)

Use the K and E characters in numeric pictures to describe picture equivalents for floating-point decimal numbers. These characters delimit the exponent field.

K

Shows the position where the exponent field begins. This character does not appear in the data item.

E

Shows the position where the letter E, followed by the exponent field, appears in the data item.

Only one K or E can appear in a picture.

For example:

DECLARE RESULT PICTURE 'SZ999V.99ES99'



Picture Syntax

After all its iterations are expanded and all its insertion characters are removed, a picture must satisfy the following syntax rules (the notation character, or ellipsis (...), indicate a series of the same character, with no embedded characters).

Picture:

'[left-part]center-part[right-part]'



Left-part:

Right-part:

Center-part:

  • The character Y, T, I, or R can appear wherever 9 is valid with the following restrictions. Only one character T, I, or R can appear in a picture. A picture cannot contain T, I, or R if it also contains S, +, -, CR, or DB.
Examples
Valid Pictures

'S99V.99'



The picture specifies a signed fixed-point number with a precision of 4 (p=4) and a scale factor of 2 (q=2). The sign of the number is always included in its representation, in the first position. A period is inserted at the position of the assumed decimal point.

'****99'



The picture specifies a 6-digit integer, with the first four leading zeros replaced by asterisks.

'****V.**'



The picture specifies a fixed-point number with p=6, q=2. The first four leading zeros are replaced by asterisks in the integral portion. Both fractional digits always appear unless all six digits are 0. A period is inserted at the position of the assumed decimal point.

'ZZ99V.99'



The picture specifies a fixed-point number with p=6, q=2. The first two digits in the integral portion are replaced with spaces if they are zeros. Two digits always appear on either side of the decimal point.

'(4)SV.99'



The picture specifies a fixed-point number with p=5, q=2. (The iteration factor 4 specifies a string of four S characters, one of which specifies a sign and three of which specify digits.) A plus (+) or minus (-) symbol is inserted to the immediate left of the first significant digit, or to the left of the decimal point if no integral digit is significant. Any insignificant integral digits are replaced with spaces or with the sign symbol.

'ZZZ,ZZZV.99'



The picture specifies a fixed-point number with p=8, q=2. If the integral portion has four or more significant digits, a comma is inserted between the third and fourth digit; otherwise, both the leading zeros and the comma are suppressed. The decimal point always appears followed by two fractional digits.

'ZZZ.ZZZV,99'



The picture specifies a fixed-point number with p=8, q=2. If the integral portion has four or more significant digits, a period is inserted between the third and fourth; otherwise, both the leading zeros and the period are suppressed. The decimal point (indicated by a comma) always appears followed by two fractional digits.

'ZZZ/ZZZ/ZZZ'



The picture specifies a fixed-point number with p=9, q=0. A slash is inserted between the 3-digit groups unless the digit preceding the slash is a suppressed 0.

Invalid Pictures

'999ZZZZV.99'



The picture is invalid because a 9 occurs to the left of Z.

'$$$--99v.99'



The picture is invalid because it contains two drifting strings ('$$$'and '--').

'(4)-V.ZZZ'



The picture is invalid because fractional digits in this case must be pictured either with a drifting minus sign or with 9s.

Assigning Values to Pictured Variables

Assignment of a computational value to a pictured variable is performed in the following two steps:

  1. The value is converted to fixed decimal, with precision and scale as specified by the picture.
  2. The resulting fixed decimal value is edited into the pictured variable.

If PL/I cannot perform one of these steps in a meaningful fashion, an error occurs. The following examples show two programming errors that are common in assignments to pictured variables.

CREDIT = '$12443.00';



This example signals the CONVERSION condition, because the character string contains a dollar sign and cannot be converted to fixed-point decimal. The value assigned to CREDIT should be either '12443.00' or 12443.00, both of which result in the same value assigned to CREDIT.

If a negative value is assigned to a pictured variable, the picture must include one of the sign picture characters (such as DB). For example:

CREDIT = -12443.00;



If the picture of CREDIT did not contain the DB characters, this assignment would signal the FIXEDOVERFLOW condition, because the sign would be lost. In some circumstances (for example, with the READ statement), it is possible to assign a value to a pictured variable that is not valid with respect to the variable's picture specification. In such cases, you can use the VALID built-in function to validate the contents of the variable.

Extracting Values from Pictured Data

When you use a pictured value in an arithmetic context (such as an assignment to an arithmetic variable), the picture is used to extract the fixed-point decimal number from the character string that internally represents the pictured value. Extraction also occurs when you input a pictured value with the GET EDIT statement and the P format item. If the contents of the pictured variable or input item do not conform to the picture, an error occurs.

For example:

DECLARE CREDIT PICTURE '$99999V.99DB';



In the picture for CREDIT, the 9 character specifies the position of a decimal digit; because the picture contains seven of these, the fixed-point decimal precision of CREDIT is 7. The V character separates the integral and fractional digits; because there are two 9 characters to the right of the V, the scale factor of CREDIT is 2. Because the V character specifies only a numeric property, a period picture character (.) to ensure that the output value has a decimal point in the correct place.

The period and dollar sign are always inserted in the internal representation and the output value regardless of CREDIT's numeric value.

The picture character DB appears only when the value of CREDIT is less than 0; otherwise, two spaces appear in the indicated positions. The DB character also indicates that CREDIT's value is numerically negative, so that if CREDIT is later assigned to an arithmetic variable the variable will be given a negative value.

Editing by Picture

Any computational value or expression can be assigned to a pictured variable, as long as it meets these two qualifications:

  • The value either is a fixed-point decimal value or can be converted to a fixed-point decimal value.
  • The fixed-point decimal value can be represented with the precision and scale factor of the picture specified for the target pictured variable.

When a value is assigned to a pictured variable, the value is edited to construct a character string that meets the picture specification. Editing also occurs when a value is output with the PUT EDIT statement and the P format item. Editing was performed in the previous examples in which fixed-point decimal values were assigned to the pictured variable CREDIT.

Because a picture specifies a fixed-point decimal value, the FIXEDOVERFLOW condition is signaled in the same circumstances as for assignment of an expression to a FIXED DECIMAL variable.

The Internal Representation of Pictured Variables

A pictured variable has the attributes of a fixed-point decimal variable, but values assigned to it are stored internally as character strings. Such a character string contains digits describing the variable's numeric value as well as special symbols. An individual picture character and its position in the picture indicate the interpretation of an associated position in the pictured value.

The picture characters fall into three categories:

  • Characters that do not affect internal representation. The decimal place character (V) is the only one in this category.
  • Characters that affect both the numeric interpretation and internal representation of the value. These characters indicate how the digits of the numeric value should be placed in the string and where to place a sign as follows:

The digit characters (9, Z, *, Y)

The encoded-sign characters (T, I, R)

The drifting characters ($, +,-, S)

  • Characters that affect only the internal representation of the value. These characters appear in the internal characters string as follows:

The insertion characters (comma, period, slash, space)

The credit (CR) and debit (DB) characters

See Picture Characters describes each picture character in more detail. The assignment CREDIT = 12443.00; stores data internally, as shown in See . Internal Representation of a Pictured Variable , as a character string where delta () represents a space.

. Internal Representation of a Pictured Variable

The assignment CREDIT = -12443.00; stores data internally as shown in See . Internal Representation of a Pictured Variable .

. Internal Representation of a Pictured Variable

In situations that call for a character representation of a pictured data item (such as output with PUT LIST), this internal representation is used, including the nonnumeric characters. On output, the values assigned to CREDIT would look like this:

$12443.00 /* a positive value (credit) */

$12443.00DB /* a negative value (debit) */



Character String Data

A character string is a sequence of zero or more characters. The value of a character-string variable can consist of any DEC Multinational Character to a maximum length of 32,767 characters. The first 128 characters of the DEC Multinational Character Set are the ASCII characters.

Every character-string variable has a length attribute that specifies either the length of all values of the variable (fixed-length strings) or the maximum length of a value of the variable (varying-length strings).

This discussion of character-string data is divided into the following parts:

Character String Constants

A character string constant can consist of any characters in the DEC Multinational Character Set.

When you use character-string constants in a program, you must enclose the strings in apostrophes or quotation marks, as shown in the following examples:

'Total is:'

"Enter your first name: "



To specify a character string containing a literal apostrophe, use two apostrophes within the string. For example:

'Life isn''t fair'



When you specify a character string with embedded apostrophes as shown, the final result contains only a single apostrophe.

Replication of String Constants

You can use a replication factor to replicate character-string and bit-string constants in any context of the program. A replication factor is an unsigned integer constant that specifies the number of times a simple string constant is replicated to produce a resulting string constant. For example:

(4)'season '



In this example, the string is repeated four times. The character constant resulting from this specification is equivalent to:

'season season season season '



You can use a replication factor in combination with the iteration factor in INITIAL. For example, the following two statements are equivalent:

INITIAL ((10)('ABCABC'))

INITIAL ((10)((2)'ABC'))



The first example uses an iteration factor exclusively, but the second example combines an iteration factor of 10 with a replication factor of 2. Note that an extra set of parentheses is required to separate the iteration factor from the replication factor and the character string.

Character-String Variables

The CHARACTER keyword identifies a variable as a character-string variable in a declaration. The format is:

The addition of the VARYING attribute indicates a varying-length character-string variable.

An optional number in parentheses specifies the length of the variable, that is, the number of bytes needed to contain its value (maximum is 32,767). This length attribute specifies either the length of all values of the variable (fixed-length strings) or the maximum length of a value of the variable (varying-length strings). If the length is not specified, PL/I uses the default length of one character, or byte. The rules for specifying the length are:

  • For a static variable declaration, the length must be an integer constant.
  • In the declaration of a parameter or returns descriptor, you can specify the length as an integer constant or as an asterisk (*). The resulting string is fixed length unless VARYING is also specified.
  • For an automatic, based, or defined variable, you can specify the length as an integer constant or as an expression. In the case of automatic or defined variables, the expression must not contain any variables or functions that are declared in the same block, except for parameters.
  • The maximum length in any string declaration is 32,767.

If specified, n must immediately follow the keyword CHARACTER, and must be enclosed in parentheses.

Fixed-Length Character String Variables

A fixed-length character string is one that does not have the VARYING attribute. For a particular allocation of a fixed-length character string variable, all its values have the same length. When a program assigns a value to a fixed-length character-string variable, however, the value does not need to have the same length defined for the variable. Depending on the size of the value, PL/I adjusts the assignment length according to the following rules:

  • If the value is smaller than the length of the character string, PL/I pads the character string with spaces on the right. For example:

DECLARE STRING CHARACTER (10);

STRING = 'ABCDEF';



The final value of the variable STRING is 'ABCDEF    ', that is, the characters ABCDEF followed by four space characters.

  • If the value is larger than the length of the variable, PL/I truncates the character string on the right. For example:

DECLARE STRING CHARACTER (4);

STRING = 'ABCDEF';



Here, the final value of STRING is 'ABCD', that is, the first four characters of the value 'ABCDEF'.

Internal Representation of Fixed-Length Character Data

PL/I stores fixed-length character string data in a contiguous sequence of bytes with the leftmost character occupying the lowest memory address.

Varying-Length Character String Variables

When you define a character string variable, you can also specify the VARYING attribute. In a varying character-string variable, the length is not fixed. The length specified in the declaration of the variable defines the maximum length of any value that can be assigned to the variable. Each time a value is assigned, the current length changes. For example:

DECLARE NAME CHARACTER (20) VARYING;

NAME = 'COOPER';

NAME = 'RANDOM FACTOR';



The declaration of the variable NAME indicates that the maximum length of any character- string value it can have is 20. The current length becomes 6 when NAME is assigned the value 'COOPER'; the length becomes 13 when NAME is assigned the value 'RANDOM FACTOR'; and so on.

When a varying character string is assigned a value with a length greater than the maximum defined, the value is truncated on the right.

The initial length of an automatic varying-length character string variable is undefined unless the variable is initialized.

You can use the LENGTH built-in function to determine the current length of any string, and the MAXLENGTH built-in function to determine the maximum length.

Internal Representation of Varying Character Data

A varying-length character string consists of a fixed binary (15) value (stored as a word) specifying the string's current length, followed by a sequence of bytes in sequentially higher memory addresses.

Alignment of Character Strings

The PL/I language makes a distinction between aligned and unaligned varying character strings. (No such distinction is made for fixed length character strings or for character string constants.) A varying character string is aligned if it is declared with the ALIGNED attribute.

This distinction affects only argument passing. If a procedure declares a parameter as ALIGNED CHARACTER, and if the corresponding argument is an unaligned character-string variable or vice versa, the actual argument will be a dummy variable. For example:

DECLARE GETSTRING ENTRY (CHARACTER (*) ALIGNED);

DECLARE STRING CHARACTER (8);

CALL GETSTRING (STRING);



PL/I constructs a dummy variable here to pass the unaligned string variable STRING to the called procedure GETSTRING, rather than passing the actual argument by reference.

All character strings on the Digital Alpha hardware are aligned on byte boundaries. You should not use the ALIGNED attribute to declare character string variables.

Bit-String Data

A bit string consists of a sequence of binary digits, or bits. It can be used as a Boolean value, which has one of two states: true (if any bit is non-zero) or false (if all bits are 0).

Like a fixed-length character string, a bit string has a fixed length defined in the declaration or specified by the number of bits in a bit-string constant. The maximum length of any bit string is 32,767 bits. However, bit-string variables cannot be declared with the VARYING attribute.

The rest of this section discusses bit-string constants and variables, alignment of bit-string data, and the use of bit strings to represent integers.

This discussion of bit-string data is divided into the following parts:

Bit-String Constants

To specify a bit-string constant, enclose the string in apostrophes and follow the closing apostrophe with the letter B. For example:

'0101'B

'10101010'B

'1'B



The length of a bit-string constant is always the number of binary digits specified; the B does not count in the length of the string. You can specify a bit-string constant with a maximum of 1000 characters between the apostrophes.

You can also specify a bit-string constant using the following syntax:

'character-string'Bn

n

Is the number of bits to be represented by each digit in the string. n can have the value 1 through 4, and if not specified defaults to 1.

This format allows you to specify bit-string constants with bases other than 2. You can use base 4, 8, and 16, where n equals 2, 3, and 4 respectively. For example:

'EF8'B4

'117'B3

'223'B2



These constants specify the hexadecimal value EF8, the octal value 117, and the base 4 value 223. All such constants are stored internally as bit strings, not as integer representations of the value.

The valid characters for each type of bit-string constant are as follows:

  • For B or B1, only the characters 0 and 1 are valid
  • For B2, only the characters 0, 1, 2, and 3 are valid
  • For B3, only the characters 0, 1, 2, 3, 4, 5, 6, and 7 are valid
  • For B4, the characters 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F are valid (the letters A through F can be either upper- or lowercase)

Using the B format items, you can also acquire or output (with the GET EDIT and PUT EDIT statements) bit-string data in binary, base 4, octal, or hexadecimal format. See See B Format Items for more information on the B format item.

Replication Factor for Bit-String Constants

A replication factor is an unsigned integer constant that specifies the number of times a simple bit-string constant is replicated. A replication factor permits repetition of bit strings in any context where a simple string constant is permissible, including format items and assignment, string, and arithmetic operations. The format of a replication factor is as follows:

(r)'string'Bn


r

An unsigned integer that represents the number of times that the string is to be replicated.

string

A simple bit string constant to be replicated. The bit string is enclosed in apostrophes.

An example of replication is:

DECLARE (A) BIT (800);

A = (400) '2'B2;

PUT SKIP LIST ((A));



In this example, A will be replicated to its maximum specified length of 800 characters.

The resulting character constant looks like this:

'10101010101010101010101010101010

10101010101010101010101010'B



You can use the replication factor in combination with the iteration factor in INITIAL. For example, the following two statements are equivalent:

INITIAL ((10)('ABCABC'B4))

INITIAL ((10)((2)'ABC'B4))



The first statement uses an iteration factor exclusively; the second statement combines an iteration factor of 10 with a replication factor of 2. An extra set of parentheses is required to separate the iteration factor from the replication factor and the bit string.

Bit-String Variables

Use the BIT attribute to declare a bit-string variable. The format is:

DECLARE variable-name BIT [(length)];



You can optionally specify the length of the variable in parentheses. The length can be from 0 to 32,767; the default length is one bit. The rules for specifying the length are as follows:

  • If BIT is specified for a static variable declaration or in a returns descriptor, the length must be an integer constant.
  • If BIT is specified in the declaration of a parameter or in a parameter descriptor, you can specify the length as an integer constant or as an asterisk (*).
  • If BIT is specified for an automatic, based, or defined variable, you can specify the length as an integer constant or as an expression. In the case of automatic or defined variables, the expression must not contain any variables or functions that are declared in the same block, except for parameters.

A program can assign to a bit-string variable a value larger or smaller than the variable's defined length. In such cases, PL/I does the following:

  • If the assigned string is shorter than the defined length, PL/I pads the bit-string value with zeros in the direction of least significance. The less significant bits are on the right as the string is represented by PUT LIST.
  • If the assigned string is longer, PL/I truncates the least significant bits from the bit-string value.

You can convert bit-string variables to other data types; however, there are some precautions you must observe if you do so. See Data Type Conversion of Operands and Expressions describes how to convert bit-string variables.

Alignment of Bit-String Data

PL/I distinguishes between aligned and unaligned bit-string variables. (Bit-string constants are always unaligned.) A bit-string variable is aligned only if it is declared with the ALIGNED attribute, as shown in the following example:

DECLARE FLAGS BIT (8) ALIGNED;



PL/I allocates storage for an aligned bit-string variable on a byte boundary and reserves an integral number of bytes to contain the variable. Unaligned bit-string variables always occupy only as many bits as are needed to contain them. They need not be on byte boundaries. You can optionally specify the UNALIGNED attribute in a declaration; UNALIGNED is the default for bit strings.

In general, operations involving unaligned bit-string variables are less efficient than those involving aligned bit-string variables. Unaligned bit-string variables are also invalid as the targets of the FROM and INTO options of record I/O statements, and as the argument of the ADDR built-in function. Moreover, most non-PL/I programs that accept bit-string arguments require the strings to be aligned.

In most cases, you should declare bit-string variables with the ALIGNED attribute. Use unaligned bit-string variables when bit strings must be packed as tightly as possible, for example, in arrays and in structures. See See ALIGNED Attribute for more information.

Internal Representation of Bit Data

In this discussion, the term most significant bit means the leftmost bit in an external representation of a string, as, for example, when the string is output by the PUT LIST statement. The least significant bit is the rightmost bit in the external representation.

The notion of significance has no meaning for bit strings unless they are used to store integers. PL/I permits the use of bit strings for this purpose, and has defined rules for conversions between bit strings and other data types.

  • The use of PL/I bit-string data to store integers is not recommended, for two reasons:

    1. In assignments involving two bit strings of different lengths, the source string is padded or truncated as required to make a string of the length of the target.

    2. As shown in the following discussions, the significance of bits results in bit strings being stored in the reverse order from actual numeric data. Consequently, conversion of bit strings to arithmetic data is expensive in terms of execution speed, except in the special case of a 1-bit string.

    3. Internal representation is implementation specific. Do not rely on internal representation in your program, especially if you are writing transportable code.

Use the UNSPEC built-in function and UNSPEC pseudovariable when you must store integers in a compact form. Otherwise, use the data types FIXED BINARY and FIXED DECIMAL for integer arithmetic .

In Kednos PL/I for UNIX, bit strings are stored in memory with the leftmost bit (as represented by PUT LIST) in the lowest memory location, and bits following the leftmost in successively higher memory locations. This representation of a bit string is reversed by PUT with respect to a conventional picture of memory locations, in which the lowest location appears on the right and higher locations on the left. If you are accustomed to using PL/I on computers other than VAX or Alpha AXP machines and if you do not change your data to correct for this difference, the result is likely to be in error.

Unaligned Bit Strings

An unaligned bit string is stored beginning at an arbitrary bit location in storage; this location is the location of the most significant bit. The subsequent, less significant, bits are stored in progressively higher locations in memory, as shown in See . Unaligned Bit String Storage .

. Unaligned Bit String Storage

The following programming sequence shows how a value for an unaligned bit-string variable is stored:

DECLARE ABIT BIT (10);

ABIT = '1011'B;



After the assignment, the variable appears in storage as shown in See . Sample Unaligned Bit String Storage .

. Sample Unaligned Bit String Storage
Aligned Bit Strings

PL/I allocates storage for an aligned bit-string variable on a byte boundary and allocates an integral number of bytes. The number of bytes to be allocated is calculated as:

ceil(n/8)

Here, n is the length specified for the bit string.

Beginning at bit 0 (the lowest memory location) of the lowest allocated byte, the bit string is stored like unaligned bit-string data; that is, the beginning bit is used to hold the most significant bit in the string. Less significant bits are stored in progressively higher memory locations. Unused bits are set to 0 each time the bit-string variable is assigned a value.

The representation is shown in See . Aligned Bit String Storage .

. Aligned Bit String Storage

The following programming sequence shows how values are stored for aligned bit strings:

DECLARE ABIT BIT (10) ALIGNED;

ABIT = '10011'B;



In this example, the variable ABIT is aligned. When it is assigned the value 10011, the value is stored as shown in See . Sample Aligned Bit String Storage .

. Sample Aligned Bit String Storage

Bit Strings and Integers

PL/I defines conversions between bit-string data and other data types, and the compiler carries out these conversions. However, the conversions defined by PL/I are not always straightforward or intuitive; the padding and truncation that take place during assignment of bit strings of different lengths result in implicit multiplication or division of the bit string's integer value. For example:

DECLARE BITSTR BIT (10);

BITSTR = 1;

PUT LIST (BITSTR);



The output is:

'0001000000'B



The result may seem incorrect, but it conforms to PL/I's rules for conversion to bit strings. In this case, the fixed-decimal constant 1 is converted to a FIXED BINARY(4) value, which is in turn converted to an intermediate bit string of length 4:

'0001'B



Next, this intermediate bit string is assigned to the variable BITSTR. Because BITSTR is of length 10, the intermediate bit string is padded on the right with zeros, producing the result as output by PUT LIST. If you now attempt to interpret the value of BITSTR as an integer (for example, by using BITSTR as the argument of the BINARY built-in function), the result would be 64, not 1.

Extra execution time is required to reverse the order of bits when the integer's value is computed. Using arithmetic variables to represent integers is more efficient.

Because of the unexpected results and longer execution time, avoid using bit strings to represent integers or other data types.

Pointer Data

A pointer is a variable whose value represents the address in memory of another variable or data item.

Pointers are used to qualify references to based variables, that is, variables for which storage is explicitly allocated at run time by the ALLOCATE statement. For example:

DECLARE LIST_POINTER POINTER;

DECLARE 1 LIST_STRUCTURE BASED,

2 FORWARD_PTR POINTER,

2 MEMBER_NAME CHAR(20) VAR;



ALLOCATE LIST_STRUCTURE SET (LIST_POINTER);

LIST_POINTER -> LIST_STRUCTURE.MEMBER_NAME = 'newname';



When these statements are executed, the ALLOCATE statement allocates storage for a variable LIST_STRUCTURE and sets the pointer LIST_POINTER to the address in memory of the allocated storage. This dynamically created variable is called an allocation of the variable LIST_STRUCTURE.

In the assignment statement, the locator qualifier ->) and the identifier LIST_POINTER distinguish this allocation of LIST_STRUCTURE from allocations created by other ALLOCATE statements, if any. Pointers may also be used directly in declarations of based variables. For example:

DECLARE X POINTER,

BUFFER CHARACTER(80) BASED (X);



The variable X is given the POINTER attribute. Then it is used as the target pointer in another declaration, which defines a buffer to be based on X.

This section discusses the following:

Pointer Variables in Expressions

Expressions containing pointer variables are restricted to the relational operators equal (=) and not equal (^=), and the assignment operator.

For example, to test whether a pointer is currently pointing to valid storage, you can write the following statement:

IF LIST_POINTER ^= NULL() THEN

DO;



The NULL built-in function always returns a null pointer value.

You can use pointer variables in simple assignment statements that assign a pointer value to a pointer variable. For example:

LIST_POINTER_1 = LIST_POINTER_2;

LIST_END = NULL();



You can also use a pointer variable as the source or target in an assignment statement involving an offset variable or offset value.

Internal Representation of Pointer Data

A pointer occupies a longword (32 bits) of storage and represents a virtual memory address.

Offset Data

You declare an offset variable with the OFFSET attribute, optionally followed by an area variable reference. The value of the offset variable will be interpreted as an offset within the specified area, unless the POINTER function is used to explicitly specify another area. You must omit the area reference if the OFFSET attribute is specified within a returns descriptor, parameter declaration, or parameter descriptor. For example:

DECLARE MAP_SPACE AREA (40960),

MAP_START OFFSET (MAP_SPACE),

MAP_LIST(100) CHARACTER(80) BASED (MAP_START);



These declarations define an area named MAP_SPACE; an offset variable, MAP_START, that will contain offset values within that area; and a based variable whose storage is located by the value of MAP_START.

Offset variables are given values by assignment from existing offset values or from conversion of pointer values. PL/I also automatically converts a pointer value to an offset value, or an offset value to a pointer value, in an assignment statement. The following assignments are valid:

  1. pointer-variable = pointer-value;
  2. pointer-variable = pointer-value fixed-binary-number;
  3. offset-variable = offset-value;
  4. pointer-variable = offset-variable;
  5. offset-variable = pointer-value;

In assignment 3, any area references are ignored in the assignment; therefore, the offset value and variable can refer to different areas. In assignments 4 and 5, the offset variable must have been declared with an area reference.

Expressions containing offset variables are restricted to the relational operators = and ^=, for testing the equality or inequality of two values.

Label Data

A label identifies a statement so that it can be referred to elsewhere in the program, for example, as the target of a GOTO statement. A label precedes a statement and consists of any valid identifier terminated by a colon. Some examples are:

TARGET: A = A + B;

READ_LOOP: READ FILE (TEXT) INTO (TEMP);



These statements contain the implicit declarations of the names TARGET and READ_LOOP as label constants.

No statement can have more than one label. A statement can, however, be preceded by any number of labeled null statements. For example:

A: ;

B: DO I = 1 TO 5;



Other statements in the program can refer to the DO statement in this example by specifying either label A or label B.

A name occurring as a statement label is implicitly declared as a label constant. It has the attributes LABEL and constant. You cannot explicitly declare label constants.

This section discusses the following:

Label Array Constants

Any label constant except the label of a PROCEDURE or FORMAT statement can have a subscript. Subscripts must be specified with integer constants and can be either a simple constant or, using the IBM dialect, an array of up to seven dimensions. A subscript must appear in parentheses following the label name as shown in the following example:

PART(1):

PART(2):

PART(*):



The following example shows labels with two dimensions (valid in the IBM dialect only):

PART(1,1):

PART(1,2):

PART(*,*):



When labels are written this way, the unsubscripted label name represents the implicit declaration of a label array constant. In this example, the array is named PART and is treated as if it were declared within the block containing the subscripted labels. A default label can be created by using the asterisk (*) in place of a label constant. If a default label is used, it must be the last label in the list. If the variable subscript is out of range and the default label is present, the default label will be executed.

Elements of the array can be referenced in GOTO statements that specify a subscript. For example:

GOTO PART(I);



I is a variable whose value represents the subscript of the element of PART that is the label to be given control.

Make sure all the labels referenced by teh GOTO statement occur after the statement. See See GOTO Statement for more information.

Within a single block, you cannot use the same subscript value in two different subscripted references with the same name. For example:

PART(1):



This label array constant can be used only once in a block. However, the subscript values are not constrained to be in any particular order or to be consecutive. For example, you can use the array constants PART(1) and PART(3) without using PART(2).

If a name is used as a label array constant in two or more different blocks, each declaration of the name is treated as an internal declaration. For example:

LIST(2): RETURN;

BEGIN;

GOTO LIST (ELEMENT);

LIST(1):;

LIST(3):

END;



In this example, the value of ELEMENT cannot cause control to pass to the RETURN statement labeled LIST(2) in the containing block. The subscripted LIST labels in the begin block restrict the scope of the name to that block.

Label Values

Whenever a reference to a label constant is interpreted, the result is a label value. A label value has two components:

  • The first component designates the statement identified by the label constant.
  • The second component designates an activation of the block in which the label was declared (that is, to which the labeled statement belongs). If the label belongs to the current block, this block activation is the current block activation. If the label belongs to a containing block, the activation is found on the chain of parent block activations ending with the current block.

The GOTO statement with a label reference transfers control to the designated statement in the designated block activation. If the target block activation is different from the block activation in which the GOTO statement is executed, then the GOTO is nonlocal. For example:

DECLARE LV LABEL; /* LABEL variable */



LV = L; /* assigns a bound label value to LV */

BEGIN;



GOTO LV; /* nonlocal GOTO */

END;

L: RETURN;



Operations on label values are restricted to the operators = and ^= for testing the equality or inequality of two values. Two values are equal if they refer to the same statement in the same block activation.

Any reference to a label value after its block activation ceases to exist is an error with unpredictable results.

Label Variables

When an identifier is explicitly declared with the LABEL attribute, it acquires the VARIABLE attribute by default. You can use such a variable to denote different label values during the execution of the program.

For example:

DECLARE PROCESS LABEL;



IF CODE THEN

PROCESS = BILLING;

ELSE

PROCESS = CHARGE;



GOTO PROCESS;



When the GOTO statement evaluates the reference to the label PROCESS, the result is the current value of the variable. The GOTO statement transfers control to either of the labels BILLING or CHARGE, depending on the current value of the Boolean variable CODE.

You can also give values to label variables by passing label values as arguments or by returning a label value as the value of a function (although the latter method can lead to programming errors that are difficult to diagnose). For example:

CALL COMPUTER(ERROR_EXIT, YVAL, XVAL);



ERROR_EXIT:



In this example, the actual argument that is passed for ERROR_EXIT is a dummy argument whose value consists of the following:

  • The location in memory of the statement labeled ERROR_EXIT
  • A pointer to the stack frame for the block in which the CALL statement is executed

You can also declare arrays of label variables with up to seven dimensions. For example:

DECLARE LAB_ARRAY(10,20) LABEL;

GOTO LAB_ARRAY(I,J);

LAB_ARRAY(1,1):

LAB_ARRAY(1,2):



Restrictions

Any statement in a PL/I program can be labeled except a statement beginning an ON-unit or THEN, ELSE, WHEN, or OTHERWISE clauses

Labels on PROCEDURE, ENTRY, and FORMAT statements are not considered statement labels and cannot be used as the targets of GOTO statements.

An identifier occurring as a label in a block cannot be declared in that block (except as a structure member), and cannot occur in a parameter list of that block.

Internal Representation of Label Variables

See . Variable Label Data Representation shows the internal representation of variable label data.

. Variable Label Data Representation

Entry Data

Entry constants and variables are used to invoke procedures through specified entry points. An entry value specifies an entry point and a block activation of a procedure.

This section discusses the following:

Entry Constants

To declare entry constants, use labels on PROCEDURE or ENTRY statements.

To declare internal entry constants, use labels on PROCEDURE or ENTRY statements whose procedure blocks are nested in another block. You can use an internal entry constant anywhere within its scope to invoke its procedure block.

To declare external entry constants, either use labels on PROCEDURE or ENTRY statements that belong to external procedures, or explicitly declare the constant names with the ENTRY attribute. You can use an external entry constant to invoke its procedure block from any program location that is within its scope. Its scope is either the scope of its declaration (as a label) or the scope of a DECLARE statement for the constant.

You can declare external entry constants in DECLARE statements by using the ENTRY attribute. The declaration must agree with the actual entry point. That is, the declaration of the external entry constant must contain parameter descriptors for any parameters specified at the entry point, and, if the entry constant is to be used in a function reference, the declaration must have a returns descriptor describing the returned value.

Entry Values

Whenever a reference to an entry constant is interpreted, the result is an entry value. An entry value is the entry point of a procedure, and it serves to activate the block in which the entry point is declared (that is, the block in which the entry point's name appears as the label of a PROCEDURE or ENTRY statement). This block activation is the current block activation if the entry point belongs to the current block. If the entry point belongs to a containing block, the activation is on the chain of parent activations that ends at the current block activation.

No conversions are defined between entry data and other data types. You can assign an entry variable only the value of an entry constant or the value of another entry variable. The only operations that are valid for entry data are comparisons for equality (=) and inequality (^=). Two entry values are equal if they refer to the same entry point in the same block activation.

PL/I supports the passing of external procedures, but not internal procedures, as entry value parameters. To pass an internal procedure, use an entry parameter.

Entry Variables

Entry variables are variables (including parameters) that take entry values. If the VARIABLE attribute is specified with the ENTRY attribute in a DECLARE statement, the declared identifier is an entry variable. You can assign to an entry variable either another entry variable or an entry constant.

When an entry variable is used to invoke a procedure, its declaration must agree with the definition of the entry point. If the value you assign to an entry variable specifies an entry point with parameters, the parameters must be described with parameter descriptors in the declaration of the variable. If the assigned value specifies an entry point that is invoked as a function, then the declaration of the entry variable must have a RETURNS attribute that describes the data type of the returned value.

The scope of an entry variable name can be either internal or external. If neither the EXTERNAL nor the INTERNAL attribute is specified with the entry variable, the default is INTERNAL.

You can use the entry variable to represent different entry points during the execution of the PL/I program. For example:

DECLARE E ENTRY VARIABLE,

(A,B) ENTRY;

E = A;

CALL E;



The entry constant A is assigned to the entry variable E. The CALL statement results in the invocation of the external entry point A.

You can also declare arrays of entry variables. The following example shows an array of external functions:

DECLARE EXTRACT(10) ENTRY (FIXED,FIXED) VARIABLE RETURNS (FLOAT),

GETVAL FLOAT;

GETVAL = EXTRACT(3)(1,3);



This assignment statement references the third element of the array EXTRACT. When the statement is executed, this array element must contain a valid entry value.

  • Be careful when using static entry variables. The value of a static entry variable is valid only as long as the block in which that value was declared is active.

Internal Representation of Entry Variables

See . Entry Variable Data Representation shows the internal representation of entry variables.

. Entry Variable Data Representation

File Data

A PL/I file, or file constant, is represented by a file control block. A file control block is an internal data structure maintained by PL/I.

No conversions are defined between file data and other data types. You can assign a file variable only the value of a file constant or the value of another file variable. The only operations that are valid for file data are comparisons for equality (=) and inequality (^=).

This section discusses the following:

File Constants

To declare file constants, use the FILE attribute without the VARIABLE attribute. All file constants are external by default. To define an internal file constant, you must specify the INTERNAL attribute. For example:

DECLARE INFILE FILE;



This declaration declares a file constant named INFILE whose attributes include EXTERNAL by default.

DECLARE INFILE FILE INTERNAL;



This declaration specifies that the file constant named INFILE is internal to the block in which it is declared.

If you declare a file constant as EXTERNAL, you must use identical attributes, including ENVIRONMENT attributes, in all blocks that declare the constant. Otherwise, PL/I uses the last set of attributes encountered during compilation and ignores the others.

File Values

Whenever a reference to a file constant is interpreted, the result is a file value. A file value is a pointer to the file control block for the file with which the constant is associated. PL/I supports passing both external files and internal files as file value parameters.

File Variables

File variables are variables (including parameters) that take file values. If you specify the VARIABLE attribute with the FILE attribute in a DECLARE statement, the declared identifier is a file variable. You can assign either another file variable or a file constant to a file variable.

A file variable is represented internally as a longword that contains a pointer to a file control block. The value of the file variable, when evaluated, is the address of the file control block for the file with which the variable is currently associated.

The scope of a file variable name can be either internal or external. If neither the EXTERNAL nor the INTERNAL attribute is specified with the file variable, the default is external.

If you declare a file variable implicitly or explicitly as EXTERNAL, you must use identical attributes, including ENVIRONMENT attributes, in all blocks that declare the variable. Otherwise, PL/I uses the last set of attributes encountered during compilation and ignores the others.

You can use the file variable to represent different files during the execution of the PL/I program. For example:

DECLARE F FILE VARIABLE,

(A,B) FILE;

E = A;

CALL READFILE(E);



The file constant A is assigned to the file variable E. The CALL statement results in the invocation of the entry point READFILE with file A as its parameter.

You can also declare arrays of file variables. The following example shows an array of external file variables:

DECLARE FILELIST(10) FILE VARIABLE,

MYFILE FILE VARIABLE;

MYFILE = FILELIST(3);

This assignment statement references the third element of the array FILELIST. When the statement is executed, this array element must contain a valid file value.

Area Data

An area is a region of storage in which based variables can be allocated and freed. You define an area by declaring a variable with the AREA attribute. An area variable can belong to any storage class. Areas provide the following programming capabilities:

All areas must be declared with the AREA attribute before they can be referenced in a BASED attribute or an ALLOCATE statement with the IN option. For example:

DECLARE MYAREA AREA;

DECLARE PTR OFFSET(MYAREA);

DECLARE MYDATA FIXED BIN(31) BASED(PTR);



The variable MYAREA is given the AREA attribute. Then it is used as the target in another declaration, which defines a pointer offset based on MYAREA. To allocate storage for MYDATA in area MYAREA, use the IN option of the ALLOCATE statement as follows:

ALLOCATE MYDATA IN(MYAREA) SET (PTR);



When these statements are executed, the ALLOCATE statement allocates storage for a variable MYDATA in the area MYAREA and sets PTR to the offset in the area of the allocated storage.

This section discusses the following:

Area Variables in Expressions

Expressions containing area variables are restricted to the relational operators equal (=) and not equal (^=) and to comparison to the empty () built-in function.

For example, to test whether an area is empty, that is, to determine whether it currently has storage allocated in it, you can write the following statement:

IF MYAREA = EMPTY() THEN

DO;



The EMPTY() built-in function always returns an empty area value.

You can use area variables in simple assignment statements that assign one area variable to another. For example:

AREA_1 = AREA_2;

AREA_2 = EMPTY();



Reading and Writing Areas

An area can be the source or target of data transmission in READ and WRITE record I/O statements. If the area is written by itself (not as a member of a structure), only the current allocated portion is transmitted unless the SCALARVARYING option of the ENVIRONMENT attribute was specified when the file was opened.

Internal Representation of Area Data

An area occupies the number of bytes, specified in the extent, of storage. Since this storage includes overhead used by PL/I for bookkeeping, slightly less than the full amount (specified in the extent) is available for program allocations. See See AREA Attribute for information on specifying the extent of an area.

Condition Data

PL/I provides a CONDITION attribute for declaring programmer-defined conditions. These conditions may only be signaled by the SIGNAL statement.

Condition data occupies a longword (32 bits) of storage.

No conversions are defined between condition data and other data types. The only operations that are valid for condition data are comparisons for equality (=) and inequality (^=).

You can use the CONDITION data type as either a constant or a variables. For example, the following are valid declarations:

DECLARE (C1, C2, C3) CONDITION;

DECLARE C CONDITION VARIABLE;



Aggregates

An aggregate is a data structure, either an array or structure composed of items as follows:

Arrays

Arrays provide an orderly way to manipulate related variables of the same data type. An array variable is defined in terms of the number of elements that the array contains and the organization of those elements. These attributes of an array are called its dimensions.

Array Declarations

To declare an array, specify its dimensions in a DECLARE statement using one of the following syntaxes:

DECLARE identifier [DIMENSION] (bound-pair, ...) [attribute ...];



DECLARE (identifier [DIMENSION] (bound-pair, ...)) [attribute ...];



To declare two or more array variables that have the same dimensions, bounds, and attributes, use the following syntax:

DECLARE (identifier, ...) [DIMENSION] (bound-pair, ...) [attribute ...];

identifier

A valid PL/I identifier to be used as the name of the array.

bound-pair

A specification of the number of elements in each dimension of the array. A bound pair can consist of one of the following:

  • Two expressions separated by a colon giving the lower and upper bounds for that dimension
  • A single expression giving the upper bound only (the lower bound is then 1 by default)
  • An asterisk (*), used in the declaration of array parameters, indicating that the parameter can be matched to array arguments with varying numbers of elements in that dimension

Bound pairs in series must be separated by commas, and the list of bound pairs must be enclosed in parentheses. The list of bound pairs must immediately follow the identifier or the optional keyword DIMENSION or the list of declarations. The following rules apply to specifying the dimensions of an array and the bounds of a dimension:

  • An array can have up to eight dimensions.
  • The values you can specify for bounds are restricted as follows:

If the array has the STATIC attribute, you must specify all bounds as restricted integer expressions. A restricted integer expression is one that yields only integral results and has only integral operands, which can be evaluated at translation time. Such an expression can use only the addition (+), subtraction (-), and multiplication (*) operators.

If the array has the AUTOMATIC, BASED, CONTROLLED, or DEFINED attribute, you can specify the bounds as optionally signed integer constants or as expressions that yield integer values at run time. If the array has AUTOMATIC or DEFINED, the expressions must not contain any variables or functions that are declared in the same block, except for parameters.

  • The value of the lower bound you specify must be less than the value of the upper bound.

See . Specifying Array Dimensions shows several forms of bound pairs as used in declarations. Note that all the examples in See . Specifying Array Dimensions would be identical in effect if the optional keyword DIMENSION were added.

attribute

One or more data type attributes of the elements of the array. All attributes you specify apply to each of the elements in the array.

Elements of an array can have any data type. If the array has the FILE or ENTRY attribute, it must also have the VARIABLE attribute.

. Specifying Array Dimensions

Bound Pairs

Examples

ARRAY_NAME (bound)



A single value specifies:



  • That the array has a single dimension.
  • That the number of elements in the dimension is the bound (that is, 6).
  • That the value specified is the high bound, which is the largest numbered element. By default, the low bound is 1.

DECLARE VERBS (6) CHARACTER (12);

ARRAY_NAME (low-bound:high-bound)

A single range of values specifies:



  • That the array has a single dimension.
  • That the number of elements in the dimension is (high-bound) - (low-bound) + 1.
  • That the first value specified is the low bound and the second value specified is the high bound.

DECLARE TEMPERATURES (-60:120);

ARRAY_NAME (bound1,bound2,...)

A list of values specifies:



  • That the array is multidimensional. Each bound value represents a dimension in the array.
  • The extent of each dimension. Each bound defines the number of elements in a dimension.
  • The high-bound value of each dimension. The low-bound value of each dimension defaults to 1.

DECLARE TABLE (10,10) FIXED BINARY; DECLARE SETS (5,5,5,5) CHARACTER (80);

ARRAY_NAME (low-bound1:high-bound1,low-bound2,high- bound2,...)

A list of ranges specifies:



  • That the array is multidimensional. Each range of values represents a dimension of the array (ranges can be intermixed with single-bound specifications).
  • The extent of each dimension.
  • The low-bound and high-bound values of each dimension.

DECLARE WINDOWS (1:10,-2:32) FIXED; DECLARE HISTORIES (10,30:102,50);

ARRAY_NAME (*,...)



Asterisk extents specify:



  • The number of dimensions in the array. Each asterisk indicates a dimension.
  • That the extent of each dimension will be defined by the actual argument passed to the procedure when it is invoked.

ADDIT: PROCEDURE (ARR);
DECLARE ARR(*,*) FIXED;

The declaration of an array specifies its dimensions, the bounds of each dimension, and the attributes of the elements.

One bound pair is specified for each dimension of the array to define the number of elements in that dimension. The total number of elements in the array, called its extent, is the product of the number of elements in all the dimensions of the array. If omitted, the lower bound is 1 by default. You can use an asterisk (*) as the bound pair when you declare arrays as parameters of a procedure; the asterisk indicates that the parameter can accept array arguments with any number of elements. (If one dimension is specified with an asterisk, all must be specified with asterisks.) For example:

DECLARE SALARIES (100) FIXED DECIMAL (7,2);



This statement declares a 100-element array with the identifier SALARIES. Each element is a fixed-point decimal number with a total of seven digits, two of which are fractional.

The following statement declares a two-dimensional array of 64 integers:

DECLARE GAME_BOARD (8,8) FIXED BINARY (7);



The following statement declares a one-dimensional array of 12 character strings, each having a length of 2:

DECLARE PM_HOURS(13:24) CHARACTER(2);



The elements of the previous array is numbered 13 through 24 instead of 1 through 12.

You can replace the identifier in a statement with a list of declarations, which declares several arrays with the same attributes. For example:

DECLARE (SALARIES,PAYMENTS)(100) FIXED DECIMAL(7,2);



This statement declares SALARIES and another array, PAYMENTS, with the same dimensions and other attributes.

References to Individual Elements

You refer to an individual element in the array with subscripts. Because an array's attributes are common to all of its elements, a subscripted reference has the same properties as a reference to a scalar variable with those attributes.

You must enclose subscripts in parentheses in a reference to an array element. For example, in a one-dimensional array named ARRAY declared with the bounds (1:10), the elements are numbered 1 through 10 and are referred to as ARRAY(1), ARRAY(2), ARRAY(3), and so on.

The lower and upper bounds that you declare for a dimension determine the range of subscripts that you can specify for that dimension. The number of elements in any dimension of any array is:

(upper bound) - (lower bound) + 1

For multidimensional arrays, the subscript values represent an element's position with respect to each dimension in the array. See . Specifying Elements of an Array shows subscripts for elements of one-, two-, and three-dimensional arrays. In subscripted references for multidimensional arrays, the number of subscripts must match the number of dimensions of the array and must be separated by commas.

You can specify the subscript of an array element using any variables or expressions having integer values, that is, values that can be expressed as fixed binary or fixed decimal with a zero scale factor. For example:

DECLARE DAYS_IN_MONTH(12) FIXED BINARY;

DECLARE (COUNT, TOTAL) FIXED BINARY;

TOTAL = 0;

DO COUNT = 1 TO 12;

TOTAL = TOTAL + DAYS_IN_MONTH(COUNT);

END;



Here, the variable COUNT is used as a control variable in a DO loop. As the value of COUNT is incremented from 1 to 12, the value of the corresponding element of the array DAYS_IN_MONTH is added to the value of the variable TOTAL.

Initializing Arrays

Specify the INITIAL attribute for an array to initialize its values in the declaration. For example:

DECLARE MONTHS (12) CHARACTER (9) VARYING

INITIAL ('January', 'February', 'March', 'April',

'May', 'June', 'July', 'August',

'September', 'October', 'November', 'December');



Each element of the array MONTHS is assigned a value according to the order of the character-string constants in the initial list: MONTH(1) is assigned the value `January'; MONTH(2) is assigned the value `February'; and so on.

If the array being initialized is multidimensional, the initial values are assigned in row- major order.

To assign identical initial values to some or all elements of an array, you can use an iteration factor with the INITIAL attribute. For example:

DECLARE TEST_AVGS (30,4) FIXED DECIMAL (5,2)

STATIC INITIAL ((120) 50);



This statement declares the array TEST_AVGS with 120 elements, each of which is given an initial value of 50.

You can also use the asterisk (*)iteration factor to initialize all the elements of an array to the same value. For example:

DECLARE TEST_AVGS (30,4) FIXED DECIMAL (5,2)

STATIC INITIAL ((*) 50);



This statement also declares the array TEST_AVGS with 120 elements, each of which is given an initial value of 50.

Although PL/I supports the initialization of automatic arrays with the INITIAL attribute, for the following reasons this is not always the most efficient way (in terms of program compilation and execution) to initialize array elements:

  • When you initialize elements in an array that has the AUTOMATIC, BASED, or CONTROLLED attribute, the compiler does not check that all elements are initialized until run time. Thus, you do not receive any compile-time checking of initialization, even if you used constants to specify the array bounds and iteration factors.
  • Your programs will run more efficiently if you initialize automatic arrays with assignment statements rather than the INITIAL attribute.

If the array is not modified by your program, you can increase program efficiency by declaring the array with the STATIC and READONLY attributes and using the INITIAL attribute to initialize its elements. In this case, the compiler checks that you have initialized all the elements and that they are valid.



. Specifying Elements of an Array
Iteration Factors

When more than one successive element of an array is to be assigned the same value with the INITIAL attribute, you can specify an iteration factor. An iteration factor indicates the number of times that a specified value is to be used in the assignment of values to elements of an array. You can specify an iteration factor in one of the following formats:

(iteration-factor) arithmetic-constant

(iteration-factor) scalar-reference

(iteration-factor) (scalar-expression)

(iteration-factor) *


iteration-factor

An unsigned decimal constant indicating the number of times the specified value is to be used in the assignment of an array element. The iteration factor can be zero.

arithmetic-constant

Any arithmetic constant whose data type is valid for conversion to the data type of the array.

scalar-reference

A reference to any scalar variable or to the NULL built-in function.

scalar-expression

Any arithmetic or string expression or string constant. The expression or constant must be enclosed in parentheses.

*

Symbol used to indicate that the corresponding array element is not to be assigned an initial value.

You can use any of these forms for arrays that have the AUTOMATIC attribute. For arrays with the STATIC attribute, you can use only constants and the NULL built-in function.

For example, the following declaration of the array SCORES initializes all elements of the array to 1:

DECLARE SCORES (100) FIXED STATIC INITIAL ((100)1);



The next declaration initializes the first 50 elements to 1 and the last 50 elements to -1:

DECLARE SCORES (100) FIXED STATIC INITIAL ((50)1,(50)-1);



The following declaration initializes the first 49 elements to 1; the next 2 elements are not initialized; and the next 49 elements are initialized to -1:

DECLARE SCORES (100) FIXED STATIC INITIAL ((49)1,(2)*,(49)-1);



The declaration in the next example initializes all 10 elements of an array of character strings to the 26-character value in apostrophes. The string constant is enclosed in parentheses; this is required to differentiate between iteration factors and replication factors.

DECLARE ALPHABETS (10) CHARACTER(26) STATIC

INITIAL((10)('ABCDEFGHIJKLMNOPQRSTUVWXYZ'));



Assigning Values to Array Variables

You can specify an array variable as the target of an assignment statement in the following cases:

array-variable = expression;



This is valid where the expression yields a scalar value. Every element of the array is assigned the resulting value. The array variable must be a connected array whose elements are scalar.You can use the asterisk in an assignment:

array-variable (*,...) = expression;



You can use a single asterisk regardless of how many dimensions an array has, or you can use an asterisk for each dimension.

Note that the arithmetic operators, such as the plus sign (+) and the minus sign (-), can have arrays as operands, if all the arrays in the assignment have the same dimensions and bounds. For example, if ARRAYA, ARRAYB and ARRAYC have the same dimensions and bounds, the following assignment is valid:

ARRAYC = ARRAYA + ARRAYB;



The assignment is invalid if any of the three arrays differs in dimensions or bounds.

The following assignment is valid where the specified array variables have identical data-type attributes and dimensions:

array-variable-1 = array-variable-2;



Each element in array-variable-1 is assigned the value of the corresponding element in array-variable-2. In this type of assignment, both arrays must be connected. The actual storage they occupy must not overlap, unless the arrays are identical.

All other specifications of an array variable as the target of an assignment statement are invalid.

Order of Assignment and Output for Multidimensional Arrays

When a multidimensional array is initialized, or when it is assigned values without references to specific elements, PL/I assigns the values in row-major order. In row-major order, the rightmost subscript varies the most rapidly. For example, an array can be declared as follows:

DECLARE TESTS (2,2,3);



If TESTS is specified in a GET statement or in a declaration with the INITIAL attribute, values are assigned to the elements in the following order:

TESTS (1,1,1)

TESTS (1,1,2)

TESTS (1,1,3)

TESTS (1,2,1)

TESTS (1,2,2)

TESTS (1,2,3)

TESTS (2,1,1)

TESTS (2,1,2)

TESTS (2,1,3)

TESTS (2,2,1)

TESTS (2,2,2)

TESTS (2,2,3)

When an array is output with a PUT statement, PL/I uses the same order to output the array elements. For example:

PUT LIST (TESTS);



This PUT statement outputs the contents of TESTS in the order previously shown.

Using GET and PUT Statements with Array Variables

When you specify an array variable name in the input-target list of a GET LIST or GET EDIT statement, elements of the array are assigned values from the data items in the input stream. For example:

DECLARE VERBS (6) CHARACTER (15) VARYING;

GET LIST (VERBS);



When this GET LIST statement executes, it accepts data from the default input stream. Each input field delimited by blanks, tabs, or commas is considered a separate string. The values of these strings are assigned to elements of the array VERBS in the order VERBS(1), VERBS(2), ... VERBS(6). If a multidimensional array appears in an input-target list, input data items are assigned to the array elements in row-major order.

An array can also appear, with similar effects, in the output-source list of a PUT statement.

Passing Arrays as Arguments

You can pass an array variable as an argument to another procedure. Within the invoked procedure, the corresponding parameter must be declared with the same number of dimensions. The rules for specifying the bounds in a parameter descriptor for an array parameter are as follows:

  • If you specify the bounds with integer constants, they must match exactly the bounds of the corresponding argument.
  • You can specify all bounds as asterisks (*). Then, the bounds of the array are determined from the bounds of the corresponding argument when the procedure is actually invoked. If any bound is specified as an asterisk, all bounds must be specified as asterisks.

For example:

DECLARE SCAN ENTRY ((5,5,5) FIXED,(*) FIXED),

MATRIX (5,5,5) FIXED,

OUTPUT (20) FIXED;

CALL SCAN (MATRIX,OUTPUT);



The procedure SCAN receives two arrays as arguments. The first is a three-dimensional array whose bounds are known. The second is a one-dimensional array whose bounds are not known. The procedure SCAN can declare these parameters as follows:

SCAN: PROCEDURE (IN,OUT);

DECLARE IN (5,5,5) FIXED,

OUT (*) FIXED;



An array whose storage is unconnected cannot be passed as an argument. Arrays are always passed by reference.

Built-In Functions Providing Array Dimension Information

PL/I provides the following built-in functions that return information about the dimensions of an array:

  • DIMENSION returns the number of elements in a given dimension.
  • HBOUND returns the value of the upper bound of the array in a given dimension.
  • LBOUND returns the value of the lower bound of the array in a given dimension.

For the first dimension of an array X, the relationship of these functions can be expressed as follows:

DIMENSION (X,1) = HBOUND (X,1) - LBOUND (X,1) + 1

The procedure that follows uses the HBOUND and LBOUND built-in functions:

ADDIT: PROCEDURE (X);

DECLARE X (*) FIXED BINARY,

(COUNT,I) FIXED BINARY;



COUNT = 0;

DO I = LBOUND (X,1) TO HBOUND(X,1);

COUNT = COUNT + 1;

X(I) = COUNT;

END;

RETURN;

END;



This procedure receives a one-dimensional array as a parameter and initializes the elements of the array with integral values beginning with 1.

Structures

A structure is a data aggregate consisting of one or more members. The members can be scalar data items or aggregrates. Different members can have different data types. Structures are useful when you want to group related data items having different data types.

Structure Declarations and Attributes

The declaration of a structure defines its organization and the names of members at each level in the structure. The major structure name is declared as structure level 1; minor members must be declared with level numbers greater than 1. For example:

DECLARE 1 PAYROLL,

2 NAME,

3 LAST CHARACTER(80) VARYING,

3 FIRST CHARACTER(80) VARYING,

2 SALARY FIXED DECIMAL(7,2);



This statement declares a structure named PAYROLL. You can access the last name with a qualified reference:

PAYROLL.NAME.LAST = 'ROOSEVELT';



Alternatively, because the last and first names have the same attributes, you can declare the same structure as follows:

DECLARE 1 PAYROLL,

2 NAME,

3 (LAST,FIRST) CHARACTER(80) VARYING,

2 SALARY FIXED DECIMAL(7,2);

The following additional rules apply to the specification of level numbers:

  • Level numbers must be specified with decimal integer constants.
  • A level number must be separated from its associated variable name by at least one space or tab character.
  • Level numbers after level 1 can have any integer value, as long as each level number is equal to or greater than the level number of the preceding level. (There can be only one level 1 in each structure.)
  • Each identifier in the structure must be separated from the declaration of the previous identifier by a comma.
  • Substructures at the same logical level of nesting do not have to have the same level number.
  • The deepest possible logical level is 16.
  • The largest possible level number constant is 32767.
Attributes for Structure Variables

Within a structure, you can only declare members at the lowest level of each substructure with data-type attributes. Additional rules for specifying attributes for the various components of a structure are as follows:

  • Only the following attributes are valid for the major structure:
  • AUTOMATIC

    GLOBALDEF

    STATIC

    BASED

    GLOBALREF

    STRUCTURE

    CONTROLLED

    INTERNAL

    TYPE

    DEFINED

    LIKE

    UNION

    EXTERNAL

    READONLY



  • You can dimension the major structure, a minor structure, or any member of the structure: that is, there can be arrays of structures and structures whose members are arrays.
  • Member names cannot have any of the attributes a major structure can have except for INTERNAL and UNION attributes. You can use the UNION attribute on any member with a level number.
  • If a structure has the STATIC attribute, the extents of all members (lengths for character- and bit-string variables, dimensions for array variables, and area extents) must be specified with optionally signed decimal integer constants.

Using The UNION Attribute On Structure Declarations

A union is a variation of a structure in which all immediate members occupy the same storage. The UNION attribute (which must be associated with a level number in a structure declaration) declares a union. All immediate members of the union -- that is, all members having a logical level number one higher -- occupy the same storage. A reference to one member of a union refers to storage occupied by all members of the union. Therefore, a union provides a convenient way to look at a large entity (such as a character string or a bit mask) as a series of smaller entities (such as component character strings or individual flag bits).

A variable declared with the UNION attribute must be a major or minor structure. All members of a union must have a constant size (see See for format and details).

The UNION attribute is not part of the PL/I General-Purpose Subset; it is provided inKednos PL/I for UNIX to give users convenient access to data as it is internally represented. Potential applications of unions might depend on the internal representation of data, and would therefore not be transportable between this and other UNIX systems. The following example shows unions:

DECLARE 1 CUSTOMER_INFO,

2 PHONE_DATA UNION,

3 PHONE_NUMBER CHARACTER (13),

3 COMPONENTS,

4 LEFT_PAREN CHARACTER (1),

4 AREA_CODE CHARACTER (3),

4 RIGHT_PAREN CHARACTER (1),

4 EXCHANGE CHARACTER (3),

4 HYPHEN CHARACTER (1),

4 SPECIFIC_NUMBER CHARACTER (4),

2 ADDRESS_DATA,



The UNION attribute associated with the declaration of PHONE_DATA signifies that PHONE_DATA's immediate members (PHONE_NUMBER and COMPONENTS) occupy the same storage. Any modification of PHONE_NUMBER also modifies one or more members of COMPONENTS; conversely, modification of a member of COMPONENTS also modifies PHONE_NUMBER. Note, however, that the UNION attribute does not apply to the members of COMPONENTS because they are not immediate members of PHONE_DATA. The members of COMPONENTS occupy separate storage in the normal fashion for structure members.

The DEFINED attribute is a more portable method of mapping one variable onto the storage of another variable (see See Defined Variables for more information).

Initializing Structures

You can initialize a structure by giving the INITIAL attribute to its members. Not all members need be initialized. For example:

DECLARE 1 COUNTS,

2 FIRST FIXED BIN(15) INITIAL(0),

2 SECOND FIXED BIN(15),

2 THIRD (5) FIXED BIN(15) INITIAL (5(1));



The first and third members of the structure COUNTS are initialized.

The INITIAL attribute cannot be applied, however, to a major or a minor structure name.

In a union, the same data can only be initialized once.

Using Structure Variables in Expressions

You can specify the name of a major or minor structure in an assignment statement only if the source expression and the target variable are identical in size and structure, and all corresponding members have the same data types.

Passing Structure Variables as Arguments

You can pass a structure variable as an argument to another procedure. The relative structuring of the structure variable specified as the argument and the corresponding parameter must be the same. The level numbers do not have to be identical. The following example shows the parameter descriptor for a structure variable:

DECLARE SEND_REC ENTRY (1,

2 FIXED BINARY(31),

2 CHARACTER(40),

2 FIXED DECIMAL (5,2));



The written argument in the invocation of the external procedure SEND_REC must have the same structure, and its corresponding members must have the same data types.

When structures are passed as arguments, they must match the corresponding parameters. They cannot be passed by dummy argument.

Member Attributes

PL/I supports three member attributes, so named because they apply specifically to the declaration of structure members rather than to the structure as a whole. The member attributes are as follows:

  • The TYPE attribute
  • The LIKE attribute
  • The REFER option

The TYPE and LIKE attributes can be applied to structures, but are most often applied to structure members. Each is discussed in detail in the following sections.

Using the TYPE Attribute

The TYPE attribute copies a scalar, array, or member declaration in a major or minor structure into another scalar, array, or structure variable respectively. The TYPE attribute copies the attributes to the target variable. For structures, the TYPE attribute also copies the logical structuring and member declarations from the major or minor structure to the target variable.

TYPE does not copy any storage class or INITIAL attributes or dimensioning (except for dimensioning that is applied to arrays and members) from scalars, arrays, or structures.

Note that the TYPE attribute is a superset of the LIKE attribute. The TYPE attribute is identical to the LIKE attribute when it is used to copy a member declaration in a major or minor structure declaration into another structure variable.

An identifier names the variable to which the declarations for the reference are copied. The reference is the name of a scalar, an array, or a major or minor structure known to the current block. For structures, the identifier must be preceded by a level number. Any attributes that can be used with a structure variable at that level can be used with the identifier. For example, a major structure can specify a storage class and dimensions, and a minor structure can specify dimensions. The following example shows the TYPE attribute:

DECLARE NO_OF_SINGLE_ROOMS FIXED BINARY(31);

DECLARE NO_OF_DOUBLE_ROOMS TYPE (NO_OF_SINGLE_ROOMS);



In the previous example, the declaration of NO_OF_DOUBLE_ROOMS uses the TYPE attribute to create a declaration that duplicates the attributes of NO_OF_SINGLE_ROOMS. The parentheses around NO_OF_SINGLE_ROOMS are optional.

The declaration of NO_OF_DOUBLE_ROOMS is equivalent to the following:

DECLARE NO_OF_DOUBLE_ROOMS FIXED BINARY(31);



In the next example, the declaration uses the TYPE attribute to create the declaration that duplicates the attributes of BED_SERIAL_NOS:

DECLARE BED_SERIAL_NOS((NO_OF_SINGLE_ROOMS +

NO_OF_DOUBLE_ROOMS),2)

CHARACTER(12);

DECLARE TABLE_SERIAL_NOS TYPE(BED_SERIAL_NOS);



The declaration of TABLE_SERIAL_NOS in the previous example is equivalent to the following:

DECLARE TABLE_SERIAL_NOS((NO_OF_SINGLE_ROOMS +

NO_OF_DOUBLE_ROOMS),2)

CHARACTER(12);

In the following example, the declaration of NEW_RESER uses the TYPE attribute to create a set of member declarations that duplicate those in RES_DATA:

DECLARE 1 RES_DATA BASED (RPTR),

2 DATE CHARACTER(8),

2 HOTEL_CODE CHARACTER(3),

2 PARTY_NAME,

3 LAST CHARACTER(20),

3 FIRST CHARACTER(10),

2 STAY FIXED BIN(7),

1 NEW_RESER TYPE(RES_DATA);



ALLOCATE RES_DATA SET (RPTR);

GET LIST (NEW_RESER.DATE,NEW_RESER.HOTEL_CODE);

RES_DATA = NEW_RESER;



The declaration of NEW_RESER in the previous example is equivalent to the following:

DECLARE 1 NEW_RESER,

2 DATE CHARACTER(8),

2 HOTEL_CODE CHARACTER(3),

2 PARTY_NAME,

3 LAST CHARACTER(20),

3 FIRST CHARACTER(10),

2 STAY FIXED BINARY(7);



In the previous example, the members of NEW_RESER are assigned data after that data is validated; the entire contents of NEW_RESER are assigned to RES_DATA. This assignment is possible because the two structures are identical as a result of using the TYPE attribute.

You can use the TYPE attribute to copy a minor structure to a major structure and vice versa. You need not match either the level numbers or the logical levels. For example:

DECLARE 1 PARTY_NAME,

2 LAST CHAR(20),

2 FIRST CHAR(10);



Given the preceding declaration, the following declarations are the same:

DECLARE 1 SPOUSE_NAME TYPE(PARTY_NAME);

DECLARE 1 SPOUSE_NAME,

2 LAST CHAR(20),

2 FIRST CHAR(10);



You can also apply dimensions or, for a major structure, storage-class attributes to a structure variable declared with the TYPE attribute, as follows:

DECLARE 1 KID_NAMES (10) TYPE(PARTY_NAME);



Or, you can use:

DECLARE 1 DAILY_DATA,

2 DATE CHAR(8),

2 TODAYS_RESERS (NO_OF_RES) TYPE(RES_DATA);

Using the LIKE Attribute

The LIKE attribute copies the member declarations in a major or minor structure declaration into another structure variable. It copies the logical structuring and member declarations from the major or minor structure to the target variable, but does not copy any storage-class attributes or dimensioning (except for dimensioning that is applied to members).

An identifier names the variable to which the declarations in the reference are copied. The reference is the name of a major or minor structure known to the current block. The identifier must be preceded by a level number. Any attributes that can be used with a structure variable at that level can be used with the identifier; for example, a major structure can specify a storage class and dimensions, and a minor structure can specify dimensions.

The following example shows the LIKE attribute:

DECLARE 1 RES_DATA BASED (RPTR),

2 DATE CHARACTER(8),

2 HOTEL_CODE CHARACTER(3),

2 PARTY_NAME,

3 LAST CHARACTER(20),

3 FIRST CHARACTER(10),

2 STAY FIXED BIN(7),

1 NEW_RESER LIKE RES_DATA,

GET LIST (NEW_RESER.DATE,NEW_RESER.HOTEL_CODE);

RES_DATA = NEW_RESER;



In the previous example, the declaration of NEW_RESER uses the LIKE attribute to create a set of member declarations that duplicate those in RES_DATA. The declaration of NEW_RESER is equivalent to the following:

DECLARE 1 NEW_RESER,

2 DATE CHARACTER(8),

2 HOTEL_CODE CHARACTER(3),

2 PARTY_NAME,

3 LAST CHARACTER(20),

3 FIRST CHARACTER(10),

2 STAY FIXED BINARY(7);



In the previous example, the members of NEW_RESER are assigned data after that data is validated, the entire contents of NEW_RESER are assigned to RES_DATA. This assignment is possible because the two structures are identical as a result of using of the LIKE attribute.

You can use the LIKE attribute to copy a minor structure to a major structure and vice versa; neither the level numbers nor the logical levels must match. For example:

DECLARE 1 SPOUSE_NAME LIKE PARTY_NAME;



Given the declarations in the preceding example, this declaration is equivalent to the following:

DECLARE 1 SPOUSE_NAME,

2 LAST CHAR(20),

2 FIRST CHAR(10);



You can also apply dimensions or, for a major structure, storage-class attributes to a structure variable declared with the LIKE attribute:

DECLARE 1 KID_NAMES (10) LIKE PARTY_NAME;

or:

DECLARE 1 DAILY_DATA,

2 DATE CHAR(8),

2 TODAYS_RESERS (NO_OF_RES) LIKE RES_DATA;

You can also place the parentheses as follows:

DECLARE 1 KID_NAMES (10 LIKE PARTY_NAME);



Using the REFER Option

Use the REFER option to create self-defining based structures. In a based structure, the value of one member is used to determine the size of the storage space allocated for another member of the same structure. You can use the REFER option in a DECLARE statement to specify array bounds, the length of a BIT or CHARACTER string, or the size of an area.

The format of the REFER option is as follows:

refer-element REFER (refer-object-reference)


refer-element

An expression that represents the value assigned to the refer object when the structure is allocated. The refer element must satisfy the following conditions:

  • It must be an expression that produces a FIXED BINARY(31) value or a value that can be converted to FIXED BINARY (31).
  • It cannot reference storage in the structure containing the refer element.
refer-object-reference

A reference to a scalar variable. The refer object reference must satisfy the following conditions:

  • It cannot be a subscripted variable reference.
  • It cannot be locator qualified.
  • It must reference a refer object that is a previous member of the structure containing the REFER option.

The refer object is a scalar variable contained by the structure. The refer object must satisfy the following conditions:

  • It must be a previous member of the structure containing the REFER option, which references the refer object.
  • It must be scalar; it cannot be dimensioned or a dimensioned array.
  • It must have a computational data type.

An example of a structure declaration containing the REFER option is as follows:

DECLARE 1 STRUCTURE_S BASED(P),

2 I FIXED BINARY(31),

2 A CHARACTER(20 REFER(I));



For the compiler to allocate storage for a based structure, the structure must have a known size. In the example, the initial length for A is taken from the refer element, 20. However, the REFER option permits the size of the structure to change at run time as the value of the refer object (I) After allocation, the length of A is determined by I.

You can have multiple REFER options within a structure.

The following example and figures show storage mapping with the REFER option.

DECLARE 1 S BASED (POINTER),

2 I FIXED BINARY(15),

2 J FIXED BINARY(15),

2 A CHARACTER ((X*2+2) REFER(I)),

2 B(2) CHARACTER (Y REFER(J));



X = 5;

Y = 10;



ALLOCATE S;



S.A = 'ABCDEFGHIJKL';

S.B(1) = '0123456789';

S.B(2) = 'NOW IS THE';

END;

When this structure is allocated, the refer elements (X*2+2) and Y are evaluated and used to determine the length of the associated string. The evaluated refer element value (X*2+2) is assigned to the refer object I and Y is assigned to J. Thereafter, the sizes of strings A and B are determined by the value of the refer objects I and J.

Storage for the previous structure is shown in See . Storage of Structure with REFER Option .

. Storage of Structure with REFER Option

If the refer object I is assigned the value 6 and the refer object J is assigned the value 4, the resulting storage is remapped as shown in See . Remapped Storage of Structure with REFER Option .

. Remapped Storage of Structure with REFER Option
  • PL/I does not restrict the use of the REFER option within structure declarations: therefore, exercise caution in its use.

If you change a value that causes the size of one or more structure members to decrease, then some storage at the end of the allocated storage will become inaccessible for future reference.

If the scalar variable (the refer object) does not satisfy the following criteria, the results are undefined:

  • It must not be assigned a value that is less than 0 or greater than the refer element value used for structure allocation.
  • It must have the value used for allocation, if the structure is freed.

The following rules apply to structures containing the REFER option:

  • A structure containing the REFER option cannot be the target of a LIKE reference.
  • When a based structure is allocated, the order in which the refer elements are selected for evaluation is undefined.
  • When a based structure is allocated, the order in which the refer objects are selected for initialization is undefined.

Structure-Qualified References

To refer to a structure in a program, you use the major structure name, minor structure names, and individual member names. Member names need not be unique even within the same structure. To refer to the name of a member or minor structure, you must ensure only that the reference uniquely identifies it. You can qualify the variable name by preceding it with the name or names of higher-level (lower-numbered) variables in the structure; names in this format, called a qualified reference, must be separated by periods (.).

The following sample structure definition shows the rules for identifying names of variables within structures:

DECLARE 1 STATE,

2 NAME CHARACTER (20),

2 POPULATION FIXED BINARY (10),

2 CAPITAL,

3 NAME CHARACTER (30),

3 POPULATION FIXED BINARY (10),

2 SYMBOLS,

3 FLOWER CHARACTER (20),

3 BIRD CHARACTER (20);



The rules for selecting and specifying variable names for structures are as follows:

  • The name of the major structure is subject to the rules for the scope of variables in a program.
  • You can qualify the name of any minor structure or member in a structure by the names of higher-level members in the structure. You must specify the variable names from left to right in order of increasing level numbers and separated by periods. The members of the previous sample, completely qualified, are as follows:

STATE.NAME

STATE.POPULATION

STATE.CAPITAL.NAME

STATE.CAPITAL.POPULATION

STATE.SYMBOLS.FLOWER

STATE.SYMBOLS.BIRD

  • Names of minor structures or members within structures do not have to be qualified if they are unique within the scope of the name. The following names in the sample structure can be referred to without qualification (so long as there are no other variables with these names):

CAPITAL

SYMBOLS

FLOWER

BIRD

  • You can omit intermediate qualification names if the reference remains unambiguous. The following references to members in the sample structure are valid:

STATE.FLOWER

STATE.BIRD

If a name is ambiguous, the compiler cannot resolve the reference and issues a message. In the example, the names POPULATION and NAME are ambiguous.

You can specify the name of a major or minor structure in an assignment statement only if the source expression and the target variable are identical in size and structure, and all corresponding members have the same data types.

Arrays of Structures

An array of structures is an array whose elements are structures. Each structure has identical logical levels, minor structure names, and member names and attributes. For example, a structure STATE can be declared an array:

DECLARE 1 STATE (50),

2 NAME CHARACTER (20) VARYING,

2 POPULATION FIXED BINARY (31),

2 CAPITAL,

3 NAME CHARACTER (30) VARYING,

3 POPULATION FIXED BINARY (31),

2 SYMBOLS,

3 FLOWER CHARACTER (20),

3 BIRD CHARACTER (20);



A member of a structure that is an array inherits the dimensions of the structure. For example, the member CAPITAL.NAME of the structure STATE inherits the dimension 50. You must use a subscript whenever you refer to the variable CAPITAL.NAME, as in the following example:

PUT LIST (CAPITAL.NAME(I)) ;



A subscript for a member of a structure that is an array element can appear following any name within a qualified reference. For example, all of these references are equivalent:

STATE(10).CAPITAL.NAME

STATE.CAPITAL(10).NAME

STATE.CAPITAL.NAME(10)



Arrays of Structures that Contain Arrays

A structure that is defined with a dimension can have members that are arrays. For example:

DECLARE 1 STATE (50),

2 AVERAGE_TEMPS(12) FIXED DECIMAL (5,2),



In this example, the elements of the array STATE are structures. At the second level of the hierarchy of each structure, AVERAGE_TEMPS is an array of 12 elements. Because AVERAGE_TEMPS inherits the dimension of STATE, any of AVERAGE_TEMPS's elements must be referred to by two subscripts:

  • The first subscript references an element in STATE
  • The second subscript references an element in AVERAGE_TEMPS

These subscripts can appear following any name in the qualified reference. For example:

STATE(3).AVERAGE_TEMPS(4)

STATE.AVERAGE_TEMPS(3,4)



These references are equivalent.

Note the following rules for specifying subscripts for members of structures containing arrays:

  • The number of subscripts specified for any member must include any dimensions inherited from a major or minor structure declaration, as well as those specified for the member itself.
  • The subscripts that refer to a member of a structure in an array do not have to follow immediately the name to which they apply. However, the order of subscripts must be preserved.
  • The total number of dimensions, including the inherited dimensions, must not exceed eight.

Connected and Unconnected Arrays

A connected array is one whose elements occupy consecutive locations in storage. For example:

DECLARE NEWSPAPERS (10) CHARACTER (30);



In storage, the 10 elements of the array NEWSPAPERS occupy 10 consecutive 30-byte units. Thus, NEWSPAPERS is a connected array.

A connected array is valid as the target of an assignment statement, as long as the source expression is a similarly dimensioned array or a single scalar value. The top diagram in See . Connected and Unconnected Arrays shows the storage of a connected array.

In an unconnected array, the elements do not occupy consecutive storage locations. The bottom diagram in See . Connected and Unconnected Arrays shows the storage of an unconnected array. An unconnected array is not valid in an assignment statement or as the source or target of a record I/O statement. A structure with the dimension attribute always results in unconnected arrays. When a structure is dimensioned, each member of the structure inherits the dimensions of the structure and becomes, in effect, an array. For example:

DECLARE 1 STATE (50),

2 NAME CHARACTER (20) VARYING,

2 POPULATION FIXED BINARY (31);



In this example, the members NAME and POPULATION of the major structure STATE inherit the dimension 50 from the major structure. When PL/I allocates storage for a structure or a dimensioned structure, each member is allocated consecutive storage locations; thus, the elements of the arrays NAME and POPULATION are not connected.



. Connected and Unconnected Arrays

Internal Representation of Aggregate Data

Structures can be unaligned or naturally aligned. When a structure is unaligned, each of its members (except for unaligned bit string members) is aligned on a byte boundary. Unaligned bit-string members are bit aligned. In an array of unaligned structures (which contain members other than unaligned bit strings), each structure is aligned on a byte boundary. In an array of unaligned structures that contain only unaligned bit strings, the array elements are bit aligned.

When a structure is naturally aligned, each of its members is aligned as described in See . Natural Alignment for Structure Members . In an array of naturally aligned structures, each structure is aligned on the boundary that is the maximum alignment of its members.

The alignment you select is determined by the compile-time /NOALIGN or /ALIGN switch. The /NOALIGN switch (the default) produces unaligned structures. The /ALIGN switch produces aligned structures as described in See . Natural Alignment for Structure Members .



. Natural Alignment for Structure Members

Data Type

Precision

Alignment

FIXED BINARY(p)

p <= 7

byte

FIXED BINARY(p)

7 < p <= 15

word

FIXED BINARY(p)

p > 15

longword

FIXED DECIMAL(p,q)



word

FLOAT BINARY(p)

p <= 24

longword

FLOAT BINARY(p)

24 < p <= 53

quadword

FLOAT BINARY(p)

p > 53

octaword

FLOAT DECIMAL(p)

p <= 7

longword

FLOAT DECIMAL(p)

7 < p <= 15

quadword

FLOAT DECIMAL(p)

p > 15

octaword

CHAR (UNALIGNED)



byte

CHAR ALIGNED BYTE



byte

CHAR VARYING



word

BIT (UNALIGNED)



bit

BIT ALIGNED



longword

POINTER



longword

LABEL



quadword

ENTRY



quadword

FILE



longword

STRUCTURE



maximum of members




byte

OFFSET



longword





Storage Classes

The storage class to which a variable belongs determines whether PL/I allocates its storage at compile time or dynamically at run time. This chapter describes the following classes of variables:

See Dynamically Allocated Variables describes the mechanisms for dynamically allocating storage. See Storage Sharing describes how variables can share physical storage locations.

Automatic Variables

The default storage-class attribute for PL/I variables is AUTOMATIC. PL/I does not allocate storage for an automatic variable until the block that declares it is activated. When the block is deactivated the storage is released. For example:

CALC: BEGIN;

DECLARE TEMP FIXED BINARY (31);

END;



Each time the block labeled CALC is activated, storage is allocated for the variable TEMP. When the END statement is executed, the block is deactivated, and all storage for TEMP and all other automatic variables is released. The value of TEMP becomes undefined.

The storage requirements of an automatic variable are evaluated each time the block is activated. Thus, you can specify the length of an automatic character-string variable as follows:

DECLARE STRING_LENGTH FIXED;

COPY: BEGIN;

DECLARE TEXT CHARACTER(STRING_LENGTH);

END;



When this begin block is activated, the length of TEXT is evaluated. The variable is allocated storage depending on the value of STRING_LENGTH, which must have a valid value.

Static Variables

A static variable is allocated storage when the program is activated and exists for the duration of the program. A variable has the static attribute if you declare it with any of the attributes STATIC, EXTERNAL, GLOBALDEF, or GLOBALREF. In declaring static arrays and strings, you must use restricted expressions. (Note that the EXTERNAL scope attribute implies static storage for variables.)

If a block that declares a static variable is entered more than once during the execution of the program, the value of the static variable remains valid. For example:

UNIQUE_ID: PROCEDURE RETURNS (FIXED BINARY(31));

DECLARE ID STATIC INTERNAL FIXED INITIAL (0);

ID = ID + 1; /* Increment ID */

RETURN (ID);

END;



The function UNIQUE_ID declares the variable ID with the STATIC attribute and specifies an initial value of 0 for it. The variable is initialized to this value when the program is activated. The storage for the variable is preserved, and the function returns a different integer value each time it is referenced.

A variable with the STATIC attribute can also have external scope; that is, its definition and value can be accessed by any other procedure that declares it with the STATIC and EXTERNAL attributes.

Internal Variables

An internal variable is known only within the block in which it is defined and within all contained blocks. By default, PL/I gives all variables the INTERNAL attribute with the exception of data with the FILE and CONDITION attributes.

External Variables

An external variable provides a way for external procedures to share common data. All declarations that refer to an external variable must also declare it with the EXTERNAL attribute (or with an attribute that implies EXTERNAL) and with identical data type attributes. You can abbreviate the EXTERNAL keyword to EXT. The following example and See . External Variables show how procedures can use external variables:



APPLIC: PROCEDURE OPTIONS (MAIN);

DECLARE FLAGS BIT (64) ALIGNED EXTERNAL;

CALL READY;

READY: PROCEDURE;

DECLARE FLAGS BIT (64) ALIGNED EXTERNAL;



. External Variables

Further control is provided by the VALUE attribute, which can be used in conjunction with GLOBALDEF and GLOBALREF. A variable declared in this way is a constant whose value is used immediately in instructions generated by the compiler.

The EXTERNAL attribute is implied by the FILE, GLOBALDEF, GLOBALREF, and CONDITION attributes, and also by declarations of entry constants (that is, declarations that contain the ENTRY attribute but not the VARIABLE attribute). For variables, the EXTERNAL attribute implies the STATIC attribute.

The following rules apply to the use of external names:

  • The EXTERNAL attribute directly conflicts with the AUTOMATIC, BASED, DEFINED, and INTERNAL attributes.
  • You cannot apply the EXTERNAL attribute to minor structures, members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute.
  • The EXTERNAL attribute is invalid for variables that are the parameters of a procedure.
  • If you declare a variable as EXTERNAL STATIC INITIAL, you must initialize the variable with the same value in all blocks that declare the variable.
  • If you declare a file constant or file variable explicitly or implicitly as EXTERNAL, you must use identical attributes, including ENVIRONMENT attributes, in all blocks that declare the file.

Based Variables

A based variable is a variable that describes a data type associated with storage that will be accessed through a pointer or offset value. PL/I does not allocate any storage for a based variable. Instead, you must explicitly allocate storage.

When you declare a based variable, you provide PL/I with a description of the data to be accessed by the variable. The actual data must be referenced by a pointer that contains the address of the data storage location. (See See BASED Attribute for more information.) For example:

DECLARE BUFFER CHARACTER(80) BASED (BUF_PTR),

LINE CHARACTER(80),

BUF_PTR POINTER;

BUF_PTR = ADDR(LINE);



The declaration of BUFFER does not allocate any storage. PL/I associates the declaration of the variable with the pointer variable BUF_PTR. During program execution, BUF_PTR is set to the location (address) in storage of the variable LINE by means of the ADDR built-in function. This effectively associates the description of BUFFER with the actual data value of LINE.

You can associate a based variable with a storage location by using the ADDR built-in function, as in the preceding example; by using the ALLOCATE statement; by using a locator-qualified reference to the based variable; by using the SET option of the READ statement; or by explicit allocation within an area.

The following sections cover these topics:

Data Types Used with Based Variables

The data types most commonly associated with based variables are pointers, areas, and offsets.

A pointer is a variable whose value represents the location in memory of another variable or data item. Pointers are used to access based variables and buffers allocated by the system as a result of the SET option of the READ and ALLOCATE statements.

Areas are regions of storage in which based variables can be allocated and freed. The use of areas can simplify and speed operations involving large or numerous based variables.

An offset is a value indicating the location of a based variable relative to the beginning of an area.

Allocation in Areas

PL/I supports storage management in areas (see See Area Data for more information). If you use the ALLOCATE statement with an area (either implied or explicitly specified), you can cause the allocation of storage to be performed in that area, instead of in the general memory pool for based and controlled storage.

Storage management in areas has a number of uses, including the following:

  • To allow an area to be moved to different addresses without invalidating its data.
  • To allocate storage that can be freed all at once with low overhead, by allocating variables in an area and then emptying the areas with the EMPTY built-in function rather than freeing the generations one at a time.
  • To allocate storage that can be rolled back, by allocating variables in an area and making periodic assignment of the area to a backup area.

If it is found that some operations need to be rolled back, the backup area can then be copied back into the current area (or they can be swapped). Note that when areas are assigned to each other, all offsets into the old area are valid for the new area as well.

To allocate storage in areas, use the IN and SET options on the ALLOCATE statement, the AREA and OFFSET data attributes, and the EMPTY built-in function.

The IN option on the ALLOCATE statement takes a reference to an area. If the IN option is not specified, the area is implied from the SET option if the SET option specifies an offset variable with a base area. The SET option itself can be implied from the base variable. Whether an area is specified explicitly or implied, the allocation is performed in that area instead of in the available memory pool for based and controlled storage. If an error is detected in the process, the AREA condition is raised.

Kednos PL/I for UNIX provides full support for allocation in areas as specified in the ANSI full PL/I language standard. In addition, it provides extensions to full PL/I, which enhance the usefulness of areas or provide for improved compatibility with other implementations of PL/I. These extensions are as follows:

  • Area control information is stored in the form of offsets so that an area can be moved to different addresses and still be correct (see See Offset Data for more information). As a result, you can assign areas as members of structures as long as their extents are identical. Note, however, that if such an assignment is performed, the entire area will be copied rather than just the extent. The position independence of the area control information also allows an area to be written to secondary storage and retrieved by another program at a different address. You must ensure that any data allocated in the area is position independent, by restricting locator values stored in the area to offsets specifying that area as a base.
  • You can assign areas of differing sizes to each other directly (that is, not as members of structures). The AREA condition will be raised if the target area is not large enough to hold the extent of the source area.
  • If you transmit an area by itself (as opposed to a member of an aggregate) with a WRITE or REWRITE statement, only the current extent of the area is transmitted (as in the case of varying-length character strings). You can transmit the entire area by using the SCALARVARYING ENVIRONMENT option.
  • The base area in an ALLOCATE statement need not match the base area of the offset. However, if they do match, then one area must contain the other.
  • A normal return from an AREA condition due to a full area during an allocation attempt will result in another allocation attempt. An infinite loop will occur if the problem is not corrected, because the area reference is not reevaluated before the retry is attempted after a normal return. The ON-unit must correct the condition by deallocating storage in the area, or by using the EMPTY built-in function.
  • The control information for an area is stored inside the area. The control information occupies at least 24 to 31 bytes for header information, plus space for linking unused portions of the area. The number of links needed to link unused portions of the area depends on how fragmented the area is. As a result, there are slightly fewer bytes available for the allocation of user variables in an area than the number of bytes the area is declared with.
  • Area variables are not initially empty. They must be explicitly initialized. For example:

A = EMPTY();



The initialization can be in an INITIAL clause of the declaration; for example:

DECLARE A AREA(100) STATIC INITIAL(EMPTY());



In both examples, the EMPTY built-in function returns an empty area value.

Note that the last three items in this list are features that differ in some other implementations of PL/I.

For examples showing allocation in areas, see See Examples of Based Variables .

Referring to Based Variables

A reference to a based variable (except in an ALLOCATE statement) must specify a pointer or offset reference designating the storage to be accessed. This qualifying pointer or offset reference can be implicit, if it is specified with the BASED attribute, or explicit, if the based variable reference is prefixed with a locator qualifier. A complete based variable reference (with the locator qualifier) has the following form:

qualifying-reference -> based-reference



Whether explicit or implicit, the qualifying reference must be to a pointer variable, a pointer-valued function, or an offset variable declared with a base area. The qualifying reference is evaluated each time the complete reference is evaluated and must yield a valid pointer value. If the qualifying reference is to an offset variable, the offset value is converted to a pointer using the base area specified in the offset variable's declaration.

You can use both implicit and explicit qualifications with the same based variable; the explicit qualifier overrides the implicit one. For example:

DECLARE X FIXED BIN BASED(P),

P POINTER,

(A,B) FIXED BIN;

P = ADDR(A);

X = ADDR(B)->X;



In the second assignment statement, the reference to X on the left-hand side of the assignment has the implicit qualifier P, which is the address of the variable A. The reference to X on the right-hand side is explicitly qualified with the address of another variable, B. This assigns the value of B to the variable A.

In PL/I, you can obtain a valid pointer value in any of the following ways:

  • Through the SET option of the ALLOCATE statement
  • From a user-provided storage allocation routine
  • Through the SET option of the READ statement
  • From applying the ADDR built-in function to an addressable variable
  • By converting an offset value to a pointer value

A pointer value is valid only as long as the storage to which it applies remains allocated. Moreover, a pointer obtained by the application of ADDR to a parameter or an automatic variable is valid only as long as the parameter's procedure invocation exists, even though the storage pointed to may exist longer.

The NULL built-in function returns a null pointer value that can be assigned to pointer and offset variables, but that is not valid for qualifying a based variable reference.

Based Variables and Dynamic Storage Allocation

These subsections discuss the dynamic allocation of storage by the ALLOCATE statement and the READ SET statement.

Using the ALLOCATE Statement

Each time it is executed, the ALLOCATE statement allocates storage for a based variable and, optionally, sets a pointer or offset variable to the location of the storage in memory. The storage allocated can also be assigned values if the variable is declared with the INITIAL attribute. For example:

DECLARE LIST (10) FIXED BINARY BASED,

(LIST_PTR_A, LIST_PTR_B) POINTER;



ALLOCATE LIST SET (LIST_PTR_A); À

ALLOCATE LIST SET (LIST_PTR_B); Ã



LIST_PTR_A -> LIST(1) = 10; Õ

LIST_PTR_B -> LIST(1) = 15;



As you can see in this example and See . Using the ALLOCATE Statement , the array LIST is declared with the BASED attribute; however, the declaration does not reserve storage for this variable. Instead, the ALLOCATE statements allocate storage for the variable and set the pointers LIST_PTR_A and LIST_PTR_B to the storage locations. LIST_PTR_A and LIST_PTR_B must both be declared with the POINTER attribute.

In references, the different allocations of LIST can then be distinguished (unless the pointers are assigned new values) by locator qualifiers that identify the specific allocation of LIST.

The phrase LIST_PTR_A-> is a locator qualifier; it specifies the pointer that locates an allocation of storage for the variable. In this example, the first element of the storage pointed to by LIST_PTR_A is assigned the value 10. The first element of the storage pointed to by LIST_PTR_B is assigned the value 15.

Any extent expressions in the based variable declaration are evaluated each time the variable is allocated or referenced. Therefore, based variables can be used for data aggregates whose size depends on input data.


. Using the ALLOCATE Statement

Here is an example of dynamically allocating a matrix that will be accessed by several external procedures:

DECLARE 1 MATRIX_CONTROL_BLOCK STATIC EXTERNAL,

2 MATRIX_POINTER POINTER,

2 (ROW_SIZE,COL_SIZE) FIXED BINARY(15);



DECLARE 1 MATRIX(ROW_SIZE,COL_SIZE) FIXED BINARY(15)

BASED(MATRIX_POINTER);



GET LIST(ROW_SIZE,COL_SIZE);

ALLOCATE MATRIX;



The SET Option of the READ Statement

When you use the READ statement with a based variable, you do not have to define storage areas within your program to buffer records for I/O operations. If you specify the SET option on the READ statement, the READ statement places an input record in a system buffer and sets a pointer variable to the location of this buffer. For example:

DECLARE REC_PTR POINTER,

NEW_BALANCE FIXED DECIMAL (6,2),

INFILE FILE RECORD INPUT SEQUENTIAL;

DECLARE 1 RECORD_LAYOUT BASED (REC_PTR),

2 NAME CHARACTER (15),

2 BALANCE FIXED DECIMAL (6,2);



READ FILE (INFILE) SET (REC_PTR) ;



REC_PTR->BALANCE = NEW_BALANCE;

REWRITE FILE (INFILE);



In this example, the structure defined to describe the records in a file is declared with the BASED attribute; the declaration does not reserve storage for this structure. When the READ statement is executed, the record is read into a system buffer and the pointer REC_PTR is set to its location.

When you use the SET option with the READ statement, a subsequent REWRITE statement need not specify the record to be rewritten. PL/I rewrites the record indicated by the pointer variable specified in the READ statement.

See . Using the READ Statement with a Based Variable shows this example.

. Using the READ Statement with a Based Variable

Using the ADDR Built-in Function

The ADDR built-in function returns the storage location of a variable. You can use it to associate the storage occupied by a variable with the description of a based variable. For example:

DECLARE A FIXED BINARY BASED (X),

B FIXED BINARY,

X POINTER;

X = ADDR (B);

A = 15;



In this example, the variable A is declared as a based variable, with X designated as its pointer. The variable B is an automatic variable; PL/I allocates storage for B when the block is activated. When the ADDR built-in function is referenced, it returns the location in storage of the variable B, and the assignment statement gives this value to the pointer X. This assignment associates the variable A with the storage occupied by B. Because A is based on X and X points to B, an assignment statement that gives a value to A actually modifies the storage occupied by the variable B. See . Using the ADDR Built-In Function shows this example.


. Using the ADDR Built-In Function

Data-Type Matching for Based Variables

In most applications, the data type of a based variable reference is identical to the data type under which the accessed storage is allocated. However, it is not required that the data types be identical. The following sections discuss type-matching criteria in more detail.

Matching by Overlay Defining

Matching by overlay defining is in effect if the based variable reference and the variable for which the storage was originally allocated are both suitable for character-string or bit- string overlay defining. The only further restriction is that the size n (in characters or bits) of the based variable reference must be less than or equal to the size in characters or bits of the original variable. The based variable reference accesses the first n characters or bits of the storage.

The first program in See Examples of Based Variables shows this type of matching. The structure members JOB_RECORD.DEPT_CODE (a character string of length 3) plus JOB_RECORD.JOB_CODE (a character string of length 6) and HEALTH_RECORD.EXAM DATE (a character string of length 9) are not identical. However, since they occupy the same total storage and are all stored as character strings, they meet the criteria for string overlay defining and for data-type matching.

Matching by Left-to-Right Equivalence

Matching by left-to-right equivalence applies to structured variables that are identical up to a certain point. To see if this applies, examine the declaration of the based variable, and consider only the portion on the left that includes the referenced member and all of the level-2 substructure containing the referenced member (if the member is not itself at level 2). If the original variable's declaration has a similar left part with identical data type, then the based variable reference and the original reference match. For example:

DECLARE 1 S1 BASED (P),

2 X,

3 (A,B) FIXED BIN,

2 Y,

3 C CHAR(10),

3 D(5) FLOAT;



DECLARE 1 S2 BASED(P),

2 X,

3 (A,B) FIXED BIN,

2 Y,

3 C CHAR(10),

3 E BIT(32);



ALLOCATE S1;



S2.A = 3; /* valid l-to-r match */

S2.C = 'X'; /* INVALID */



In the first assignment, S2.A is a valid reference because S1 and S2 match through the level-2 structure X. In the second assignment, S2.C is invalid in standard PL/I because the level-2 structures S2.Y and S1.Y do not match. However, the reference to S2.C does work.

This sort of matching is useful in connection with data structures and files, where the first part of a record contains a value indicating the precise structure of the remainder of the record.

Note that the UNION attribute allows this type of declaration to be written more easily.

Nonmatching Based Variable References

In PL/I, a based variable reference need not match the variable for which the storage was originally allocated. The only requirement is that the size of the based variable in bits be less than or equal to the size of the original variable in bits. For example:

DECLARE LINE_IMAGE CHAR(83) BASED(ADDR(LINE));

DECLARE 1 LINE,

2 NAME CHAR(17),

2 CLASS CHAR(12),

2 SIZE CHAR(7),

2 LOC CHAR(11),

2 ATT_LIST CHAR(36);



Examples of Based Variables

The program DEFINED uses based variables and the READ SET statement to process a file of personnel data (PERSONNEL.DAT). The file has two types of valid records, a job record and a health record, which are identified by a 1-character code in the first position. The two record types are declared as based structures (JOB_RECORD and HEALTH_RECORD), one of which is selected based on the record type character (`J' for job, `E' for health). Any record that does not begin with one of these characters is invalid and is written out as a reference to the based character variable INVALID_RECORD.

DEFINED: PROCEDURE OPTIONS(MAIN);



DECLARE P POINTER; /* pointer to structures */



DECLARE 1 JOB_RECORD BASED(P),

2 RECORD_TYPE CHARACTER(1),

2 NAME CHARACTER(20),

/* the two structures differ in this member: */

2 DEPT_CODE CHARACTER(3),

2 JOB_CODE CHARACTER(6);



DECLARE 1 HEALTH_RECORD BASED(P),

2 RECORD_TYPE CHARACTER(1),

2 NAME CHARACTER(20),

2 EXAM_DATE CHARACTER(9);



DECLARE INVALID_RECORD CHARACTER(30) BASED(P);



DECLARE PERSONNEL RECORD FILE;

DECLARE PERSOUT STREAM OUTPUT PRINT FILE;



/* used to control DO group: */

%REPLACE NOTENDFILE BY '1'B;

ON ENDFILE(PERSONNEL) BEGIN;

PUT FILE(PERSOUT) SKIP LIST

('All processing complete.');

STOP; /* program stops here */

END;

OPEN FILE(PERSONNEL) INPUT TITLE('PERSONNEL.DAT');



DO WHILE(NOTENDFILE);

/* terminated by ENDFILE ON-unit */

READ FILE(PERSONNEL) SET(P);

/* P is the location of the record we just READ */

IF P->JOB_RECORD.RECORD_TYPE = 'J' THEN

PUT FILE(PERSOUT) SKIP LIST

('Name = ',P->JOB_RECORD.NAME,

'Dept = ',P->DEPT_CODE,

' Job = ' ,P->JOB_CODE);

ELSE /* either a health record or an invalid record */

DO;

IF P->HEALTH_RECORD.RECORD_TYPE = 'E' THEN

PUT FILE(PERSOUT) SKIP LIST

('Name = ',P->HEALTH_RECORD.NAME,

'Exam date: ',P->EXAM_DATE);

ELSE /* invalid record type */

PUT FILE(PERSOUT) SKIP LIST

('Invalid record: ',P->INVALID_RECORD);

END;

END; /* repeat DO group until ENDFILE is signaled */

END DEFINED;



For example, assume that the file PERSONNEL.DAT contains these records:

JMary A. Ford        ACCINTAKE

EMary A. Ford        22July 80

t12345678901234567890pppppp.pp

The output file (PERSOUT.DAT) will contain the following output:

Name = Mary A. Ford        Dept = ACC Job = INTAKE

Name = Mary A. Ford        Exam date: 22July 80

Invalid record: t12345678901234567890pppppp.pp

All processing complete.



Notice these other features of the program:

  • The references to based variables have a locator qualifier (P->) for clarity. However, because all are declared with P as their pointer reference, the locator qualifier can be omitted.
  • References to the structure members RECORD_TYPE and NAME must be fully qualified with the name of their containing structures (JOB_RECORD and HEALTH_RECORD) because both structures have members with these names. In contrast, DEPT_CODE, JOB_CODE, and EXAM_DATE are unique to their structures and need not be fully qualified.

The UNION attribute can be used to declare a single record with a variant portion in place of JOB_RECORD and HEALTH_RECORD. For example:

DECLARE 1 RECORD BASED(P),

2 RECORD_TYPE CHARACTER(1),

2 NAME CHARACTER(20),

2 VARIANTS UNION,

3 JOB_INFO,

4 DEPT_CODE CHARACTER(3),

4 JOB_CODE CHARACTER(6),

3 EXAM_DATE CHARACTER(9);



Note that the UNION attribute is not available in many other PL/I implementations. Use this attribute carefully if you are writing transportable code.

Controlled Variables

A controlled variable is a variable whose actual storage is allocated and freed dynamically in generations, of which only the most recent is accessible to the program. Controlled variables are declared with the CONTROLLED attribute. A controlled variable can be a scalar, array, area, or major structure variable possessing any of the attributes that do not conflict with the CONTROLLED attribute. (See See CONTROLLED Attribute for more information.)

The CONTROLLED attribute cannot be applied to minor structures, members of structures, parameters, or descriptions in an ENTRY or RETURNS attribute.

A controlled variable has no storage assigned to it until an ALLOCATE statement allocates storage for it. Each storage assignment is a generation of the variable. Subsequent ALLOCATE statements allocate subsequent generations. At any time in the program's execution, a reference to a controlled variable is a reference to the most recent generation of that variable, that is, the generation created by the most recent ALLOCATE statement.

The FREE statement frees the most recent generation of a controlled variable. If an attempt is made to free a controlled variable for which no generation exists (or to refer to such a variable), PL/I signals the ERROR condition. The following example shows the use of controlled variables:

CONT: PROCEDURE OPTIONS (MAIN);



DECLARE STR CHARACTER (10) CONTROLLED;



ALLOCATE STR;

STR = 'First';

ALLOCATE STR;

STR = 'Second';

ALLOCATE STR;

STR = 'Third';

PUT SKIP LIST (STR);

FREE STR;

PUT SKIP LIST (STR);

FREE STR;

PUT SKIP LIST (STR);

FREE STR;



END;

The output of this program is as follows:

Third

Second

First



Using the ALLOCATION Built-In Function

Because only the most recent generation of a controlled variable is available to a program, controlled variables provide an easy way to implement a stack. The ALLOCATE statement is equivalent to a push operation, and the FREE statement is equivalent to a pop operation. The ALLOCATION built-in function returns the number of generations of a variable, so you can use it to find out if the stack is empty.

For example:

DECLARE NEXT_MOVE CHARACTER(5) CONTROLLED,

DIRECTIONS(4) CHARACTER(5) INITIAL(

'North','East','South','West'),

D FIXED BINARY (7);

ALLOCATE NEXT_MOVE; /* Part of a loop that reports */

NEXT_MOVE = DIRECTIONS(D);/* moves in reverse order */

DO WHILE /* Print moves in correct order */

(ALLOCATION(NEXT_MOVE) ^= 0);

PUT SKIP LIST ('Go ', NEXT_MOVE);

FREE NEXT_MOVE;

END;



See See ALLOCATION for more information about the ALLOCATION built-in function.

Using the ADDR Built-In Function

You can use a controlled variable as the argument of the ADDR built-in function. If a generation exists, ADDR returns a pointer to it. If no generation of the variable exists, ADDR returns the null pointer. Thus, you can use ADDR to preserve a pointer to a generation of a controlled variable that later becomes hidden under further generations, as in the following example:

DECLARE STOPS CHARACTER (20) VARYING CONTROLLED,

MIDPOINT CHARACTER (20) VARYING BASED (P),

P POINTER;

/* part of a loop */

ALLOCATE STOPS;

STOPS = CURRENT_LOC;

IF I = 5 THEN P = ADDR(STOPS);

PUT SKIP LIST (

'End reached! Halfway point was', MIDPOINT);



At a certain point during the execution of this program, the ADDR built-in function captures the address of the current generation of STOPS and assigns it to P. After more generations of STOPS have been allocated, MIDPOINT (which is based on P) has the value of that same intermediate generation of STOPS.

Note that the value of P (and therefore of MIDPOINT) is valid only so long as the intermediate generation of STOPS to which P points is allocated. As soon as that generation is freed, the value of P becomes invalid, and it must not be used in a pointer-qualified reference until it is reassigned.

A controlled variable cannot be used in a pointer-qualified reference. In the previous example, a reference like the following would be illegal:

P->STOPS



Dynamically Allocated Variables

This section describes the mechanisms for dynamically allocating storage.

ALLOCATE Statement

The ALLOCATE statement obtains storage for a based or controlled variable and sets (with based variables) a locator variable equal to the address of the allocated storage. The format of the ALLOCATE statement is as follows:

allocate-item

The syntax of the allocate item is:

variable-reference [SET(locator-reference)] [IN(area-reference)]


variable-reference

A based or controlled variable for which storage is to be allocated. The variable can be any scalar value, array, area, or major structure variable; it must be declared with the BASED or CONTROLLED attribute.

SET(locator-reference)

The specification of a pointer or offset variable (for based variables) that is assigned the value of the location of the allocated storage. If the SET option is omitted, the based variable must be declared with BASED(locator-reference) ; the variable designated by that locator reference is assigned the location of the allocated storage.

You cannot use the SET option to allocate controlled variables.

IN(area-reference)

The specification of an area reference (for based variables) in which the storage is to be allocated. If the IN option is omitted, the SET option (or implied SET option if the locator variable is an offset) must be an offset declared with OFFSET(area-reference).

You cannot use the IN option to allocate controlled variables.

Examples

DECLARE STATE CHARACTER(100) BASED (STATE_POINTER),

STATE_POINTER POINTER;

ALLOCATE STATE;



This ALLOCATE statement allocates storage for the variable STATE and sets the pointer STATE_POINTER to the location of the allocated storage.

The ALLOCATE statement obtains the amount of storage needed to accommodate the current extent of the specified variable. If, for example, a character-string variable is declared with an expression for its length, the ALLOCATE statement evaluates the current value of the expression to determine the amount of storage to be allocated. For example:

DECLARE BUFFER CHARACTER (BUFLEN) BASED,

BUF_PTR POINTER;



BUFLEN = 80;

ALLOCATE BUFFER SET (BUF_PTR);



Here, the value of BUFLEN is evaluated when the ALLOCATE statement is executed. The ALLOCATE statement allocates 80 bytes of storage for the variable BUFFER and sets the pointer variable BUF_PTR to its location.

The ALLOCATE statement is also used to allocate storage for controlled variables. A controlled variable is one whose actual storage is allocated and freed dynamically in generations, only the most recent of which is accessible to the program. Unlike based variables, a controlled variable cannot be used in a pointer-qualified reference.

If the variable being allocated has been declared with initial values, these values are assigned to the variable after allocation.

FREE Statement

The FREE statement releases the storage that was allocated for a based or controlled variable. The format of the FREE statement is as follows:

FREE free-item[,free-item ...];


free-item

The syntax of the free-item is:

variable-reference [IN(area-reference)]


variable-reference

A reference to the based or controlled variable whose storage is to be released.

If you do not explicitly free the storage acquired by the variable, the storage is not freed until the program terminates.

If you free a variable that is explicitly associated with a pointer, the pointer variable becomes invalid and must not be used to reference storage. You can only free a variable once for each allocation.

IN(area-reference)

The specification of an area reference (for based variables) in which the storage is to be freed. If the IN option is omitted, the variable reference must be either implicitly or explicitly based on an offset variable with a base area.

You cannot use the IN option in conjunction with controlled variables.

Examples

FREE LIST;

FREE P->INREC;



These statements release the storage acquired for the based variable LIST and for the allocation of INREC pointed to by the pointer P.

ALLOCATE STATE SET (STATE_POINTER);



FREE STATE;



This FREE statement releases the storage for the based variable STATE and makes the value of STATE_POINTER undefined.

Other Mechanisms for Dynamic Storage Allocation

PL/I has a variety of dynamic storage management mechanisms available besides those for based and controlled variables. You can also use explicitly specified calls to the malloc, calloc, and realloc memory allocation packages. For more information on these packages, see the manual pages on your system.

These storage control mechanisms are generally similar in the amount of overhead that they require both in execution time and in storage space, although certain mechanisms have characteristics that make them useful in specific circumstances.

In general, the standard PL/I language manipulation of dynamic memory provides reasonable performance with some built-in checking.

Defined Variables

The DEFINED attribute indicates that PL/I is not to allocate storage for the variable, but is to map the description of the variable onto the storage of another variable called the base variable. The DEFINED attribute provides a way to access the same data using different names (see See DEFINED Attribute for more information).

In a declaration of a defined variable, the DEFINED keyword, which you can abbreviate to DEF, is followed by a variable reference (which must not have the BASED or DEFINED attribute), and optionally by the position in the variable at which the defined variable begins. If you specify the position, you use the POSITION attribute followed by an expression in parentheses. The expression is an integer expression that specifies a position in the base; a value of 1 indicates the first character or bit. You can use the POSITION attribute only when the defined variable satisfies the rules for string overlay defining, which is described later in this section.

When you use the DEFINED attribute in the declaration of a variable, PL/I associates the description of the variable in the declaration with the storage allocated for the variable on which the declaration is defined. For example:

DECLARE NAMES(10) CHARACTER(5) DEFINED (LIST),

LIST(10) CHARACTER(5);



In this example, the variable NAMES is a defined variable; its data description is mapped to the storage occupied by the variable LIST. Any reference to NAMES or to LIST is resolved to the same location in memory.

With defined variables that meet the criteria for string overlay defining, you can use the POSITION attribute to specify the position in the base variable at which the definition begins. For example:

DECLARE ZIP CHARACTER(20),

ZONE CHARACTER(10) DEFINED(ZIP) POSITION(4);



This statement declares the variable ZONE and maps it to characters 4 through 13 of the variable ZIP.

The extent of a defined variable is determined at the time of block activation, but the base reference (and the position, if the POSITION attribute is also specified) is interpreted each time the defined variable is referenced. For example:

DECLARE I FIXED,

A(10) FIXED,

B FIXED DEFINED(A(I));

DO I = 1 TO 10;

B = I;

END;



The DO group assigns I to A(I) for I = 1,2, ... 10.

The base reference of a defined variable cannot be a reference to a based variable or to another defined variable. A defined variable and its base reference must satisfy one of the following criteria:

String Overlay Defining

If the defined variable is specified with the POSITION attribute, then both the defined variable and the base reference must be suitable for bit- or character-string overlay defining.

In brief, a variable is suitable for overlay defining if it consists entirely of characters or bits, and those characters or bits are packed into adjacent storage without gaps. Such a variable can be treated as a string or interpreted as different types of aggregates. For example:

DECLARE A (10) CHARACTER (5);

DECLARE B (5) CHARACTER (10) DEFINED (A);

A (1) = 'AAAAA';

A (2) = 'BBBBB';

PUT LIST (B(1));



See . An Overlay Defined Variable shows a 50-byte region of storage treated either as a 10-element array (A) of 5-character strings or as a 5-element array (B) of 10-character strings.

. An Overlay Defined Variable

If the defined variable and its base reference have identical data types, a reference to the defined variable is equivalent to the base reference. In the case of overlay defining, the defined variable maps onto part of the base reference's storage as follows:

  1. If the POSITION attribute was specified, let position be its value at the moment of reference; otherwise, let position equal 1.
  2. Let m be the total number of characters (or bits) specified by the data type of the defined variable. (Note that for pictured data, m is the total number of characters in the picture specification, exclusive of the V, K, and Fn characters.)
  3. A reference to the defined variable accesses m characters (or bits) of the base reference, beginning with the character or bit specified by position. The reference must lie entirely within the base reference; that is, position and m must satisfy the following formula: 1 <= position <= position + m <= n + 1

n is the total number of characters or bits in the base reference.

Rules for Overlay Defining

A variable V is suitable for character-string overlay defining if V is not an unconnected array and if one of the following criteria is satisfied:

  • V has the CHARACTER attribute, but not ALIGNED or VARYING.
  • V has the PICTURE attribute.
  • V is a structure, and each of V's members and submembers that is not a structure satisfies one of the first two criteria.

A variable V is suitable for bit-string overlay defining if V is not an unconnected array and if one of the following criteria is satisfied:

  • V has the BIT attribute but not ALIGNED.
  • V is a structure, and each of V's members or submembers that is not a structure satisfies the first criterion.

Storage Sharing

Variables that have any of the attributes BASED, DEFINED, UNION, or PARAMETER can share physical storage locations with one or more other variables.

A based variable is not allocated any storage when it is declared. Instead, storage is either located by a locator-qualified reference to the variable or allocated by the ALLOCATE statement. The BASED attribute then lets you describe the characteristics of a variable, which you can then locate by a reference that qualifies the variable name with any valid pointer value. Based variables are useful when the program must control the allocation of storage for several variables with identical attributes. The creation and processing of a queued or linked list is a common case. For full details on based variables and valid pointer values, see See Based Variables .

A defined variable uses the storage of a previously declared variable, which is referenced in the DEFINED attribute. The referenced variable is called the base of the defined variable. The base can be a character- or bit-string variable, suitable for a technique called string overlay defining. When the base is a string variable, the POSITION attribute can also be specified for the defined variable, giving the position within the base variable's storage at which the overlay defining begins. Defined variables are useful when the program must refer to the same storage by different names. For more information, see See Dynamically Allocated Variables .

Unions provide capabilities similar to those of defined variables, but the rules governing unions are less restrictive. A union is a variation of a structure in which all immediate members occupy the same storage.

You must use the UNION attribute with a level number in a structure declaration. UNION signifies that all immediate members of the major or minor designated structure occupy the same storage. Immediate members are members that have a level number one higher than the major or minor structure with the union attribute. For more information, see See Using The UNION Attribute On Structure Declarations .

Parameters of a procedure share storage with their associated arguments. The associated argument is either a variable written in the argument list or a dummy variable allocated by the compiler. When the written argument is a variable, the sharing of storage by the parameter and argument allows a procedure to return values to the invoking procedure by changing the value of the parameter. For instance, a function can return values in this manner in addition to returning the value specified in its RETURN statement. For more information, see See Parameters and Arguments .



Expressions and Data Type Conversions

An expression is a representation of a value or of the computation of a value, and an assignment gives the value contained in an expression to a variable. Together, expressions and assignments form the mechanism for performing computation.

This chapter covers the following topics:

Assignment Statement

The assignment statement gives a value to a specified variable. The format of the assignment statement is:

target, ... = expression;


target

A reference to a variable to be assigned the value of the expression. If there are two or more targets, they are separated by commas. A target can be:

  • A reference to a scalar variable or scalar array element
  • A reference to a pseudovariable (for example, SUBSTR)
  • A reference to a major or minor structure name or any member of a structure
  • A reference to an array variable
expression

Any valid expression.

PL/I evaluates the targets and the expression in any order. Thus, a program should not depend on the evaluation of the targets before the expression.

PL/I performs the following steps for assignment. Note that the only certain things about the order of steps performed are that step 1 precedes step 3 and that step 4 is performed last.

  1. The expression is evaluated, producing a value to be assigned to the target. An expression can consist of many subexpressions and operations, each of which must be evaluated.
  2. Each target is evaluated. If a target contains a pseudovariable, any expressions in the argument list are evaluated.
  3. If the data type of the result does not match the data type of a target variable, the resulting value is converted to the data type of the target, if possible. The compiler issues a WARNING message to alert you to the implicit conversion.
  4. The value of the expression is assigned to the targets.

Some general rules regarding the types of data you can specify in assignment statements are listed in See . Data Types for Assignment Statement . For the complete rules for data conversion in assignments, see See Data Type Conversion of Operands and Expressions .

. Data Types for Assignment Statement

Data Type

Rules

Area

Only the current extent of an area is moved from the source area to a target. If the target area is not large enough to hold the extent, the AREA condition is raised. Note that the assignment is performed in such a way that all offsets in the source area are valid in the target area after the assignment. Areas cannot be assigned as members of structures.

Arithmetic

PL/I converts an arithmetic expression to the type of its target if their types are different. If the target is a character- or bit-string variable, PL/I converts the arithmetic expression to its character- or bit-string equivalent.

A character-string expression can be converted to the data type of an arithmetic target only if the string consists solely of characters that have numeric equivalents.

Arrays

You can specify an array variable as the target of an assignment statement in only the following ways:



  • array-variable = expression;

where expression yields a scalar value. Every element of the array is assigned the resulting value.

  • array-variable-1 = array-variable-2;

where the specified array variables have identical data type attributes and dimensions. Each element in array-variable-1 is assigned the value of the corresponding element in array-variable-2.

The storage occupied by the two arrays must not overlap.

Any array variable specified in an assignment statement must occupy connected storage. All other specifications of an array variable as a target of an assignment statement are invalid.

Bit

When a target of an assignment is a bit-string variable, the resulting expression is truncated or padded with trailing zeros to match the length of the target.

Character

When a target of an assignment is a fixed-length character string, the resulting expression is truncated on the right or padded with trailing spaces to match the length of the target. If a target is a varying-length character string, the resulting expression is truncated on the right if it exceeds the maximum length of the target.

When one character-string variable is assigned to another, the storage occupied by the two variables cannot overlap.

Entry

If the specified expression is an entry constant, an entry variable, or a function reference that returns an entry value, the target variable must be an entry variable.

Label

If the specified expression is a label constant, a label variable, or a function reference that returns a label value, the target variable must be a label variable.

Pointer and Offset

If the specified expression is a pointer or offset, or a function reference that returns a pointer or offset, the target variable must be a pointer or offset variable.

Structures

You can specify the name of a major or minor structure as a target of an assignment statement only if the source expression is an identical structure with members in the same hierarchy and with identical sizes and data type attributes. The storage occupied by the two structures must not overlap.

Any structure variable specified in an assignment statement must occupy connected storage.

The following examples show types of assignment statements:

A = 1;

A = B + A;

SUM = A + 3;

STRING = 'word';

A,B = 5;

Operators and Operands

An operator is a symbol that requests a unique operation. Operands are the expressions on which operations are performed. Built-in functions can also be considered operators, as well as their arguments considered operands.

Operators

A prefix operator precedes a single operand. The prefix operators are the unary plus (+), the unary minus (-), and the logical NOT (^)

  • The plus sign can prefix an arithmetic value or variable. However, it does not change the sign of the operand.
  • A minus sign reverses the sign of an arithmetic operand.
  • The logical NOT (^) prefix operator performs a logical NOT operation on a bit-string operand; the bit value is complemented.

The following examples show expressions containing prefix operators:

A = +55;

B = -88;

BITC = ^BITB;



An infix operator appears between two operands, and indicates the operation to be performed on them. PL/I has infix operators for arithmetic, logical, and relational (comparison) operations, and for string concatenations. Following are some examples of expressions containing infix operators:

RESULT = A / B;

IF NAME = FIRST_NAME || LAST_NAME THEN GOTO NAMEOK;



An expression can contain both prefix and infix operators. For example:

A = -55 * +88;

You can apply prefix and infix operators to expressions by using parentheses for grouping. For a table giving the categories of operators and the operator symbols, see See .

Operands

Because all operators must yield scalar values, operands cannot be arrays or structures. The data type that you can use for an operand in a specific operation depends on the operator:

  • Arithmetic operators must have arithmetic operands; if the operands are of different arithmetic types, they are converted before the operation to a single type, called the derived data type. See Derived Data Types for Arithmetic Operations describes this process.
  • Logical operators must have bit-string operands.
  • Relational operators must have two operands of the same type. (Note, however, that comparisons are allowed between offsets and pointers.)
  • The operators greater than (>), less than (<), not greater than (^>), not less than (^<), greater than or equal to (>=), and less than or equal to (<=) are valid only with computational operands.
  • The concatenation operator must have two bit-string operands or two character-string operands.

Arithmetic Operators

The arithmetic operators perform calculations. Programs that accept numeric input and produce numeric output use arithmetic operators to construct expressions that perform the required calculations. The infix arithmetic operators are listed in See . Infix Arithmetic Operators .

. Infix Arithmetic Operators

Operator

Operation

+

Addition

-

Subtraction

*

Multiplication

/

Division

**

Exponentiation

In addition, there are two prefix operators: unary plus (+) and unary minus (-). The unary plus is valid on any arithmetic operand, but it performs no actual operation. The unary minus reverses the sign of any arithmetic operand.

For any arithmetic operator, operands must be arithmetic; that is, they must be constants, variables, or other expressions with the data type attribute BINARY, DECIMAL, or PICTURE. Operands of different arithmetic types are converted to a common type before the operation is performed.

Arithmetic operators have a predefined precedence that governs the order in which operations are performed. All expressions can be enclosed in parentheses to override the rules of precedence. See . Precedence of Operators lists the precedence of operators.

Logical Operators

The logical operators perform logical operations on one or two operands. The operands of the logical operators must be bit-string expressions, except that the operand of the NOT operator can be a bit-string expression or a single relational operator. All relational expressions result in bit-string values of length 1, and they can therefore be used as operands in logical operations.

Except when the NOT operator is used as the prefix of a relational operator, the result of a logical operation is always a bit string.

Except for AND THEN and OR ELSE, logical operations are performed on their operands bit by bit. If bit-string operands are not the same length, PL/I extends the smaller of the operands on the right (that is, in the direction of the least significance) with zeros to match the length of the larger operand. This length is always the length of the result.

See . Logical Operators describes the prefix and infix operators.

. Logical Operators

Prefix Operator

Operation

^ (circumflex)

Logical NOT. In a logical NOT operation, the value of the operand is complemented; that is, a 1 bit becomes a 0 and a 0 bit becomes a 1. The value of a relational expression is also complemented; that is ^(A <B) is equivalent to (A >= B).

Infix Operator

Operation

& (ampersand)

Logical AND. In a logical AND operation, two operands are compared. If corresponding bits are 1, the result is 1; otherwise, the result is 0.

| (vertical bar) or ! (exclamation point)

Logical OR. In a logical OR operation, two operands are compared. If either or both of two corresponding bits are 1, the result is 1; otherwise the result is 0. (The | and the ! characters can be used interchangeably.)

&: (ampersand and colon)

Logical AND THEN. The operation is like AND except that the second operand is evaluated only if the first operand is true, and except that AND THEN does not do bit-by-bit operations on bit-string operands.

^ (circumflex)

Logical EXCLUSIVE OR. Two operands are compared, and the result is 1 if one of the corresponding bits is 1 and the other is 0.

|: (vertical bar and colon) or !: (exclamation point and colon)

Logical OR ELSE. The operation is like OR except that the second operand is evaluated only if the first operand is false, and except that OR ELSE does not do a bit-by-bit operation on bit-string operands.

You can define additional operations on bit strings with the BOOL built-in function.

Logical expressions will not be completely evaluated in some cases. If the result of the total expression can be determined from the value of one or more individual operands, the evaluation can be terminated. For example:

A & B & C & D & E



In this expression, evaluation will stop when any operand or the result of any operation is a bit string containing all zeros.

Examples

DECLARE (BITA,BITB,BITC) BIT(4);

BITA = '0001'B;

BITB = '1001'B;

BITC = ^BITA; /* BITC equals '1110'B */

BITC = BITA | BITB; /* BITC equals '1001'B */

BITC = BITA & BITB; /* BITC equals '0001'B */

BITC = ^(BITA & BITB); /* BITC equals '1110'B */

BITC = ^(BITA > BITB); /* BITC equals '1000'B (true) */

In the last assignment statement, the logical NOT expression yields '1'B; when this value is assigned to BITC, a BIT(4) variable, the value is padded with zeros and becomes '1000'B.

NOT

The logical NOT operator in PL/I is the circumflex character (^) used as a prefix operator. In a logical NOT operation, the value of a bit is reversed. If a bit is 1, the result is 0; if a bit is 0, the result is 1.

The NOT operator can be used on expressions that yield bit-string values (bit-string, relational, and logical expressions). It can also be used to negate the meanings of the relational operators (<, >, =). For example:

IF A ^> B THEN

/* equivalent to IF A <= B ... */



The result of a logical NOT operation on a bit-string expression is a bit-string value. For example:

DECLARE (BITA, BITB) BIT (4);

BITA = '0011'B;

BITB = ^BITA;



The resulting value of BITB is 1100.

The NOT operator can test the falsity of an expression in an IF statement. For example:

IF ^(MORE_DATA) THEN ...



AND

The ampersand (&) character is the logical AND operator in PL/I. In a logical AND operation, two bit-string operands are compared bit by bit. If two corresponding bits are 1, the corresponding bit in the result is 1; otherwise, the resulting bit is 0.

The result of a logical AND operation is a bit-string value. All relational expressions result in bit strings of length 1; they can therefore be used as operands in an AND operation. If the two operands have different lengths, the shorter operand is converted to the length of the longer operand, and the greater length is the length of the result.

Examples

DECLARE (BITA, BITB, BITC) BIT (4);

BITA = '0011'B;

BITB = '1111'B;

BITC = BITA & BITB;



The resulting value of BITC is '0011'B.

The AND operator can test whether two or more expressions are both true in an IF statement. For example:

IF (LINENO(PRINT_FILE) < 60) &

(MORE_DATA = 'YES') THEN ...



OR

The vertical bar character (|) represents the logical OR operation in PL/I. In a logical OR operation, two bit-string operands are compared bit by bit. If the two operands are of different lengths, the shorter operand is converted to the length of the longer operand, and this is the length of the result. If either of two corresponding bits is 1, the resulting bit is 1; otherwise, the resulting bit is 0.

All relational expressions result in bit strings of length 1, and they can therefore be used as operands in an OR operation.

The result of the OR operation is a bit-string value. For example:

DECLARE (BITA, BITB, BITC) BIT (4);

BITA = '0011'B;

BITB = '1111'B;

BITC = BITA | BITB ;



The resulting value of BITC is '1111'B.

The OR operator can test whether one of the expressions in an IF statement is true. For example:

IF (LINENO(PRINT_FILE) < 60) |

(MORE_DATA = YES) THEN ...



You can use the exclamation point (!) vertical bar, for compatibility with other PL/I implementations.

EXCLUSIVE OR

The EXCLUSIVE OR operator (infix or dyadic ^) causes a bit-by-bit comparison of two bit-string operands. If the two operands are not of equal length, the shorter is padded with 0s until it is the same length as the other, and this length is also the length of the result. If either of two corresponding bits is 1 and the other is 0, the result is 1. If both are 1, or if both are 0, the result is 0.

All relational expressions result in bit strings of length 1, and they can therefore be used as operands in an EXCLUSIVE OR operation.

The result of the EXCLUSIVE OR operation is a bit-string value. For example:

DECLARE (BITA, BITB, BITC) BIT (4);

BITA = '0011'B;

BITB = '1011'B;

BITC = BITA ^ BITB;



The resulting value of BITC is '1000'B.

The EXCLUSIVE OR operator can be used to test whether one and only one of the expressions in an IF statement is true. For example:

IF (A > 0) ^ (B > 0) THEN ...



AND THEN

The ampersand-colon token (&:) is the AND THEN operator in PL/I. The AND THEN operator causes the first operand to be evaluated; if it is false, the result returned is '0'B. The second operand will never be evaluated if the first operand is false. If and only if the first operand is true, the second operand is evaluated. If both are true, the result returned is true ('1'B); otherwise, the result is false ('0'B).

The AND THEN operator performs a Boolean truth evaluation, not a bit-by-bit operation, even when the two operands are bit strings. For example, '00001'B &: '10000'B yields '1'B (not '00000'B, which would be the result of an AND operation on these two bit strings). The reason is that each operand is a non-zero bit value, and therefore each evaluates to '1'B.

The AND THEN operator yields the same result as the AND operator (&) when expressions are tested in an IF statement (as in the last example in See AND ). The difference is that the AND operator can have its operands evaluated in either order.

The AND THEN operator is useful in compound test expressions in which the second test should occur only if the first test was successful. For example:

IF (P ^= NULL()) &: (P->X ^= 4) THEN ...



This statement causes P->X to be evaluated only if P is not a null pointer. If the AND operator were used instead of AND THEN, this expression could cause an access violation (invalid pointer reference).

OR ELSE

The vertical bar and colon characters (|:) together are the OR ELSE operator in PL/I. The OR ELSE operator causes the first operand to be evaluated. If it is true, the result returned is '1'B. If and only if the first operand is false, the second operand is evaluated. If either or both operands are true, the result returned is '1'B; otherwise, the result is '0'B.

The OR ELSE operator performs a Boolean truth evaluation, not a bit-by-bit operation, even when the two operands are bit strings. For example:

'00001'B |: '10000'B



This yields:

'1'B



It does not yield'10001'B, which would be the result of an OR operation on these two bit strings. The reason is that each operand is a nonzero bit value, and therefore each evaluates to '1'B.

The OR ELSE operator yields the same result as the OR operator (|) when expressions are tested in an IF statement (as in the last example in the "OR Operator" entry). The difference is that the OR operator can have its operands evaluated in any order.

The OR ELSE operator is useful in compound test expressions in which the second test should occur only if the first test failed. For example:

IF (A=0) |: (B/A > 1) THEN ...



This results in the second expression (B/A > 1) being evaluated only if the first expression is false. Thus, the OR ELSE operator prevents an attempt to divide by zero.

Relational Operators

The relational, or comparison, operators test the relationship of two operands; the result is always a Boolean value (that is, a bit string of length 1). If the comparison is true, the resulting value is '1'B; if the comparison is false, the resulting value is '0'B. The relational operators are all infix operators. The following table describes all the relational operators:

Operator

Operation

<

Less than

^<

Not less than

<=

Less than or equal to

=

Equal to

^=

Not equal to

>=

Greater than or equal to

>

Greater than

^>

Not greater than

Note that PL/I recognizes the tilde symbol (~)as synonymous with the circumflex (^).

Relational operators compare any of the following data types: arithmetic (decimal or binary); bit-string; character-string; and entry, pointer, label, or file data. Specific results of operations on each type of data are elaborated below. The following general rules apply:

  • All operands must be scalar.
  • Both operands must be arithmetic, or they must have the same data type.
Arithmetic Comparisons

Arithmetic and picture operands are compared algebraically. If the operands have a different base, scale, or precision, PL/I converts them according to the rules for arithmetic operand conversion.

Bit-String Comparisons

When two bit strings are compared, they are compared bit by bit from the most significant bit to the least significant bit (as represented by PUT LIST). If the operands have different lengths, PL/I extends the smaller operand with zeros in the direction of the least significance. Null bit strings are equal.

Character-String Comparisons

When two character strings are compared, they are compared character by character in a left-to-right order. The comparison is based on the ASCII collating sequence. The ASCII characters are the first 128 characters of the DEC Multinational Character Set.

Note the following characteristics of the collating sequence:

  • Uppercase letters are less than any lowercase letters.
  • Numeric characters are less than any letters.

If the operands do not have the same length, PL/I extends the smaller operand on the right with blanks for the comparison. Either or both of the strings can have the attribute VARYING; PL/I uses the current length of a varying character string when it makes the comparison. Null character strings are equal.

Comparing Noncomputational Data

Only the following operators are valid, or meaningful, for comparisons of any of the noncomputational data types except areas (condition, entry, file, label, offset, and pointer):

Operator

Operation

=

Equal

^=

Not equal

The results of the comparisons provide the information indicated below for each data type.

Condition Data

Two condition values are equal if they identify the same condition values.

Entry Data

Two entry values are equal if they identify the same entry point in the same block activation of a procedure.

File Data

Two values defined with the FILE attribute are equal if they identify the same file constant.

Label Data

Two label values are equal if they identify the same statement in the same block activation. A label that identifies a null statement is not equal to the label of any other statement.

Offset Data

Two offset values are equal if they identify the same storage location or if they are both null.

Pointer Data

Two pointer values are equal if they identify the same storage location or if they are both null.

Concatenation Operator

The concatenation operator produces a single string from two strings specified as operands. The concatenation operator is two vertical bars (| |).

The operands must both be character strings or both be bit strings. (If not, the appropriate conversion is performed, and you get a warning message about the conversion. The result of the operation is a string of the same type as the operands.

Examples

CONCAT: PROCEDURE OPTIONS(MAIN);

DECLARE OUTFILE STREAM OUTPUT PRINT FILE;



PUT FILE(OUTFILE) SKIP LIST('ABC' || 'DEF');

PUT FILE(OUTFILE) SKIP LIST('001'B || '110'B);

PUT FILE(OUTFILE) SKIP LIST((3)'001'B !! '07'B3);



END CONCAT;



The program CONCAT writes the following output to the file OUTFILE.DAT:

ABCDEF

'001110'B

'001001001000111'B



Note that the exclamation point can be used in place of the vertical bar, for compatibility with other PL/I implementations.

Precedence of Operators and Expression Evaluation

The precedence, or priority, of operators defines the order in which expressions are evaluated when they contain more than one operator. See . Precedence of Operators gives the priority of PL/I operators. Low numbers indicate high priority. For example, the exponentiation operator (**) has the highest priority (1), so it is performed first, and the OR ELSE operator (| :) has the lowest priority, so it is performed last.

. Precedence of Operators

Operator

Priority

Left/Right
Associative

Order of Evaluation

()

0

N/A

deepest first

**

1

right

left to right

+ (prefix)

1

N/A

N/A

- (prefix)

1

N/A

N/A

^ (prefix)

1

N/A

N/A

*

2

left

left to right

/

2

left

left to right

+ (infix)

3

left

left to right

- (infix)

3

left

left to right

| |

4

left

left to right

>

5

left

left to right

<

5

left

left to right

^>

5

left

left to right

^<

5

left

left to right

=

5

left

left to right

^=

5

left

left to right

<=

5

left

left to right

>=

5

left

left to right

&

6

left

left to right

|

7

left

left to right

^ (infix)

7

left

left to right

&:

8

left

left to right across entire expression

|:

9

left

left to right across entire expression

Expressions are evaluated from left to right, with the following qualifications:

Consider the expression:

A |: B &: C



It should be parenthesized according to the rules of associativity as:

(A |: (B &: C))



However, the semantics of the OR ELSE (|:) and AND THEN (&:) operators dictate that the operands be evaluated in the order A, B, C as necessary. This means that the B &: C will be evaluated before A which might not be the intent of the programmer and might not conform to the semantic rules of the OR ELSE (|:) operator.

When PL/I determines which to evaluate first, (1) the deeply nested B &: C (consistent with the order of evaluation for parentheses), or (2) the A |: (consistent with the order of evaluation of |:), (1) the deeply nested B &: C is chosen.

Whenever an expression that contains any combination of two or more &: or |: operators, the order of operand evaluation will be performed in the order dictated by the associativity of the operators. This may or may not be the desired behavior. To work around this, you will have to construct similar program sequences using IF THEN constructs in conjunction with either the AND (&) operators to achieve the desired behavior.

A & USER_FUNCTION(ALPHA,BETA)



Evaluation of this expression can be terminated without the USER_FUNCTION reference being evaluated if the evaluation of A results in a false Boolean value. However, the evaluation of A might not occur first, because the order of evaluations is not guaranteed in AND operations. To ensure that the first operand is evaluated first, use &:, which is the AND THEN operator, instead of &.

A + B + FUNC(I) + C



The subexpression A+B might not be evaluated and the result stored before FUNC(I) is evaluated. Therefore, if FUNC(I) alters A, B, or C, results may not be as expected.

Data Type Conversion of Operands and Expressions

Conversion is the changing of a data item from one data type to another. Data conversion in PL/I takes place in many contexts, not all of them obvious ones. Program results that seem improper may in fact be caused by data conversion at some point during program execution. This section discusses the following topics:

Contexts in which PL/I Converts Data

PL/I can perform data conversions in the following contexts:

  • Assignment statements
  • Arguments passed to a procedure
  • Values specified in a RETURN statement
  • An argument converted by the built-in function FIXED, FLOAT, BINARY, DECIMAL, BIT, or CHARACTER
  • Conversions to and from character strings performed by the PUT and GET statements, respectively

If an attempt is made to assign a value to a target for which there is no defined conversion, the compiler generates a diagnostic message. For example:

F = '133.45';



If F is a variable with the attributes FIXED DECIMAL (5,2), then the statement assigns the numeric value 133.45 to F, as expected, although the compiler issues a WARNING message about the implicit conversion, stating that the constant '133.45' has been converted to a FIXED DECIMAL target. The warning does not prevent you from linking and running the program. However, note the following example:

F = 'ABC';



This statement results not only in a compiler WARNING message but, if you go on to link and run the program, you also receive a CONVERSION condition. This is normally fatal unless it is handled with an ON CONVERSION ON-unit.

See . Contexts in Which PL/I Converts Data describes the contexts in which PL/I converts data. The table also lists the built-in conversion functions, such as BINARY and CHARACTER, which you can use when you want to explicitly indicate a conversion and to specify such characteristics as the precision or string length of the converted result.


. Contexts in Which PL/I Converts Data

Context

Conversion Performed

target = expression;

In an assignment statement, the given expression is converted to the data type of the target.

entry-name

RETURNS (attribute ...);



RETURN (value);

In a RETURN statement, the specified value is converted to the data type specified by the RETURNS option on the PROCEDURE or ENTRY statement.

x + y

x - y

x * y

x / y

x**y

x | | y

x & y

x | y

x&:y

x | :y

x ^ y

x > y

x < y

x = y

x^=y

In any expression, if operands do not have the required data type, they are converted to a common data type before the operation. For most operators, the data types of all operands must be identical. A warning message is issued in the case of a concatenation conversion.

BINARY (expression)

BIT (expression) CHARACTER (expression)

DECIMAL (expression)

DECODE (expression)

ENCODE (expression)

FIXED (expression)

FLOAT (expression)

OFFSET (variable)

POINTER (variable)

PL/I provides built-in functions that perform specific conversions.

PUT LIST (item, ...);

Items in a PUT LIST statement are converted to character- string data.

GET LIST (item, ...);

Character-string input data is converted to the data type of the target item.

PAGESIZE (expression)

LINESIZE (expression)

SKIP (expression)

LINE (expression)

COLUMN (expression)

format items A, B, E, F, and X

TAB (expression)

Values specified for various options to PL/I statements must be converted to integer values.

DO control-variable ...

Values are converted to the attributes of the control variable.

parameter

Actual parameters are converted to the type of the formal parameter, if necessary.

INITIAL attribute

Initial values are converted to the type of the variable being initialized.

Derived Data Types for Arithmetic Operations

Even though arithmetic operands can be of different arithmetic types, all operations will be performed on objects of the same type. Any set of operands of different arithmetic types has an associated derived type, as follows:

  • If any operand has the attribute BINARY, the derived type is BINARY. Otherwise, the derived type is DECIMAL.
  • If any operand has the attribute FLOAT, the derived type is FLOAT. Otherwise, the derived type is FIXED.

See . Derived Data Types gives the derived data type for two arithmetic operands of different types. (Note that the types derived from FIXED DECIMAL in See . Derived Data Types are also derived when one operand is pictured.)

. Derived Data Types

Type of Operand 1

Type of Operand 2

Derived Type

FIXED BINARY

FLOAT BINARY

FLOAT BINARY

FIXED BINARY

FLOAT DECIMAL

FLOAT BINARY

FIXED DECIMAL

FLOAT DECIMAL

FLOAT DECIMAL

FIXED DECIMAL

FLOAT BINARY

FLOAT BINARY

FIXED BINARY

FIXED DECIMAL

FIXED BINARY

See . Converted Precision as a Function of Target and Source Attributes gives the precision resulting from the conversion of an operand to its derived type. The values p and q are known as the converted precision of an operand and are based on the values p and q of the source operand.

. Converted Precision as a Function of Target and Source Attributes

Target Data Type

Binary Fixed Source 2

Decimal Fixed Source See The constant 3.32 is an approximation of log2(10), the number of bits required to represent a decimal digit.

Binary Float Source See The constant 3.32 is an approximation of log2(10), the number of bits required to represent a decimal digit.

Decimal Float Source See The constant 3.32 is an approximation of log2(10), the number of bits required to represent a decimal digit.

Binary Fixed

p
q

min(ceil(p*3.32)+1,31)
min(ceil(q*3.32),31)

N/A
N/A

N/A
N/A

Decimal Fixed

min(ceil(p/3.32)+1,31) max(0,min(ceil(q*3.32),31))

p
q

N/A
N/A

N/A
N/A

Binary Float

min(p,53)

min(ceil(p*3.32),53)

p

min(ceil(p*3.32),
53)

Decimal Float

min(ceil(p/3.32),15)

min(p,15)

min(ceil(p/3.32),15)

p

All arithmetic operations except exponentiation are performed in the derived type of the two operands. Exponential operations are performed in a data type that is based on the derived type of the operands. All operations, including exponentiation, have results of the same type as that in which they are performed.

The result of an arithmetic operation can be assigned to a target variable of any computational type. The result is converted to the target type, following the rules in See Implicit Conversion During Assignment .

Conversion of Operands in Nonarithmetic Operations

As operations must be performed on operands of the same type, the following conversions are performed when operands do not match in nonarithmetic operations:

  • PICTURE is converted to CHARACTER.
  • DECIMAL is converted to CHARACTER.
  • FIXED BINARY is converted to BIT.
  • If either operand is CHARACTER, after other conversions have been performed, the noncharacter operand is converted to CHARACTER.

PL/I issues a warning message about a conversion in a concatenation expression, except when converting from picture to character.

Built-In Conversion Functions

The built-in conversion functions can take arguments that are either arithmetic or string expressions. They are often used to convert an operand to the type required in a certain context -- for instance, to convert a bit string to an arithmetic value for use as an arithmetic operand.

For the purpose of these functions, and in a few other contexts, derived arithmetic attributes are also defined for bit- and character-string expressions:

  • The derived type of a bit string is fixed-point binary. Its converted precision is 31, with a scale factor of 0.
  • The derived type of a character string is fixed-point decimal. Its converted precision is 31, with a scale factor of 0.

PL/I uses these derived attributes to determine the precision of values returned by the conversion functions if no precision is specified in the functions' argument lists. Note that the value of a string argument must also be convertible to the result type; for instance, '1.333' is convertible to arithmetic, but 'XYZ' is not.

See . Built-In Functions for Conversions Between Arithmetic and Nonarithmetic Types indicates which built-in functions you should use for each conversion between an arithmetic and a nonarithmetic type. In addition, you can use the BINARY, DECIMAL, FIXED, and FLOAT built-in conversion functions to control conversions between two arithmetic types.

. Built-In Functions for Conversions Between Arithmetic and Nonarithmetic Types

Conversion

Function

Arithmetic to bit

BIT

Arithmetic to character

CHARACTER

Arithmetic or character to fixed-point arithmetic

FIXED

Bit to arithmetic

BINARY

Bit to character

CHARACTER

Character to bit

BIT

Character to decimal

DECIMAL

Character to float

FLOAT

Arithmetic or character to binary

BINARY

Character to fixed binary

DECODE

Decimal integer to character

ENCODE

Integer (non-negative) to character

BYTE

Implicit Conversion During Assignment

During assignment, PL/I automatically converts the derived data type of an expression to the data type of a target, if necessary. In assignments, conversions are defined between the noncomputational types POINTER and OFFSET, and between any two computational types. However, a conversion during assignment results in an error if PL/I cannot perform it in a meaningful way. For example, you can assign the string '123.4' to a fixed decimal variable; you cannot, however, assign the string 'ABCD' to the same variable. Similarly, an assignment of an arithmetic type to a fixed variable results in the FIXEDOVERFLOW condition if integral digits are lost.

Although PL/I performs conversions in assignment statements, such conversions may represent programming errors and are in violation of the PL/I G subset standard. Therefore, the compiler issues a warning message that an implicit conversion is taking place. These messages do not terminate the compilation and may not indicate errors; they simply alert you to the fact that your program converts one data type to another in a way that may cause a problem when the program is run. You can prevent such warning messages in two ways:

  • Use the built-in conversion functions to convert data types explicitly. This method is recommended. See Built-In Conversion Functions summarizes the functions.
  • Use the -w or --nowarn option on the PLI command to suppress diagnostic warning messages. (The compiler will continue to print messages of greater severity.) However, you run the risk of missing important diagnostic information.

For example:

DECLARE (A,B) FIXED DECIMAL (5,2);

A = '123.45'; /* Warning message */

B = FIXED('123.45',5,2); /* No warning */



Both assignment statements assign the same value to their targets; however, the first statement causes a warning message from the compiler, while the second statement does not.

Assignment to Arithmetic Variables

Expressions of any computational type can be assigned to arithmetic variables. The conversion rules for each source type are described in the following sections.

Arithmetic to Arithmetic Conversions

A source expression of any arithmetic type can be assigned to a target variable of any arithmetic type. Note the following qualifications:

  • If the target is a variable of type FIXED BINARY or FIXED DECIMAL, then the FIXEDOVERFLOW condition is signaled when the source value has a larger number of integral digits than are specified in the precision of the target. If the target is a fixed- point binary variable, FIXEDOVERFLOW is signaled if the source value exceeds the storage allocated for the target, which can be larger than the declared precision of the target.
  • If the target is a variable of type FIXED DECIMAL(p,q) or FIXED BINARY(p,q) and the source value has more than q fractional digits, then the excess fractional digits of the source are truncated, and no condition is signaled. If the source has fewer than q fractional digits, the source value is padded on the right with zeros.
  • If the target value is floating point and the absolute source value is too large to be represented by a floating-point type, then the OVERFLOW condition is signaled, and the value of the target is undefined.
Conversions to Fixed Point

In the following examples, the specified source values are converted to FIXED DECIMAL(4,1):

Source Value

Converted Value

25.505

25.5

-2.562

-2.5

101

101.0

5365

FIXEDOVERFLOW - value undefined

Conversions to Floating Point

Let p be the precision of the floating-point target. If the source value is an integer that can be represented exactly in p digits, then the source value is converted to floating-point binary with no loss of accuracy.

Otherwise, the source value is converted to floating-point binary with rounding to precision p. For example, the constant 479 will be converted to FLOAT BINARY(24) without loss of accuracy, while the constant 16777217, which cannot be represented exactly in 24 bits, will be rounded during conversion.

Conversions from FIXED BINARY to Other Data Types

Conversions from FIXED BINARY to other data types follow the rules outlined below. Notice that these rules assume both precision and scale.

Precisions of the source and target are (p,q) and (p1,q1), respectively. The precision of the result is (p2,q2).

. Conversion from Fixed Binary

Target

Result

FIXED DECIMAL(p1,q1)

p2=1+CEIL(p1/3.32) and q2=CEIL(q1/3.32).

FIXED BINARY(p1,q1)

Precision and scale of the source are maintained during conversion; therefore, padding or truncation can occur. If nonzero bits are lost on the left, the result is undefined.

FLOAT DECIMAL(p1)

p2=CEIL(p1/3.32). The exponent indicates any fractional value.

FLOAT BINARY(p1)

p2=p1. The mantissa indicates any fractional value.


The target implies FIXED DECIMAL and is converted accordingly.

CHARACTER

The binary precision (p,q) is converted to a FIXED DECIMAL with precision (p1,q1), where p1=1+CEIL(p/3.32) and q1=CEIL(q/3.32). Then the rules for conversion from FIXED DECIMAL to CHARACTER are in effect.

BIT

The binary precision (p,q) is converted to an intermediate bit string where the size or precision is MIN(31,p-q). Then the intermediate bit string is converted to BIT(n). If (p-q) is negative or zero, the result is a null bit string.

If the scale factor is negative, substitute the FLOOR value for CEIL in the above calculations which contain q's.

Pictured to Arithmetic Conversions

In PL/I all pictured values have the associated attributes FIXED DECIMAL(p,q), where p is the total number of characters in the picture specification that specify decimal digits, and q is the total number of these digits that occur to the right of the V character. If the picture specification does not include a V character, then q is zero. This value is assigned to the target, following the PL/I rules for arithmetic to arithmetic conversion.

Bit-String to Arithmetic Conversions

When a bit-string value is assigned to an arithmetic variable, PL/I treats the bit string as a fixed-point binary value. A string of type BIT(n) is converted to FIXED BINARY(m,0), where m = min(n,31).

If the converted value is greater than or equal to 2 31 then FIXEDOVERFLOW is signaled. The leftmost bit in the bit string (as output by PUT LIST) is the most significant bit in the fixed-point binary value, not its sign. If the bit string is null, the fixed- point binary value is zero.

The intermediate fixed-point binary value is then converted to the target arithmetic type.

Note that bit strings are stored internally with the leftmost bit in the lowest address. The conversion to an arithmetic type must reverse the bits from this representation; therefore, you should avoid this conversion when performance is a consideration.

Examples

CONVTB: PROCEDURE OPTIONS(MAIN);



DECLARE STATUS FIXED BINARY(8);

DECLARE STATUS_D FIXED DECIMAL(10);

DECLARE OUT PRINT FILE;



OPEN FILE(OUT) TITLE('CONVTB.OUT');

ON FIXEDOVERFLOW PUT SKIP FILE(OUT)

LIST('Fixedoverflow:');



STATUS = '1001101'B;

PUT SKIP FILE(OUT) LIST(STATUS);



STATUS_D = '001101'B;

PUT SKIP FILE(OUT) LIST(STATUS_D);



STATUS = '1232'B2;

PUT SKIP FILE(OUT) LIST(STATUS);



STATUS = 'FF'B4;

PUT SKIP FILE(OUT) LIST(STATUS);



STATUS_D = '10111111111111111111111111111111'B;

END CONVTB;



Note that because the program CONVTB performs implicit conversions, the compiler issues WARNING messages. (Linking and running are accomplished successfully because the conversions are valid.)

The program CONVTB produces the following output:

77

13

110

255



Fixedoverflow:



The leftmost bit of all the bit-string constants is treated as the most significant numeric bit, not as a sign. For instance, the hexadecimal constant 'FF'B4 is converted to 255 instead of -127. The last assignment to STATUS_D signals the FIXEDOVERFLOW condition because the bit-string constant, when represented as a binary integer, is greater than 2 31 . The resulting value of STATUS_D is undefined.

Character-String to Arithmetic Conversions

When a character string is assigned to an arithmetic value, PL/I creates an intermediate numeric value based on the characters in the string. The type of this intermediate value is the same as that of an ordinary arithmetic constant comprising the same characters; for example, 342.122E-12 and '342.122E-12' are both floating-point decimal.

The character string can contain any series of characters that describes a valid arithmetic constant. That is, the character string can contain any of the numeric digits 0 through 9, a plus (+) or minus (-) sign, a decimal point (.), and the letter E. If the character string contains any invalid characters, the CONVERSION condition is signaled. See the following examples.

If the implied data type of the character string does not match the data type of the arithmetic target, PL/I converts the intermediate value to the data type of the target, following the PL/I rules for arithmetic to arithmetic conversions. In conversions to fixed point, FIXEDOVERFLOW is signaled if the character string specifies too many integral digits. Excess fractional digits are truncated without signaling a condition.

If the source character string is null or contains all spaces, the resulting arithmetic value is zero.

Examples

DECLARE SPEED FIXED DECIMAL (9,4);

SPEED = '23344.3882';

/* string converted to 23344.3882 */



SPEED = '32423.23SD';

/* CONVERSION condition */



SPEED = '4324324.3933';

/* FIXEDOVERFLOW condition */



SPEED = '1.33336';

/* string converted to 1.3333 */



Assignments to Bit-String Variables

In the conversion of any data type to a bit string, PL/I first converts the source data item to an intermediate bit-string value. Then, based on the length of the target string, it does the following:

  • If the length of the target bit-string value is greater than the length of the intermediate string, the target bit string (as represented by PUT LIST) is padded with zeros on the right.
  • If the length of the target bit-string value is less than the length of the intermediate string, the intermediate bit string (as represented by PUT LIST) is truncated on the right.

The next sections describe how PL/I arrives at the intermediate bit-string value for each data type.

Arithmetic to Bit-String Assignments

In converting an arithmetic value sv to a bit-string value, PL/I performs the following steps:

  1. Let v = abs(sv) .
  2. Determine a precision p as follows:
  3. Source

    Precision p

    FIXED BINARY(r,s)

    min(31,r-s)

    FLOAT BINARY(r)

    min(31,r)

    FIXED DECIMAL(r,s)

    min(31,ceil((r-s)*3.32))

    FLOAT DECIMAL(r)

    min(31,ceil(r*3.32))

  4. If p=0 (for example, when r=s), the intermediate string is a null bit string. Otherwise, the value v is converted to an integer n of type FIXED BINARY(p,0). If n>=2 p , the FIXEDOVERFLOW condition is signaled; otherwise, the intermediate bit string is of length p, and each of its bits represents a binary digit of n.

Bit strings are stored internally with the leftmost bit in the lowest address. The conversion must reverse the bits from this representation and should therefore be avoided when performance is a consideration. Note also that during the conversion, the sign of the arithmetic value and any fractional digits are lost.

Examples

CONVB: PROCEDURE OPTIONS(MAIN);



DECLARE NEW_STRING BIT(10);

DECLARE LONGSTRING BIT(16);

DECLARE OUT PRINT FILE;



OPEN FILE(OUT) TITLE('CONVB1.OUT');



NEW_STRING = 35;

PUT FILE(OUT) SKIP

LIST('35 converted to BIT(10):',NEW_STRING);



NEW_STRING = -35;

PUT FILE(OUT) SKIP

LIST('-35 converted to BIT(10):',NEW_STRING);



NEW_STRING = 23.12;

PUT FILE(OUT) SKIP

LIST('23.12 converted to BIT(10):',NEW_STRING);

NEW_STRING = .2312;

PUT FILE(OUT) SKIP

LIST('.2312 converted to BIT(10):',NEW_STRING);



NEW_STRING = 8001;

PUT FILE(OUT) SKIP

LIST('8001 converted to BIT(10):',NEW_STRING);



LONGSTRING = 8001;

PUT FILE(OUT) SKIP

LIST('8001 converted to BIT(16):',LONGSTRING);

END CONVB;



Note that because the program CONVB performs implicit conversions, the compiler issues WARNING messages. (Linking and running are accomplished successfully because the conversions are valid.)

The program CONVB produces the following output:

35 converted to BIT(10): '0100011000'B

-35 converted to BIT(10): '0100011000'B

23.12 converted to BIT(10): '0010111000'B

.2312 converted to BIT(10): '0000000000'B

8001 converted to BIT(10): '0111110100'B

8001 converted to BIT(16): '0111110100000100'B



The values 35 and -35 produce the same bit string because the sign is lost in the conversion. In the first assignment, 35, which is FIXED DECIMAL(2,0), is converted to FIXED BINARY(7,0) and then to a 7-bit string ('0100011'B). Three additional bits are appended to this intermediate bit string when it is assigned to NEW_STRING. Notice that the low-order bit of 8001 is lost when the constant is assigned to a BIT(10) variable.

Pictured to Bit-String Conversions

If the source value is pictured, its associated fixed-point decimal value is extracted. The fixed-point decimal value is then converted to a bit string, following the previous rules for arithmetic to bit-string conversion.

Character-String to Bit-String Conversions

PL/I can convert a character string of 0s and 1s to a bit string. Any character in the character string other than 0 or 1, including spaces, will signal the CONVERSION condition.

PL/I converts each 0 or 1 character in the character string to a 0 or a 1 bit in the corresponding position (as represented by PUT LIST) in the intermediate bit string.

If the source is a null character string, the intermediate string is a null bit string.

Examples

DECLARE NEW_STRING BIT(4);



NEW_STRING = '0010';

/* NEW_STRING = '0010'B */



NEW_STRING = '11';

/* NEW_STRING = '1100'B */



NEW_STRING = 'AS110';

/* CONVERSION condition */



Assignments to Character-String Variables

In the conversion of any data type to a character string, PL/I first converts the source value to an intermediate character-string value. Then it does one of the following:

  • If the length of the intermediate string is zero, a null string is assigned to the target.
  • If the target is a parameter or return value with an asterisk extent (as in RETURNS CHAR(*)), the intermediate string is assigned to the target.
  • If the target is of type CHARACTER, and the intermediate string is shorter than the maximum length of the target, the target is assigned the value of the intermediate string without trailing spaces if the target has the VARYING attribute. If the target does not have the VARYING attribute, the string is padded with trailing spaces.
  • If the maximum length of the target character string is less than the length of the intermediate string, the intermediate string is truncated.

The rules for how PL/I arrives at the intermediate string for conversion of each data type are described below. Examples illustrate the intermediate value as well as the resulting value.

Arithmetic to Character-String Conversions

The manner in which PL/I converts an arithmetic data item depends on the data type of the item, as described below.

Conversion from Fixed-Point Binary or Fixed-Point Decimal

If the data item source value is of type FIXED BINARY(p1,q1), PL/I first converts it to type FIXED DECIMAL(p2,q2), where:

p2 = min(ceil(p1/3.32)+1,31)

q2 = max(0,min(ceil(q1/3.32),31))

PL/I converts a value with attributes FIXED DECIMAL(p,q) to an intermediate string of length p+3. The numeric value is right-justified in the string. If the value is negative, a minus sign immediately precedes the value. If q is greater than zero, the value contains a decimal point followed by q digits. When p equals q, a 0 character precedes the decimal point. When q equals zero, a value of zero is represented by the 0 character.

Alternatively, the format of the intermediate string can be described by picture specifications, as follows:

  1. If q=0, the intermediate string is the string created by the following picture specification:

'BB(p)-9'



That is, the first two characters of the string are spaces. The last p characters in the string are the digit characters representing the integer; leading zeros are replaced by spaces except in the last position. If the integer is negative, a minus sign immediately precedes the first digit; if the number is not negative, this position contains a space. At least one digit always appears in the last position in the string.

  1. If p=q, the intermediate string is the string created by the following picture specification:

'-9V.(q)9'



That is, the first three characters are (in order) an optional minus sign if the fraction is negative, the digit 0, and a decimal point. If the number is not negative, the first character is a space. The last q characters in the string are the fractional digits of the number.

  1. If p > q, the intermediate string is the string created by the following picture specification:

'B(p-q)-9V.(q)9'



That is, the first character is always a space; the last q characters are the fractional digits of the number and are preceded by a decimal point; the decimal point is always preceded by at least one digit, which can be zero; all integral digits appear before the decimal point, and leading zeros are replaced by spaces; a minus sign precedes the first integral digit if the number is negative; if the number is not negative, then the minus sign is replaced by a space.

Examples

DECLARE STRING_1 CHARACTER (8),

STRING_2 CHARACTER (4);



STRING_1 = 283472.;

/* intermediate string = ' 283472',

STRING_1 = ' 28347' */



STRING_2 = 283472.;

/* intermediate string = ' 283472',

STRING_2 = ' 2' */



STRING_2 = -283472.;

/* intermediate string = ' -283472',

STRING_2 = ' -2' */



STRING_2 = -.003344;

/* intermediate string = '-0.003344',

STRING_2 = '-0.0' */



STRING_2 = -283.472;

/* intermediate string = ' -283.472',

STRING_2 = ' -28' */



STRING_2 = 283.472;

/* intermediate string = ' 283.472',

STRING_2 = ' 28' */



Conversion from Floating-Point Binary or Floating-Point Decimal

If the data item source value is of type FLOAT BINARY(p1), it is converted to FLOAT DECIMAL(p2), where:

p2 = min(ceil(p1/3.32),15)

For a value of type FLOAT DECIMAL(p), where p is less than or equal to 15, the intermediate string is of length p+6; this allows extra characters for the sign of the number, the decimal point, the letter E, the sign of the exponent, and the 2-digit exponent.

If the number is negative, the first character is a minus sign; otherwise, the first character is a space. The subsequent characters are a single digit (which can be 0), a decimal point, p-1 fractional digits, the letter E, the sign of the exponent (always + or -), and the exponent digits. The exponent field is of fixed length, and the zero exponent is shown as all zeros in the exponent field.

Examples

CONCH: PROCEDURE OPTIONS(MAIN);



DECLARE OUT PRINT FILE;

OPEN FILE(OUT) TITLE('CONCH.OUT');



PUT SKIP FILE(OUT) EDIT('''',25E25,'''') (A);

PUT SKIP FILE(OUT) EDIT('''',-25E25,'''') (A);

PUT SKIP FILE(OUT) EDIT('''',1.233325E-5,'''') (A);

PUT SKIP FILE(OUT) EDIT('''',-1.233325E-5,'''') (A);



END CONCH;



The program CONCH produces the following output:

'2.5E+26'

'-2.5E+26'

' 1.233325E-05'

'-1.233325E-05'



The PUT statement converts its output sources to character strings, following the rules described in this section. (The output strings are surrounded with apostrophes to make the spaces distinguishable.) In each case, the width of the quoted output field (that is, the length of the converted character string) is the precision of the floating-point constant plus 6.

Pictured to Character-String Conversion

If the source value is pictured, its internal, character-string representation is used without conversion as the intermediate character string.

Bit-String to Character-String Conversion

When PL/I converts a bit string to a character string, it converts each bit in the bit string (as represented by PUT LIST) to a 0 or 1 character in the corresponding position of the intermediate character string.

If the bit string is a null string, the intermediate character string is also a null string.

Examples

DECLARE STRING_1 CHARACTER (4),

STRING_2 CHARACTER (8);



STRING_1 = '1010'B;

/* STRING_1 = '1010' */



STRING_2 = '1010'B;

/* STRING_2 = '1010 ' */



STRING_1 = '010011'B;

/* STRING_1 = '0100' */



Assignments to Pictured Variables

A source expression of any computational type can be assigned to a pictured variable. The target pictured variable has a precision (p), which is defined as the number of characters in the picture specification that specify decimal digits. The target also has a scale factor (q) which is defined as the number of picture characters that specify digits and occur to the right of the V character in the picture specification. If the picture specification contains no V character, or if all digit-specification characters are to the left of V, then q is zero.

The source expression is converted to a fixed-point decimal value v of precision (p,q), following the PL/I rules for the source data type. This value is then edited to a character string s, as specified by the picture specification, and the value s is assigned to the pictured target.

When the value v is being edited to the string s, the CONVERSION condition is signaled if the value of v is less than zero and the picture specification does not contain one of the characters S, +, -, T, I, R, CR, or DB. The value of s is then undefined. FIXEDOVERFLOW is signaled if the value v has more integral digits than are specified by the picture specification of the target.

Conversions Between Offsets and Pointers

Offset variables are given values by assignment from existing offset values or from conversion of pointer values. Pointer variables are given values by assignment from existing pointer values or from conversion of offset values.

The OFFSET built-in function converts a pointer value to an offset value. The POINTER built-in function converts an offset value to a pointer.

PL/I also automatically converts a pointer value to an offset value, and vice versa, in an assignment statement. The following assignments are valid:

pointer-variable = pointer-value;

offset-variable = offset-value;

pointer-variable = offset-variable;

offset-variable = pointer-value;



In the third and fourth assignments above, the offset variable must have been declared with an area reference.



Procedures

A procedure is the basic executable program unit in PL/I. It consists of a sequence of statements, headed by a PROCEDURE statement and terminated by an END statement, that define an executable set of program instructions. There are three kinds of procedures:

See the Kednos PL/I for UNIX User's Manual for information on passing command-line input data to a program through the main procedure.

Subroutines and function procedures can be passed data from the invoking procedure by means of an argument list.

This chapter discusses the following topics:

PROCEDURE Statement

The PROCEDURE statement defines the beginning of a procedure block and specifies the parameters, if any, of the procedure. If the procedure is invoked as a function, the PROCEDURE statement also specifies the data type attributes of the value that the function returns to its point of invocation. The PROCEDURE statement can denote the beginning of either an internal or an external subroutine or function.

The format of the PROCEDURE statement is as follows:

entry-name

A 1- to 31-character identifier denoting the entry label of the procedure. The label cannot be subscripted. The PROCEDURE statement declares the entry name as an entry constant. The scope of the name is INTERNAL if the procedure is contained in any other block, and EXTERNAL if the procedure is not contained in any other block.

Unless you specify -m upper or --case=upper as an option to the pl1 command, do not declare a procedure or any other external symbol that will map to " main" (lowercase). This will conflict with the library function "main" supplied in the Kednos PL/I for UNIX run-time library.

parameter,...

One or more parameters (separated by commas) that the procedure expects when it is activated. Each parameter specifies the name of a variable declared in the procedure headed by this PROCEDURE statement. The parameters must correspond, one-to-one, with arguments specified for the procedure when it is invoked with a CALL statement or in a function reference.

OPTIONS (option,...)

An option that specifies one or more options, separated by commas:

C

An option specifying that you can only use a C function to invoke the PL/I procedure at this entry point. The procedure is called using C calling conventions.

IDENT(string)

An option specifying a character-string constant giving the module ident for the listing and the object files. Only the first 31 characters of the string are recognized.

Each module should contain only one procedure with the IDENT option. Should there be more than one, the last specified indent will be the one used.

MAIN

An option specifying that the named procedure is the initial procedure in a program. The identifier of the procedure is the primary entry point for the program. The MAIN option is not allowed on internal procedures, and only one procedure in a program can have the MAIN option.

A program must have one procedure with OPTIONS(MAIN) in order for condition handling to work properly.

UNDERFLOW

An option that requests that the run-time system signal underflow conditions when they occur. By default, the run-time system does not signal these conditions.

RECURSIVE or NONRECURSIVE

An option that indicates (for program documentation) that the procedure will or will not be invoked recursively. In standard PL/I, the RECURSIVE option must be specified for a procedure to be invoked recursively. However, any procedure can be invoked recursively, and the RECURSIVE and NONRECURSIVE options are ignored by the compiler.

RETURNS (returns-descriptor)

An option specifying that the procedure is invoked by a function reference, as well as specifying the attributes of the function value returned. One of the possible attributes is TYPE. The syntax of the TYPE attribute is:

[(TYPE (reference))];

or

[(TYPE reference)];



RETURNS must be specified for functions. It is invalid for procedures that are invoked by CALL statements.

For valid return descriptors, see the RETURN statement section of See Terminating Procedures .

Functions and Function References

A function is a procedure that returns a value and that receives control when its name is referenced in an expression. There are two types of functions:

A user-written function must have the following elements:

For example:

ADDER: PROCEDURE (X,Y) RETURNS (FLOAT BINARY(24));

DECLARE (X,Y) FLOAT BINARY(24);

RETURN (X+Y);

END;



The function ADDER has two parameters, X and Y. They are floating-point binary variables declared within the function. When the function is invoked by a function reference, it must be passed two arguments to correspond to these parameters. It returns a floating-point binary value representing the sum of the arguments. The function ADDER can be referenced as follows:

TOTAL = ADDER(5,6);



The arguments in the reference to ADDER are converted to FLOAT.

If a function has no parameters, you must specify a null argument list; otherwise, the compiler treats the reference as a reference to an entry constant. Specify a null argument list as follows:

GETDATE = TIME_STAMP();



This assignment statement contains a reference to the function TIME_STAMP, which has no parameters.

This rule applies to PL/I built-in functions as well; however, if you declare a PL/I built-in function explicitly with the BUILTIN attribute, you need not specify the empty argument list. For example:

DECLARE P POINTER,

NULL BUILTIN;

P = NULL;



This example assigns a null pointer value to P. Without the declaration of NULL as a built-in function, the assignment statement would have been as follows:

P = NULL();



If you compile using the IBM dialect, you do not need to use empty parentheses to specify a null argument list. However, specifying them makes your code more transportable.

ENTRY Statement

The ENTRY statement defines an alternate entry point to a procedure. Its format is as follows:

entry-name

A 1- to 31-character label for the entry point. Specifying the entry name declares the name as an entry constant. The scope of the name is external if the ENTRY statement is contained in an external procedure, and is internal if it is contained in an internal procedure.

Unless you specify -m upper or --case=upper as an option to the pl1 command, do not declare a procedure or any other external symbol that will map to " main" (lowercase). This will conflict with the library function "main" supplied in the Kednos PL/I for UNIX run-time library.

parameter, ...

One or more parameters that the procedure requires at this entry point. Each parameter specifies the name of a variable declared in the block to which this ENTRY statement belongs. The parameters must correspond, one to one, with arguments specified for the procedure when it is invoked via the ENTRY statement.

RECURSIVE or NONRECURSIVE

An option that indicates (for program documentation) that the procedure will or will not be invoked recursively. In standard PL/I, the RECURSIVE option must be specified for a procedure to be invoked recursively. However, any procedure can be invoked recursively, and the RECURSIVE and NONRECURSIVE options are ignored by the compiler.

RETURNS (returns-descriptor)

The RETURNS option gives the data type attributes of the function value returned for an entry that is invoked as a function reference.

One of the possible data type attributes is TYPE. The syntax of the TYPE attribute is:

[(TYPE (reference)];


or

[(TYPE reference];


For entry points that are invoked by function references, the RETURNS option is required; for procedures that are invoked by CALL statements, the RETURNS option is invalid.

Restrictions
  1. An ENTRY statement is not allowed in a begin block, in an ON-unit, or in a DO group except for a simple DO.
  2. You should avoid unnecessary use of ENTRY statements, because their effect is detrimental to the overall optimization of the program and they make debugging more complicated.

Specifying Entry Points

The entry points of a procedure are the points at which it can be invoked. The PROCEDURE statement specifies one entry point. You can specify additional entry points with ENTRY statements within the procedure block. ENTRY statements are allowed anywhere except as specified in the restrictions described in the above section.

The labels used on PROCEDURE and ENTRY statements declare those names as entry constants. The scope of the declarations is internal if the PROCEDURE and ENTRY statements appear in internal procedures, and external if they appear in external procedures.

You declare an entry name in the block containing the procedure to which the entry point belongs. For example:

P: PROCEDURE;



DECLARE E: ENTRY;



Q: PROCEDURE;

DECLARE E FIXED BINARY;

END Q;



END P;



The entry names E and Q are declared in procedure P. Within procedure Q, E is declared as a fixed-point binary variable. This does not conflict with the declaration of E as an entry in procedure P.

You can invoke an entry point by using the appropriate entry constant as the reference in a CALL statement or function reference. Invoking an entry point enters a procedure at the specified point and activates the procedure block that contains the entry point.

If the CALL statement or function reference invokes an entry point in an external procedure, the entry constant must be declared with the ENTRY attribute, as in See . Invoking an External Procedure . The declaration of an external constant must also describe the parameters for that entry point, if any. For example:

DECLARE PITCH ENTRY (CHARACTER(*), FIXED BINARY(15));



The identifier PITCH is declared as an entry constant. When the procedure containing this declaration is linked to other procedures, one of the external procedures must define an entry point named PITCH, either as the label of a PROCEDURE statement or as the label of an ENTRY statement.

The data type attributes in parentheses (called parameter descriptors) are the data types of the parameters that are defined elsewhere for the entry point PITCH. Arguments of these types must be supplied when PITCH is invoked.

If PITCH is to be used as a function, the DECLARE statement must also include a RETURNS attribute to describe the attributes of the returned value, as in the following example:

DECLARE PITCH ENTRY (CHARACTER(*), FIXED BINARY(15))

RETURNS(FIXED);



Within the scope of this DECLARE statement, the entry constant PITCH must be used in a function reference. The function reference will invoke the external entry point, and a returned fixed-point binary value will become the value of the function reference.

Multiple Entry Points

A procedure can be entered at more than one point. However, only one entry point can be specified by a PROCEDURE statement; additional entry points are declared with ENTRY statements.

The rules governing the declaration of multiple entry points follow:

  • A particular parameter need not be specified in all of a procedure's entry points (including the point defined by the PROCEDURE statement). However, a reference to the parameter is valid only if the procedure was invoked through one of the entries specifying the parameter.
  • In a procedure that has multiple entry points, a RETURN statement must be compatible with the entry point by which the procedure was invoked. If the entry point does not have a RETURNS option, the RETURN statement must not specify a return value. (In addition, it must be invoked as a "subroutine" -- that is, with the CALL statement.) If the entry point has a RETURNS option, the RETURN statement must specify a return value that is valid for conversion to the data type specified in the RETURNS option.
  • An ENTRY statement is not executable. If control reaches it sequentially, control immediately continues to the next statement.

The following example shows a procedure with two alternative entry points:

QUEUES: PROCEDURE(ELEMENT,QUEUE_HEAD);



ADD_ELEMENT: ENTRY(ELEMENT);



REMOVE_ELEMENT: ENTRY(ELEMENT);



This procedure can be entered by CALL statements that reference QUEUES, ADD_ELEMENT, or REMOVE_ELEMENT. If invoked at QUEUES, the procedure must be passed two parameters. If invoked at either of the alternative entries ADD_ELEMENT or REMOVE_ELEMENT, the procedure must be passed only one parameter.

When this procedure is entered at either alternative entry point, the entire block beginning at QUEUES is activated, but execution begins with the first executable statement following the entry point.

CALL Statement

The CALL statement transfers control to an entry point of a procedure and optionally passes arguments to the procedure. The format of the CALL statement is as follows:

CALL entry-name [(argument, ...)];


entry-name

The name of an external or internal procedure that does not have the RETURNS attribute. The entry name can also be an entry variable or a reference to a function that returns an entry value.

[(argument,...)]

The argument list to be passed to the called procedure. If specified, unless OPTIONS(VARIABLE) is specified in the declaration of an external entry name, the number of arguments must match the number of parameters in the parameter list of the invoked entry name. OPTIONS(VARIABLE) is valid only for use with non-PL/I procedures.

You must enclose arguments in parentheses. Multiple arguments must be separated by commas.

You can use the CALL statement to call an internal or external procedure. The following example illustrates a main procedure, CALLER, and a call to an internal procedure, PUT_OUTPUT. PUT_OUTPUT has two parameters, INSTRING and OUTFILE, that correspond to the arguments LINE and DEVICE specified in the CALL statement.

CALLER: PROCEDURE OPTIONS(MAIN);

CALL PUT_OUTPUT(LINE,DEVICE);

PUT_OUTPUT:PROCEDURE(INSTRING,OUTFILE);

END PUT_OUTPUT;

END CALLER;

Parameters and Arguments

A PL/I procedure can invoke other procedures, as well as pass values to and receive them from the invoked procedure. Values are passed to an invoked procedure by means of arguments written in the procedure invocation. Values are returned to the invoking procedure by means of parameters and also, in the case of functions, by specifying a value in the function's RETURN statement.

You can specify arguments for a subroutine (invoked by a CALL statement) or for a function (invoked by a function reference). Subroutines and functions return values by different means.

See . Parameters and Arguments illustrates the relationship between arguments (specified in a CALL statement) or function reference and parameters (specified in a PROCEDURE or ENTRY statement).

. Parameters and Arguments

CALLER:PROCEDURE;

DECLARE COMPUTER EXTERNAL ENTRY

(FIXED BINARY (7), CHARACTER (80) VARYING);

CALL COMPUTER (5,'ABC'); À

END CALLER;

COMPUTER:PROCEDURE (X,Y); Ã

DECLARE X FIXED BINARY (7); Õ

DECLARE Y CHARACTER (80) VARYING;

END COMPUTER;



The ENTRY attribute in a DECLARE statement provides a parameter descriptor for each parameter of the called procedure. A parameter descriptor is a set of data type attributes.

In a CALL statement or a function reference, arguments appear in parentheses following the name of the procedure. Arguments can be variables, expressions, aggregates, or (as in this example) constants.

The data type of each argument is matched with the corresponding parameter descriptor in the declaration of the entry.

The PROCEDURE statement for the called procedure specifies the parameters of the procedure. These parameters correspond, in the order specified, to the arguments specified in the CALL statement.

Each parameter specified in the PROCEDURE statement must be declared within the procedure.

A parameter is a variable that occurs in the parameter list of a PROCEDURE or ENTRY statement. When the procedure is invoked, each argument variable in the list is associated with a parameter. Within the called procedure, any reference to the parameter is equivalent to a reference to the associated argument variable.

If the invoked procedure is external to the invoking procedure, the attributes of the parameters must be described in parameter descriptors, which are part of the declaration of the external procedure.

An argument variable associated with a parameter is passed in a dummy argument if the argument is specified as a constant. References to that parameter in the invoked procedure do not modify any storage in the invoking procedure. For example:

TEST: PROCEDURE OPTIONS(MAIN);



DECLARE A FIXED BIN(31);



A = 100;

CALL SUBROUTINE(A,100);

PUT SKIP LIST (A,100);

END TEST;



SUBROUTINE: PROCEDURE(X,Y);

DECLARE (X,Y) FIXED BIN(31);



X = 101;

Y = 101;



END SUBROUTINE;



The result of this example is:

101 100



Rules for Specifying Parameters

The general rules listed below for specifying parameters are followed by specific rules that pertain only to certain data types.

  • You must declare a parameter explicitly in a DECLARE statement (to give it a data type) within the invoked procedure. This declaration must not be part of a structure.
  • You cannot declare a parameter with any of these attributes:
  • AUTOMATIC

    EXTERNAL

    READONLY

    BASED

    GLOBALDEF

    STATIC

    CONTROLLED

    GLOBALREF



    DEFINED

    INITIAL



  • You can specify up to 253 parameters for an entry point.
  • The parameters of an external entry must be explicitly specified by parameter descriptors in the declaration of the entry constant. The parameters of a procedure that is invoked through an entry variable must be specified by parameter descriptors in the ENTRY attribute of the variable's declaration. You cannot declare an internal entry (and its parameters) in the containing procedure.
  • Each parameter must have a corresponding argument at the time of the procedure's invocation. PL/I matches the data type of the parameter with the data type of the corresponding argument and creates a dummy argument if they do not match or if the parameter is a constant, expression, or is enclosed in parentheses.
Array Parameters

If the name of an array variable is passed as an argument, the corresponding parameter descriptor or parameter declaration must specify the same number of dimensions as the argument variable. You can declare the bounds of a dimension for an array parameter using asterisks (*) or optionally signed integer constants. If the bounds are specified with integer constants, they must match exactly the bounds of the corresponding argument.

An asterisk indicates that the bounds of a dimension are not known. (If one dimension contains an asterisk, all the dimensions must contain asterisks.) For example:

DECLARE SUMUP ENTRY ((*) FIXED BINARY);



This declaration indicates that SUMUP's argument is a one-dimensional array of fixed-point binary integers that can have any number of elements. Any one-dimensional array of fixed-point binary integers can be passed to this procedure.

All the data type attributes of the array argument and parameter must match.

Arrays are always passed by reference. They cannot be passed by dummy argument.

Structure Parameters

If the name of a structure variable is passed as an argument, the corresponding parameter descriptor or declaration must be identical, in terms of structure levels, members' sizes, and members' data types. The level numbers do not have to be identical, but the levels must be logically equivalent. You can specify array bounds and string lengths with asterisks or with optionally signed integer constants.

The following example shows the parameter descriptor for a structure variable:

DECLARE SEND_REC ENTRY (1,

2 FIXED BINARY(31),

2 CHARACTER(40) VARYING,

2 FIXED DECIMAL (8,2));



The written argument in the invocation of the external procedure SEND_REC must have the same structure, and its members must have the same data types.

You must pass structures by reference. They cannot be passed by dummy argument.

Character-String Parameters

If a character-string variable is passed as an argument, the corresponding parameter descriptor or parameter declaration can specify the length using an asterisk (*) or an optionally signed nonnegative integer constant. For example:

COPYSTRING: PROCEDURE (INSTRING,COUNT);

DECLARE INSTRING CHARACTER(*);



The asterisk in the declaration of this parameter indicates that the string can have any length. The string is fixed length unless VARYING is also included in the declaration.

Entry, File, and Labels Parameters

An entry, file, or label can be passed as an argument. The actual parameter is a variable.

Argument Passing

This section describes how PL/I passes an argument to procedures written in PL/I.

Number of Arguments

The number of arguments in the argument list must equal the number of parameters of the invoked entry point. The compiler checks that the count matches as follows:

  • For an internal procedure, the compiler checks the number of arguments in the argument list against the number of parameters on the PROCEDURE or ENTRY statement for the internal procedure.
  • For an external procedure, the compiler checks that the number of parameter descriptors in the ENTRY declaration list matches the number of arguments in the procedure invocation.

To specify arguments for a subroutine or function, enclose the arguments in parentheses following the procedure or entry-point name. For example, you can write a procedure call as follows:

CALL COMPUTER (A,B,C);



The variables A, B, and C in this example are arguments to be passed to the procedure COMPUTER. The procedure COMPUTER might have a parameter list like this:

COMPUTER: PROCEDURE (X, Y, Z);

DECLARE (X,Y,Z) FLOAT;



The parameters X, Y, and Z, specified in the PROCEDURE statement for the subroutine COMPUTER, are the parameters of the subroutine. PL/I establishes the equivalence of the arguments A, B, and C to the parameters X, Y, and Z.

Actual Arguments

When a PL/I procedure is invoked, each of its parameters is associated with a variable determined by the corresponding written argument of the procedure call. This variable is the actual argument for this procedure invocation. It can be one of the following:

  • A reference to the written argument
  • A dummy argument

The data type of the actual argument is the same as that of the corresponding parameter. When a written argument is a variable reference, PL/I matches the variable against the corresponding parameter's data type according to the rules described under See Argument Matching . If they match, the actual argument is the variable denoted by the written argument. That is, the parameter denotes the same storage as the written variable reference. If they do not match, the compiler creates a dummy argument and assigns to it the value of the written argument.

Dummy Arguments

A dummy argument is a unique temporary variable allocated by the compiler, which exists only for the duration of the procedure invocation.

When the written argument is a constant or an expression, the actual argument is always a dummy argument. The value of the written argument is assigned to the dummy argument following the rules of data type conversion before the call (this is described later). The data type of the written argument must be valid for assignment to the data type of the dummy argument.

Aggregate Arguments

An array, structure, or area argument must be a variable reference that matches the corresponding parameter. It cannot be a reference to an unconnected array. A dummy argument is never created for an array, structure, or area.

Argument Matching

A written argument that is a variable reference is passed by reference only if the argument and the corresponding parameter have identical data types:

  • For an internal procedure, the attributes of the argument must match those specified in the declaration of the parameter.
  • For an external procedure or a procedure invoked through an ENTRY variable, the attributes specified in the ENTRY attribute parameter descriptor must match those of the arguments.

When the compiler detects that a scalar variable argument does not match the data type of the corresponding parameter, it issues a warning message, creates a dummy argument, and associates the address of the dummy argument with the corresponding parameter. You can suppress the warning message and force the creation of a dummy argument if you enclose the argument in parentheses. For example, if a parameter requires a character varying string and an argument is a character nonvarying variable, you would enclose the variable in parentheses.

For string lengths and array bounds, an asterisk (*) in the parameter matches any expression. An integer constant matches only an integer constant with the same value.

Conversion of Arguments

When the data type of a written argument is suitable for conversion to the data type of the corresponding parameter descriptor, PL/I performs the conversion of the argument to a dummy argument using the rules described in See Data Type Conversion of Operands and Expressions .

Calling External and Internal Procedures

An external procedure is one whose text is not contained in any other block. The source text of an external procedure can be compiled separately from that of a calling procedure. The differences between internal and external procedures are as follows:

You cannot explicitly declare internal procedures. The procedure name is implicitly declared by its occurrence in the PROCEDURE or ENTRY statement.

An internal procedure, on the other hand, can reference internal variables declared in any procedure in which it is contained.

An internal procedure can be called only by the procedure that contains it or by other procedures at the same level of nesting within the containing procedure. The only exception is invocation through an entry variable.

The following example illustrates the use of an internal procedure:

. Invoking an Internal Procedure

MAINP: PROCEDURE OPTIONS (MAIN);

COMPUTE: PROCEDURE;

ADD_NUMBERS: PROCEDURE;

END ADD_NUMBERS;

END COMPUTE;

PRINT_REPORT: PROCEDURE;

END PRINT_REPORT;

END MAINP;



In See . Invoking an Internal Procedure , the procedures COMPUTE and PRINT_REPORT are internal to the procedure MAINP, and the procedure ADD_NUMBERS is internal to the procedure COMPUTE. MAINP can invoke the procedures COMPUTE and PRINT_REPORT, but not ADD_NUMBERS. COMPUTE and PRINT_REPORT can invoke one another. ADD_NUMBERS can call COMPUTE and PRINT_REPORT.

The following example illustrates the use of an external procedure:

. Invoking an External Procedure

WINDUP: PROCEDURE;

DECLARE PITCH EXTERNAL ENTRY (CHARACTER(15) VARYING,

FIXED BINARY(7) );

CALL PITCH (PLAYER_NAME,NUMBER_OF_OUTS);



The procedure WINDUP declares the procedure PITCH with the EXTERNAL and ENTRY attributes. The text of PITCH is in another source program that is separately compiled. When the object module that contains WINDUP is linked, the linker must be able to locate the object module that contains PITCH. You can accomplish this by including both object modules on the linker command line, or by placing PITCH in an object module library and including the library on the linker command line.

When a CALL statement or function reference invokes an entry point in an external procedure, the entry constant must be declared with the ENTRY attribute, as in the example above. Such a declaration must also describe the parameters for that entry point, if any. For example:

DECLARE PITCH ENTRY (CHARACTER(*), FIXED BINARY(15));



The identifier PITCH is declared as an entry constant. When the procedure containing this declaration is linked to other procedures, one of them must define an entry point named PITCH as the label either of a PROCEDURE statement or an ENTRY statement. If the linker cannot locate an external entry point, it issues a warning message.

The parameter descriptors define the data types of the parameters for the entry point PITCH. Arguments of these types must be supplied when PITCH is invoked.

If PITCH is to invoke a function, the DECLARE statement must also include a RETURNS attribute describing the attributes of the returned value, as follows:

DECLARE PITCH ENTRY (CHARACTER(*), FIXED BINARY(15))

RETURNS(FIXED);



Within the scope of this DECLARE statement, the entry constant PITCH must be used in a function reference. The function reference will invoke the external entry point, and a returned fixed-point binary value will become the value of the function reference.

A PL/I program can invoke an external procedure that is not written in PL/I. A common instance is the use of a system service by a PL/I program to obtain some system function not available directly through PL/I. Or, a PL/I program can invoke an external procedure written in another language that provides an application- specific function. Such instances are possible because Kednos PL/I for UNIX follows common language calling standards, as defined by the target platform.

Terminating Procedures

The execution of subroutines and functions can be terminated with the following statements:

If an END statement closes the procedure block of a subroutine before a RETURN or STOP statement is executed, the END statement has the same effect as RETURN. A function cannot be terminated without a RETURN statement. See See END Statement for more information.

A GOTO statement that transfers control to a label that is outside the current block terminates a subroutine or a function. The label specified on the GOTO statement must be known within the block that contains the GOTO statement, and the block containing the specified label must be active when the GOTO is executed. See See GOTO Statement for more information.

A STOP statement ends the entire program execution. It does not pass a return value. See See STOP Statement for more information.

A RETURN statement provides a normal termination for a subroutine or function. For a function, a RETURN statement must specify a return value. The rest of this section describes the RETURN statement.

RETURN Statement

The RETURN statement terminates execution of the current procedure. The format of the RETURN statement is as follows:

RETURN [ (return-value) ];


return-value

The value to be returned to the invoking procedure. If the current procedure was invoked by a function reference, a return value must be specified. If the current procedure was invoked by a CALL statement, a return value is invalid.

A return value can be any scalar arithmetic, bit-string, or character-string expression; it can also be an entry, pointer, or label expression or other noncomputational expression. The return value must be valid for conversion to the data type specified in the RETURNS option of the function.

The action taken by the RETURN statement depends on the context of the procedure activation, as follows:

  • If the current procedure is the main or only active procedure, the RETURN statement terminates the program.
  • If the current procedure was activated by a CALL statement, the next executable statement in the calling procedure is executed.
  • If the current procedure was activated by a function reference, control returns to continue the evaluation of the statement that contained the function reference.
  • If the RETURN statement is executed in a begin block, control returns from the containing procedure to the calling procedure.
Restrictions

The RETURN statement must not be immediately contained in an ON-unit or in a begin block that is immediately contained in an ON-unit.

Passing Arguments to Non-PL/I Procedures

There are two ways that a PL/I procedure can pass an argument to a non-PL/I procedure:

The following sections describe the requirements for each of these argument-passing mechanisms.

For more information on passing arguments to C programs, see the DEC OSF/1 Calling Standard For Axp Systems manual, available from Digital Equipment Corporation.

Passing Arguments by Immediate Value

To pass an argument by immediate value, use the VALUE attribute in a parameter description. The following declaration of the external entry VHF illustrates a declaration for an external routine that receives its parameter by immediate value.

DECLARE VHF ENTRY (FIXED BINARY(31) VALUE);



You can also define PL/I procedures that receive arguments by immediate value. To do this, you must specify the VALUE attribute in the declaration of the parameter. For example, the corresponding definition of the procedure VHF would be as follows:

VHF: PROCEDURE (LENGTH);



DECLARE LENGTH FIXED BINARY(31) VALUE;





Arguments that can be passed by immediate value are limited to the following data types:

  • FIXED BINARY(m), where m <= 31
  • FLOAT BINARY(n), where n <= 53
  • BIT(o) ALIGNED, where o <= 32
  • ENTRY
  • OFFSET
  • POINTER

PL/I supports the passing of external procedures, but not internal procedures, as value parameters. To pass an internal procedure, use an entry parameter.

When you specify the VALUE attribute in a parameter descriptor, you can specify the ANY attribute instead of declaring any data type attributes. For example, the declaration of SETEF can appear as follows:

DECLARE SETEF ENTRY (ANY VALUE);



At the time of the procedure's invocation, PL/I converts the written argument as needed to create a longword dummy argument.

Passing Arguments by Reference

By default, PL/I passes all arguments by reference except character strings and arrays with nonconstant extents. The parameter descriptor for an argument to be passed by reference need specify only the data type of the parameter.

For example, you need to call a program that requires its first argument to be passed by immediate value and its second by reference. You could declare this procedure as follows:

DECLARE READEF ENTRY (FIXED BINARY(31) VALUE,

BIT (32) ALIGNED);



When the procedure is invoked, the second argument must be a variable declared as BIT(32) ALIGNED. PL/I passes the argument by reference.

An argument of any data type can be passed by reference. Bit-string variables, however, must have the ALIGNED attribute.

The data types in the parameter descriptors of all output arguments must match the data types of the written arguments. For convenience, you can specify ANY in the parameter descriptor. To describe an argument to be passed by reference, you can specify the ANY attribute without the VALUE attribute. When you specify ANY for an argument to be passed by reference, you cannot specify data type attributes. Note that if you specify the VALUE attribute in conjunction with the ANY attribute, PL/I passes the argument by immediate value.

The ANY attribute is especially useful when you must specify a data structure as an argument. You need not declare the structure within the parameter descriptor, only the ANY attribute. However, note that when you use the ANY attribute you cannot take advantage of the semantic type checking normally done by PL/I.

When an argument is passed by reference, PL/I passes the address of the actual argument. This address can be interpreted as a pointer value; you can explicitly specify a pointer value as an argument for data to be passed by reference; for example:

DECLARE GETHOSTNAME ENTRY (POINTER VALUE, ANY VALUE);

DECLARE HOSTNAME CHARACTER (6);



CALL GETHOSTNAME(ADDR(HOSTNAME), 6);



At this procedure invocation, PL/I places the pointer value returned by the ADDR built-in function directly in the argument list.



Program Control

The statements described in this chapter direct the run-time flow of execution from statement to statement. They are the DO, BEGIN, END, IF, SELECT, GOTO, LEAVE, STOP, null, ON, SIGNAL, and REVERT statements.

The remainder of the chapter describes how to handle conditions that arise during the execution of your program.

DO Groups and Statements

A DO-group is a sequence of PL/I statements delimited by a DO statement and its corresponding END statement. The DO statement begins a sequence of statements to be executed in a group; the group ends with the nonexecutable END statement; the group contains one or more statements between the DO and END statements.

For example:

IF BIRTH_YEAR > CURRENT_YEAR
THEN DO;

PUT SKIP LIST ('Birth year cannot be in the future.');

GOTO GET_BIRTH_YEAR;

END;



The statements in a DO-group are executed as the result of an unconditional DO statement or as the result of the successful test of a conditional DO. When the executable statements in this conditional DO-group are complete, execution continues with the next executable statement following the END statement.

You can nest DO-groups inside each other to a maximum level of 64.

Normally, all the statements contextually nested one level below the DO in the group are executed. However, control can be transferred out of a DO-group in the following ways:

DO-groups have several formats. These formats are described individually under the following subheadings:

Simple DO

A simple DO statement is a noniterative DO. The statements nested directly between the DO statement and its corresponding END statement are executed once. PL/I treats these nested statements as if they are one statement. After all statements in the group are executed, control passes to the next executable statement in the program.

The format of a simple DO statement is:

DO;



END;


Examples

IF A < B THEN DO;

PUT LIST ('more data needed');

GET LIST (VALUE);

A = A + VALUE;

END;



The simple DO statement is commonly used as the action of the THEN clause of an IF statement, as shown above, or of an ELSE option.

DO WHILE

A DO WHILE statement causes a group of statements to be repeatedly executed as long as a particular condition is satisfied. When the condition is not true, the group is not executed.

The format of the DO WHILE statement is:

DO WHILE (test-expression);



END;


test-expression

Any expression that yields a scalar value. If any bit of the value is a 1, then the test expression is true; otherwise, the test expression is false. The test expression must be enclosed in parentheses. (Comparison operations yield a value with the type BIT(1).)

This expression is evaluated before each execution of the DO-group. It must have a true value in order for the DO-group to be executed. Otherwise, control passes over the DO-group to the next executable statement following the END statement that terminates the group.

Examples

DO WHILE (A < B);



END;



This DO-group is executed as long as the value of the variable A is less than the value of the variable B.

DO WHILE (LIST->NEXT ^= NULL());



END;



This DO-group is executed until a forward pointer in a linked list has a null value.

DECLARE EOF BIT(1) INITIAL('0'B);



ON ENDFILE(INFILE) EOF = '1'B;

READ FILE(INFILE) INTO(INREC);

DO WHILE (^EOF);



READ FILE(INFILE) INTO(INREC);

END;



This DO-group reads records from the file INFILE until the end of the file is reached. At the beginning of each iteration of the DO-group, the expression ^EOF is evaluated; the expression is '1'B until the ENDFILE ON-unit sets the value of EOF to '1'B.

DO UNTIL

A DO UNTIL statement causes a group of statements to be repeatedly executed until a particular condition is satisfied. That is, while the condition is false, the group is repeated.

The format of the DO UNTIL statement is:

DO UNTIL (test-expression);



END;


test-expression

Any expression that yields a scalar value. If any bit of the value is 1, then the test expression is true; otherwise the test expression is false. The test expression must be enclosed in parentheses. (Comparison operations yield a value having the type BIT(1).)

This expression is evaluated after each execution of the DO-group. It must have a false value for the DO-group to be repeated. Otherwise, control passes to the next executable statement following the END statement that terminates the DO-group. The test expression must be enclosed in parentheses.

  • Both the WHILE and UNTIL options check the status of test expressions, but they differ in that the WHILE option tests the value of the test expression at the beginning of the DO- group, and UNTIL tests the value of the test expression at the end of the DO-group. Therefore, a DO-group with the UNTIL option and no WHILE option will always be executed at least once, but a DO-group with the WHILE option may never be executed.
Examples

DO UNTIL (A=0);



END;



This DO-group is executed at least once and continues as long as the value of A is not equal to zero.

DO UNTIL (K < ALPHA);



END;



This DO-group is executed at least once and continues as long as the value of the variable K is greater than or equal to the value of the variable ALPHA.

DO REPEAT

The DO REPEAT statement executes a DO-group repetitively for different values of a control variable. The control variable is assigned a start value that is used on the first iteration of the group. The REPEAT expression is evaluated before each subsequent iteration, and its result is assigned to the control variable. A WHILE clause can also be included. If it is included, the WHILE expression is evaluated before each iteration (including the first), but after the control variable has been assigned. The format of the DO REPEAT statement is:

DO variable = start-value REPEAT expression

[WHILE (test-expression)] [UNTIL (test-expression)];



END;


variable

A reference to a control variable. The control variable can be any scalar variable.

start-value

An expression specifying the initial value to be given to the control variable. The evaluation of this expression must yield a value that is valid for assignment to the control variable.

expression

An expression giving the value to be assigned to the control variable on reiterations of the DO REPEAT group. The expression is evaluated before each iteration after the first. Evaluation of this expression must yield a result that is valid for assignment to the control variable.

WHILE (test-expression)

An option specifying a condition that controls the termination of the DO REPEAT group. The DO REPEAT group continues while the condition is true. The specified test expression must yield a scalar value. If any bit of the value is 1, then the test expression is true; otherwise, the test expression is false. The test expression must be enclosed in parentheses.

This expression is evaluated each time control reaches the DO statement; the test expression must have a true value in order for the DO-group to be executed. Otherwise, control passes to the next executable statement following the END statement that terminates the DO-group.

See See Controlled DO for a discussion of this option when used with the controlled DO statement.

UNTIL (test-expression)

An option specifying a condition that further controls the termination of the DO REPEAT group. The DO REPEAT group continues until the condition is true. The specified test expression must yield a scalar value. If any bit in the value is 1, then the test expression is true; otherwise, the test expression is false. The test expression must be enclosed in parentheses.

This expression is evaluated after the first execution of the DO-group; the test expression must have a true value in order for the DO-group to be executed a second time. Otherwise, control passes to the next executable statement following the END statement that terminates the DO-group.

  • If the WHILE and UNTIL options are omitted, the DO REPEAT statement specifies no means for terminating the group; the execution of the group must be terminated by a statement or condition occurring within the group.

A DO REPEAT group is executed by the following steps:

  1. The following measures are taken to prevent the allocation of a new control variable during the execution of the DO-group:
  2. If the control variable is based, its pointer qualifier is evaluated and a temporary reference of the control variable type is created. The temporary reference is used as the control variable in subsequent steps.
  3. If the control variable is subscripted, its subscripts are evaluated and a temporary reference of the control variable type is created. The temporary reference is used as the control variable in subsequent steps.
  4. If the control variable is neither based nor subscripted, its reference is used in subsequent steps.
  5. The start value expression is evaluated and assigned to the control variable.
  6. If a WHILE option is present, its test expression is evaluated. If it does not produce a true value, the execution of the DO-group terminates. If the test expression is not present, execution continues.
  7. The body of the DO-group is executed. The execution of the DO-group may be terminated during this step by the execution of a STOP or RETURN statement or by the execution of a GOTO or LEAVE statement that transfers control outside the DO-group. Statements in the group can also modify the values of the control variable, REPEAT expression, and test expression.
  8. If an UNTIL option is present, its test expression is evaluated. If it produces a true value, the execution of the DO-group terminates. If the test expression is not present, execution continues.
  9. The REPEAT expression is evaluated and its value is assigned to the control variable.
  10. Execution continues at step 3.
Examples

DO LETTER='A' REPEAT (BYTE(I));



The preceding example will repeat the group with an initial LETTER value of 'A' and with subsequent values assigned by the built-in function BYTE(I). The control variable I can be assigned new values within the group. The group will iterate endlessly unless terminated by a statement or condition within the group.

DO I = 1 REPEAT (I + 2) WHILE ( I <= 100 );



The preceding example has the same effect as the following controlled DO statement:

DO I = 1 TO 100 BY 2;



The most common use of the DO REPEAT statement is in the manipulation of lists. For example:

DO P = LIST_HEAD REPEAT (P->LIST.NEXT)

WHILE ( P ^= NULL() );



In the preceding example, the pointer P is initialized with the value of the pointer control variable LIST_HEAD. The DO-group is then executed with this value of P. The REPEAT option specifies that each time control reaches the DO statement after the first execution of the DO-group, P is to be set to the value of LIST.NEXT in the structure currently pointed to by P.

Controlled DO

A controlled DO statement identifies a variable whose value controls the execution of the DO-group and defines the conditions under which the control variable is to be modified and repeatedly tested.

The format of the controlled DO statement is:

control-variable

A reference to a variable whose current value, as compared to the end value specified in the TO option, determines whether the DO-group is executed. If none of the options are specified, the DO-group is executed a single time regardless of the value of the control variable. The control variable must be of an arithmetic data type.

start-value

An expression specifying the initial value to be given to the control variable. Evaluation of this expression must yield an arithmetic value.

end-value

An expression giving the value to be compared with the control variable during successive iterations. Evaluation of this expression must yield an arithmetic value. This expression is evaluated exactly once when the statement is executed for the first time. Thus if the end value changes as the loop progresses, only this initial value is used.

If you specify the BY option and do not specify the TO option, execution repeats until terminated by the WHILE or UNTIL option or until a statement in the do-group transfers control out of the do-group.

modify-value

An expression giving a value by which the control value is to be modified. Evaluation of this expression must yield an arithmetic value. This expression is evaluated exactly once when the statement is executed for the first time. Thus if the modify value changes as the loop progresses, only this initial value is used. If you do not specify the BY option, the modify value defaults to 1.

REPEAT repeat-expression

An option that executes a DO-group repetitively for different values of a control variable. The repeat-expression gives the value that is assigned to the control variable on reiterations of the DO REPEAT group. The expression is evaluated before each iteration after the first iteration. Evaluation of this expression must yield a result that is valid for assignment to the control variable. See See DO REPEAT for more information.

WHILE (test-expression)

An option specifying a condition that further controls the execution of the DO-group. The condition must be true at the beginning of each DO-group iteration for the DO-group to be executed. The specified test expression must yield a scalar value. If any bit in the value is a 1, then the test expression is true; otherwise, the test expression is false. The test expression must be enclosed in parentheses.

UNTIL (test-expression)

An option specifying a condition that further controls the execution of the DO-group. This expression is evaluated at the end of each iteration of the DO-group, before the BY clause is applied to the control variable. The condition must be false at the end of a DO-group execution for the next DO-group iteration to be executed. The specified test expression must yield a scalar value. If any bit in the value is a 1, then the test expression is true; otherwise, the test expression is false. The test expression must be enclosed in parentheses.

  • If you omit the TO, WHILE, and UNTIL options, the controlled DO statement specifies no means for terminating the group. In this case, you must include a statement or condition in the do-group to terminate execution of the group.
Example

This DO-group prompts the user for integer input values and adds each input value to the current sum. When the sum exceeds 100, the DO-group exits.

DECLARE (NEXT_VALUE,SUM) FIXED BIN;



SUM = 0;

DO UNTIL ( SUM > 100 );

GET LIST (NEXT_VALUE) OPTIONS

PROMPT ('Next value to add? '));

SUM = SUM + NEXT_VALUE;

END;



PUT SKIP LIST ('The total sum is ',SUM);



The controlled DO-group is executed by the following steps:

  1. The following measures are taken to prevent the allocation of a new control variable during the execution of the DO-group:
  2. If the control variable is based, its pointer qualifier is evaluated and a temporary reference of the control variable type is created. The temporary reference is used as the control variable in subsequent steps.
  3. If the control variable is subscripted, its subscripts are evaluated and a temporary reference of the control variable type is created. The temporary reference is used as the control variable in subsequent steps.
  4. If the control variable is neither based nor subscripted, its reference is used in subsequent steps.
  5. The start value expression is evaluated and assigned to the control variable. The expressions specified in the TO and BY options (if specified) are evaluated, and their values are stored. These expressions can contain references to the object referenced by the control variable. If they do, the original reference, not the temporary reference, is used in evaluation of the expressions.
  6. If the TO option is present, the value of the control variable is compared with the end value specified in the TO option. Otherwise, this step is skipped. Execution of the DO-group terminates if either of the following is true:
  7. The modify value is greater than zero and the control variable is greater than the end-value.
  8. The modify value is less than zero and the control variable is less than the end value.

If this step terminates the DO-group on the first iteration, the control variable has a final value assigned by the start value. If the group is terminated on a subsequent iteration, the control variable has a final value assigned by step 6.

  1. If a WHILE option is present, its test expression is evaluated. If it does not produce a true value, the execution of the DO-group terminates.
  2. The body of the DO-group is executed. The execution of the DO-group can be terminated during this step by the execution of a STOP or RETURN statement or by the execution of a GOTO or LEAVE statement that transfers control out of the DO-group.

The body of the DO-group can also contain statements that change the values of the control variable, modify value, end value, or test expression. Changing the modify value or the end value in the body of the loop will not affect the number of times the loop is iterated. However, changing the value of the control variable or the test expression can affect the number of iterations if the control variable was not made into a temporary by step 1.

  1. If an UNTIL option is present, its test expression is evaluated. If it produces a true value, the execution of the DO-group terminates.
  2. Unless none of the options are specified, the value of the control variable is modified as follows:

control variable = control variable + modify value;



  1. Execution continues at step 3 unless none of the options are specified, in which case control passes to the next executable statement in the program.
Examples

DO I = 2 TO 100 BY 2;



This DO-group is executed 50 times, with values for I of 2, 4, 6, and so on.

DO I = LBOUND(ARRAY,1) TO HBOUND(ARRAY,1);



This DO-group is executed as many times as there are elements in the array variable ARRAY, using the subscript values of the array's elements for the values of I.

DO I = 1 BY 1 WHILE (X < Y);



This DO-group continues to be executed with successively higher values for I while the value of X is less than the value of Y.

DO I = 1 BY 1 WHILE (X < Y) UNTIL (X = 12);



This DO-group resembles the DO-group in the preceding example, except that the DO-group continues to be executed while the value of X is less than the value of Y or until the value of X is equal to 12.

A controlled DO statement that does not specify a TO or BY option results in a single iteration of the following DO-group. For example:

DO X = 1 WHILE (A);



Even if A is true, this DO-group executes a single time only. If A is false, it is not executed at all. Because there is no expression to change the value of X, the DO-group will not be executed again.

DO X = 1;



This DO-group executes a single time only, regardless of the value of X.

BEGIN Statement

The BEGIN statement denotes the start of a begin block.

The format of the BEGIN statement is:

BEGIN;



A begin block is a sequence of statements headed by a BEGIN statement and terminated by an END statement. A begin block can be used wherever a single executable statement is valid, for instance, in an ON-unit. The statements in a begin block can be any PL/I statements, and begin blocks can contain DO-groups, DECLARE statements, procedures, and other (nested) begin blocks.

A begin block provides a convenient way to localize variables. Variables declared as internal within a begin block are not allocated storage until the block is activated. When the block terminates, storage for internal automatic variables is released. A begin block terminates in the following situations:

  • When its corresponding END statement is encountered. Control continues with the next executable statement in the program.
  • When it executes a nonlocal GOTO to transfer control to a previous block.
  • When it executes a RETURN statement.

A begin block differs from a DO-group chiefly in its ability to localize variables. Variables declared within DO-groups are not localized to the group (unless the group contains a begin block or procedure that declares internal variables). Begin blocks are preferable when you want to restrict the scope of variables. Furthermore, there are some cases (such as ON-units) in which DO-groups cannot be used. Otherwise, DO-groups are often more efficient, because they do not have the overhead associated with block activation. In general, you should use a DO-group instead of a begin block unless there are declarations present or you require multiple statements in an ON-unit.

A begin block can designate a series of statements to be executed depending on the success or failure of a test in an IF statement. For example:

IF A = B THEN BEGIN ;

END;



A begin block also provides the only way to denote a series of statements to be executed when an ON condition is signaled. For example:

ON ERROR BEGIN;

[statement ... ]

END;



See See Blocks for more information.

END Statement

The END statement marks the end of the block or group headed by the most recent BEGIN, DO, SELECT, or PROCEDURE statement.

The format of the END statement is:

END [label-reference];


label-reference

A reference to the unsubscripted label on the PROCEDURE, BEGIN, SELECT, or DO statement for which the specified END statement is the termination. A label is not required. If specified, the label reference must match only one label, which is the label of the most recent BEGIN, DO, SELECT, or PROCEDURE statement that is not already matched with an END statement. If the label reference is omitted, the most recent textual, non-terminated PROC, BEGIN, SELECT, or DO statement is matched by default.

Note that a procedure declared with the RETURNS option must execute a RETURN statement before it encounters the END statement marking the end of the procedure.

When the END statement is encountered, one of the following actions is performed, depending on the type of block or group that it terminates:

  • When an END statement denotes the end of a procedure, the procedure is terminated. The storage allocated for the block is released, and all automatic variables are made inaccessible. If the current procedure is the main or only procedure, the program terminates. Otherwise, control returns to the statement following the CALL statement or function invocation that invoked the procedure.
  • When an END statement denotes the end of a begin block, the block is terminated. Storage allocated for the block is released, and all automatic variables are made inaccessible. Control passes to the next executable statement.
  • When an END statement denotes the end of a DO-group, control returns either to the DO statement that heads the group or to the next executable statement following the END statement. If the DO-group is headed by a simple DO, that is, one that causes the DO-group to be executed only once, control passes to the next executable statement. Otherwise, control returns to the head of the DO-group.
  • When an END statement denotes the end of a SELECT-group, the SELECT-group is terminated and control passes to the next executable statement following the end statement.

IF Statement

The IF statement tests an expression and performs a specified action if the result of the test is true.

The format of the IF statement is:

IF test-expression THEN action [ELSE action];


test-expression

Any valid expression that yields a scalar bit-string value. If any bit of the value is 1, then the test expression is true; otherwise, the test expression is false.

action

Any of the following:

  • Any unlabeled statement except the nonexecutable statements: DECLARE, END, ENTRY, FORMAT, or PROCEDURE
  • An unlabeled DO-group or begin block

The IF statement evaluates the test expression. If the expression is true, the action specified following the keyword THEN is executed. Otherwise, the action, if any, specified following the ELSE keyword is executed.

Examples

IF A < B THEN BEGIN;



The begin block following this statement is executed if the value of the variable A is less than the value of the variable B.

IF ^SUCCESS

THEN

CALL PRINT_ERROR;

ELSE

CALL PRINT_SUCCESS;



The IF statement defines the action to be taken if the variable SUCCESS has a false value (the THEN clause) and the action to be taken otherwise (the ELSE clause).

Nested IF Statements

The action specified in a THEN or an ELSE clause can be another IF statement.

An ELSE clause is matched with the nearest preceding IF/THEN that is not itself matched with a preceding ELSE. For example:

IF ABC

THEN

IF XYZ

THEN

GOTO GBH;

ELSE

GOTO THESTORE;

ELSE

GOTO HOME;



In this example, the first ELSE clause is executed if ABC is true and XYZ is false. The second ELSE clause is executed if ABC is false.

In some cases, proper matching of IF and ELSE can require a null statement (a semicolon) as the target of an ELSE. For example:

IF ABC

THEN

IF XYZ

THEN

GOTO HOME;

ELSE;

ELSE

GOTO THESTORE;



In this example, the ELSE GOTO THESTORE statement is executed if ABC is false.

SELECT Statement

The SELECT statement tests a series of expressions and performs a specified action depending on the result of the test. The statement has two forms: in the first form, the expressions in a WHEN clause are tested for truth; in the second form, the expressions in a WHEN clause are compared to see if any have the same value as another specified expression called the select expression. Any of the expressions can be, but need not be, constants. An optional OTHERWISE clause is available to name an action to be performed if none of the preceding expressions have satisfied the condition specified.

The two forms of the SELECT statement and the OTHERWISE clause are described in more detail below.

The general form of the SELECT statement is:

SELECT [(select-expression)];

[WHEN [ANY | ALL] (case-expression, ...) [action] ; ] ...

[(OTHERWISE | OTHER) [action] ; ]

END;


select-expression

An expression that can be evaluated to any type of value.

case-expression, ...

One or more expressions to be tested, evaluating to bit-string values, or, if a select expression is used, with values that will be compared to the select expression's value.

action

Any statement (including a null statement, another SELECT statement, a DO-group, or a BEGIN-END block) except a DECLARE, END, ENTRY, FORMAT, or PROCEDURE statement.

The Two Forms of the SELECT Statement

Depending on whether you use a select expression or not, SELECT has two different forms, which are explained in detail below.

SELECT Without a Select Expression

The first form of the SELECT statement omits the select expression. In this form, the expressions in a WHEN clause are evaluated, and a specified action is performed if the result of any test is true (or, if ALL is specified, the results of all tests are true); an expression is true if it evaluates to a bit string containing any bit with the value of '1'B. In the usual case, the test for truth results in a bit string containing one bit: '1'B for true or '0'B for false.

When the keyword ANY (the default) appears in the WHEN clause, then if any one of the expressions evaluates to true the corresponding action is performed. No further expressions in that WHEN clause or in subsequent WHEN clauses are evaluated (and thus the expressions need not have unique values), and no subsequent actions are performed.

The WHEN clauses are checked in the order listed. However, the expressions within one WHEN clause might be evaluated in any order, and not all these expressions are necessarily evaluated. As soon as any expression is found true, subsequent expressions are not evaluated.

If the keyword ALL appears in the WHEN clause, the action is performed only if all expressions in that WHEN clause evaluate to true. Once one action is performed, no subsequent WHEN clauses are evaluated and no subsequent actions are performed. If any expression in the WHEN clause does not result in a true value, no further expressions in that clause are evaluated and the action is not performed.

Following is an example of the first form of SELECT:

SELECT;

WHEN ANY (A=10,A=20,A=30) B=B+1;

WHEN (A=50) B=B+2;

WHEN (A=60) B=B+3;

WHEN (A=70) B=B+4;

WHEN (A=80) B=B+5;

WHEN (A=90) B=B+6;

WHEN ALL (A>90,A<500) B=B+10;

OTHERWISE B=B+C;

END;

The SELECT statement defines the action to be taken if the variable A has any of the values specified in the WHEN clauses (or, in the case of the WHEN ALL clause, if A is both greater than 90 and less than 500). If none of the WHEN clauses is true, the action specified in the OTHERWISE clause (B=B+C) is performed.

SELECT With a Select Expression

The second form of the SELECT statement has a select expression after the keyword SELECT. This form of the SELECT statement evaluates expressions in the WHEN clauses and then compares their values to the value of the select expression (instead of testing the expressions for truth or falsity, as in the first form of SELECT). It performs a specified action if any expression has the same value as the select expression (or, if ALL is used, all expressions have the same value as the select expression). In this form of the SELECT statement, as in the previous form, the expressions in a WHEN clause might be evaluated in any order, and not all the expressions are necessarily evaluated.

Following is an example of the second form of SELECT:

SELECT(A);

WHEN (50) C=C+1;

WHEN ANY (60,61,62,B+C) C=C+2;

WHEN ALL (70,D) C=C+3;

OTHERWISE C=C+D;

END;



The SELECT statement defines the action to be taken if the select expression (A in the example) evaluates to any or all of the values of the expressions following a WHEN clause. The first action (the assignment statement C=C+1) will be performed if A has a current value of 50. In that case, none of the subsequent WHEN clauses will be evaluated. The second WHEN clause includes the ANY keyword, and so the second action will be performed if A evaluates to or equals 60 or 61 or 62 or the sum of B and C. If neither the first nor the second action is performed, the third WHEN clause's expressions are tested. The third WHEN clause includes the ALL keyword, so the third action will be performed only if A equals both 70 and D. If none of the WHEN clauses causes an action to be performed, then the action in the OTHERWISE clause (the assignment statement C=C+D) will be performed.

OTHERWISE Clause

If none of the WHEN clauses causes the corresponding action to be performed, the action specified in the optional OTHERWISE clause is performed; but if the OTHERWISE clause is omitted, an ERROR condition is signalled. OTHERWISE can be followed by a semicolon (a null statement) to cause execution to continue and avoid an ERROR condition when you do not want to specify an action after OTHERWISE. For example:

OTHERWISE;



After an action is performed following a WHEN or OTHERWISE clause, control passes to the next executable statement following the END statement that terminates the SELECT statement, unless normal flow is altered within the action.

Nested SELECT Statements

Note that the action specified in a WHEN or OTHERWISE clause can be another SELECT statement, resulting in nested SELECT statements with the format shown in the following example:

SELECT;

WHEN (condition A)

SELECT;

WHEN (condition A1) statement 1;

WHEN (condition A2) statement 2;

END;

WHEN (condition B)

SELECT;

WHEN (condition B1) statement 3;

WHEN (condition B2) statement 4;

OTHERWISE statement 5;

END;

OTHERWISE statement 6;

END;



In this example, statement 1 is executed when both condition A and condition A1 are true. Statement 2 is executed when both condition A and condition A2 are true and A1 is false. If A is true but neither A1 nor A2 is true, an ERROR condition is reported because no OTHERWISE clause exists within this SELECT statement.

If condition A is false, condition B is checked. If B is true but B1 and B2 are both false, statement 5 (in the corresponding OTHERWISE clause) is executed. If conditions A and B are both false, statement 6 (in the outermost OTHERWISE clause) is executed.

If you want to avoid the possibility that execution could be stopped by an ERROR condition, which occurs in this example if condition A is true and A1 and A2 are false, you can put in an OTHERWISE clause with a null statement (a semicolon) as its action, which would cause control to pass to the first executable statement following the end of the outermost SELECT statement.

An END statement must terminate each SELECT statement.

GOTO Statement

The GOTO statement causes control to be transferred to a labeled statement in the current or any outer procedure.

The format of the GOTO statement is:

label-reference

A label constant or an expression that, when evaluated, yields a label value. A label value denotes a statement in the program.

The specified label cannot be the label of an ENTRY, FORMAT, or PROCEDURE statement. The label reference specified in a GOTO statement can be any of the following:

  • An unsubscripted label constant. For example:

GOTO ALPHA;

ALPHA:



  • A subscripted label constant, for which the subscript is specified with an integer constant or a variable expression. For example:

GOTO PROCESS(1);

PROCESS(1):



  • A label variable that, when evaluated, yields a label value. For example:

DECLARE PROCESS LABEL VARIABLE;

PROCESS = BILLING;

GOTO PROCESS;



  • A subscripted label variable that, when evaluated, yields a label value. For example:

DECLARE X(5) LABEL;

X(1) = NEXT;



GOTO X(1);



In the case of a label variable, the resulting label value must designate an existing block activation. (Similarly, a label constant must designate an existing block activation.) If the designated block activation is the current block activation, the GOTO statement causes a local GOTO. No special processing occurs.

OTHERWISE

This option can be used only when the label-reference is a subscripted label with a variable subscript. If present in any other case, it will be reported as an error.

Make sure all the labels referenced by the GOTO statement occur after the statement. If you use potential label references for a specific GOTO statement prior to the GOTO statement, you will cause compiler errors. The following example shows a program with this illegal construct:

PROGRAM: PROCEDURE OPTIONS (MAIN);

DECLARE I FIXED BINARY (31,0);



PART(1):

I=2;

GOTO PART(I) OTHERWISE;



END PROGRAM;



If the variable subscript is out of range and the OTHERWISE option is present, the statement following the GOTO will be executed next. If the OTHERWISE option is not specified and the subscript of the last label is not an asterisk (*), the subscript is reported out of range at run-time and the process will be terminated.

Nonlocal GOTO

If the specified label value is not in the current block, the GOTO statement is considered a nonlocal GOTO. The following can occur:

  • The current block, and any blocks intervening between it and the block containing the label value, are released. This rule applies both to procedure blocks and to begin blocks.
  • If a GOTO statement transfers control out of a procedure that is invoked in a function reference, the statement containing the function reference is not evaluated further.
  • A special case of a nonlocal GOTO occurs if a GOTO is executed in an ON-unit. The condition handling mechanism signals a system exception handler (SS$_UNWIND) to unwind the procedure call frames to the proper point before control transfers to the label. This allows programs to clean up intervening blocks before preceding.
Restriction

You can use either the OTHERWISE option or an asterisk (*) for the last label, but not both.

Examples

The following example shows the use of the GOTO statement:

RESTART:;

BEGIN;

ON ERROR GOTO RESTART;

END;



The GOTO statement provides a transfer address for the current procedure when the ERROR condition is signaled.

DECLARE PROCESS(5) LABEL;

GOTO PROCESS(2);



The GOTO statement evaluates the label reference and transfers control to the label constant corresponding to the second element of the array PROCESS. PROCESS consists of label variables.

The following restrictions apply to the use of labels and label data:

  • No statement can have more than one label. However, an executable statement can be preceded by any number of labeled null statements, which have the same effect as would multiple labels.
  • Operations on label values are restricted to the operators = and ^=, for testing equality or inequality. Two values are equal if they refer to the same statement in the same block activation.
  • Any statement in a PL/I program can be labeled except the following:
  • A DECLARE statement
  • A statement beginning an ON-unit, THEN clause, ELSE clause, WHEN clause, or OTHERWISE clause
  • Labels on PROCEDURE, ENTRY, and FORMAT statements are not considered statement labels and cannot be used as the targets of GOTO statements.
  • An identifier occurring as a label in a block cannot be declared in that block (except as a structure member) or occur in the block's parameter list.
  • Any reference to a label value after its block activation terminates is an error with unpredictable results.

For more information on labels, see See Label Data .

LEAVE Statement

The LEAVE statement causes control to be transferred out of the immediately containing DO-group or out of the containing DO-group whose label is specified with the statement.

The format of the LEAVE statement is:

LEAVE [label-reference];


label-reference

A reference to a label on a DO statement that heads a containing DO-group. The label reference can be a label constant or a subscripted label constant for which the subscript is specified with an integer constant. The label reference cannot be a label variable, nor can it be a subscripted label constant for which the subscript is specified with a variable.

On execution, a LEAVE statement with no label reference causes control to be transferred to the first statement following the END statement that terminates the immediately containing DO-group. If the LEAVE statement has a label, control is passed to the first executable statement following the END statement for the corresponding label indicated in the LEAVE statement. Thus, the LEAVE statement provides an alternative means of terminating execution of a DO-group. In the case of a LEAVE statement with a label reference, several nested DO-groups can be terminated as control transfers outside the referenced DO-group.

Restrictions

The following restrictions apply to the use of the LEAVE statement:

  • A LEAVE statement must be contained within a DO-group.
  • A LEAVE statement must be in the same block as the DO statement to which it refers.
  • If a LEAVE statement has a label reference, it must refer to a label on a DO statement that heads a DO-group that contains the LEAVE statement. The LEAVE statement must be in the same block as the labeled DO statement.
  • The label reference specified with a LEAVE statement must be a label constant or a subscripted label constant with an integer constant subscript.
Examples

The following example shows a LEAVE statement without a label reference:

DO I = 1 TO 100;

IF COMMAND = 'QUIT' THEN LEAVE;

END;

PUT LIST ('Job finished');



In this example, the LEAVE statement transfers control directly to the PUT statement if the condition in the IF statement is satisfied.

The next example shows a LEAVE statement with a label reference:

LOOP1: DO WHILE (MORE);

LOOP2: DO I = 1 TO 12;

IF QUAN(I) > 150 THEN LEAVE LOOP1;

END; /* Loop 2 */

END; /* Loop 1 */



In this example, the LEAVE statement transfers control to the first statement beyond the END statement that terminates LOOP1.

The following examples show some invalid uses of the LEAVE statement:

LEAVE; /* LEAVE statement must be in */

/* DO-group */

DO;

BEGIN;

LEAVE; /* LEAVE statement must be in */

END; /* same block as DO statement */

END;

ON ENDFILE(SYSIN) LEAVE; /* ON-unit is separate block */

DECLARE LABVAR LABEL VARIABLE;

LABVAR = LOOP;

LOOP: DO I = 1 TO 10;

LEAVE LABVAR; /* Label reference cannot be a variable */

END;

LAB(1): DO;

LAB(2): DO;

I = 1;

LEAVE LAB(I); /* Subscript must be a constant */

END;

END;

STOP Statement

The STOP statement terminates execution of a program, regardless of the current block activation.

The format of the STOP statement is:

STOP;



The STOP statement signals the FINISH condition, and closes all open files. If the main procedure has the RETURNS attribute, no return value is obtainable.

Null Statement

The null statement performs no action. Its format is:

;



The null statement usually serves as the target statement of a THEN or ELSE clause in an IF statement, as the target of a WHEN or OTHERWISE clause in a SELECT statement, or as an action in an ON-unit. The following examples illustrate these uses.

IF A < B THEN GOTO COMPUTE;

ELSE ;



In this example, no action takes place if A is greater than or equal to B; execution continues at the statement following ELSE ;. A construction of this type may be necessary when IF statements are nested (see See Nested IF Statements ).

SELECT;

WHEN (condition A,B,C) GOTO FILE_READ;

WHEN (condition D,E) GOTO UPDATE;

OTHERWISE;

END;



In this example, control is passed to the next executable statement after END if conditions A, B, C, D, and E are not true.

ON ENDPAGE(SYSPRINT);



In this example, no action takes place upon execution of the ON-unit; the I/O operation that caused the ENDPAGE condition continues.

The null statement can also be used to declare two labels for the same executable statement, as in the following example:

LABEL1: ;

LABEL2: statement ...

Condition Handling

A PL/I condition is any occurrence that causes the interruption of a program and a signal. When a condition is signaled, PL/I initiates a search for a user-written program unit called an ON-unit to handle the condition.

An ON condition is any one of several named conditions whose occurrence during the execution of a program interrupts the program. When a condition occurs or is signaled, a statement or sequence of statements, called an ON-unit, is executed. The SYSTEM option can be specified in the ON statement, causing the default system condition handling to be executed.

The following condition handling topics are discussed in subsequent sections:

ON Statement

The ON statement defines the action to be taken when a specific condition or conditions are signaled during the execution of a program. The ON statement is an executable statement. It must be executed before the statement that signals the specified condition.

The format of the ON statement is:

condition-name, ...

The name or names of the specific conditions for which an ON-unit or the SYSTEM option is specified. There is a keyword name associated with each condition. Successive keyword names must be separated by commas. The conditions are summarized in See . Summary of ON Conditions ; each condition is described in an individual entry in this manual.

on-unit

The action to be taken when the specified condition or conditions are signaled. An ON-unit can be:

  • Any single, unlabeled statement except DECLARE, DO, END, ENTRY, FORMAT, IF, ON, PROCEDURE, RETURN, or SELECT.
  • An unlabeled begin block.
  • A null statement (a semicolon alone), which causes program execution to continue as if the condition had been handled.

Only the most recent ON-unit established for a given condition can be active. If two successive ON statements are executed for the same condition, the second ON statement nullifies the first.

If no ON-unit is established for a particular condition, the condition ERROR is signaled. If no ON-unit is established for ERROR condition, the default system ON-unit is executed. See See Default PL/I ON-Unit .

SYSTEM

This option invokes the default system condition handling for the specified condition, overriding any existing ON-unit for the condition. See See Establishing ON-Units .

SIGNAL Statement

The SIGNAL statement causes a specified condition to be signaled, which causes the system to search for and execute an ON-unit to handle the condition. See See Search Path for ON-Units for more information.

The format of the SIGNAL statement is:

SIGNAL condition-name;


condition-name

The name of the condition to be signaled. It must be one of the keywords listed in See . Summary of ON Conditions . Each of these conditions is described in its own section.

Most conditions occur as a result of a hardware trap or fault, or as a result of signaling by PL/I run-time procedures. You can use the SIGNAL statement within a program as a general-purpose communication technique. In particular, the VAXCONDITION and CONDITION conditions let you signal unique user-defined condition values.

REVERT Statement

The REVERT statement cancels an ON-unit established for a specified condition or conditions in the current block only.

The format of the REVERT statement is as follows:

REVERT condition-name, ...;


condition-name, ...

The keyword name or names associated with the condition or conditions for which the ON-unit is to be reverted. Successive names must be separated by commas. The valid condition names are the same as for the ON statement.

If no ON-unit is established for a specified condition for the current block, the REVERT statement has no effect.

The REVERT statement does not cancel all ON-units that may be active at the same time it is executed (see See Search Path for ON-Units ), only a handler in the current block.

An ON-unit can be re-established after execution of a REVERT statement by subsequently executing an ON statement.

The REVERT statement has no effect on an ON-unit established for the ANYCONDITION condition unless the statement explicitly references the ANYCONDITION condition. For example:

REVERT ANYCONDITION;



Therefore, a statement such as the following has no effect on an ON-unit established for the ANYCONDITION condition:

REVERT ZERODIVIDE;



The next example shows this more clearly:

PROGRAM: PROCEDURE OPTIONS(MAIN);

DECLARE A FIXED;

DECLARE B FIXED INITIAL (5);

DECLARE C FIXED INITIAL (0);



ON ANYCONDITION BEGIN;

PUT SKIP LIST ('Handled condition = ',ONCODE());

END;



REVERT ZERODIVIDE;



A = B / C; /* Signal divzero */



ON ZERODIVIDE BEGIN;

PUT SKIP LIST ('Handled ZERODIVIDE');

END;



A = B / C; /* Signal divzero */



REVERT ZERODIVIDE;



A = B / C; /* Signal divzero */



ON ZERODIVIDE BEGIN;

PUT SKIP LIST ('Handled ZERODIVIDE');

END;



REVERT ANYCONDITION;



A = B / C; /* Signal divzero */



REVERT ZERODIVIDE;



A = B / C; /* Signal divzero */



END PROGRAM;



When you run the program, the following conditions result:

Handled condition = 1156

Handled ZERODIVIDE

Handled condition = 1156

Handled ZERODIVIDE

PL/I ERROR condition.



Summary of ON Conditions

Most, but not all, ON conditions are associated with errors. The types of conditions for which you can establish ON-units are grouped in the following categories:

  • Conditions that occur during I/O operations:
  • ENDFILE, to take action when the end-of-file occurs while a file is being read.
  • ENDPAGE, to take action when the last line on a page is printed.
  • KEY, to take action when an error occurs when a record is accessed by key.
  • NAME (IBM dialect only), to take action when an error occurs during a data-directed GET statement with the FILE option.
  • RECORD (IBM dialect only), to take action when an error involving record length occurs during a READ, WRITE, or REWRITE operation.
  • TRANSMIT (IBM dialect only), to take action when a transmission error occurs during any I/O operation.
  • UNDEFINEDFILE, to respond to any file-specific errors that can occur during the opening of a file.
  • Conditions that indicate arithmetic conditions related to hardware violations:
  • FIXEDOVERFLOW, to respond when integer or fixed-point values become too large to be expressed.
  • OVERFLOW, to respond when floating-point values become too large to be expressed.
  • UNDERFLOW, to respond when floating-point values become too small to be expressed.
  • ZERODIVIDE, to respond when the divisor in a division operation has a value of zero.
  • Other conditions:
  • AREA, to respond when an error has been detected during an operation on an area (various subconditions can be determined through use of the ONCODE built-in function).
  • CHECK (IBM dialect only), valid only in a condition prefix. Used to display some or all of the names and values of data items within the scope of the prefix, when they are accessed.
  • CONDITION, to respond to programmer-defined conditions.
  • CONVERSION, to respond to data conversion errors from CHARACTER to any arithmetic data type or bit string.
  • SIZE (IBM dialect only), to respond to errors occurring during assignment or I/O operations involving loss of high-order bits.
  • STORAGE, to respond when an error has been detected during allocation of a controlled variable or a based variable other than in an area.
  • STRINGRANGE, to respond to substring references that are beyond the length of the string.
  • STRINGSIZE (IBM dialect only), to respond to errors generated when strings are assigned to targets that are not long enough.
  • SUBSCRIPTRANGE, to respond to array references with out-of-bound subscripts.
  • General classes of exception conditions:
  • ANYCONDITION, to respond to all conditions for which no specific ON-unit is established in the current block.
  • ATTENTION (IBM dialect only), to respond to user-generated attention signals.
  • ERROR, to respond to language-specific and run-time- specific errors.
  • FINISH, to respond when a STOP statement is executed.
  • VAXCONDITION, to respond to condition values that are specific to the operating system or to be used as user-defined conditions created by SIGNAL VAXCONDITION(n).

See . Summary of ON Conditions summarizes ON conditions. Each condition is described individually in the sections that follow.

. Summary of ON Conditions

Condition Name

Function

ANYCONDITION

Handles any condition not specifically handled by another ON-unit

AREA

Handles a condition that occurs during an operation on an area

ATTENTION

(IBM dialect only) Handles user terminal-generated attention signal

CHECK

(IBM dialect only) Displays names and values of specified data items

CONDITION

Handles programmer-defined conditions

CONVERSION

Handles data conversion errors

ENDFILE

Handles end-of-file for a specified file

ENDPAGE

Handles end-of-page for a specified file with PRINT attribute

ERROR

Handles miscellaneous error conditions and conditions for which no specific ON- unit exists

FINISH

Handles program exit when the main procedure executes a RETURN statement, when any block executes a STOP statement, or when the program exits due to an error that is not handled by an ON-unit

FIXEDOVERFLOW

Handles fixed-point decimal and integer overflow exception conditions

KEY

Handles any error involving the key during keyed access to a specified file

NAME

(IBM dialect only) Handles errors involving data-directed GET statements with the FILE option

OVERFLOW

Handles floating-point overflow exception conditions

RECORD

(IBM dialect only) Handles size errors involving records during READ, WRITE, or REWRITE operations

SIZE

(IBM dialect only) Handles loss of high-order bits during assignment or I/O

STORAGE

Handles a condition that occurs during allocation of a controlled variable or a based variable other than in an area

STRINGRANGE

Handles out-of-bound substring references

STRINGSIZE

(IBM dialect only) Handles errors involving assigning a string to a target that is too short

SUBSCRIPTRANGE

Handles out-of-bound array references

TRANSMIT

(IBM dialect only) Handles errors involving uncorrectable transmission errors during record I/O

UNDEFINEDFILE

Handles any errors in opening a specified file

VAXCONDITION

Handles operating system or programmer-specified condition values

ZERODIVIDE

Handles divide-by-zero exception conditions

ANYCONDITION Condition

The ANYCONDITION keyword can be specified in an ON, REVERT, or SIGNAL statement. It designates an ON-unit established for all signaled conditions that are not handled by specific ON-units.

The ANYCONDITION keyword is not defined in the PL/I language. It is provided specifically for compatibility with the OpenVMS versions of PL/I.

AREA Condition

The AREA condition is raised when various operations fail in relation to areas. For example, it is raised if the extent of an area is not large enough to contain the variable or variables allocated to it, or if the area is incorrectly formatted.

For more information see the Kednos PL/I for UNIX User's Manual.

ATTENTION Condition (IBM Dialect Only)

The ATTENTION condition is raised during interactive processing when a user signals attention at the terminal or, during batch processing, by a SIGNAL ATTENTION statement.

When the ATTENTION condition is raised, an ATTENTION ON-unit is entered. PL/I ignores this condition if there is no ATTENTION ON-unit. On return from an ATTENTION ON-unit, execution resumes at a point in the program just following the point where the condition was raised.

CHECK Condition (IBM Dialect Only)

The CHECK condition is used to display names and values of data items within the scope of a condition prefix. The format of the CHECK condition is:

CHECK [ (name [,name]...) ]



name

A name of a data item, qualified or unqualified, which is one of the following:

  • An unsubscripted variable, either a data item or an aggregate
  • An entry or label constant

For example, within a condition prefix you can specify the following:

(CHECK(VAR1,VAR2,VAR3)):DO I = 1 TO 5;



You can enable the CHECK condition separately for any name in the scope of the condition prefix. If you do not specify any names, CHECK is enabled for all variables, label constants, and entry constants within the scope of the condition prefix.

The CHECK condition can be raised under the following conditions:

  • Statement labels -- before executing the statement prefixed by the named label. Ignored if the statement is a FORMAT statement.
  • Entry constants -- before invoking the entry point named by the entry constant.
  • Variables -- whenever any statement in the scope of the condition prefix changes the variable or any part of the variable.

The CHECK condition does not affect the statement being executed or the flow of execution.

CONDITION Condition

The CONDITION condition name is used for ON-units to handle programmer-defined conditions. The value returned by the ONCODE built-in function is PLI$_CONDITION. There is no way to distinguish between multiple programmer-defined conditions if they are specified in the same ON statement.

The format of the CONDITION condition name is:

CONDITION (cond-name)


cond-name

A name declared with the CONDITION attribute.

CONVERSION Condition

The CONVERSION condition name can be specified in an ON, SIGNAL, or REVERT statement to designate a CONVERSION condition or ON-unit.

PL/I signals the CONVERSION condition when the source character data in a conversion to bit-string or arithmetic data contains characters that are not valid in the specified context. In particular, the CONVERSION condition is raised when a character string is being converted and one of the following conditions is true:

  • The target of the conversion is an arithmetic type, and the source string does not contain a valid, optionally signed arithmetic constant.
  • The target of the conversion is a picture, and the source string does not conform to the picture specification.
  • The target of the conversion is a bit string, and a character other than 0 or 1 appears in the source string.

The CONVERSION condition can be raised either by a non-I/O conversion, such as an explicit conversion using a built-in function or an implicit conversion generated by the compiler, or by an I/O conversion in a GET statement. For example, A = BIT('1014') would cause the CONVERSION condition to be raised, because 4 is not a valid binary digit. Likewise, a GET statement with an arithmetic target would also cause the CONVERSION condition to be raised if the characters '12K45' appeared in the input field, because 'K' is not a valid numeric character.

You can use the ONSOURCE and ONCHAR built-in functions and pseudovariables inside an ON CONVERSION ON-unit. The ONSOURCE built-in function returns the source string that caused the CONVERSION condition to be raised. The ONCHAR built-in function returns the specific character that caused the conversion to fail. You can use the ONSOURCE pseudovariable to change the value of the conversion. Likewise, you can use the ONCHAR pseudovariable to modify only the single character in error.

If the CONVERSION condition was raised during a conversion required by the GET statement, the ONFILE built-in function returns the name of the file constant inside the CONVERSION ON-unit. If the CONVERSION condition was not raised during a conversion required by the GET statement, the ONFILE built-in function returns a null string.

ON-Unit Completion

A normal return from a CONVERSION condition will cause PL/I to attempt the conversion again if the ONSOURCE or ONCHAR pseudovariables have had values assigned to them. If the ONSOURCE value has not been modified, PL/I raises the ERROR condition instead.

For example:

/*

* Sample program that displays a 'quick-fix' CONVERSION

* ON-unit. At the end of this program, TARGET1 contains

* the value 14015, and TARGET2 contains the value '11100'B.

* Note that SOURCE1 and SOURCE2 are not modified.

*/

MAIN: PROCEDURE OPTIONS(MAIN);



DCL SOURCE1 CHARACTER(5) VARYING INITIAL('14$15');

DCL SOURCE2 CHARACTER(5) VARYING INITIAL('11q00');

DCL TARGET1 FIXED BINARY(31);

DCL TARGET2 BIT(5) ALIGNED;

/*

* Sample 'quick-fix' CONVERSION ON-unit that replaces

* erroneous lowercase q's with 1's, and all other

* erroneous characters with 0's.

*/

ON CONVERSION BEGIN;

PUT SKIP EDIT('"',ONSOURCE(),'" "',ONCHAR(),'"')((5)A);

IF ONCHAR() = 'q'

THEN

ONCHAR() = '1';

ELSE

ONCHAR() = '0';

END; /* ON */

/*

* Note that the CONVERSION condition is raised for all

* 3 of the following statements.

*/

TARGET1 = SOURCE1;

TARGET2 = SOURCE1;

TARGET2 = SOURCE2;



PUT SKIP(2) EDIT(SOURCE1,SOURCE2)(A,X(1),A);

PUT SKIP EDIT(TARGET1,TARGET2)(F(8),X(1),B(5));

END MAIN;



The output from this program is:

"14$15" "$"

"14$15" "4"

"14$15" "$"

"14$15" "5"

"11q00" "q"



14$15 11q00

14015 11100



The target of the conversion is undefined when the CONVERSION condition is raised.

The retry attempted on a normal return is for the single field that was in error. Attempts to assign a string containing, for example, a comma list of values will not be used for successive data items in a GET statement.

The actual value modified by the ONSOURCE and ONCHAR pseudovariables is a temporary value that is discarded once the conversion is complete, or the control flow cannot return to the point of the error. This means that invalid data stored in a character string variable will cause the CONVERSION condition to be raised each time the value is converted, not just the first time the conversion is attempted, regardless of modifications to the ONSOURCE and ONCHAR pseudovariables inside the CONVERSION ON-unit.

ENDFILE Condition

The ENDFILE condition name can be specified in an ON, SIGNAL, or REVERT statement to designate an end-of-file condition or ON-unit for a specific file.

PL/I signals the ENDFILE condition when a GET or READ statement attempts an input operation on a file or device after the last data item has been input.

The format of the ENDFILE condition name is:

ENDFILE (file-reference)


file-reference

The name of a file constant or file variable for which the ENDFILE ON-unit is established. If the name of a file variable is specified, the variable must be resolved to the name of a file constant when the on-unit is established, as well as when the condition is signaled.

An ENDFILE ON-unit can be established for any input file. For any particular file, the meaning of the end-of-file condition depends on the type of device. For example, end-of-file is signaled for a terminal device when an End of File character is read.

For a stream file, an end-of-file condition is signaled whenever a GET statement attempts to access an empty file or attempts to access a file whose last input field has been read.

For a record file, an end-of-file condition is signaled when a READ statement is executed with the file at the end-of-file position or when a read is attempted beyond the last record in the file. For example:

ON ENDFILE (RECEIPTS) EOF = '1'B;

EOF = '0'B;

OPEN FILE (RECEIPTS) RECORD SEQUENTIAL;

READ FILE (RECEIPTS) INTO (RECORD);

DO WHILE (^EOF);

READ FILE (RECEIPTS) INTO (RECORD);

END;



In this example, the ON statement establishes the default action to be taken when the last record in the input file has been processed: the flag EOF is set to '1'B.

An ON-unit established to handle end-of-file conditions can reference the ONFILE built-in function to determine the name of the file constant for which the condition was signaled.

ON-Unit Completion

If the ON-unit for the ENDFILE condition does not transfer control elsewhere in the program, control returns to the statement following the GET or READ statement that caused the condition to be signaled.

When the ENDFILE condition is signaled, it remains in effect until the file is closed. Subsequent GET or READ statements for the file cause the ENDFILE condition to be signaled repeatedly.

ENDPAGE Condition

The ENDPAGE condition name can be specified in an ON, SIGNAL, or REVERT statement to designate an end-of- page condition or ON-unit for a specific print file.

The format of the ENDPAGE condition name is:

ENDPAGE (file-reference)


file-reference

The name of the file constant or file variable for which the ENDPAGE ON-unit is to be established. If the name of a file variable is specified, the variable must be resolved to the name of a file constant when the on-unit is established, as well as when the condition is signaled. The file must have the PRINT attribute.

The maximum number of lines that can be output on a single page is set by the PAGESIZE option of the OPEN statement. The maximum number of lines allowed on a single page is 32767. If not specified, PL/I uses the default page size, 60 lines.

PL/I signals the ENDPAGE condition when a PUT statement attempts to output a line beyond the last line specified for an output page. When the ENDPAGE condition is signaled, the current line number associated with the file is the page size plus 1. An ENDPAGE ON-unit allows you to provide special processing before output continues on a new page.

For example:

ON ENDPAGE (PRINTFILE) BEGIN;

PUT FILE (PRINTFILE) PAGE;

PUT FILE (PRINTFILE) LIST(HEADER_LINE);

PUT FILE (PRINTFILE) SKIP(2);

END;



The ON-unit for the ENDPAGE condition for the file PRINTFILE outputs a page eject and a header line for the new output page.

To cause PL/I to ignore the ENDPAGE condition when a large amount of output is written to a terminal, you can use the following ON-unit, that contains only the null statement:

ON ENDPAGE(SYSPRINT);



This is optional because PL/I ignores the ENDPAGE condition on SYSPRINT by default. You cannot catch the ENDPAGE(SYSPRINT) condition.

An ON-unit established to handle end-of-page conditions can reference the ONFILE built- in function to determine the name of the file constant for which the condition was signaled.

ON-Unit Completion

If the ON-unit does not transfer control elsewhere in the program, the line number is set to 1 and the program continues execution of the PUT statement. If the ENDPAGE condition was signaled during data transmission, the data is written on the new current line. If the ENDPAGE condition was caused by a LINE or a SKIP option on the PUT statement, then the action specified by these options is ignored on return.

An ENDPAGE condition can occur only once per page of output. If the ON-unit specified does not specify a new page, then execution and output continue. The current line number can increase indefinitely; PL/I does not signal the ENDPAGE condition again. However, if a LINE option on a PUT statement specifies a line number that is less than that of the current line, a new page is output and the current line is set to 1.

Default PL/I Action

If the ENDPAGE condition is signaled during file processing, PL/I starts output on a new page and continues processing. An exception is made for SYSPRINT which is to take no action. If the ENDPAGE condition is signaled as a result of a SIGNAL statement, the statement following the SIGNAL statement is executed and no page is output by default.

ERROR Condition

The ERROR condition name can be specified in an ON, SIGNAL, or REVERT statement to designate an error condition or ON-unit.

PL/I signals the ERROR condition in the following contexts:

  • When a condition occurs for which the default PL/I action is to signal ERROR
  • When the SIGNAL ERROR statement signals the condition
  • When there is a default PL/I ON-unit and a condition is signaled for which there is no corresponding ON-unit

PL/I signals the ERROR condition when any condition (except ENDPAGE, see preceding section) is raised and no ON-unit exists for the condition.

When any ON-unit is executed, the ON-unit can reference the built-in function ONCODE. This function returns the numeric condition value associated with the specific error that signaled the condition.

ON-Unit Completion

If an ERROR ON-unit does not handle the condition, the program is terminated.

FINISH Condition

The FINISH condition name can be specified in an ON, SIGNAL, or REVERT statement to designate a FINISH condition or a FINISH ON-unit.

PL/I signals the FINISH condition in the following contexts:

  • When any procedure in the program executes the STOP statement
  • When a procedure that specifies OPTIONS(MAIN) executes a RETURN statement, or, if the procedure does not execute a RETURN statement, when its corresponding END statement is executed
  • When the SIGNAL FINISH statement signals the condition
ON-Unit Completion

If a FINISH ON-unit that executes as a result of a SIGNAL FINISH statement does not execute a nonlocal GOTO statement, control returns to the statement following SIGNAL FINISH. If the FINISH ON-unit executes as a result of any of the other three causes listed above, the program terminates.

FIXEDOVERFLOW Condition

The FIXEDOVERFLOW condition name can be specified in an ON, SIGNAL, or REVERT statement to designate a fixed overflow condition or ON-unit.

PL/I signals the FIXEDOVERFLOW condition in the following circumstances:

  • When the result of an arithmetic operation on a fixed-point decimal or binary integer value exceeds the maximum precision of the hardware. The maximum precision allowed for a fixed-point decimal or binary value is 31.
  • When the source value of a fixed-point expression exceeds the precision of the target variable. For example, PL/I signals FIXEDOVERFLOW when a value that is not in the range -128 through 127 is assigned to a fixed-point binary variable with a precision of 7 bits and scale equal to zero. Similarly, the condition is signaled if a value assigned to a picture variable has more integral digits than are specified by the picture specification.

The value resulting from an operation that causes this condition is undefined.

Value of ONCODE

Two hardware exceptions exist that result in the FIXEDOVERFLOW condition. These are SS$_DECOVF (for a fixed-point decimal overflow) and SS$_INTOVF (for a fixed-point binary integer overflow). An ON-unit that receives control when FIXEDOVERFLOW is signaled can reference the ONCODE built-in function to determine which condition is actually signaled.

To define an ON-unit to respond specifically to either of these errors, use the VAXCONDITION condition name.

Example

To respond to a FIXEDOVERFLOW condition caused by either decimal or integer overflow, write an ON-unit as follows:

ON FIXEDOVERFLOW BEGIN;

IF ONCODE() = SS$_DECOVF THEN DO;

/* Decimal overflow handling */

END;

IF ONCODE() - SS$_INTOVF THEN DO;

/* Fixed binary overflow handling */

END;

END; /* ON */



To respond to a decimal overflow only, write an ON-unit like the following:

ON VAXCONDITION (SS$_DECOVF) BEGIN;

/* Decimal overflow handling */

END; /* ON */



ON-Unit Completion

If the ON-unit does not transfer control elsewhere in the program, control returns to the point at which the condition was signaled.

KEY Condition

The KEY condition name can be specified in an ON, SIGNAL, or REVERT statement to designate a key error condition or ON-unit for a specific file.

The format of the KEY condition name is:

KEY (file-reference)


file-reference

A reference to the file constant or file variable for which the ON-unit is to be established. If the name of a file variable is specified, the variable must be resolved to the name of a file constant when the on-unit is established, as well as when the condition is signaled.

PL/I signals the KEY condition during an operation on a keyed file when an error occurs in processing a key. Some examples of errors for which PL/I signals the KEY condition are:

  • The record indicated by the specified key cannot be found.
  • The key specification requires conversion from one data type to another and the conversion is not valid.
  • The key is not correctly specified.
  • The key of a relative file exceeds the maximum record number specified when the file was created. This error is shown in the Example section.

An ON-unit established to handle the KEY condition can obtain information about the condition by invoking the following built-in functions:

  • The ONFILE built-in function returns the name of the file being processed when the condition was signaled.
  • The ONCODE built-in function returns the specific RMS condition value associated with the error.
  • The ONKEY built-in function returns the key value that caused the condition to be signaled.
Example

The following example shows the key of a relative file exceeding the maximum record number specified.

%INCLUDE $RMSDEF;



KEYTEST: PROCEDURE OPTIONS(MAIN);



DECLARE

RECBUF CHAR(80),

MYFILE FILE;



ON KEY(MYFILE) BEGIN;

PUT SKIP LIST('Key condition raised');

IF ONCODE()=RMS$_MRN THEN

PUT SKIP LIST('You have exceeded the maximum record.');



STOP;



END;



OPEN FILE(MYFILE) TITLE('MYFILE.DAT') OUTPUT KEYED

ENVIRONMENT(FIXED_LENGTH_RECORDS,

MAXIMUM_RECORD_SIZE(80),

MAXIMUM_RECORD_NUMBER(20));



RECBUF = 'This record will not ever make it into the file';



WRITE FILE(MYFILE) FROM(RECBUF) KEYFROM(100);



END;



ON-Unit Completion

If the ON-unit does not execute a nonlocal GOTO, control returns to the statement immediately following the statement that caused the KEY condition.

NAME Condition (IBM Dialect Only)

You can specify the NAME condition name in an ON, SIGNAL, or REVERT statement to handle errors that happen during execution of GET statements with the FILE option. By default, when a NAME condition is raised PL/I ignores the invalid data field, displays a message, and continues.

The format of the NAME condition name is:

NAME (file-reference)


file-reference

A reference to the file constant or file variable for which the ON-unit is to be established. If the name of a file variable is specified, the variable must be resolved to the name of a file constant when the on-unit is established, as well as when the condition is signaled.

Some examples of errors for which PL/I signals the NAME condition are:

  • The syntax of the returned data is invalid.
  • The name of the data item is invalid or missing. It may not be found in the data list, not be qualified, not be known in the block, be too long, or for any other reason be invalid.
  • A subscript may be missing or invalid in format, or may be out of range.

Use the DATAFIELD built-in function to retrieve the incorrect data field.

ON-Unit Completion

If the ON-unit does not execute a nonlocal GOTO, control returns to the statement immediately following the statement that caused the NAME condition.

OVERFLOW Condition

The OVERFLOW condition name can be specified in an ON, REVERT, or SIGNAL statement or, if you compile using the IBM dialect, in a condition prefix, to designate an ON condition or ON-unit for floating-point overflow conditions.

The exponent of a floating-point value is adjusted, if possible, to represent the value with the specified precision. That is, the precision is maximized and the exponent is minimized. The maximum precisions allowed are:

  • binary floating-point value -- 53
  • decimal floating-point value -- 15

PL/I signals the OVERFLOW condition when the result of an arithmetic operation on a floating-point value exceeds the maximum exponent size allowed by the hardware.

The value resulting from an operation that causes this condition is undefined.

ON-Unit Completion

Control returns to the point of the interruption.

RECORD Condition (IBM Dialect Only)

You can specify the RECORD condition name in an ON, SIGNAL, or REVERT statement to handle errors that happen during execution of READ, WRITE, or REWRITE statements. By default, when a RECORD condition is raised, PL/I displays a message, and raises an ERROR condition.

The format of the RECORD condition name is:

RECORD (file-reference)


file-reference

A reference to the file constant or file variable for which the ON-unit is to be established. If the name of a file variable is specified, the variable must be resolved to the name of a file constant when the on-unit is established, as well as when the condition is signaled.

The ONCODE built-in function returns the specific condition codes associated with the error. See . Values of ONCODE Raised by RECORD lists the RECORD condition codes and their meanings.

. Values of ONCODE Raised by RECORD

ONCODE value

Raised by

20

A SIGNAL RECORD statement was executed.

21

Record variable is too small.
1. In a READ statement -- the record variable is smaller than the record being read; the excess portion of the record will be lost.
2. In a WRITE or REWRITE statement to a file with fixed length records-- The record variable is smaller than the record length; the excess portion of the record will be undefined.

22

Record variable is too large.
1. In a READ statement from a file with fixed-length records --the excess portion of the record variable will be undefined.
2. In a WRITE or REWRITE statement -- Either the record is too large and the excess portion will be lost, or the record is of zero length and the write or rewrite will not be done.

23

Record variable is too small to contain the key.

24

The record that was just read is zero length.

ON-Unit Completion

If the ON-unit does not execute a nonlocal GOTO, control returns to the statement immediately following the statement that caused the RECORD condition.

SIZE Condition (IBM Dialect Only)

You can specify the SIZE condition name in an ON, SIGNAL, or REVERT statement to handle errors that happen high-order (left-most) digits are lost in an assignment statement, intermediate result, or I/O operation. By default, when a SIZE condition is raised, PL/I displays a message and raises an ERROR condition.

The SIZE condition is disabled by default. To enable the SIZE condition, specify it in a condition prefix. If you signal the SIZE condition in a SIGNAL statement and SIZE is not enabled, PL/I displays an error.

The format of the SIZE condition name is:

SIZE



PL/I signals the SIZE condition when the following occurs:

  • The SIZE condition is enabled.
  • PL/I attempts to assign a value to a data item and the value exceeds the default or declared size of the target. This may occur during assignment or conversion.

Note that the size of the target is the default or declared size, not the actual amount of storage occupied by the data item. If you declare a variable as FIXED BINARY(17) and enable the SIZE condition, PL/I raises the condition if a value larger than FIXED BINARY(17) is assigned to the variable directly, by conversion, or as an intermediate value in a calculation.

The SIZE condition is not equivalent to the FIXEDOVERFLOW condition, which is raised when a fixed-point value exceeds the implementation's maximum value.

Checking for size errors incurs overhead both in storage space and execution time. Therefore, it is best to use this condition prefix during program testing but not in production programs.

The ONCODE built-in function returns the specific condition codes associated with the error. See . Values of ONCODE Raised by SIZE lists the SIZE condition codes and their meanings.

. Values of ONCODE Raised by SIZE

ONCODE value

Raised by

340

1. A SIGNAL SIZE statement was executed, or
2. SIZE was raised during assignment to a variable because high-order nonzero digits were lost, or
3. SIZE was raised during an I/O operation because significant digits were lost.

341

SIZE was raised during an I/O operation because high-order nonzero digits were lost.

ON-Unit Completion

If the ON-unit does not execute a nonlocal GOTO, control returns to the statement immediately following the statement that caused the SIZE condition.

STRINGRANGE Condition

The STRINGRANGE condition is raised when a substring reference is beyond the length of the string. The error is detected either by compiled code or by a run-time library routine.

  • By default, Kednos PL/I for UNIX does not signal the STRINGRANGE condition. Use the -k compiler option to enable STRINGRANGE condition signalling.

STRINGRANGE can be abbreviated STRG.

Any one of several subconditions can cause the STRINGRANGE condition to be raised. You can use the ONCODE built-in function to determine which one. See . Values of ONCODE Raised by STRINGRANGE shows the possible values of the ONCODE built-in function for the STRINGRANGE condition.

. Values of ONCODE Raised by STRINGRANGE

ONCODE value

Raised by

PLI$_STRRANGE

SIGNAL STRINGRANGE

PLI$_SUBSTR2

Out-of-range SUBSTR 2nd argument

PLI$_SUBSTR3

Out-of-range SUBSTR 3rd argument

PLI$_BIFSTAPOS

Out-of-range starting position for an INDEX, SEARCH, or VERIFY built-in function

Note that STRINGRANGE is always enabled in RTL code (which is currently used for more complex cases of INDEX, SEARCH, and VERIFY), but in-line checking is only performed if the -k or --check compiler option is used to compile the code in which the condition would be raised.

An example of the use of the STRINGRANGE condition and the ONCODE built-in function follows.

%INCLUDE $PLIDEF;

ON STRINGRANGE BEGIN;

/*

* The THEN clause below will be executed for all

* SUBSTR starting-position range errors. All other

* STRINGRANGE errors will be resignaled. Note that

* SUBSTR is processed in-line, so the code must be

* compiled with /CHECK=BOUNDS for this ON-unit to

* be effective.

*/

IF ONCODE() = PLI$_SUBSTR2

THEN

ELSE

CALL RESIGNAL();

END;



STRINGSIZE Condition (IBM Dialect Only)

The STRINGSIZE condition is raised when you try to assign a bit or character string to a target variable that is not long enough to hold the string. STRINGSIZE is disabled by default and must be enabled using a condition prefix.

If the STRINGSIZE condition is raised and not handled, the string is truncated from the right-hand end so that it will fit in the target variable. A message is displayed and processing continues.

The ONCODE built-in function returns the specific condition codes associated with the error. See . Values of ONCODE Raised by SIZE lists the STRINGSIZE condition codes and their meanings.

. Values of ONCODE Raised by STRINGSIZE

ONCODE value

Raised by

150

SIGNAL STRINGRANGE or assignment error in a bit or character string.

151

Assignment error in a mixed string.

ON-Unit Completion

If the ON-unit does not execute a nonlocal GOTO, control returns to the statement immediately following the statement that caused the STRINGSIZE condition.

SUBSCRIPTRANGE Condition

The SUBSCRIPTRANGE condition is raised in response to out-of-bounds subscripts in references to arrays. The value returned by the ONCODE built-in function for the SUBSCRIPTRANGE condition is PLI$_SUBRANGE or PLI$_SUBRANGEn, where n is the number of the subscript, in the range 1 through 8.

  • By default, Kednos PL/I for UNIX does not signal the SUBSCRIPTRANGE condition. Use the -k compiler option to enable SUBSCRIPTRANGE condition signalling.
STORAGE Condition

The STORAGE condition is raised when an error has been detected during allocation of a controlled variable or a based variable other than to an area. The most common cause is the exhaustion of virtual memory; another cause might be an erroneous attempt to allocate a negative amount of storage.

TRANSMIT Condition (IBM Dialect Only)

You can specify the TRANSMIT condition name in an ON, SIGNAL, or REVERT statement to handle errors that happen during execution of any I/O statement. By default, when a TRANSMIT condition is raised, PL/I displays a message, and raises an ERROR condition. This condition is always enabled.

The format of the TRANSMIT condition name is:

TRANSMIT (file-reference)


file-reference

A reference to the file constant or file variable for which the ON-unit is to be established. If the name of a file variable is specified, the variable must be resolved to the name of a file constant when the on-unit is established, as well as when the condition is signaled.

The TRANSMIT condition is raised at different points in execution of the I/O statement depending on the type of statement.

  • Input -- after transmission of the incorrect record and, when records are blocked, after transmission of each subsequent record in the block.
  • Output -- after transmission and, if records are blocked, after the block is complete.
  • Spanned record update -- on the last segment of a record and not for any subsequent records in the block.
  • For I/O using the EVENT option -- when the WAIT statement for that event is encountered.

The ONCODE built-in function returns the specific condition codes associated with the error. See . Values of ONCODE Raised by RECORD lists the TRANSMIT condition codes and their meanings.

. Values of ONCODE Raised by TRANSMIT

ONCODE value

Raised by

40

A SIGNAL TRANSMIT statement was executed.

41

Uncorrectable output transmission error.

42

Uncorrectable input transmission error.

43

Uncorrectable output transmission error in index.

44

Uncorrectable input transmission error.in index.

45

Uncorrectable output to sequence transmission error.

46

Uncorrectable input from sequence transmission error.

ON-Unit Completion

If the ON-unit does not execute a nonlocal GOTO, processing continues as though no error had occurred. Any other errors in the statement execution, such as RECORD, will be raised.

To avoid unexpected results, if you close the file in the ON-unit, exit from the ON-unit using a nonlocal GOTO so statement execution will not continue.

UNDEFINEDFILE Condition

The UNDEFINEDFILE condition name can be specified in an ON, SIGNAL, or REVERT statement to designate an undefined file condition or ON-unit for a specific file.

The format of the UNDEFINEDFILE condition name is:

file-reference

A reference to a file constant or file variable for which the ON-unit is established.

If the name of a file variable is specified, the variable must be resolved to the name of a file constant when the on-unit is established, as well as when the condition is signaled.

PL/I signals the UNDEFINEDFILE condition when a file cannot be opened. Following are some examples of errors that cause the UNDEFINEDFILE condition:

  • The value specified by the TITLE option is an invalid file specification.
  • The file is opened for input or update and the specified file does not exist.
  • An existing file is accessed with PL/I file description attributes that are inconsistent with the file's actual organization.
  • Any system-detected file error prevents the file from being accessed.

The UNDEFINEDFILE condition lets you establish an ON-unit to provide processing when a file cannot be opened, for example, to provide a default file if no file is specified at run time.

X: PROCEDURE (FILENAME);

DECLARE FILENAME CHARACTER (128) VARYING;

DECLARE INPUT_FILE FILE INPUT;

ON UNDEFINEDFILE (INPUT_FILE)

OPEN FILE (INPUT_FILE)

TITLE ('GENERIC_INPUT');

OPEN FILE (INPUT_FILE) TITLE (FILENAME);



In this example, the procedure X expects a file specification string to be passed as an argument. If no argument is passed, or if the argument is not a valid file specification, the OPEN statement fails. The UNDEFINEDFILE ON-unit provides a default OPEN statement with the file specification GENERIC_INPUT.

An ON-unit established to handle the UNDEFINEDFILE condition can obtain information about the condition by invoking the following built-in functions:

  • The ONFILE built-in function returns the name of the variable defined as FILE that was being processed when the condition was signaled.
  • The ONCODE built-in function returns the specific status value associated with the error.
ON-Unit Completion

The action taken on a normal return from the UNDEFINEDFILE condition depends on whether the file was opened explicitly or implicitly.

If the UNDEFINEDFILE condition was signaled following an explicit OPEN statement for a file, then the normal action following the ON-unit execution is for the program to continue. If the ON-unit does not transfer control elsewhere in the program, control returns to the statement following the OPEN statement that caused the condition to be signaled.

If the UNDEFINEDFILE condition was signaled during an implicit open attempt, the run- time system tests the state of the file. If the file is not open, the ERROR condition is signaled. If the file was opened by the ON-unit, execution of the I/O statement continues.

If an ON-unit receives control when an explicit OPEN results in the UNDEFINEDFILE condition, and the ON-unit does not handle the condition by opening the file or by transferring control elsewhere in the program, control returns to the statement following the OPEN. Then, if an attempt is made to access the file with an I/O statement, the UNDEFINEDFILE condition is signaled again when PL/I attempts the implicit open of the file. This time, PL/I signals the ERROR condition on completion of the ON-unit.

UNDERFLOW Condition

You can specify the UNDERFLOW condition name (which can be abbreviated UFL) in an ON, REVERT, or SIGNAL statement to designate a floating-point underflow condition or ON-unit.

PL/I signals the UNDERFLOW condition when the absolute value of the result of an arithmetic operation on a floating-point value is smaller than the minimum value that can be represented by the hardware.

ON-Unit Completion

On completion of the ON-unit, control is returned to the point of the interrupt. Continued execution is unpredictable.

This condition is signaled by PL/I only in procedures in which the UNDERFLOW option is enabled. The option is enabled when you specify UNDERFLOW in the procedure options.

The value resulting from an operation that causes the UNDERFLOW condition is undefined. (The value would be set to zero only if UNDERFLOW were not specified in the procedure options.)

VAXCONDITION Condition

The VAXCONDITION condition name can be specified in an ON, RESIGNAL, REVERT, or SIGNAL statement. The VAXCONDITION condition name provides a way to signal and handle operating-system or programmer-specified condition values. The format of the VAXCONDITION condition name is:

VAXCONDITION (expression)


expression

An expression yielding a fixed binary value. The expression is evaluated when the ON statement is executed, as well as when the condition is signaled.

The VAXCONDITION condition name is provided specifically for PL/I procedures that interact with operating system routines. For details on using the VAXCONDITION condition name and the meanings of system- and user-defined values that you can specify, see the Kednos PL/I for UNIX User's Manual.

ZERODIVIDE Condition

The ZERODIVIDE condition name can be specified in an ON, REVERT, or SIGNAL statement to designate a divide-by-zero condition or ON-unit.

PL/I signals the ZERODIVIDE condition when the divisor in a division operation has a value of zero. The value resulting from such an operation is undefined.

Default PL/I ON-Unit

PL/I defines a default ON-unit for the procedure that is designated as the main procedure. This is why there must be exactly one procedure with OPTIONS(MAIN) specified in any executable image. This default ON-unit performs the following actions depending on the condition signaled. Note that the severity of the signal is determined by the low three bits of the condition code.

  • If the signal is the ENDPAGE condition, the default PL/I handler executes a PUT PAGE for the file, and then continues the program at the point at which ENDPAGE was signaled. Note that ENDPAGE is ignored by default for SYSPRINT (see See ENDPAGE Condition for more information).
  • If the signal is the ERROR condition and the severity is fatal, the default handler signals the FINISH condition. Then, one of the following occurs:
  • If a FINISH ON-unit is found, it is given a chance to execute. If it executes a nonlocal GOTO or if it signals another condition, program execution continues.
  • If no FINISH ON-unit is found or if a FINISH ON-unit completes execution by handling the condition, then PL/I resignals the condition to the default condition handler. This handler prints a message, displays a traceback, and terminates the program.
  • If the signal is any condition other than ENDPAGE or ERROR with a fatal severity, the default PL/I handler signals the ERROR condition with the severity of the original condition. Then, one of the following occurs:
  • If an ERROR ON-unit is found, it is executed. If it completes execution by handling the condition, the program continues.
  • If an ERROR ON-unit is not found, the default PL/I handler resignals the condition. If this resignal results in return of control to the system, the default condition handler prints a message and a traceback. If the error is a fatal error, the default handler terminates the program; if the error is nonfatal, the program continues.

Using Condition Prefixes (IBM Dialect Only)

Condition prefixes let you enable or disable one or more PL/I conditions for the duration of a single statement. You can attach a condition prefix to any statement except the following: DECLARE, DEFAULT, ENTRY, or a preprocessor statement (any statement beginning with a % sign). For example:

DECLARE SOURCE CHARACTER(5) VARYING,

TARGET FIXED BINARY(31);



(OVERFLOW,NOCONVERSION): TARGET = SOURCE;



Since you disabled the CONVERSION condition, PL/I does not signal it. However, if floating-point overflow occurs, PL/I signals the OVERFLOW condition.

As shown in the example, you can enable a condition by using the condition name, or disable it by using the negated condition name (for example, NOCONVERSION).

Scope of Condition Prefixes

A condition prefix affects only the statement or block to which it is attached. It does not affect procedures or ON-units invoked during execution of the statement or block.

Condition prefixes attached to DO or SELECT statements apply only to the DO or SELECT statement, not to the entire DO or SELECT group.

Condition prefixes attached to compound statements apply only to the statement to which they are attached, not to the statements contained in the compound statement.

Condition prefixes attached to PROCEDURE or BEGIN statements apply to all statements in the block, including the END statement and any other PROCEDURE or BEGIN statements nested inside the block. You can enable or disable a condition for an entire block and all the contained blocks by attaching a condition prefix to the PROCEDURE or BEGIN statement of the outermost block that you want to affect.

Default Status of Conditions

By default, some conditions are enabled unless explicitly disabled, others are disabled unless explicitly enabled, and some cannot be disabled. See . Conditions Enabled by Default , See . Conditions Disabled by Default , and See . Conditions That Cannot be Disabled list the conditions in each of these three categories..

. Conditions Enabled by Default

CONVERSION

FIXEDOVERFLOW

OVERFLOW

UNDERFLOW

ZERODIVIDE



. Conditions Disabled by Default

CHECK

SIZE

STRINGRANGE

STRINGSIZE

SUBSCRIPTRANGE



. Conditions That Cannot be Disabled

AREA

ATTENTION

CONDITION

ENDFILE

ENDPAGE

ERROR

FINISH

KEY

NAME

PENDING

RECORD

TRANSMIT

UNDEFINEDFILE





Note that the optimizer detects and diagnoses some conditions, whether or not you enable or disable them. If the optimizer detects a condition and diagnoses it, the condition is not raised when you execute the program.

Establishing ON-Units

An ON-unit is established for a specific ON condition or conditions following the execution of an ON statement that specifies the condition name(s). For example:

ON ENDFILE (ACCOUNTS) GOTO CLOSE_FILES;



This ON statement defines an ON-unit for an ENDFILE (end-of-file) condition in the file specified by the name ACCOUNTS. The ON-unit consists of a single statement, a GOTO statement.

After an ON-unit is established by an ON statement for a condition, it remains in effect for the activation of the current block and all its dynamically descendant blocks, unless one of the following occurs:

  • Another ON statement is specified for the same condition in a dynamically descendant block. The ON-unit established within the descendant block remains in effect as long as the descendant block is active.
  • A REVERT statement is executed for the specified condition. A REVERT statement nullifies the most recent ON-unit for the specified condition. (See See REVERT Statement ).
  • Another ON statement is specified for the same condition within the current block. Within the same block, an ON statement for a specific condition cancels the previous ON-unit.
  • The block or procedure within which the ON-unit is established terminates. When a block exits, any ON-units it has established are reverted.
  • An ON-unit is established inside the ON-unit:

ON OVERFLOW BEGIN

ON OVERFLOW BEGIN

END;

END;



Contents of an ON-Unit

An ON-unit can consist of a single simple statement, a group of statements in a begin block, or a null statement.

Simple Statements in ON-Units

The following ON statement specifies a single simple statement in the ON-unit:

ON ERROR GOTO WRITE_ERROR_MESSAGE;



This ON statement specifies a GOTO statement that transfers control to the label WRITE_ERROR_MESSAGE in the event of the ERROR condition.

The specified statement must not be labeled and must not be any of the following:

DECLARE

FORMAT

RETURN

DO

IF

SELECT

END

ON



ENTRY

PROCEDURE



Begin Blocks in ON-Units

An ON-unit can also consist of a sequence of statements in a begin block. For example:

ON ENDFILE (SYSIN) BEGIN;

CLOSE FILE (TEMP);

CALL PRINT_STATISTICS(TEMP);

END;



This ON-unit consists of CLOSE and CALL statements that request special processing when the end-of-file condition occurs during reading of the default system input file, SYSIN.

If a BEGIN statement is specified for the ON-unit, the BEGIN statement must not be labeled. The begin block can contain any statement except a RETURN statement.

Null Statements in ON-Units

A null statement specified for an ON-unit indicates that no processing is to occur when the condition occurs. Program execution continues as if the condition had been handled. For example:

ON ENDPAGE(SYSPRINT);



This ON-unit causes PL/I to continue output on a terminal regardless of the number of lines that have been output.

Search Path for ON-Units

When a condition is signaled during the execution of a PL/I procedure, PL/I searches for an ON-unit to respond to the condition. PL/I first searches the current block, that is, the block in which the condition occurred. If no ON-unit exists in this block for the specific condition, it searches the block that activated the current block (its parent), and then the block that activated that block, and so on.

PL/I executes the first ON-unit it finds, if any, that can handle the specified condition. If no ON-unit for the specific condition is found, default PL/I condition handling is performed.

Completion of ON-Units

The ON-unit can complete its execution in any of the following ways:

  • If the ON-unit executes a nonlocal GOTO statement, or if it invokes a subroutine or function that executes a nonlocal GOTO, program control is transferred to that statement and continues sequentially at that point in the program.
  • If the ON-unit executes a STOP statement, then the FINISH condition is signaled. If no FINISH ON-unit exists, the program is terminated.
  • An ON-unit can use the RESIGNAL built-in subroutine to request that PL/I continue to search for an ON-unit to handle a specific condition.
  • When any ON-unit (except for ERROR or FINISH) completes normally, control returns either to the statement that caused the condition or to the statement immediately following the statement that caused the condition.

Descriptions of each ON condition in this manual indicate the action that PL/I takes on completion of an ON-unit associated with the condition.



Input and Output

PL/I provides two distinct types of I/O processing, each of which handles input and output data in a different manner, and each of which has a unique set of I/O statements. These types of I/O are:

When a file is read or written with stream I/O, the data is treated as if it formed a continuous stream. Individual fields of data within the stream are delimited by commas, spaces, and record boundaries. A stream I/O statement specifies one or more fields to be processed in a single operation.

When a file is read or written with record I/O, however, a single record is processed upon the execution of an I/O statement.

This chapter describes I/O concepts that apply to both stream and record I/O.

Opening and Closing Files

This section discusses the following:

File Declarations

A file declaration specifies an identifier, the FILE attribute, and one or more file description attributes that describe the type of I/O operation that will be used to process the file.

A file is denoted in an I/O statement by the FILE option as follows:

FILE(file-reference)


file-reference

The name specified in the file declaration. For example:

DECLARE INFILE FILE SEQUENTIAL INPUT;

OPEN FILE(INFILE);



Here, INFILE is the name of a file constant. A file constant is an identifier declared with the FILE attribute and without the VARIABLE attribute. Except for the default file constants SYSIN and SYSPRINT, all files must be declared before they can be opened and used.

By default, all file constants have the EXTERNAL attribute. Any external procedure that declares the identifier with the FILE attribute and without the INTERNAL attribute can access the same file constant and, therefore, the same physical file.

File Variables

In PL/I, you can also refer to files using file variables and file-valued functions. For example:

DECLARE ANYFILE FILE VARIABLE;



ANYFILE = INFILE;

OPEN FILE(ANYFILE);



If INFILE is declared as in the previous example, the OPEN statement opens the file INFILE.

A file variable can also be given a value by receiving a file constant or variable passed as an argument, or by receiving a file constant or variable as the value of a function. For example:

GETFILE: PROCEDURE (PRINTFILE);

DECLARE PRINTFILE FILE VARIABLE;



This file variable is given a value when the procedure GETFILE is invoked.

Opening a File

A file is opened explicitly by an OPEN statement or implicitly by a READ, WRITE, REWRITE, DELETE, PUT, or GET statement issued for a file that is not open.

The OPEN statement explicitly opens one or more PL/I files with a specified set of attributes that describe the file and the method for accessing it. The format of the OPEN statement is as follows:

OPEN FILE(file-reference) [file-attributes-and-options ...]

[,(file-reference) [file-attributes-and-options ...]] ...;


FILE(file-reference)

A reference to the file to be opened. If the file is already open, the OPEN statement has no effect. Therefore, if you want to change any attributes of an open file, you should first close it, and then reopen it with the new attributes.

file-attributes-and-options

The attributes and options of the file. The attributes specified are merged with the permanent attributes of the file specified in its declaration, if any. Then, default rules are applied to the union of these sets of attributes to complete the set of attributes in effect while the file is open.

The attributes you can specify with the OPEN statement are as follows:

BUFFERED (ibm dialect only)

PRINT

DIRECT

RECORD

ENVIRONMENT(option,...) (dec and ansi dialects only)

SEQUENTIAL

INPUT

STREAM

KEYED

UNBUFFERED (ibm dialect only)

OUTPUT

UPDATE

The file attributes are described in See , See Declarations .

The OPEN options are described in See OPEN Statement Options .

Examples

DECLARE INFILE FILE,

STATE_FILE FILE KEYED;



OPEN FILE (INFILE),

FILE (STATE_FILE) UPDATE;

CLOSE FILE (STATE_FILE);

OPEN FILE (STATE_FILE) INPUT SEQUENTIAL;



The DECLARE and OPEN statements for INFILE do not specify any file description attributes; PL/I applies the default attributes STREAM and INPUT. If any statement other than GET is used to process this file, the ERROR condition is signaled.

The file STATE_FILE is declared with the KEYED attribute. With the first OPEN statement that specifies this file, it is given the UPDATE attribute and opened for updating; that is, READ, WRITE, REWRITE, and DELETE statements can be used to operate on records in the file. The KEYED attribute implies the SEQUENTIAL attribute; thus, records in the file can be accessed sequentially or by key.

The second OPEN statement specifies the INPUT and SEQUENTIAL attributes. During this opening, the file can be accessed by sequential and keyed READ statements, but REWRITE, DELETE, and WRITE statements cannot be used.

DECLARE COPYFILE FILE OUTPUT;

OPEN FILE(COPYFILE) TITLE('COPYFILE.DAT');



The file specified by the file constant COPYFILE is opened for output. Each time this program is run, it creates a new version of the file COPYFILE.DAT.

OPEN Statement Options

The options that you can use in the OPEN statement are:

LINESIZE Option

The LINESIZE option specifies the maximum number of characters that can be output on a single line when the PUT statement writes data to a file with the STREAM and OUTPUT attributes. The format of the LINESIZE option is:

LINESIZE(expression)


expression

A fixed-point binary expression in the range 1 to 32767, giving the number of characters per line. If the expression is outside this range, a run-time error occurs.

The value specified in the LINESIZE option is used as the output line length for all subsequent output operations on the stream file, and it overrides the system default line size.

In the ibm dialect, if RECSIZE was specified in the declaration of a stream file, it is used as the output line length. However, if LINESIZE is specified in the OPEN statement, it overrides the previous RECSIZE specification.

The default line size is as follows:

  • If the output is to a physical record-oriented device, such as a line printer or terminal, the default line size is determined by the device.
  • If the output is to the default file, SYSPRINT, the default line size is 80.
  • If the output is to a print file, the default line size is 132.
  • If the output is to a nonrecord device (magnetic tape), the default line size is 510.

The line size is used by output operations to determine whether output will be placed on the current line or on the next line.

PAGESIZE Option

The PAGESIZE option is used in the OPEN statement to specify the maximum number of lines that can be written to a print file without signaling the ENDPAGE condition. The format of the PAGESIZE option is:

PAGESIZE(expression)

expression

A fixed-point binary expression in the range 1 through 32767, giving the number of lines per page. If the expression is outside this range, a run-time error occurs.

The value specified in the PAGESIZE option is used as the output page length for all subsequent output operations on the print file, and overrides the system default page size. The default page size is the following:

  • If the environment variable SYS$LP_LINES is defined, the default page size is the numeric value of SYS$LP_LINES minus 6.
  • If SYS$LP_LINES is not defined, or if its value is less than 30 or greater than 99, or if its value is not numeric, the default page size is 60.

During output operations, the ENDPAGE condition is signaled the first time that the specified page size is exceeded.

The PAGESIZE option is valid only for print files.

TITLE Option

The TITLE option is specified in an OPEN statement to designate the external file specification of the file to be associated with the PL/I file. The TITLE option is specified only on the OPEN statement for a file. Its format is as follows:

TITLE(expression)


expression

A character-string expression which represents an external file specification for the file.

For details on how the file specification is determined see the See Determining the File Specification .
